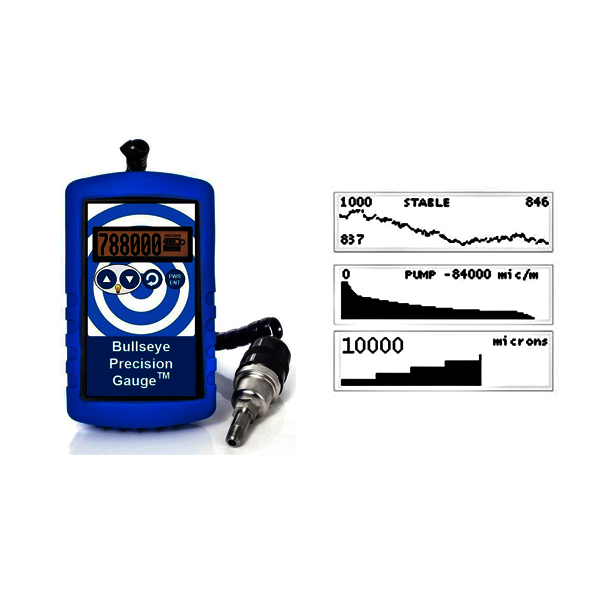

Bullseye Precision Digital Vacuum Gauge
The Bullseye Precision Vacuum Gauge is a rugged and portable digital vacuum gauge.
Its digital display features visual graphing, vacuum analytics, 11 different numerical units or graphics display for quick determination of vacuum level.
You can put it virtual anywhere with its integrated kickstand or strong magnet.
Ideal for service engineers in the field or on the road, testing vacuum performance of pumping systems, checking vacuum levels or pinpointing problems in vacuum lines.
Display has backlit on/off selection to enhance visibility if needed.
Easy to set up with only three buttons; see program select menu.
With a choice of 11 different vacuum units it is one of the most versatile vacuum gauges available
Specifications | |
Range | 1-800,000 microns (1.3 x 10-3 – 1066 mbar) |
Units | Torr, millitor, microns, inches of Hg, mm Hg, PSI Inches of water, mbar, bar, Pa, kPa |
Sensor | Thermocouple |
Vacuum connection | 1/8″ NPT male |
Accuracy 1-2000 microns | 17% |
Accuracy 2001-800,000 microns | 30% |
Display | Digital, LCD |
Cable length to vacuum sensor | 2.1m |
Power | 4 x AA Alkaline |
Battery life | Up to 70 hrs |
Dimensions | 158 x 95 x 33mm |
Weight | 0.9kg |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
92094-10 | Bullseye Precision Vacuum Gauge, 1/8″ NPT NPT connection |
Each | € 1.310,50 | ||
92094-16 | Bullseye Precision Vacuum Gauge, NW/KF-16 connection |
Each | € 1.056,00 | ||
92094-25 | Bullseye Precision Vacuum Gauge, NW/KF-25 connection |
Each | € 1.063,40 | ||
92094-40 | Bullseye Precision Vacuum Gauge, NW/KF-40 connection |
Each | € 1.085,50 | ||
92094-50 | Bullseye Precision Vacuum Gauge, NW/KF-50 connection |
Each | € 1.091,40 |

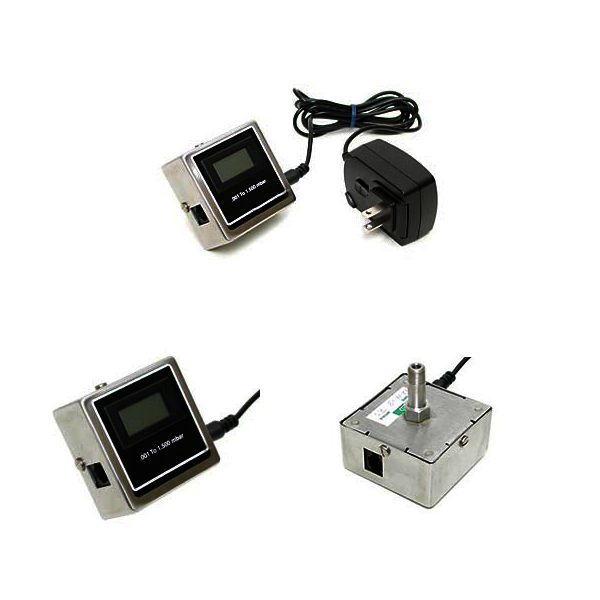

P-100 Pirani Digital Gauge with Integral Sensor and Display
This compact vacuum measuring instrument offers the precision and high resolution of digital electronics with display and measuring device all in one small box. This extremely rugged Pirani Vacuum Gauge is constructed with a solid, noble, inert metal that maintains its calibration over long periods. The vacuum connection on the P-100 Compact Integral Sensor Pirani Gauge is 1/8″ NPT male thread and it is also available with NW/KF adapters for easy connection to existing vacuum system. Due to its small size, it can be easily integrated in custom vacuum systems. |
![]() |
Gauge with NW/KF 16 flange |
![]() |
Gauge with NW/KF 25 flange |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
92095-10 | P-100 Pirani Gauge with integral sensor and display, 1/8″ NPT thread |
Each | € 496,30 | ||
92095-16 | P-100 Pirani Gauge with integral sensor and display with NW/KF-16 flange |
Each | € 582,70 | ||
92095-25 | P-100 Pirani Gauge with integral sensor and display with NW/KF-25 flange |
Each | € 582,70 | ||
92095-40 | P-100 Pirani Gauge with integral sensor and display with NW/KF-40 flange |
Each | € 580,60 | ||
92095-50 | P-100 Pirani Gauge with integral sensor and display with NW/KF-50 flange |
Each | € 608,10 |

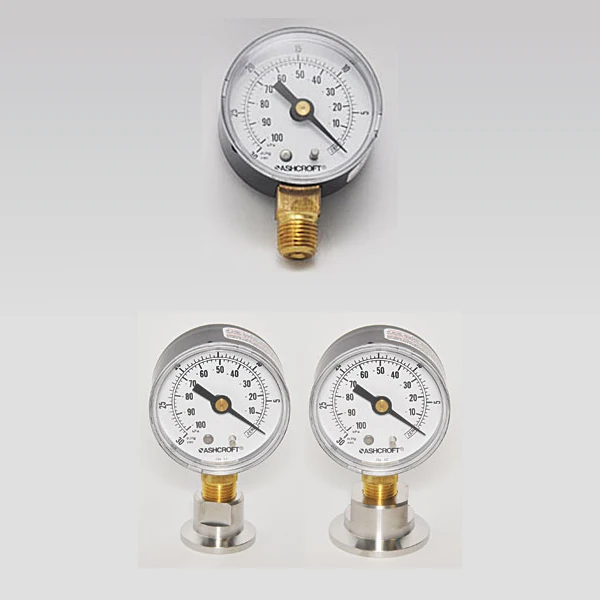

Quick Vacuum Test Gauge
The quick vacuum test gauge allows for a an easy and quick way to test the vacuum level of vacuum pumps, vacuum lines or vacuum chambers.
The gauge does not require any electrical connections and can be used in remote locations.
The gauge has a dual scale reading both 0-30 inches and 0-100kPa. Easy to read 2″ (51mm) dial with steel housing and polycarbonate lens.
This quick and cost-effective, dial type test vacuum gauge has an 1/4″ male NPT thread connection and is also available mounted on NW/KF 16, NW/KF 25, NW/KF-40 and NW/KF-50 vacuum flanges.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
92489-10 | Quick Vacuum Test Gauge, height is 73mm |
Each | € 67,90 | ||
92489-16 | NW/KF 16 Quick Vacuum Test Gauge, height is 88mm |
Each | € 115,20 | ||
92489-25 | NW/KF 25 Quick Vacuum Test Gauge, height is 88mm |
Each | € 118,30 | ||
92489-40 | NW/KF 40 Quick Vacuum Test Gauge, height is 95mm |
Each | € 126,40 | ||
92489-50 | NW/KF 50 Quick Vacuum Test Gauge, height is 95mm |
Each | € 136,80 |
