Product

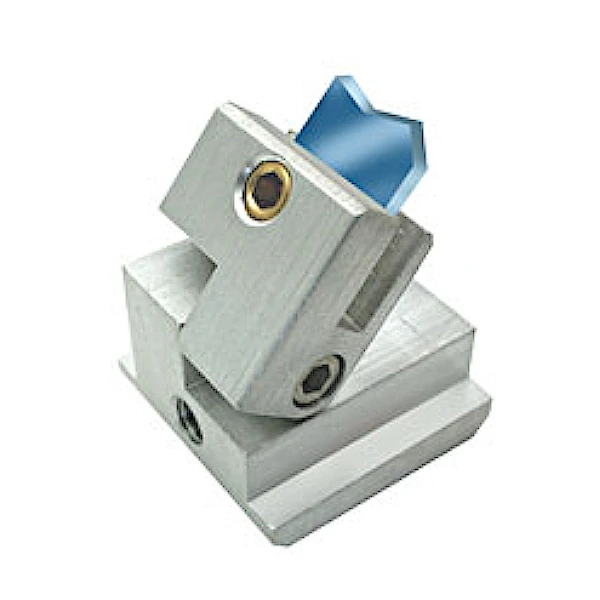

Adjustable Profile Holder
Designed to adjust the exact angle for cross sections made from wafers.
Art.
no. 15356 and 15356-4

Description

Adjustable Profile Holder

Designed to adjust the exact angle for cross sections made from wafers.
Maximum specimen thickness 3.2mm (1/8″).

Material: machined aluminum with brass and stainless steel Allen set screw.
Allen wrench included.

Screws used are 4-40 x 1/2 socket head cap screw, stainless steel and 10-32 x 3/16 set screw, brass.

Order

Product
Description
Order
Product

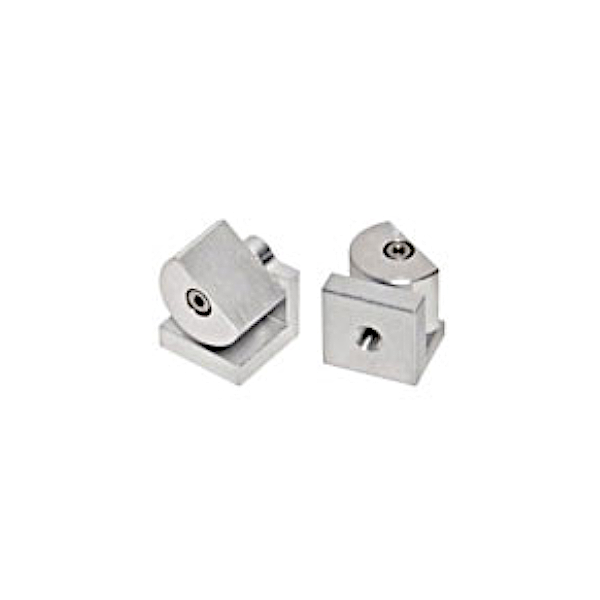

Compact Variable Tilt Mount
Compact Variable Tilt Specimen Mount allows for easy mounting and tilting small samples from 0 – 90 and SEM investigation with small working distances.
Art.
no. 15439

Description

Compact Variable Tilt Mount

This Compact Variable Tilt Specimen Mount allows for easy mounting and tilting small samples from 0 – 90 and SEM investigation with small working distances.
Markings for 30 , 45 , 70 and 90 .

Table size is 11 x 14mm (0.46″ x 0.55″).
Overall size is 14 x 14.3 x 14.5mm (0.55″ x 0.56″ x 0.57″).
Made of aluminum with stainless steel screw.
Allen wrench included.

Screw used is M2 x 12mm, socket cap head screw, stainless steel.

Order

Product
Description
Order
Product

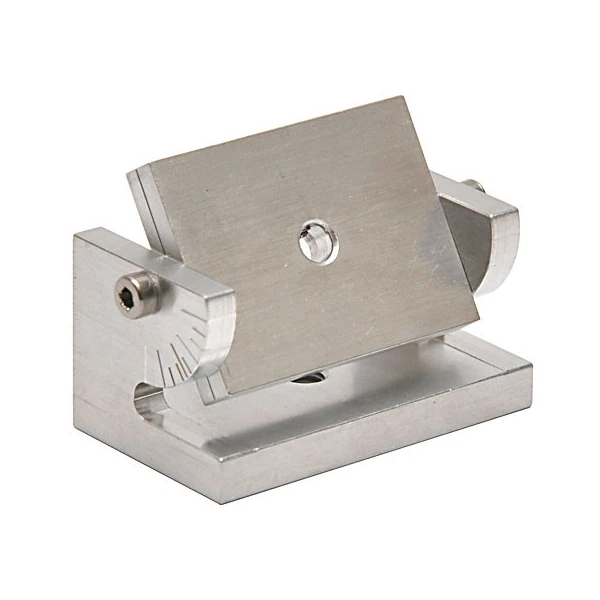

Variable Tilt Specimen Holder for Pin Mounts
Accommodates specimens pin stubs up to 18mm (.7″) diameter or with a size up to 26 x 20mm.
Art.
no. 15450-4

Description

Variable Tilt Specimen Holder for Pin Mounts

Accommodates specimens pin stubs up to 18mm (.7″) diameter or with a size up to 26 x 20mm.
Tilts 0 – 90 with 10 markings.

Additional markings for 30 , 45 , and 70 .
Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H.
Made of aluminum with stainless steel screws. Allen wrench included.

Screws used are M2 x 6mm, socket cap head screw, stainless steel and M2 x 3mm, set screw, stainless steel.

Order

Product
Description
Order
Product

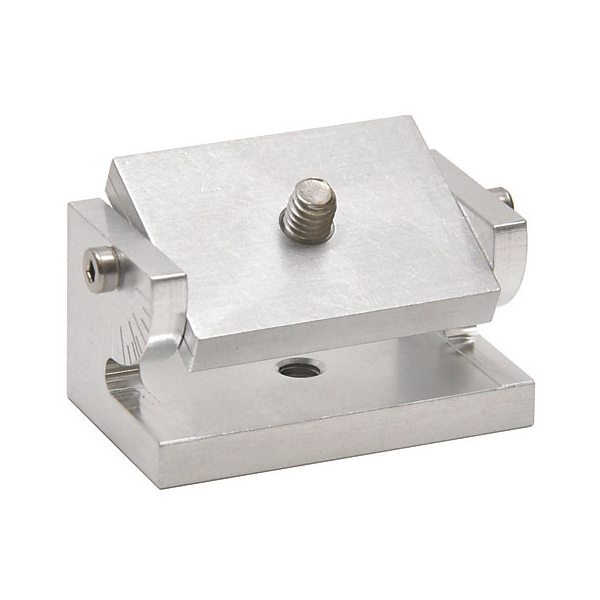

Variable Tilt Specimen Holder for Hitachi M4 Mounts
Accommodates Hitachi 15mm cylinder mount with M4 thread. Tilts 0 – 90 with 10 markings.
Art.
no. 15451-4

Description

Variable Tilt Specimen Holder for Hitachi M4 Mounts

Accommodates Hitachi 15mm cylinder mount with M4 thread.
Tilts 0 – 90 with 10 markings.
Additional markings for 30 , 45 , and 70 .
Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H.

Made of aluminum with stainless steel screws.
Allen wrench included.

Screws used are M2 x 6mm, socket head cap screw, stainless steel and M2 x 3mm, set screw, stainless steel.

Order

Product
Description
Order
Product

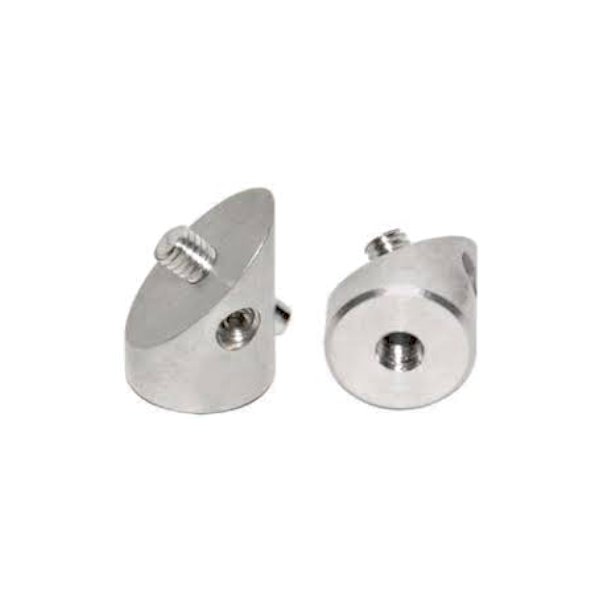

45 Pre-Tilt Holder for Hitachi Mounts and Pin Stubs
Art.
no. 15428-45

Description

45 Pre-Tilt Holder for Hitachi Mounts and Pin Stubs

Accepts 15mm Hitachi mounts on pin with M4 thread.

Pin can be rotated and fixed for optimum position.
When the pin with M4 thread is removed, this holder also accepts a standard 12.7mm (1/2″) pin stub with 3.2mm (1/8″) pin. 45 gives higher SE signal w/o tilting the specimen stage.

Material: machined aluminum with stainless steel Allen set screw.
Allen wrench included.

Screw used is M3 x 3mm set screw, stainless steel.
