Product

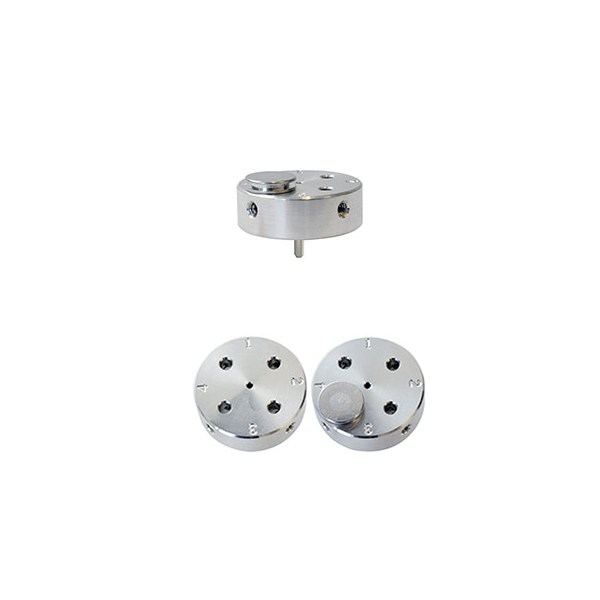

Multi-Pin Specimen Mount
Accommodates up to four standard 12.7mm (1/2″) pin stubs, with 3.2mm (1/8″) diameter pin.
Art.
no. 15310

Description

Multi-Pin Specimen Mount

Accommodates up to four standard 12.7mm (1/2″) pin stubs, with 3.2mm (1/8″) diameter pin.

Material: machined aluminum with stainless steel allen set screws.
Allen wrench included.

Dimentions are 31.5 x 10.7mm (1.24″ x 0.42″) w/o pin.
Standard 3.2mm (1/8″) pin with a length of 9.5mm (3/8″).

Screw used is 6-32 x 1/8 Hex Set, SS

Order

Product
Description
Order
Product

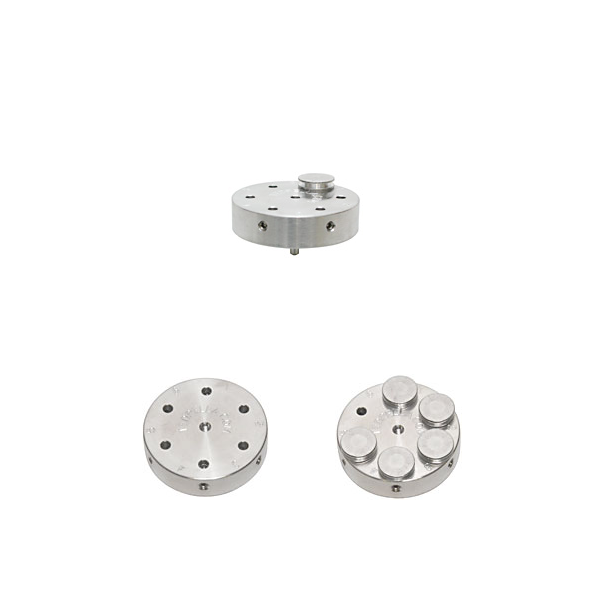

Multi Holder for 6 Pin Stubs
Art.
no. 15310-6

Description

Multi Holder for 6 Pin Stubs

Accommodates up to six standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin on numbered positions.
Can hold up to three 25.4mm (1″) pin stubs.

Material: machined aluminum with stainless steel allen set screws.
Allen wrench included.

Holder size is 42 x 10.7mm ( 1.65″ x 0.42″) height w/o pin.
Multi Holder for 6 Pin Stubs Multi Holder for 6 Pin Stubs

Screw used is 6-32 x 1/8 Hex Set, SS

Order

Product
Description
Order
Product

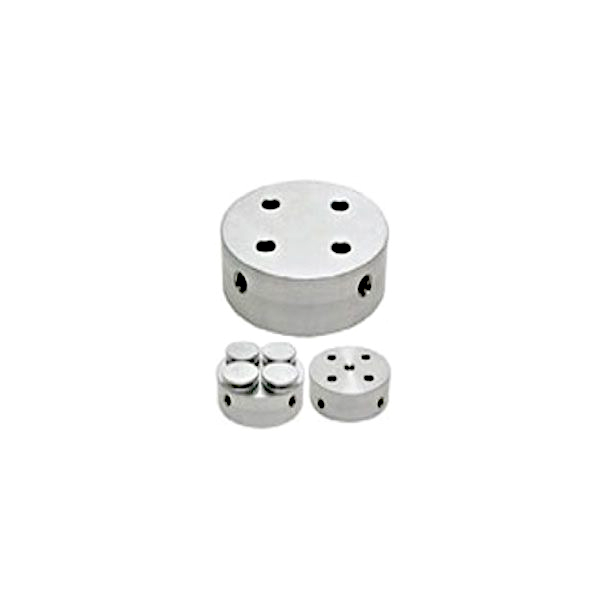

Multi Holder for 4 Pin Stubs
Art.
no. 15310-4

Description

Multi Holder for 4 Pin Stubs

Accommodates up to four standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8) pin.
Made of aluminum with stainless steel set screws. Allen wrench included.

Holder size is 31.8 x 11.25mm.
Screw used is 6-32 x 1/8 hex set screw, stainless steel.

Order

Product
Description
Order
Product

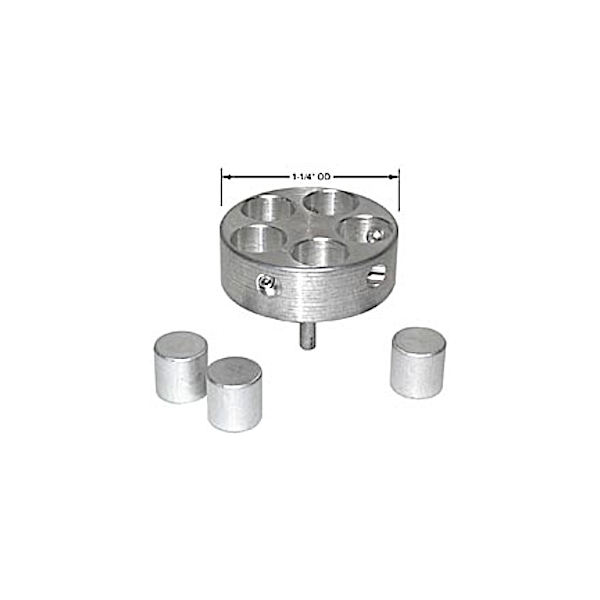

Multi-Unit Specimen Mount
Holds five 9.5mm specimen mounts.
Art.
no. 15315

Description

Multi-Unit Specimen Mount

Holds five 9.5mm specimen mounts.

Material: machined aluminum with stainless steel allen set screws.
Allen wrench included. Holder size is 31.5 x 11.5mm

Screw used is 6-32 x 1/8, Hex Set, SS

Order

Product
Description
Order
Product

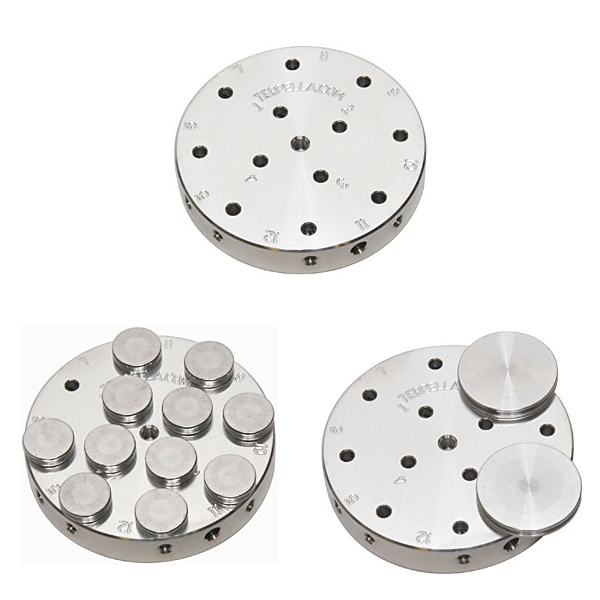

Multi Holder for 12 Pin Stubs
Art.
no. 15417

Description

Multi Holder for 12 Pin Stubs

Accommodates up to twelve standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8) pin.
Can hold up to four 25.4mm (1″) pin stubs.

Made of aluminum with stainless steel set screws.
Allen wrench included.

Holder size is 62 x 10.7mm ( 2.44″ x 0.42″).

Order

Product
Description
Order
Product

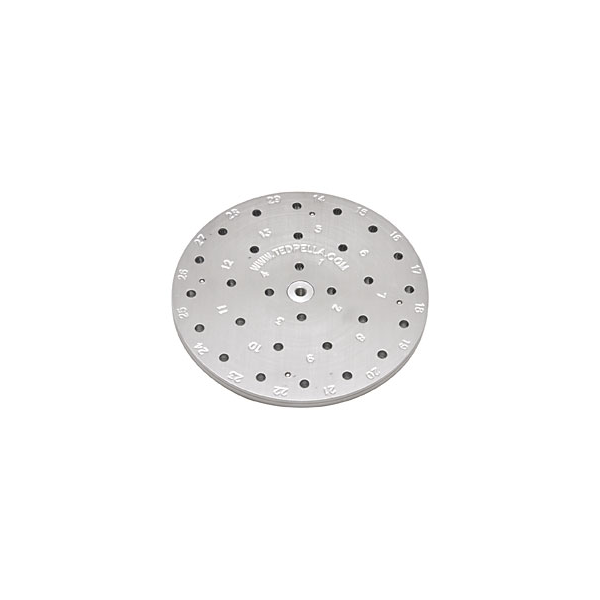

Multi Holder for 29 Pin Stubs
Art.
no. 15418

Description

Multi Holder for 29 Pin Stubs

Accommodates up to 29 standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8) pin.
Made of aluminum with 302 type stainless steel springs to hold the pin stubs.

Holder size is 90 x 5mm ( 3.5″ x 0.2″).

Screw used is 2-56 x 3/16 flat head screw, stainless steel.

Order

Product
Description
Order
Product

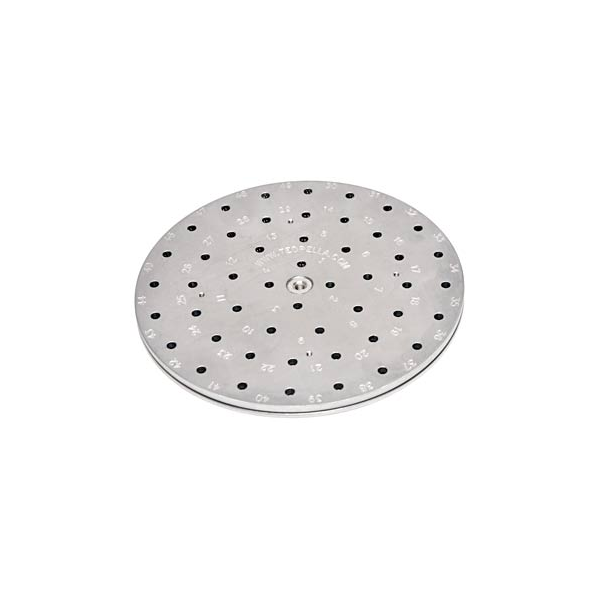

Multi Holder for 49 Pin Stubs
Art.
no. 15419

Description

Multi Holder for 49 Pin Stubs

Accommodates up to 49 standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8) pin.

Made of aluminum with 302 type stainless steel springs to hold the pin stubs.
Holder size is 117 x 5mm ( 4.6″ x 0.2″).

Screw used is 2-56 x 3/16 flat head screw, stainless steel.
