Micro Tools – Steel Tips
[elementor-template id=”186167″]
Micro-Tools with Interchangeable Stainless Steel Tips
All the Micro-Tools with stainless steel tips are forged from 304 grade stainless steel, followed by precision grinding, lapping and polishing steps to create the ultimate in precision manipulation tools.
The stainless steel Micro-Tools withstand corrosion better than tool steels are more suitable for moist or wet environments encountered in pharmaceutical, medical, biological and biochemistry applications.
The Micro-Tools with stainless steel tips (and No. 32 Micro Hook which is made of tool steel/gold plated) are mounted in stainless steel tool cones.
Stainless steel tools are not as hard as the Micro-Tools made from hardened tool steels.
All Micro-Tools fit both the standard aluminum and the stainless steel Micro-Tool handle (sold separately).
Available Tips
| Shank Size | |||||||
|---|---|---|---|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.025mm | 0.12mm | 0.25mm | 0.50mm | 1mm |
| 1 |  |
Micro-Needle, Long | 13601A | 13601 | 13601B | 13601C | 13601D |
| 2 |  |
Micro-Engraver, triangular | —– | 13602B | 13602C | 13602 | 13602D |
| 3 |  |
Micro-Chisel | —– | 13603B | 13603C | 13603 | 13603D |
| 4 |  |
Micro-Spade | —– | 13604B | 13604C | 13604 | 13604D |
| 5 |  |
Micro-Fork | —– | —– | 13605 | 13605A | —– |
| 6 |  |
Micro-Mirror, forward, Stainless Steel | —– | —– | —– | 13606 | —– |
| 7 |  |
Micro-Ruler, 10mm, 0.1mm div. | —– | —– | —– | 13607 | —– |
| 8 |  |
Micro-Knife, 20° | —– | 13608B | 13608C | 13608 | 13608D |
| 9 |  |
Micro-Knife, 45° | —– | 13609B | 13609C | 13609 | 13609D |
| 10 |  |
Micro-Mirror, forward, Stainless Steel | —– | —– | —– | 13630 | —– |
| 11 |  |
Micro-Prober, 90° | —– | —– | 13633 | 13633A | —– |
| 12 |  |
Micro-Prober, 45° | —– | —– | 13612A | 13612 | —– |
| 13 |  |
Micro-Engraver, oval | 13611A | 13611B | 13611C | 13611 | 13611D |
| 14 |  |
Micro-Brush, single natural fiber | —– | —– | —– | 13614 | —– |
| 15 |  |
Micro-Diamond Scribe, 60° | —– | —– | 13615A | 13615 | —– |
| 16 |  |
Micro-Spatula, flexible, Stainless Steel | —– | —– | —– | 13616 | —– |
| 17 |  |
Micro-Manipulator, A-type | —– | —– | —– | 13617 | —– |
| 18 |  |
Micro-Hook, 90° | —– | —– | 13618 | 13619 | —– |
| 19 |  |
Micro-Burnisher, glass sphere | —– | —– | —– | 13637 | —– |
| 20 |  |
Micro-Hook, 180° | —– | —– | 13620A | 13620 | —– |
| 21 |  |
Micro-Scraper, triangular | —– | 13613B | 13613C | 13613 | 13613D |
| 22 |  |
Micro-Saw | —– | —– | —– | 13622 | —– |
| 23M |  |
Micro-Scale, 5mm, 0.1mm div., Stainless Steel | —– | —– | —– | 13629 | —– |
| 23I | Micro-Scale, 0.2″, 0.005″ div., Stainless Steel | —– | —– | —– | 13638 | —– | |
| 24 | |
Micro-Needle, short | 13624A | 13624 | 13624B | 13624C | 13624D |
| 25 |  |
Ultra Micro-Needle, straight, 5 µm radius tip, Tungsten | —– | 13625 | 13625A | 13625B | —– |
| 26 |  |
Ultra Micro-Needle, 30°, 5 µm radius tip, Tungsten | —– | 13626 | 13626A | 13626B | —– |
| 27 |  |
Ultra Micro-Needle, 90°, 5 µm radius tip, Tungsten | —– | 13627 | 13627A | 13627B | —– |
| 28 |  |
Micro-Carbide Scribe, 5 µm radius tip | —– | 13628A | 13628B | 13628C | —– |
| 29 |  |
Micro-Diamond File, round | —– | —– | 13639A | 13639 | —– |
| 30 |  |
Micro-Diamond File, triangular, 1mm edge to edge | —– | —– | —– | 13632 | —– |
| 31 |  |
Micro-Loop, 2mm dia | —– | —– | —– | 13631 | —– |
Loading…
Product
Description
Order
Product
Micro-Tools Handles & Case
Handles and Storage Case
no. 13600 to 13640
Description
Available Handles and Storage Case:
Micro-Tool Handle, 120mm light weight, anodized aluminum or Stainless Steel
Micro-Tool hardwood storage case for 8 tips and handle
Order
Product
Description
Order
Product
Micro-Tools with Interchangeable Hardened Tool Steel Tips
These are the original Micro-Tools made from first grade hardened tool steel
no. 13601A to 13637
Description
These are the original Micro-Tools made from first grade hardened tool steel (unless otherwise noted) manufactured to precise and durable tips.
Tips are precision ground, lapped and polished with the close tolerances needed for microscopy scale applications.
Available in various configurations and shank sizes 0.025, 0.120, 0.250, 0.50 and 1mm for select tips.
The Micro-Tool tips are mounted in anodized tool cones.
All Micro-Tools fit the Micro-Tools handle (sold separately).
Threads are 8-32.
Order
Product
Description
Order
Product
Micro-Tools with Interchangeable Stainless Steel Tips
Micro-Tools with interchangeable tips are available in hardened tool steel, stainless steel, and carbide
no. 13671 to 13696
Description
Micro-Tools with interchangeable tips are available in hardened tool steel, stainless steel, and carbide for the cutting tools. Dedicated precision handles for each type of the Micro-Tools are available.
The tool handles have a practical hexagonal shape to prevent rolling of a flat surface. Micro-Tools are available in 32 different tip configurations mounted in an interchangeable tool base.
Many Micro-Tools with interchangeable tips are also available with shank sizes ranging from 0.025 to 1.0mm (0.001″ to 0.040″). Applications for these precision Micro-Tools extend to microscopy, specimen preparation and manipulation, micro-biology, micro-electronics, forensics and spectroscopy. All tools are especially useful for precision tasks involving probing, manipulating, marking, cutting, assembling and separating on a microscopic level.
Based on the design and craftsmanship used to manufacture the Micro-Tools there are also Small Precision Tools available with integrated handles and a fixed shank diameter (most 0.8mm).
The small precision tools mostly come in sets and deliver excellent value for less demanding applications.
Order
Product
Description
Order
Product

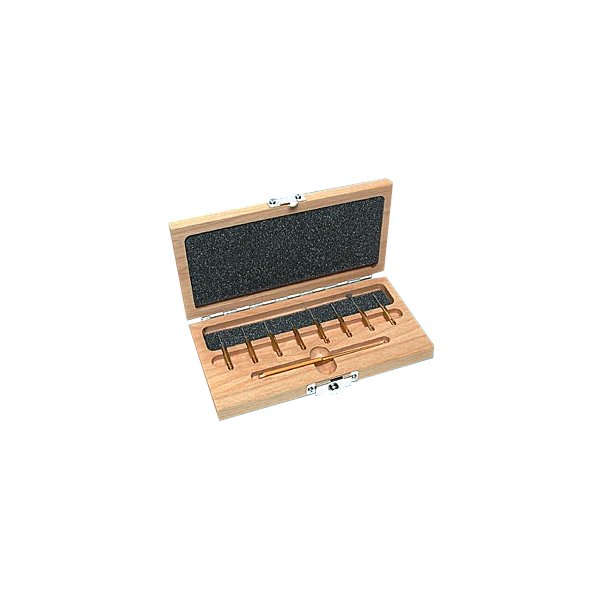

Microscopist Tool Set
Handle with eight replaceable threaded tips and a hardwood storage case.
no. 13610
Description
Micro-Tool Standard Sets with Hardened Tool Steel Tips
The precision Micro-Tools with hardened tool steel are also available in standard sets for different applications, safely stored in a convenient hardwood case.
The Micro-Tools in the standard sets all have the 0.50mm (0.020″) shank size.
Each of the four available sets in the hardwood case includes the anodized aluminum handle and eight tips:
| Included Tips | Shank Size | ||
|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.50mm |
| 1 |  |
Micro-Needle, Long | 13601 |
| 3 |  |
Micro-Chisel | 13603 |
| 8 |  |
Micro-Knife, 20 | 13608 |
| 15 |  |
Micro-Diamond Scribe, 60 | 13615 |
| 16 |  |
Micro-Spatula, flexible, Stainless Steel | 13616 |
| 18 |  |
Micro-Hook, 90 | 13618 |
| 23M |  |
Micro-Scale, 5mm, 0.1mm divisions, Stainless Steel | 13623 |
| 25 |  |
Ultra Micro-Needle, straight, 5 m radius tip, Tungsten | 13625 |
Order
Product
Description
Order
Product

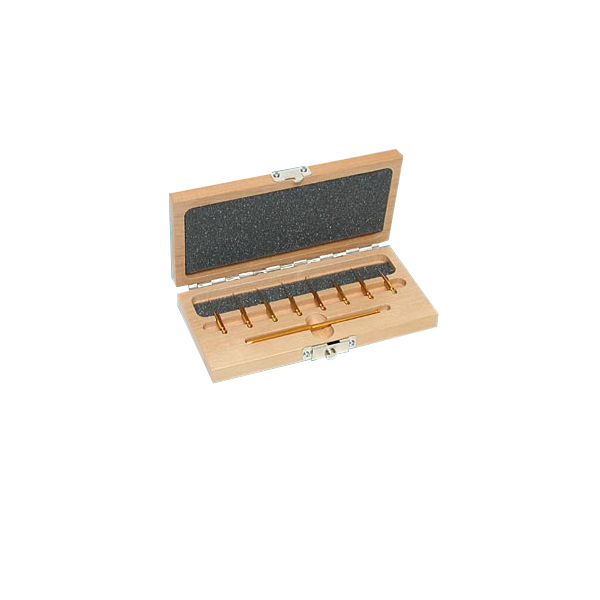

Micro-Needle Probe Tool Set
Handle with eight replaceable threaded tips and a hardwood storage case.
no. 54458
Description
Micro-Tool Standard Sets with Hardened Tool Steel Tips
The precision Micro-Tools with hardened tool steel are also available in standard sets for different applications, safely stored in a convenient hardwood case.
The Micro-Tools in the standard sets all have the 0.50mm (0.020″) shank size.
Each of the four available sets in the hardwood case includes the anodized aluminum handle and eight tips:
| Included Tips | Shank Size | ||||||
|---|---|---|---|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.50mm | ||||
| 1 | |
Micro-Needle, Long | 13601 | ||||
| 11 |  |
Micro-Prober, 90 degrees | 13603 | ||||
| 12 |  |
Micro-Prober, 45 degrees | 13608 | ||||
| 15 | |
Micro-Diamond Scribe, 60 deg | 13615 | ||||
| 18 | |
Micro-Hook, 90 degrees | 13616 | ||||
| 20 |  |
Micro-Hook, 180 degrees | 13618 | ||||
| 24 |  |
Micro-Needle, short | 13623 | ||||
| 25 | |
Ultra Micro-Needle, straight, 5 m radius tip, Tungsten | 13625 | ||||
Order
Product
Description
Order
Product

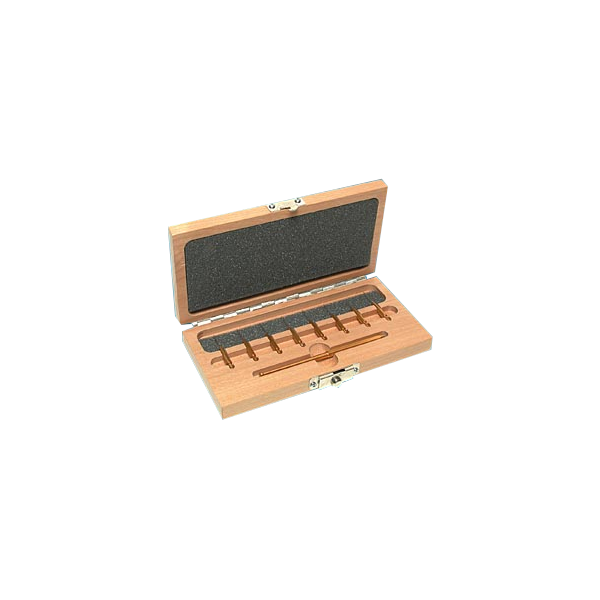

Micro-Cutting Tool Set
Handle with eight replaceable threaded tips and a hardwood storage case.
no. 54457
Description
Micro-Tool Standard Sets with Hardened Tool Steel Tips
The precision Micro-Tools with hardened tool steel are also available in standard sets for different applications, safely stored in a convenient hardwood case.
The Micro-Tools in the standard sets all have the 0.50mm (0.020″) shank size.
Each of the four available sets in the hardwood case includes the anodized aluminum handle and eight tips:
Micro-Tool Standard Sets with Hardened Tool Steel Tips
The precision Micro-Tools with hardened tool steel are also available in standard sets for different applications, safely stored in a convenient hardwood case.
The Micro-Tools in the standard sets all have the 0.50mm (0.020″) shank size.
Each of the four available sets in the hardwood case includes the anodized aluminum handle and eight tips:
| Included Tips | Shank Size | ||
|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.50mm |
| 2 |  |
Micro-Engraver, triangular | 13602 |
| 3 | |
Micro-Chisel | 13603 |
| 4 |  |
Micro-Spade | 13604 |
| 8 | |
Micro-Knife, 20 | 13608 |
| 9 |  |
Micro-Knife, 45 | 13609 |
| 13 |  |
Micro-Engraver, oval | 13611 |
| 21 |  |
Micro-Carbide Scribe, 5 m radius tip | 13613 |
| 28 |  |
Micro-Scraper, triangular | 13628 |
Order
Product
Description
Order
Product
Micro Placement and Manipulating Tool Set
Handle with eight replaceable threaded tips and a hardwood storage case.
no. 54459
Description
Micro-Tool Standard Sets with Hardened Tool Steel Tips
The precision Micro-Tools with hardened tool steel are also available in standard sets for different applications, safely stored in a convenient hardwood case.
The Micro-Tools in the standard sets all have the 0.50mm (0.020″) shank size.
Each of the four available sets in the hardwood case includes the anodized aluminum handle and eight tips:
Micro-Tool Standard Sets with Hardened Tool Steel Tips
The precision Micro-Tools with hardened tool steel are also available in standard sets for different applications, safely stored in a convenient hardwood case.
The Micro-Tools in the standard sets all have the 0.50mm (0.020″) shank size.
Each of the four available sets in the hardwood case includes the anodized aluminum handle and eight tips:
| Included Tips | Shank Size | ||
|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.50mm |
| 5 |  |
Micro-Fork | 13605 |
| 7 |  |
Micro-Ruler, 10mm, 0.1mm div. | 13607 |
| 12 | |
Micro-Prober, 45 | 13612 |
| 14 |  |
Micro-Brush, single natural fiber | 13614 |
| 16 | |
Micro-Spatula, flexible, Stainless Steel | 13616 |
| 17 |  |
Micro-Manipulator, A-type | 13617 |
| 18 | |
Micro-Hook, 90 | 13619 |
| 25 | |
Ultra Micro-Needle, 30 5 m radius tip, Tungsten | 13625 |
Order
