PELCO® TEM grid Support Films of Formvar, Formvar/Carbon, Carbon, and Silicon Monoxide are available on the following 3.05mm O.D. grids: 0.4 x 2mm single slot Cu, 75 mesh Cu, 200 mesh Cu,Ni or Au, 200 mesh Hex Mo, 300 mesh Cu, Ni or Au, 300 mesh Hex Mo, and 400 mesh Cu, Ni, Au, Al, Ti and stainless steel.
Support films on the finer mesh grids can withstand considerable handling during specimen preparation. Those on slot and 75 mesh grids require more gentle handling and are ideal for those applications requiring large viewing areas without grid bar interference.
Our popular line of PELCO NetMesh™ Grids (our trademarked lacey films) are available on 200, 300 and 400 mesh grids. These robust films allow for viewing of specimens without interference from underlying support film material.
The complete PELCO® line of support films meets the requirements of most applications in all fields of electron microscopy.
PELCO® TEM Grid Support Film Application Guide
This Support Film Application Guide will help you determine what support film to use for your particular transmission electron microscopy project. Once you have decided which substrate best suits your needs.
| Substrate Application | Formvar Only |
Formvar Stabilized with Carbon |
Silicon Monoxide on Formvar |
Silicon Monoxide on Type-A |
Carbon Type-A |
Carbon Type-B |
Pure Carbon Film |
Is Lacey Film suitable for this application? |
|---|---|---|---|---|---|---|---|---|
| Applications Requiring Pure Formvar | B | – | – | – | – | – | – | No |
| Bacterial Suspensions | – | G | B | B | B | B | B | Yes |
| Cell Fragment Suspensions | – | B | B | B | B | B | B | Yes |
| Diffraction Studies | – | – | G | G | B | B | B | Yes |
| EDS (energy dispersive spectrometry) | – | G | – | – | B | B | G | Yes |
| High Resolution Microscopy | – | G | G | B | B | B | B | Yes |
| High Temperature Techniques / Heating Stage | – | – | – | G | B | – | B | Yes (Type A) |
| Low Magnification Microscopy | G | B | B | G | G | B | G | No |
| Particulate Suspension, Biological | – | G | B | B | B | B | B | Yes |
| Particulate Suspension, Non-biological | – | G | B | B | B | B | B | Yes |
| Powders, Dry | – | G | B | G | G | B | G | No |
| Replicas & Low Temperature Techniques | G | B | – | – | G | B | G | Yes (Type-A) |
| Thin Sections | G | B | G | B | G | B | G | Yes |
| Viral Suspensions | – | G | G | B | B | B | B | Yes |
Loading…
Product
Description
Order
Product

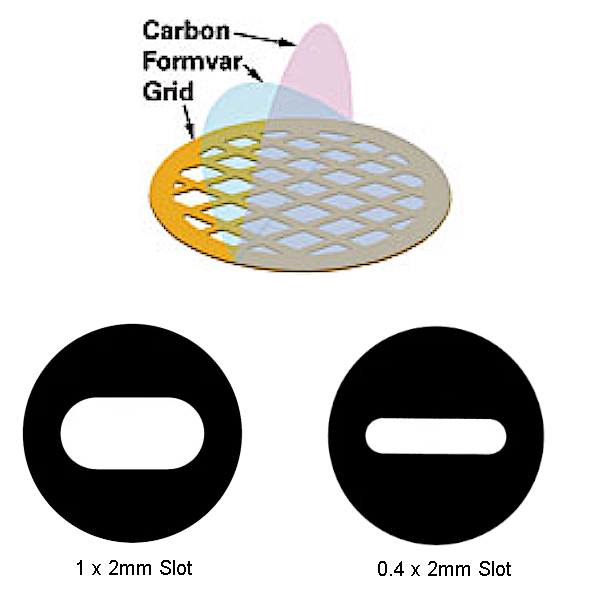

Formvar, Stabilized with Carbon
A Formvar film covered with a “light” layer of carbon.
no. 01800 to 01900-F
Description
Formvar, Stabilized with Carbon
A Formvar film covered with a “light” layer of carbon. The heat and electrical conducting properties of carbon help to stabilize the Formvar films when exposed to the electron beam.
This is a resilient, all-purpose specimen support film, ideal for mounting thin sections and for applications using lower ranges of magnification.
The 200M-TH grids (Prod. No. 01803 and 01803-F,01803G and 01803G-F), plus the 300M-TH grids (Prod. No. 01804G and 01804G-F) are thicker and more rigid than normal and useful for many applications – particularly where a lot of grid handling is involved.
TH= Thicker Grids
Order
Product
Description
Order
Product

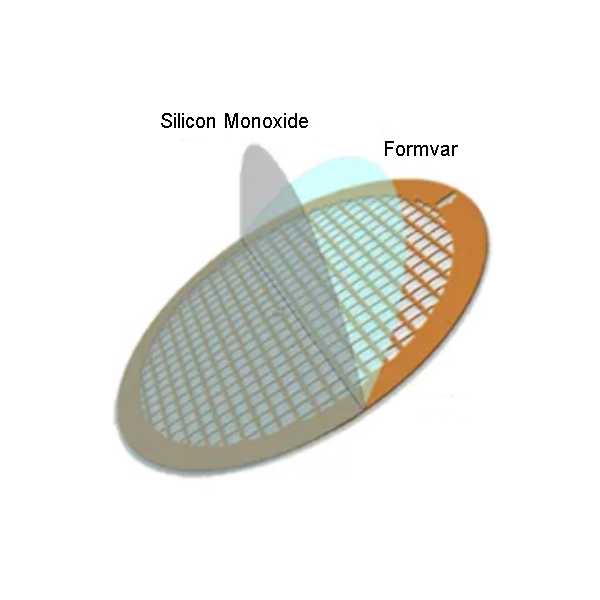

Formvar Stabilized with Silicon Monoxide
A Formvar film coated with a light layer of silicon monoxide.
no. 01830 & 01832
Description
Silicon Monoxide
A Formvar film coated with a light layer of silicon monoxide.
Silicon monoxide produces a highly resilient support film which can withstand vigorous specimen preparation techniques.
It has low background contrast, is stable under the electron beam and is less hydrophobic than carbon.
We offer two types of silicon monoxide support films:
Order
Product
Description
Order
Product

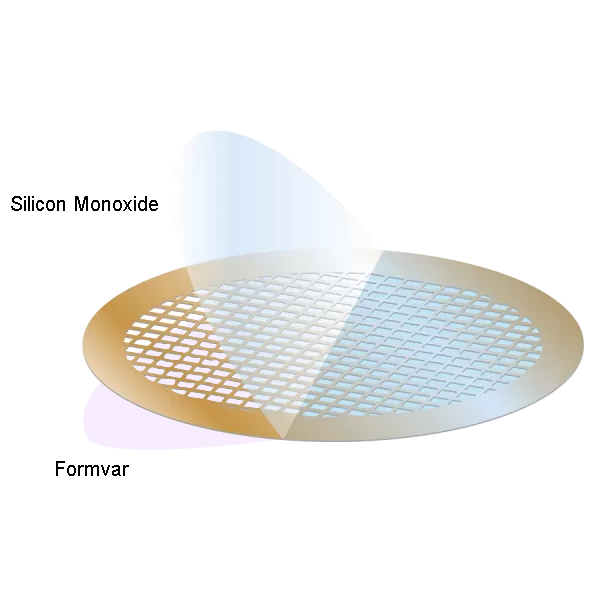

Silicon Monoxide Type-A
Silicon monoxide with a removable Formvar backing on the opposite side of the grid.
no. 01829 & 01829-F
Description
Silicon Monoxide Type-A
Silicon monoxide with a removable Formvar backing on the opposite side of the grid.
When the Formvar is removed, by dipping in solvent, a pure Silicon Monoxide film remains. These films are stable under all EM operating conditions and for use where the presence of Formvar cannot be tolerated.
Pure Silicon Monoxide is more delicate than those with Formvar backing and require more careful handling during specimen preparation.
