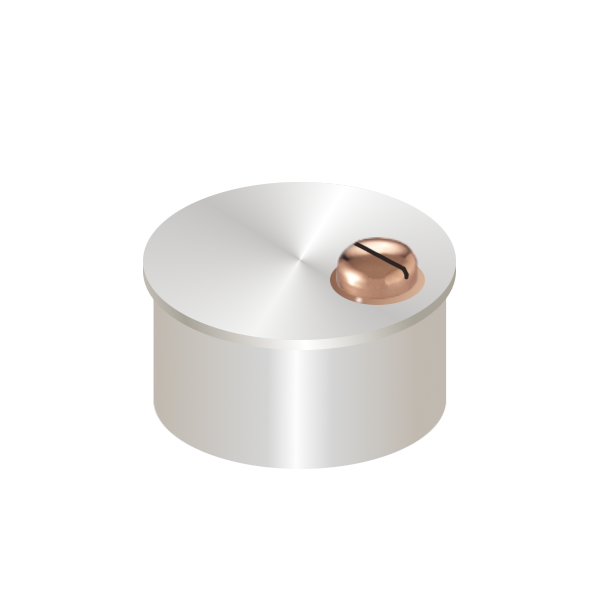

PELCO Mini SEMClamp 15 x 10mm
Mini SEMclamp on a 15 x 10mm M4 cylinder mount.
Art.
no. 15494

Description

PELCO Mini SEMClamp 15 x 10mm

Mini SEMclamp on a 15 x 10mm M4 cylinder mount.
Convenient for holding flat or thin specimens such as Si chips, wires, foil and small tubes.

Material: vacuum grade aluminum with brass screw.

Screw used is M2 x 3mm, pan head screw, brass.

Order

Product
Description
Order
Product

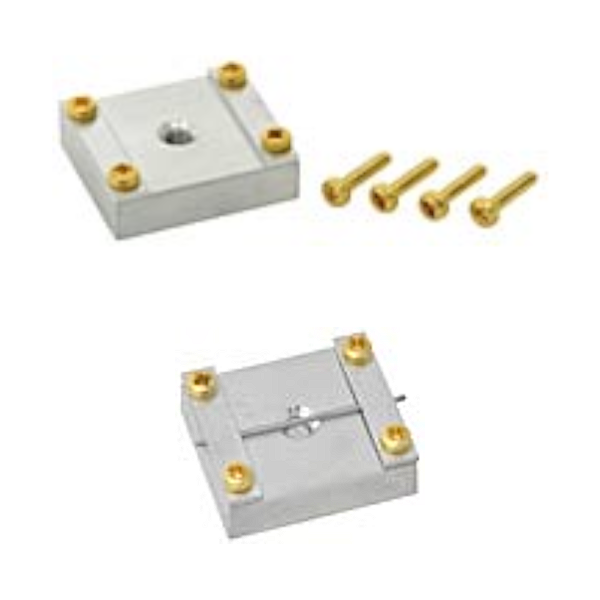

Small PELCO SEMClamp 15 x 10mm
PELCO SEMClamp holder 15mm (0.6″) long with 10mm (0.4″) wide clamping area.
Art.
no. 15347-4

Description

Small PELCO SEMClamp 15 x 10mm

PELCO SEMClamp holder 15mm (0.6″) long with 10mm (0.4″) wide clamping area.
Convenient holder for clamping down samples up to a thickness of 7mm under the clamping strips.

Overall dimensions 23 x 20 x 9mm (0.9″ x 0.78″ x 0.35″).
Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan head screw, brass.

Order

Product
Description
Order
Product

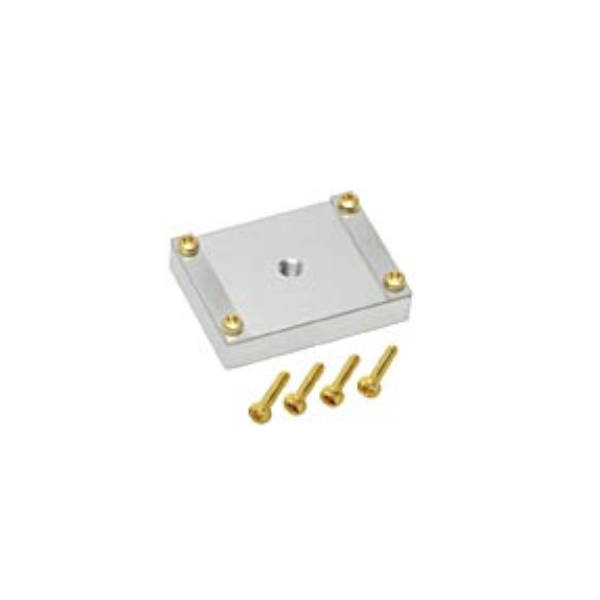

Medium PELCO SEMClamp 25 x 15mm
PELCO SEMClamp holder 25mm (1″) long with 15mm (0.6″) wide clamping area.
Art.
no. 15348-4

Description

Medium PELCO SEMClamp 25 x 15mm

PELCO SEMClamp holder 25mm (1″) long with 15mm (0.6″) wide clamping area.
Convenient holder for clamping down samples up to a thickness of 7mm under the clamping strips.

Overall dimensions 33 x 25 x 9mm (1.3″ x 1″ x 0.35″).
Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan heads scew, brass.

Order

Product
Description
Order
Product

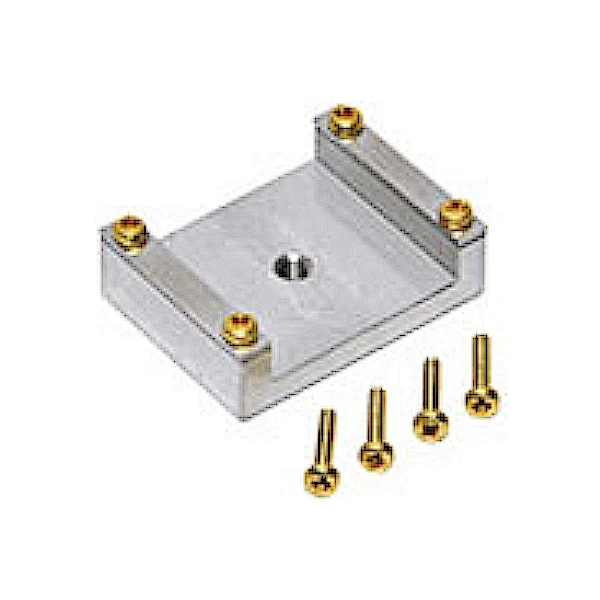

Recessed PELCO SEMClamp 25 x 15mm
Clamping area is 25mm (1″) long and 15mm (0.6″) wide.
Art.
no. 15346-4

Description

Recessed PELCO SEMClamp 25 x 15mm

5mm recess allows for background free imaging and no contact with sample surface in imaging area.
Clamping area is 25mm (1″) long and 15mm (0.6″) wide.
Maximum thickness 7mm under the clamping strips.

Overall dimensions 33 x 25 x 11mm (1.3″ x 1″ x 0.43″).
Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan head screw, brass.

Order

Product
Order
Product

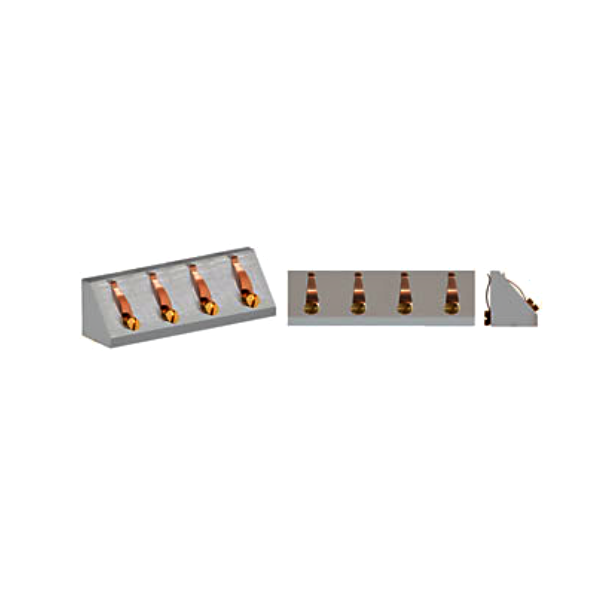

PELCO SEMClip 12 x 48mm Mount, M4, 4 x 90° and 4 x 45°
PELCO SEMClip Cylinder Mounts for Hitachi SEMs
Art.
no. 16155-4
