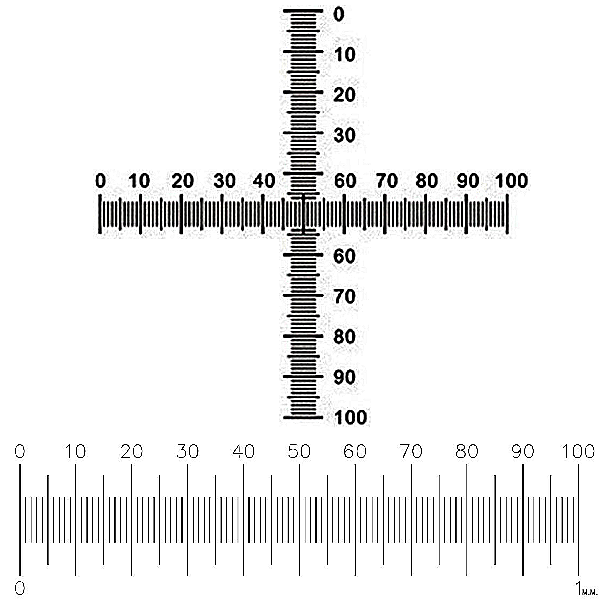

Stage Micrometers for Transmitted Light
Horizontal, crossed and vertical stage micrometers with metric or inch scales.
no. 2280-10 to 2280-18
Description
Stage Micrometers for Transmitted Light
Horizontal, crossed and vertical stage micrometers with metric or inch scales.
- Horizontal Scales in 10 , 5, 1 or 0.1mm and 0.1 or 0.005 inch
- Crossed Scales in 1 x 1mm
- Vertical Scales in 2 mm
- Mounted in a black anodized aluminum slide
- Patterns are protected by a 0.13mm thick cover glass except #2280-18
Order
Product
Description
Order
Product

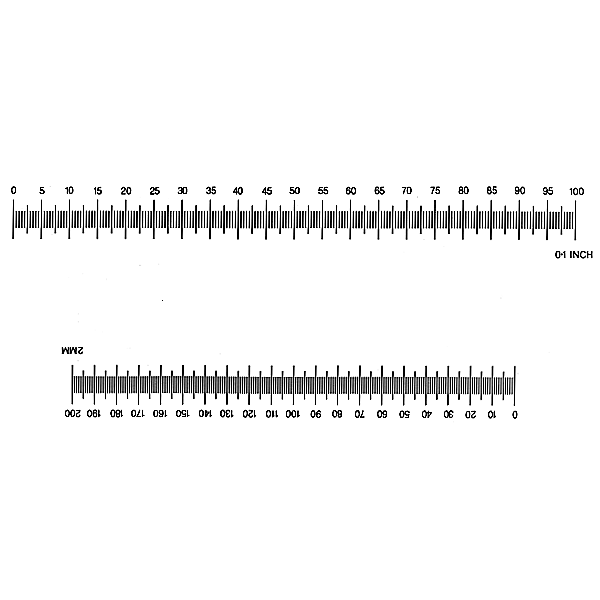

Combined Metric/Inch Stage Micrometer for Transmitted Light
2mm in 0.01mm divisions and 0.1 inch in 0.005 inch divisions
no. 2280-24
Description
Combined Metric/Inch Stage Micrometer for Transmitted Light
2mm in 0.01mm divisions and 0.1 inch in 0.005 inch divisions.
Mounted in a black anodized aluminum slide.; 75 x 24 x 2mm.
Pattern protected by a 0.13mm thick cover glass.
| Product # | Line Width | Accuracy (overall) |
|---|---|---|
| 2280-10 | 0.005 mm | within 0.002mm |
| 2280-11 | 0.005 mm | within 0.0015mm |
| 2280-12 | 0.002 mm | within 0.0001 inch |
| 2280-13 | 0.002 mm | within 0.001mm |
| 2280-14 | 0.001 mm | within 0.00005 inch |
| 2280-15 | 0.001 mm | within 0.001mm |
| 2280-16 | 0.0015 mm | within 0.001mm |
| 2280-17 | 0.0025 mm | within 0.0015mm |
| 2280-18 | 0.0027 mm | within 0.001mm |
| 2280-24 | 0.002 mm | within 0.001mm |
| 2269-10 | 0.003 mm | within 0.001mm |
| 2280-25 | 0.0025mm | within 0.0015mm |
| 2280-27 | 0.005mm | within 0.002mm |
| 2280-28 | 0.002mm | within 0.0001 inch |
| 2280-30 | 0.005mm | within 0.0015mm |
| 2280-31 | 0.004mm | within 0.0015mm |
| 2280-32 | 0.004mm | within 0.0015mm |
| 2280-33 | 0.0025mm | within 0.0015mm |
Order
Product
Description
Order
Product

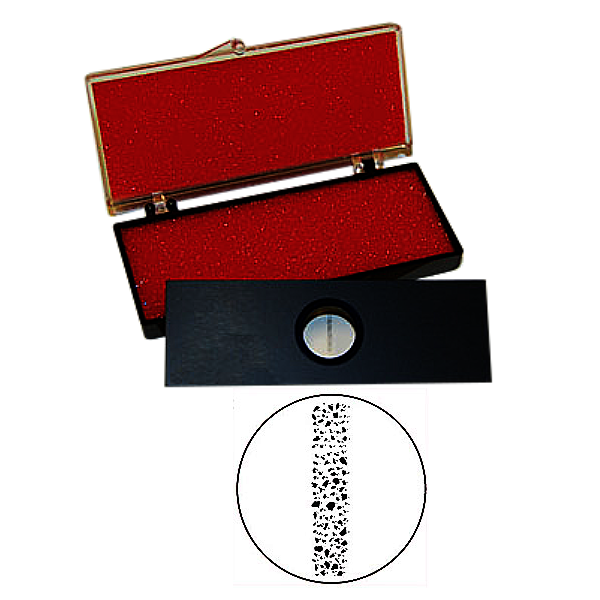

Particle Analysis Test Slide
The Particle Analysis Test Slide has a center strip pattern with 100 particles of various shapes and sizes.
no. 2280-29
Description
Particle Analysis Test Slide
The Particle Analysis Test Slide has a center strip pattern with 100 particles of various shapes and sizes.
Each shape is numbered.
Designed for comparing various shapes and sizes, training and regular checks of digital cameras and image analysis software performance.
Includes manufacturers test certificate which states the equipment diameter, length, width and area of each particle;
Example of Test Certificate.
Glass slide, 76 x 26 x 1.2mm.
Order
Product
Description
Order
Product

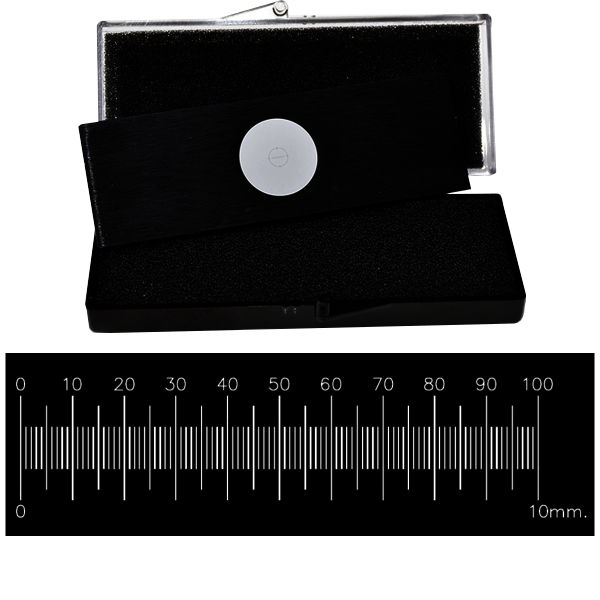

Stage Micrometers for Reflected Light
These accurate scales are etched through a highly reflective vacuum coated metal.
no. 2280-10 2280-28
Description
Stage Micrometers for Reflected Light
These accurate scales are etched through a highly reflective vacuum coated metal.
When viewed with reflected light illumination, as with a metallurgical microscope, the scales appear bright against a black background.
If you need a certified stage micormeter, please go to Pro Series Stage Micrometers for Reflected Light.
Table of Accuracy
Line Width and Accuracy of Stage Micrometers
| Product # | Line Width | Accuracy (overall) |
|---|---|---|
| 2280-10 | 0.005 mm | within 0.002mm |
| 2280-11 | 0.005 mm | within 0.0015mm |
| 2280-12 | 0.002 mm | within 0.0001 inch |
| 2280-13 | 0.002 mm | within 0.001mm |
| 2280-14 | 0.001 mm | within 0.00005 inch |
| 2280-15 | 0.001 mm | within 0.001mm |
| 2280-16 | 0.0015 mm | within 0.001mm |
| 2280-17 | 0.0025 mm | within 0.0015mm |
| 2280-18 | 0.0027 mm | within 0.001mm |
| 2280-24 | 0.002 mm | within 0.001mm |
| 2269-10 | 0.003 mm | within 0.001mm |
| 2280-25 | 0.0025mm | within 0.0015mm |
| 2280-27 | 0.005mm | within 0.002mm |
| 2280-28 | 0.002mm | within 0.0001 inch |
| 2280-30 | 0.005mm | within 0.0015mm |
| 2280-31 | 0.004mm | within 0.0015mm |
| 2280-32 | 0.004mm | within 0.0015mm |
| 2280-33 | 0.0025mm | within 0.0015mm |
Order
Product
Description
Order
Product

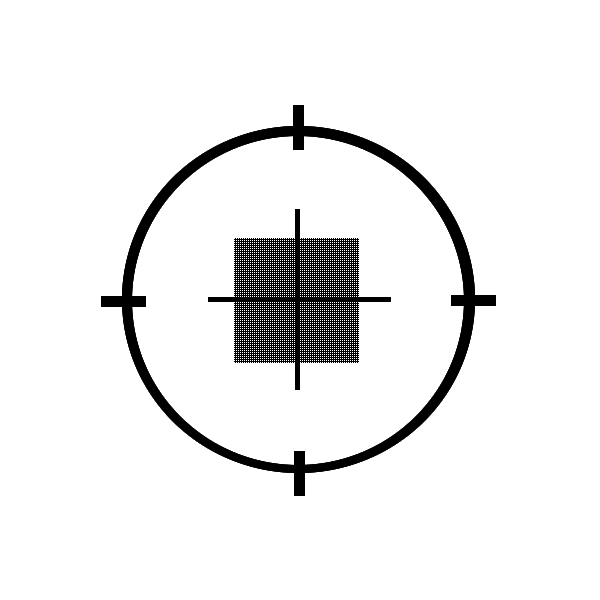

Fine Counting Grids (Transmitted Light)
Produced with precision vacuum evaporated chromium centered on a glass disc.
no. 2280-32 and 2280-33
Description
Fine Counting Grids (Transmitted Light)
Produced with precision vacuum evaporated chromium centered on a glass disc, mounted in a black anodized Al slide of 75 x 24 x 2mm.
Pattern is covered with a 0.13mm cover glass for protection. 0.01 x 0.01mm grid available in two sizes.
