Product

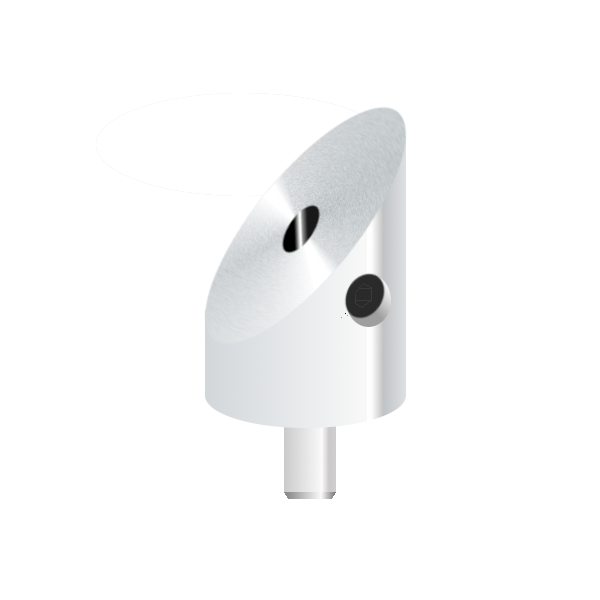

45 Pin Stub Holder
Art.
no. 15329

Description

45 Pin Stub Holder

Accepts standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin. 45 gives higher SE signal w/o tilting specimen stage.

Grooved, machined aluminum with stainless steel Allen set screw.
Allen wrench included.

Screw used is M3 x 3mm, Set, SS

Order

Product
Description
Order
Product

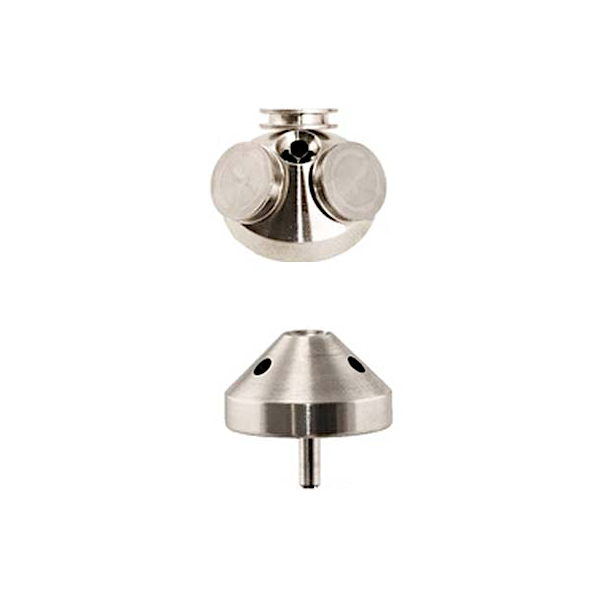

45 Multi Holder for 3 Pin Stubs
Art.
no. 15329-3

Description

45 Multi Holder for 3 Pin Stubs

Accepts standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin. Pre-Tilt 45 gives higher SE signal w/o tilting specimen stage.

Material: machined aluminum with stainless steel Allen set screws.
Allen wrench included.

Diameter of holder is 25.4mm (1″)
Screw used is M3 x 3mm, Set, SS

Order

Product
Description
Order
Product

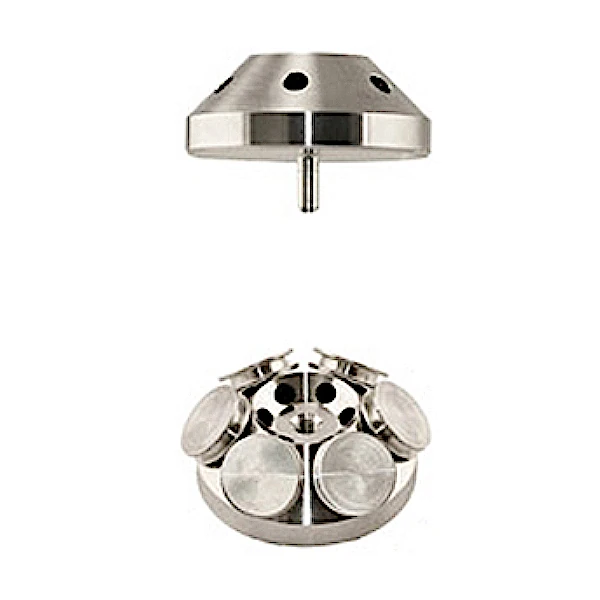

45 Multi Holder for 6 Pin Stubs
Art.
no. 15329-7

Description

45 Multi Holder for 6 Pin Stubs

Accepts standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin.
Pre-Tilt 45 gives higher SE signal w/o tilting specimen stage.

Material: machined aluminum with stainless steel Allen set screws.
Allen wrench included.

Diameter of holder is 35mm (1-3/8″)
Screw used is M3 x 3mm, Set, SS

Order

Product
Description
Order
Product

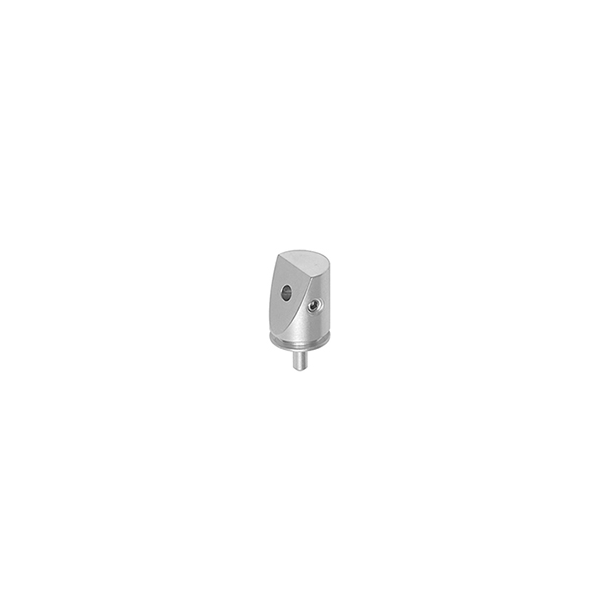

70 EBSD Pre-Tilt Pin Stub Holder
Art.
no. 15329-70

Description

70 EBSD Pre-Tilt Pin Stub Holder

Accepts standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin.
70 EBSD Pre-Tilt Holder w/o tilting specimen stage.

Grooved, machined aluminum with stainless steel Allen set screw.
Allen wrench included.

Screw used is M3 x 3mm, Set, SS

Order

Product
Description
Order
Product

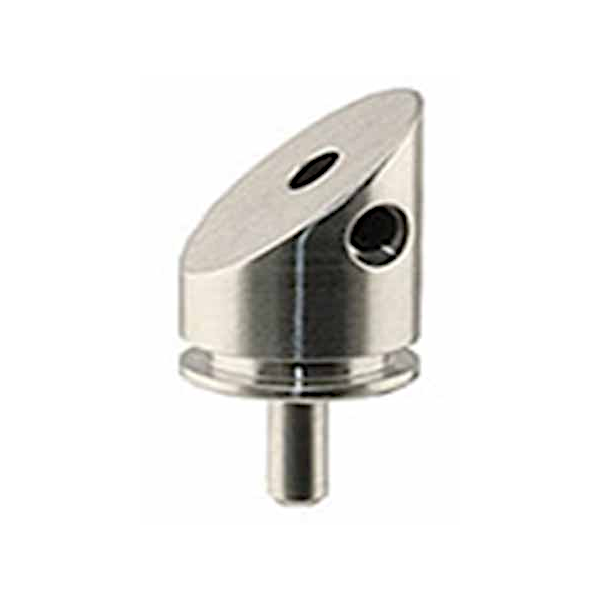

38 Pin Stub Holder FEI FIB Pre-Tilt
Art.
no. 15329-38

Description

38 Pin Stub Holder FEI FIB Pre-Tilt

Accepts standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin. 38 Pre-Tilt for FEI Dual Beam Systems.

Grooved, machined aluminum with stainless steel Allen set screw.
Allen wrench included.

Screw used is M3 x 3mm, Set, SS

Order

Product
Description
Order
Product

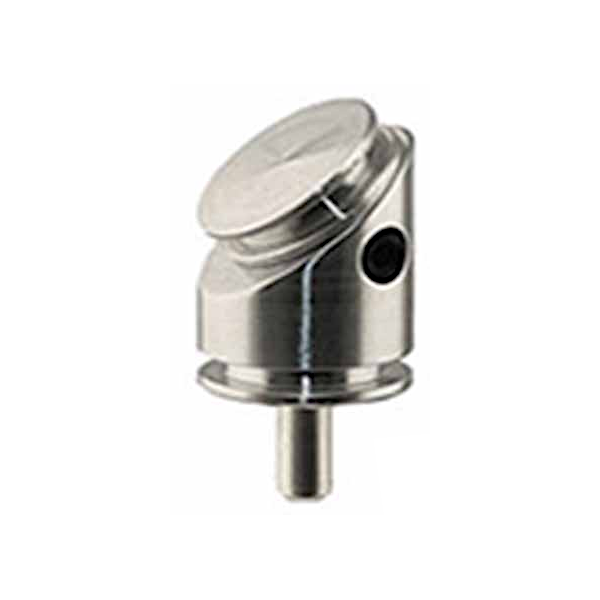

36 Pin Stub Holder Zeiss/Leo FIB Pre-Tilt
Art.
no. 15329-36

Description

36 Pin Stub Holder Zeiss/Leo FIB Pre-Tilt

Accepts standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin. 36 Pre-Tilt for Zeiss/Leo Cross Beam & other FIB Systems.

Grooved, machined aluminum with stainless steel Allen set screw.
Allen wrench included.

Screw used is M3 x 3mm, Set, SS

Order

Product
Description
Order
Product

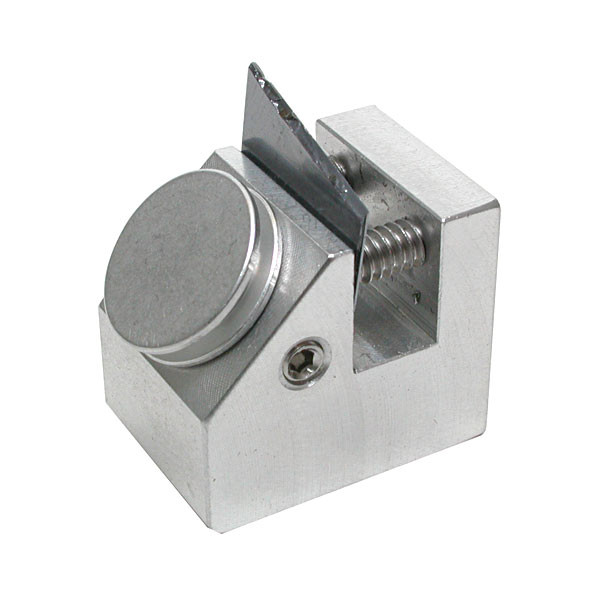

45 /90 Combination Holder
Combined specimen holder for 90 cross sections of wafers or thin samples up to 6.35mm (1/4″) and a pin stub at 45 .
Art.
no. 15358

Description

45 /90 Combination Holder

Combined specimen holder for 90 cross sections of wafers or thin samples up to 6.35mm (1/4″) and a pin stub at 45 .

Made of aluminum with stainless steel set screws.
Allen wrench included.

Screws used are 6-32 x 3/8, Set, 316 SS and 6-32 x 1/4, Set, 316 SS

Order

Product
Description
Order
Product

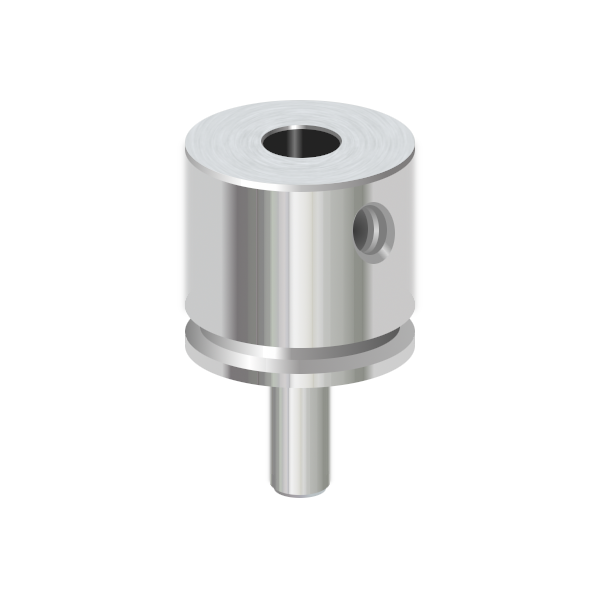

PELCO Pin Stub Extender
Art.
no. 15318

Description

PELCO Pin Stub Extender

12.5mm (1/2″) high, pin stub extender allows bringing pin stubs and pin stub sample holders closer to the pole piece without moving the SEM sample stage.
Multiple extenders are stackable.

Compatible with all standard 3.2mm (1/8″) pin stubs or pin stub SEM holders with maximum pin length of 10mm (0.4″).

Made of vacuum grade aluminum with stainless steel allen set screw.
Allen key included

Screw used is M3 x 3mm, Set, SS
