Veco Grids
[elementor-template id=”186167″]
for Transmission Electron Microscopy
The Veco grids are the most rigid of all mesh grids and offer superior strength while handling.
These 3.05mm (0.12″) OD grids are manufactured by a precision electro plating process and have a thickness of 20µm.
These grids have a shiny and matt side.
Veco grids are available in different styles with square, thin/thick bar and hexagonal, mesh, holes and slots.
Materials are Cu, Ni and Au.
Packaging for the Cu and Ni grids is 100/vial and for Au grids 25/vial.
Specifications
| Veco Grid Size Specifictions | |||
| Square Mesh | Pitch µm | Hole µm | Bar µm |
|---|---|---|---|
| 100 | 250 | 200 | 50 |
| 150 | 167 | 117 | 50 |
| 200 | 125 | 85 | 40 |
| 300 | 83 | 45 | 38 |
| 400 | 63 | 30 | 33 |
| Hexagonal Mesh | |||
| 100 | 250 | 200 | 50 |
| 200 | 125 | 85 | 40 |
Loading…
Product
Order
Product
Veco Thick-Thin Bars
Veco Thick-Thin Bars, 100 mesh
no. 12604-CU
Order
Product
Order
Product

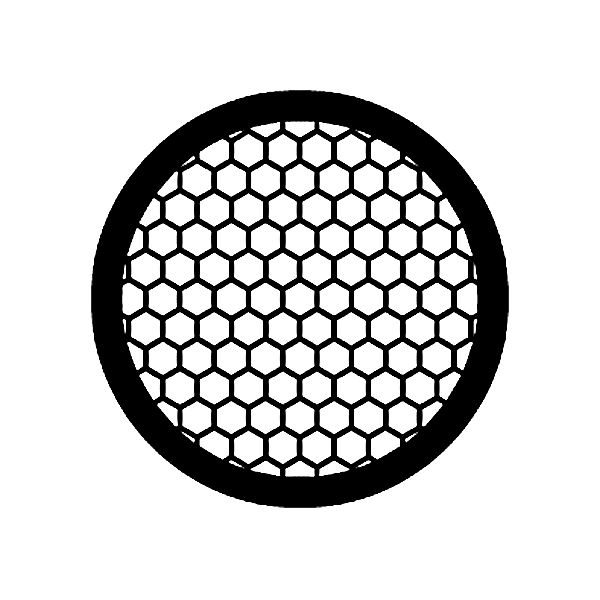

Veco Hexagonal Grids
no. 12637-NI
Order
Product
Order
Product

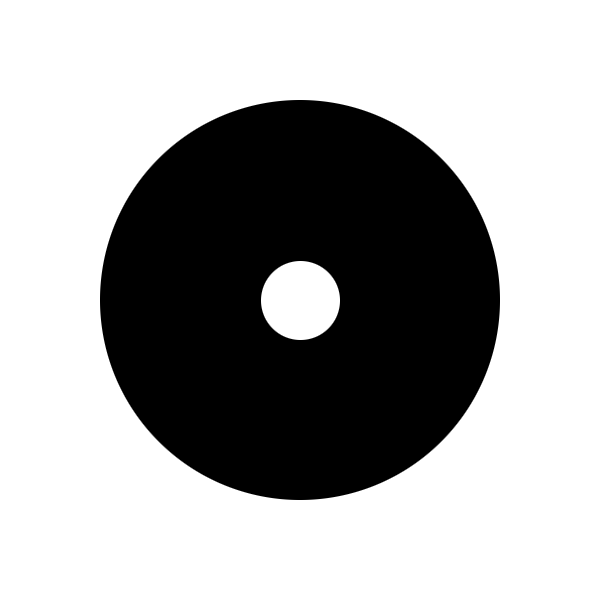

Veco Single Hole Grids
no. 12658-CU to 12665-NI
Order
Product
Order
Product

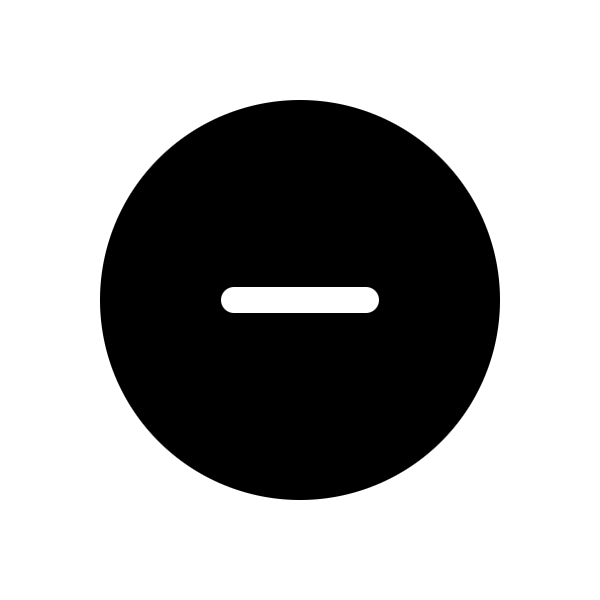

Veco Single Slot Grids
no. 12676-CU
