Needles, Probes & Picks
PELCO Long, Microscopic Needle Holder, Stainless Steel
Long, stainless steel, microscopic needle holder with plastic handle, total length 240mm (9-1/2″).
Accepts needles up to 0.66mm (0.026″) diameter.
Ideal for difficult to reach spots and use in fluids where corrosion resistance is needed.
Stainless steel shank 3.5mm, plastic handle 6.35mm, total length 240mm.
For stainless steel Micro Needles
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 1350-5 | PELCO Long Microscopic Needle Holder | Each | € 24,10 |

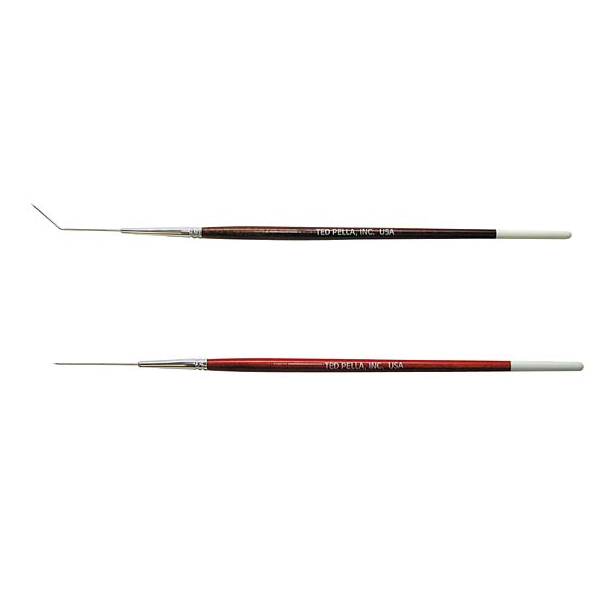

Micro Picks
Stainless Steel, for dissecting, manipulating, or holding small tissues or objects, wooden handle, needle diameter 0.63mm (0.025″).
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13531 | Micro Pick, Angled, 19.0cm L | Each | € 15,80 | ||
| 13532 | Micro Pick, Straight 18.4cm L | Each | € 12,90 |

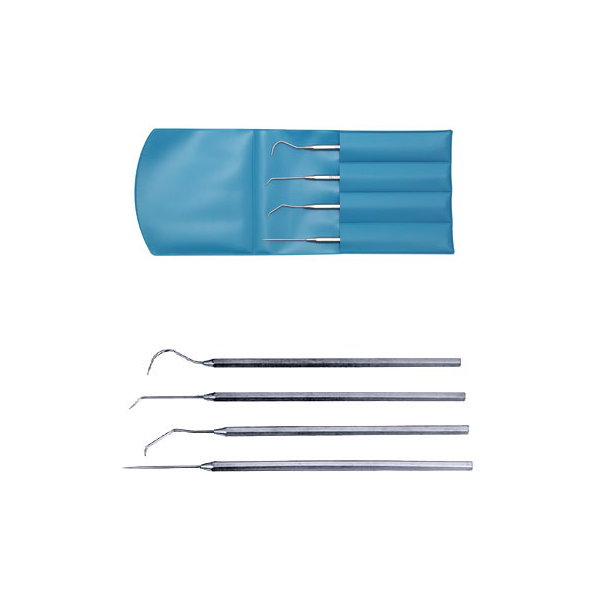

Micro Probes
Probing, picking, poking or moving; set of 4 probes with very fine flexible tips.
Made of stainless steel, tempered spring wire.
Set of 4 comes in vinyl pouch. Probes and pouch may be ordered separately.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13550 | Micro Probes, Set of 4, with Pouch | Each | € 18,60 | ||
| 13551 | Probe, Straight Needle, 14cm (5-1/2″) | Each | € 4,80 | ||
| 13552 | Probe, Hook Curve, 14cm (5-1/2″) | Each | € 4,40 | ||
| 13553 | Probe, Bent Needle, 14cm (5-1/2″) | Each | € 4,80 | ||
| 13554 | Probe, Large Curve, 14cm (5-1/2″) | Each | € 4,80 | ||
| 13550-P | Probe Pouch Only | Each | € 5,70 |

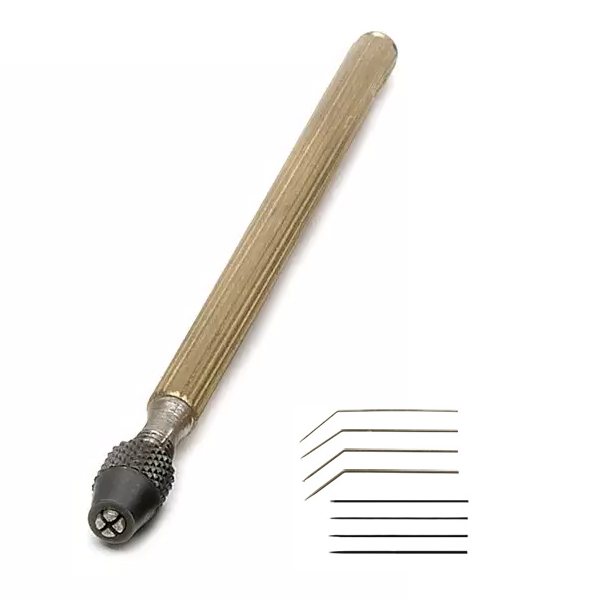

Pin Vise and Micro Needles
This quality pin vise, with a wide choice of micro needles, is ideally suited for probing, picking, scribing, cleaning, marking and similar fine work.
There is a wide choice of fine pointed needles for different grades of precision work.
- Straight stainless steel needles with 0.25, 0.40 and 0.55 mm diameter
- Angled stainless steel needle with 0.25, 0.40 and 0.55 mm diameter
- Very fine and straight short micro needle with a 0.1mm diameter
- Sharp carbon tool steel needle (nickel plated) with a diameter of 0.35mm.
The stainless steel micro needles are more flexible and suitable for probing, picking and sorting.
They are also more chemically resistant. The carbon steel needle is stiffer and harder and more suitable for marking, scribing and cleaning applications.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13560 | Pin Vise without Needles, 80mm (3-1/8″) Long | Each | € 22,00 | ||
| 13561-10 | Straight Stainless Steel Needles 0.25mm Diameter, 36mm Long | 10 | € 7,40 | ||
| 13561-20 | Straight Stainless Steel Needles 0.40mm Diameter, 36mm Long | 10 | € 7,40 | ||
| 13561-30 | Straight Stainless Steel Needles 0.55mm Diameter, 36mm Long | 10 | € 7,40 | ||
| 13561-50 | Straight Stainless Steel Needles 0.1mm Diameter, 12mm Long | 10 | € 8,10 | ||
| 13562-10 | Angled Stainless Steel Needles 0.25mm Diameter, 36mm Long | 10 | € 9,60 | ||
| 13562-20 | Angled Stainless Steel Needles 0.40mm Diameter, 36mm Long | 10 | € 9,60 | ||
| 13562-30 | Angled Stainless Steel Needles 0.55mm Diameter, 36mm Long | 10 | € 9,60 | ||
| 13565-10 | Straight Sharp Carbon Tool Steel Needles 0.35mm Diameter, 30mm Long, Nickel Plated | 10 | € 23,90 |

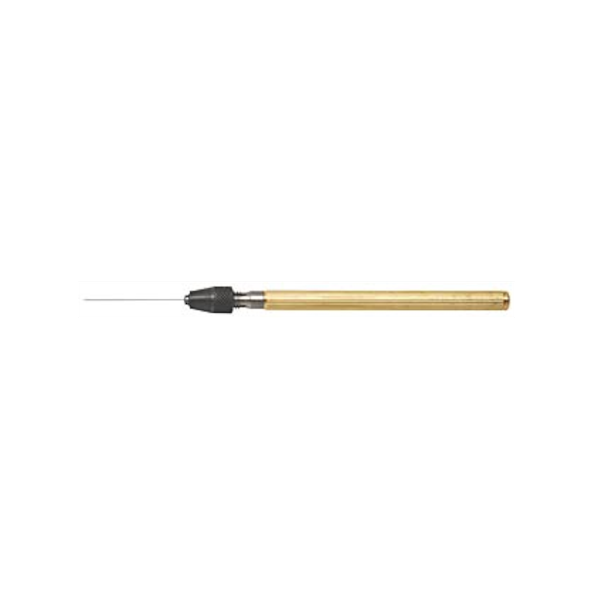

Pin Vise with Straight Stainless Steel Needles
Pin Vise #13560 complete with a pack of 10 Straight Stainless Steel Micro Needles (#13561-10), 0.25mm diameter.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13561 | Pin Vise with 10 Straight, Stainless Steel Needles | Each | € 25,90 |

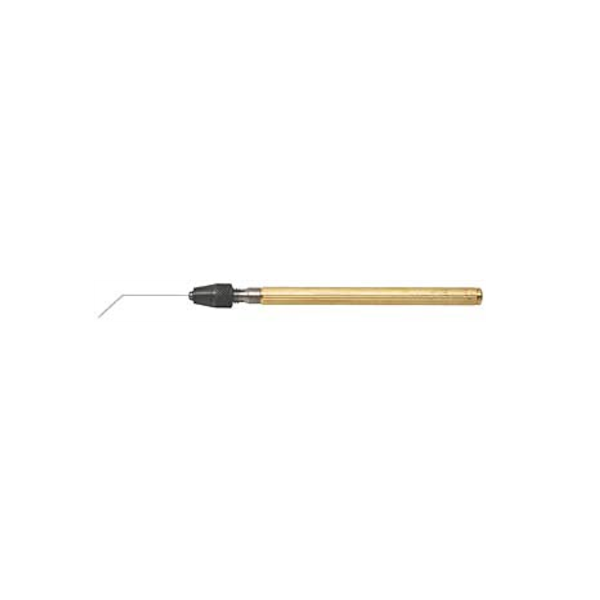

Pin Vise with Angled Stainless Steel Needles
Pin Vise #13560 complete with a pack of 10 Angled Stainless Steel Micro Needles (#13562-10), 0.25mm diameter.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13562 | Pin Vise with 10 Angled, Stainless Steel Needles | Each | € 19,80 |
Pin Vise with Straight, Sharp Carbon Steel Needles
Pin Vise #13560 complete with a pack of 10 Straight, Sharp Carbon Steel (nickel plated) Micro Needles (#13565-10), 0.35mm diameter.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13565 | Pin Vise with 10 Straight, Sharp Carbon Steel (nickel plated) Needles | Each | € 27,50 |
Ultrafine Tungsten Manipulator Probe
The Ultrafine Tungsten Manipulator Probe consists of a fine tungsten needle with 0.6um radius in a quality precision pin vise.
The ultrafine point is ideally suitable for probing and manipulating very small particles or feature under a microscope.
The tungsten needle has a diameter of 0.52mm (0.020″), a length of 25mm (1″) and a sharp tip radius of 0.6 m.
The precision pin vise has knurled brass handle for a firm grip and a precision carbon steel collet for holding the tungsten probe. 80mm (3-1/8″) long.
The maximum probe diameter for the pin vise is 0.70mm (0.028″).
The sharp tungsten needle can also be used in other needle holders or for custom made probing systems.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13570 | Ultrafine Tungsten Manipulator Probe | Each | € 40,70 | ||
| 13570-10 | Replacement Tungsten Probe, 0.6 m/25mm L | Each | € 24,20 |

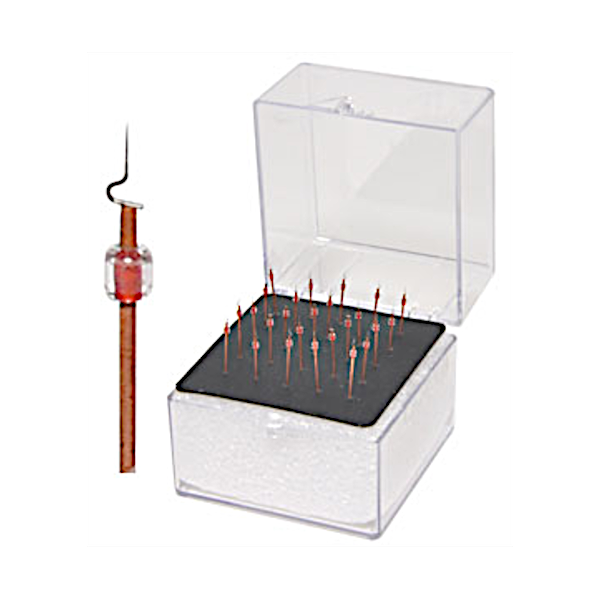

“Catwhisker Probe” with 0.07 m Tip Radius, Tungsten Tip
A specialized ultraminiature flexible probe for micromanipulator use. Total length is 1-7/16″ (36.5mm), shaft diameter is 0.020″ (0.51mm).
Other applications may be developed because of the extremely fine tip and its unique design which allows the probe tip to “flex”, reducing pressure on the tip.
This probe may be used in the Pin Vise #13560 or the Long Microscopic Needle Holder #1350-5
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 99-15864 | Ultraminiature Catwhisker Probes, box/25 | Each | € 586,70 |
Speedles
Speedles are miniature needle-like spatulas with five different blade sizes from 180 800 m.
Handles are color coded for easy identification, includes protective cap.
Ideal for making micro dispersions directly on SEM specimen stubs. Properly shaped for applying micro amount of adhesive for tacking down specimens.
Can also be used for applying small droplets of oil.
Another use is specimen manipulation under the light microscope.
Overall length 2-1/2″ (63.5mm), sold in sets of five (one of each size), or as individual pieces.
Blade Widths:
Large (red) 800 m
Medium (green) 560 m
Medium Fine (blue) 360 m
Fine (gold) 200 m
Extra Fine (black) 180 m
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13580 | Speedles Set, 200, 360, 560, 800, 1180 m | Each | € 43,70 | ||
| 13580-1 | Speedle, Large, Red | Each | € 13,10 | ||
| 13580-2 | Speedle, Medium, Green | Each | € 15,10 | ||
| 13580-3 | Speedle, Medium Fine, Blue | Each | € 15,10 | ||
| 13580-4 | Speedle, Fine, Gold | Each | € 13,10 | ||
| 13580-5 | Speedle, Extra Fine, Black | Each | € 13,10 |

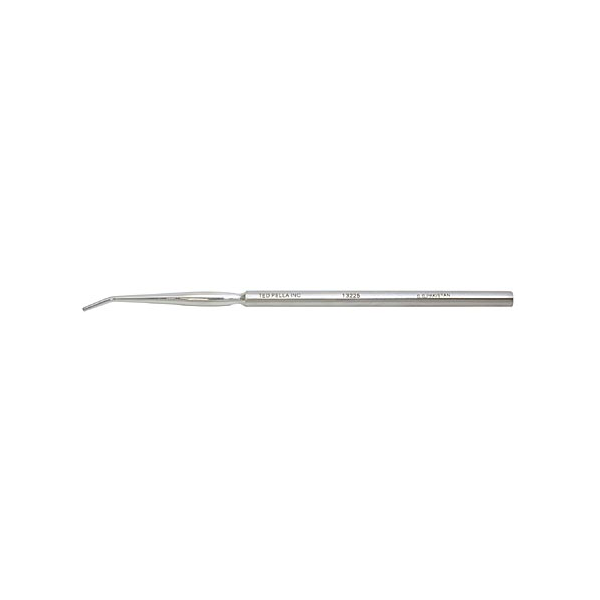

Angle Tip Probe
Made of stainless steel, highly polished with smooth rounded tip.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13225 | Angled Tip Probe, 152mm L (6″) | Each | € 2,40 |

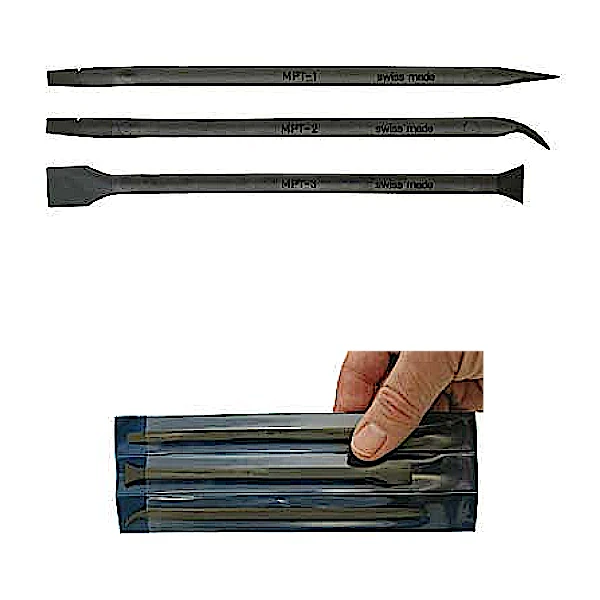

The PELCO Carbo-Probe CP tools are made of ESD safe PEEK (polyetheretherketone) reinforced with conducting carbon fibers.
They are wear resistant and the soft tips do not scratch delicate surfaces.
Ideal for positioning small specimens/parts/components. Also suited for forensic and microscopy sampling applications.
Three different types or a complete set. Available with a straight or curved point being flat on the opposite end or as a double spatula.
Temperature resistant up to 300 C
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 5097 | PELCO Carbo-Probe CP, (PEEK), Set of 3 (Straight, Curved, Spatula) in Plastic Pouch | Each | € 47,30 | ||
| 5094 | PELCO Carbo-Probe CP, (PEEK), MPT-1R, Straight Point, 150mm | Each | € 15,80 | ||
| 5095 | PELCO Carbo-Probe CP, (PEEK), MPT-2, Curved Point, 148mm L | Each | € 15,80 | ||
| 5096 | PELCO Carbo-Probe CP, (PEEK), MPT-3, Double Spatula, 140mm | Each | € 15,80 |

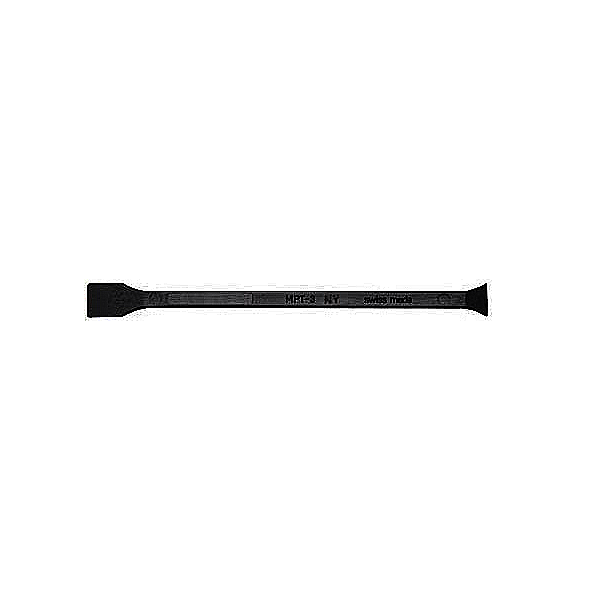

PELCO Nylon-Probe
The PELCO Nylon-Probe tools have the same design and dimensions as the PELCO Carbo-Probe tools but are made of stabilized glass fiber reinforced nylon.
This material exhibits high strength, good wear resistance and moderate to good chemical resistance.
Temperature resistant up to 120 C (248 F)
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13557-3 | PELCO Nylon-Probe MPT-3, Double Spatula, 140mm L (5.5″) | Each | € 8,00 |
