Products
Micro Tools Stainless Steel Tips
Micro-Tools with Interchangeable Stainless Steel Tips
All the Micro-Tools with stainless steel tips are forged from 304 grade stainless steel, followed by precision grinding, lapping and polishing steps to create the ultimate in precision manipulation tools.
The stainless steel Micro-Tools withstand corrosion better than tool steels are more suitable for moist or wet environments encountered in pharmaceutical, medical, biological and biochemistry applications.
The Micro-Tools with stainless steel tips (and No. 32 Micro Hook which is made of tool steel/gold plated) are mounted in stainless steel tool cones. Stainless steel tools are not as hard as the Micro-Tools made from hardened tool steels.
All Micro-Tools fit both the standard aluminum and the stainless steel Micro-Tool handle (sold separately).
| Shank Size | ||||||
|---|---|---|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.025mm | 0.12mm | 0.25mm | 0.50mm |
| 1 |  | Micro-Needle, Long | 13671 | 13671A | 13671B | —– |
| 3 |  | Micro-Chisel | 13673 | 13673A | 13673B | 13673C |
| 4 |  | Micro-Spade | 13674 | 13674A | 13674B | —– |
| 6 |  | Micro-Mirror, forward, Stainless Steel | —– | —– | —– | 13676 |
| 7 |  | Micro-Ruler, 10mm, 0.1mm div. | —– | —– | —– | 13677 |
| 8 |  | Micro-Knife, 20° | 13678 | —– | 13678B | 13678C |
| 9 |  | Micro-Knife, 45° | 13679 | 13679A | 13679B | —– |
| 10 |  | Micro-Mirror, reverse, Stainless Steel | —– | —– | —– | 13680 |
| 11 |  | Micro-Prober, 90° | —– | 13681A | 13681B | —– |
| 12 |  | Micro-Prober, 45° | —– | 13682A | 13682B | —– |
| 13 |  | Micro-Engraver, oval | 13683 | 13683A | 13683B | — |
| 15 |  | Micro-Diamond Scribe, 60° | —– | —– | 13685 | —– |
| 16 |  | Micro-Spatula, flexible, Stainless Steel | —– | —– | 13686 | —– |
| 18 |  | Micro-Hook, 90° | —– | 13688A | 13688B | —– |
| 21 |  | Micro-Scraper, triangular | 13684 | 13684A | 13684B | —– |
| 23M |  | Micro-Scale, 5mm, 0.1mm div., Stainless Steel | —– | —– | —– | 13687 |
| 23I | Micro-Scale, 0.2″, 0.005″ div., Stainless Steel | —– | —– | —– | 13690 | |
| 24 |  | Micro-Needle, short | 13689 | 13689A | 13689B | —– |
| 25 |  | Ultra Micro-Needle, straight, 5 µm radius tip, Tungsten | —– | —– | —– | 13691 |
| 26 |  | Ultra Micro-Needle, 30°, 5 µm radius tip, Tungsten | —– | —– | —– | 13692 |
| 27 |  | Ultra Micro-Needle, 90°, 5 µm radius tip, Tungsten | —– | —– | —– | 13693 |
| 32 |  | Micro-Hook, 25mm long, anti-snag guard | —– | —– | —– | 13696 |
Micro-Tool Standard Sets with Stainless Steel Tips
The precision Micro-Tools with stainless steel tips (except for No. 32 Micro Hook which is made of tool steel/gold plated) are also available in a standard set, safely stored in a convenient hardwood case.
The Micro-Tools in the standard set includes 8 tips in stainless steel tool holders with 0.50mm (0.020″) shank size, stainless steel handle and hardwood case.
There are also 3 special sets available with a 0.40mm (0.016″) shank diameter for microscopy, cutting or probing applications:
| Included Tips | Shank Size | ||
|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.50mm |
| 3 | |
Micro-Chisel | 13673C |
| 6 | |
Micro-Mirror, forward, Stainless Steel | 13676 |
| 8 |  |
Micro-Knife, 20 | 13678C |
| 23M | |
Micro-Scale, 5mm, 0.1mm div., Stainless Steel | 13687 |
| 27 |  |
Ultra Micro-Needle, 90 , 5 m radius tip, Tungsten | 13693 |
| 32 | |
Micro-Hook, 25mm long, anti-snag guard | 13696 |
| 71 |  |
Ultra Micro-Needle, 90 , 20 m radius tip | 13696 |
| 32 |  |
Ultra Micro-Needle, 30 , 20 m radius tip | 13696 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13670 | Micro-Tool Stainless Steel Standard Set, complete, set |
Each | € 587,90 |
| Included Tips | Shank Size | ||
|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.40mm |
| 1 |  |
Micro-Needle, Long | 13671B |
| 6 | |
Micro-Mirror, forward, Stainless Steel | 13676 |
| 7 |  |
Micro-Ruler, 10mm, 0.1mm div. | 13677 |
| 11 |  |
Micro-Prober, 90 | 13681B |
| 12 |  |
Micro-Prober, 45 | 13682B |
| 16 |  |
Micro-Spatula, flexible | 13686 |
| 18 |  |
Micro-Hook, 90 | 13688B |
| 24 |  |
Micro-Needle, short | 13689B |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13670-10 | Microscopist Stainless Steel Tool Set, complete, set |
Each | € 566,80 |
| Included Tips | Shank Size | ||
|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.40mm |
| 1 | |
Micro-Needle, Long | 13671B |
| 6 | |
Micro-Mirror, forward | 13676 |
| 7 | |
Micro-Ruler, 10mm, 0.1mm div. | 13677 |
| 11 | |
Micro-Prober, 90 | 13681B |
| 12 | |
Micro-Prober, 45 | 13682B |
| 16 |  |
Micro-Spatula, flexible | 13686 |
| 18 | |
Micro-Hook, 90 | 13688B |
| 24 | |
Micro-Needle, short | 13689B |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13670-20 | Micro-Needle Stainless Steel Probe Tool Set, complete, set |
Each | € 556,80 |
| Included Tips | Shank Size | ||
|---|---|---|---|
| # Tip style | Micro-Tool | Description | 0.40mm |
| 1 | |
Micro-Needle, Long | 13671B |
| 3 | |
Micro-Chisel | 13673B |
| 4 |  |
Micro-Spade | 13674B |
| 6 | |
Micro-Mirror, forward, Stainless Steel | 13676 |
| 8 |  |
Micro-Knife, 20 | 13678B |
| 9 |  |
Micro-Knife, 45 | 13679B |
| 13 |  |
Micro-Engraver, oval | 13683B |
| 21 |  |
Micro-Scraper, triangular | 13684B |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

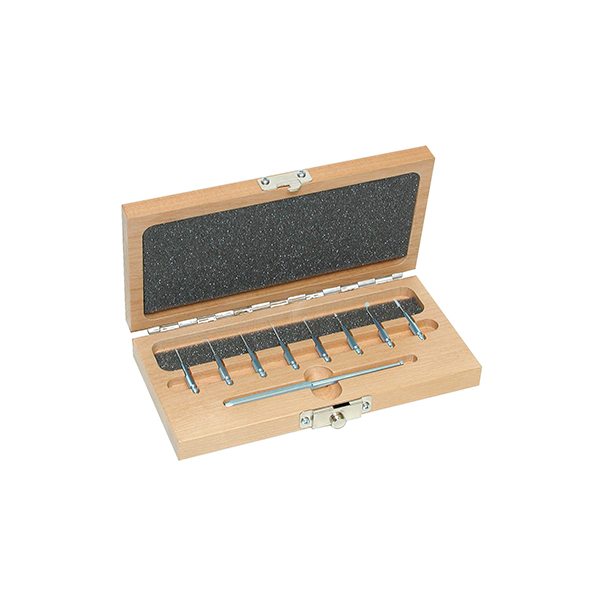

| 13670-30 | Micro-Cutting Stainless Steel Tool Set, complete, set |
Each | € 544,10 |
