Products
Micro Tools – Carbide Tips
Micro-Tools with Interchangeable Carbide Tips
The carbide tipped Micro-Tools have been developed for applications where cutting needs to be done on the micro scale. The micro-grain tungsten carbide tips are the hardest and most durable cutting tips available in the Micro-Tool line.
The carbide Micro-Tools need to be held in place precisely for cutting and are more brittle than comparable tools made from tool steel or high speed steel tools. They are available in various configurations and shank sizes with a diameter of 0.25, 0.50mm and 1mm.
The Micro-Tool tips are mounted in anodized tool cones.

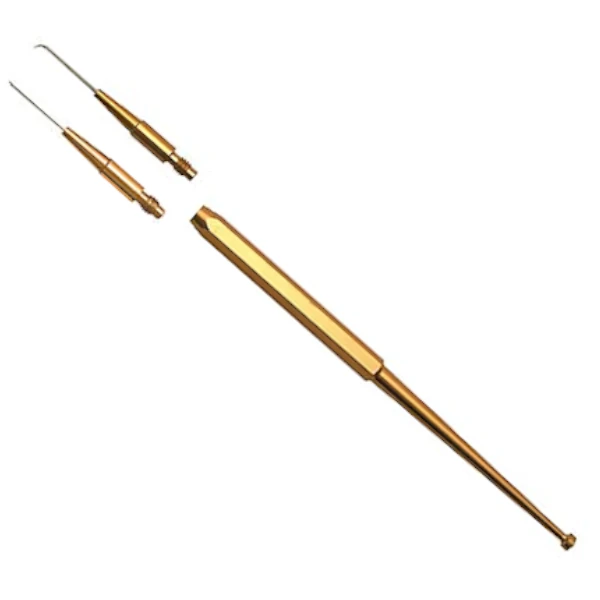

All carbide Micro-Tools fit the Micro-Tool handle (sold separately).

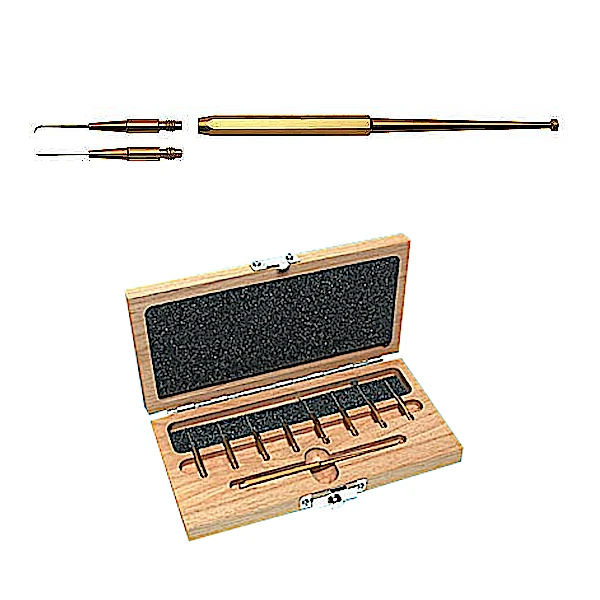

Available Handles and Storage Case:
Micro-Tool Handle, 120mm light weight, anodized aluminum or Stainless Steel
Micro-Tool hardwood storage case for 8 tips and handle
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13600 | Micro-Tool Handle, 120mm (4.75″) long, light weight, anodized aluminum | Each | € 31,40 | ||
| 13675 | Micro-Tool Handle, 120mm (4.75″) long, Stainless Steel | Each | € 58,90 | ||
| 13640 | Micro-Tool hardwood storage case for 8 tips and handle | Each | € 120,20 |
The carbide tipped Micro-Tools, formerly from Minitool™, have been developed for applications where cutting needs to be done on the micro scale.
The micro-grain tungsten carbide tips are the hardest and most durable cutting tips available in the Micro-Tool line.
The carbide Micro-Tools need to be held in place precisely for cutting and are more brittle than comparable tools made from tool steel or high speed steel tools.
They are available in various configurations and shank sizes with a diameter of 0.12, 0.25, 0.50mm and 1mm.
The Micro-Tool tips are mounted in anodized tool cones. All carbide Micro-Tools fit the Micro-Tool Handle (sold separately).
| Shank Size Ø | ||||||
|---|---|---|---|---|---|---|
| # Tip Style | Micro-Tool | Description | 0.12mm | 0.25mm | 0.50mm | 1.0mm |
| 1 |  | Micro-Needle, long, Carbide | 13701C | 13701 | 13701A | 13701B |
| 2 |  | Micro-Engraver, triangular, Carbide | 13702C | 13702 | 13702A | 13702B |
| 3 |  | Micro-Chisel, Carbide | 13703C | 13703 | 13703A | 13703B |
| 4 |  | Micro-Spade, Carbide | 13704C | 13704 | 13704A | 13704B |
| 8 |  | Micro-Knife, 20 degrees, Carbide | 13708C | 13708 | 13708A | 13708B |
| 9 |  | Micro-Knife, 45 degrees, Carbide | 13709C | 13709 | 13709A | 13709B |
| 13 |  | Micro-Engraver, oval, Carbide | 13705C | 13705 | 13705A | 13705B |
| 21 |  | Micro-Scraper, triangular, Carbide | 13706C | 13706 | 13706A | 13706B |
| 24 | | Micro-Needle, short, Carbide | 13707C | 13707 | 13707A | 13707B |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13701 | Micro-Needle, long, Carbide, 0.25mm (0.010″) shank | Each | € 63,80 | ||
| 13701A | Micro-Needle, long, Carbide, 0.50mm (0.020″) shank | Each | € 89,70 | ||
| 13701B | Micro-Needle, long, Carbide, 1mm (0.040″) shank | Each | € 64,20 | ||
| 13701C | Micro-Needle, long, Carbide, 0.012mm (0.005″) shank | Each | € 91,00 | ||
| 13702 | Micro-Engraver, triangular, Carbide, 0.25mm (0.010″) shank | Each | € 90,40 | ||
| 13702A | Micro-Engraver, triangular, Carbide, 0.50mm (0.020″) shank | Each | € 89,70 | ||
| 13702B | Micro-Engraver, triangular, Carbide, 1.0mm (0.040″) shank | Each | € 97,20 | ||
| 13702C | Micro-Engraver, triangular, Carbide, 0.012mm (0.005″) shank | Each | € 120,60 | ||
| 13703 | Micro-Chisel, Carbide, 0.25mm (0.010″) shank | Each | € 81,40 | ||
| 13703A | Micro-Chisel, Carbide, 0.50mm (0.020″) shank | Each | € 66,60 | ||
| 13703B | Micro-Chisel, Carbide, 1.0mm (0.040″) shank | Each | € 84,70 | ||
| 13703C | Micro-Chisel, Carbide, 0.12mm (0.005″) shank | Each | € 105,30 | ||
| 13704 | Micro-Spade, Carbide, 0.25mm (0.010″) shank | Each | € 89,70 | ||
| 13704A | Micro-Spade, Carbide, 0.50mm (0.020″) shank | Each | € 66,60 | ||
| 13704B | Micro-Spade, Carbide, 1.0mm (0.040″) shank | Each | € 84,70 | ||
| 13704C | Micro-Spade, Carbide, 0.12mm (0.005″) shank | Each | € 105,30 | ||
| 13705 | Micro-Engraver, oval, Carbide, 0.25mm (0.010″) shank | Each | € 81,40 | ||
| 13705A | Micro-Engraver, oval, Carbide, 0.50mm (0.020″) shank | Each | € 66,60 | ||
| 13705B | Micro-Engraver, oval, Carbide, 1.0mm (0.040″) shank | Each | € 84,70 | ||
| 13705C | Micro-Engraver, oval, Carbide, 0.12mm (0.005″) shank | Each | € 105,30 | ||
| 13706 | Micro-Scraper, triangular, Carbide, 0.25mm (0.010″) shank | Each | € 81,40 | ||
| 13706A | Micro-Scraper, triangular, Carbide, 0.50mm (0.020″) shank | Each | € 66,60 | ||
| 13706B | Micro-Scraper, triangular, Carbide, 1.0mm (0.040″) shank | Each | € 84,70 | ||
| 13706C | Micro-Scraper, triangular, Carbide, 0.12mm (0.005″) shank | Each | € 105,30 | ||
| 13707 | Micro-Needle, short, Carbide, 0.25mm (0.010″) shank | Each | € 80,70 | ||
| 13707A | Micro-Needle, short, Carbide, 0.50mm (0.020″) shank | Each | € 45,50 | ||
| 13707B | Micro-Needle, short, Carbide, 1.0mm (0.040″) shank | Each | € 63,10 | ||
| 13707C | Micro-Needle, short, Carbide, 0.12mm (0.005″) shank | Each | € 63,10 | ||
| 13708 | Micro-Knife, 20 deg, Carbide, 0.25mm (0.010″) shank | Each | € 81,40 | ||
| 13708A | Micro-Knife, 20 deg, Carbide, 0.50mm (0.020″) shank | Each | € 66,60 | ||
| 13708B | Micro-Knife, 20 deg, Carbide, 1.0mm (0.040″) shank | Each | € 84,70 | ||
| 13708C | Micro-Knife, 20 deg, Carbide, 0.12mm (0.005″) shank | Each | € 105,30 | ||
| 13709 | Micro-Knife, 45 deg, Carbide, 0.25mm (0.010″) shank | Each | € 81,40 | ||
| 13709A | Micro-Knife, 45 deg, Carbide, 0.50mm (0.020″) shank | Each | € 66,60 | ||
| 13709B | Micro-Knife, 45 deg, Carbide, 1.0mm (0.040″) shank | Each | € 84,70 | ||
| 13709C | Micro-Knife, 45 deg, Carbide, 0.12mm (0.005″) shank | Each | € 105,30 |

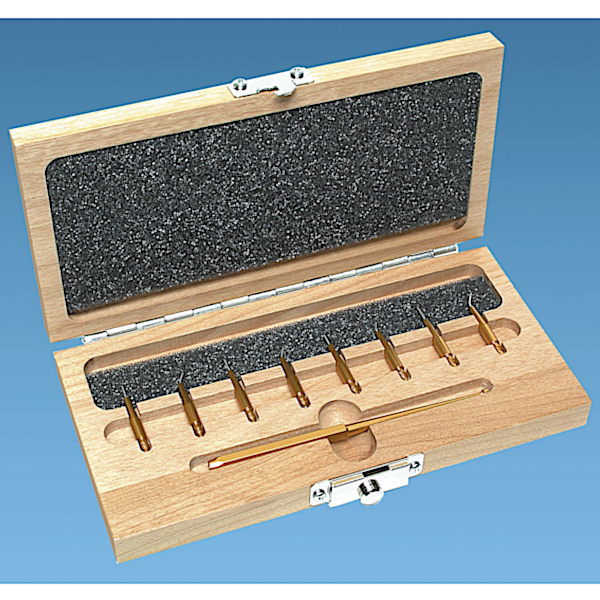

The Micro-Tool Set with Carbide Cutting Tools
Set includes: handle with eight replaceable screw on tips and a hardwood storage case
Note: individual tips may be ordered below.
Micro-Needle, long, CarbideMicro-Needle, long, CarbideMicro-Needle, long, Carbide
| Included Tips | |||
| # Tip style | Micro-Tool | Description | Shank size 0.50mm |
|---|---|---|---|
| 1 | | Micro-Needle, long, Carbide | 13701A |
| 2 | | Micro-Engraver, triangular, Carbide | 136702A |
| 3 | | Micro-Chisel, Carbide | 13703A |
| 4 | | Micro-Spade, Carbide | 13704A |
| 8 | | Micro-Knife, 20 | 13708A |
| 9 | | Micro-Knife, 45 | 13709A |
| 13 | | Micro-Engraver, oval | 13705A |
| 21 | | Micro-Scraper, triangular, Carbide | 13706A |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 13700 | Micro-Tool Carbide Cutting Tools Set, complete, set | Each | € 568,40 |
