Laboratory Lubricants
Apiezon AP100 Grease is a silicone-free vacuum grease and lubricant, containing PTFE and exhibits extremely high levels of lubricity; It has been shown to provide 8 times the level of lubrication offered by standard, petroleum-based lubricating greases. It s unique properties means it is frequently used to protect against corrosion and abrasion, particularly under high load conditions and to prevent seizure in stopcocks, taps and small metal fastenings.
This grease helps to increase the accuracy of analytical techniques and improve yields in semiconductor manufacture by contamination avoidance. In addition, it is used for surface coating applications where silicone contamination can lead to poor surface adhesion and incomplete coating defects.
AP100 is designed for use at ambient temperatures (generally between 10 to 30 C / 50 to 86 F). If you are looking for a grease capable of performing at higher temperatures, AGY4394 Apiezon 101 or AGB7271 Apiezon H Grease may be more appropriate.
Properties:
- Anti-seize properties, making it an effective protector and lubricant in ultra-high vacuums
- Extremely high levels of lubricity
- Demonstrates an extremely low vapour pressure of 7 x 10-11 Torr at 20 C
- Recommended for use at ambient temperatures
- Does not suffer from contamination problems associated with silicone based greases such as ‘creep’ or ‘carry over’
- Easy to clean and remove using hot water and an aqueous glassware detergent or hydrocarbon solvents
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| NAAP15 | Apiezon AP100 Grease |
25g | € 314,60 |
Apiezon AP101 is a specialist, anti-seize vacuum grease, containing PTFE, which confers superior anti-seize properties providing glass and metal surfaces with long-lasting lubrication and protection from fusing and corrosion. It is silicon-free and is an excellent general purpose, hydrocarbon grease suitable for a variety of scientific applications. Typically, it is used to maintain the smooth operation of stopcocks and taps and is used in most laboratories.
The Grease is not limited to laboratory and glassware use and is equally effective on metal equipment which may be subject to seizure or corrosion. Just a small amount of AP101 on fastenings will ensure they are protected. It reduces sample contamination and consequently the risk of interference in analytical techniques such as infra-red and mass spectrometry. Additionally, AP101 can be used with confidence in paint spraying and metal deposition processes.
Properties:
- Ideally suited for use in low to medium vacuum ranges having a vapour pressure of <10-5 Torr at 20 C
- Anti-seize properties make it an effective protector and lubricant for metal surfaces which may be subject to seizure or corrosion
- Insoluble in most solvents and resistant to water, alcohols, ketones and esters
- Resists attack from aqueous acid and alkali solutions, alcoholic alkali solutions and corrosive gases
- Suitable for use over a wide temperature range
- Does not suffer from contamination problems associated with silicone-based greases such as ‘creep’ or ‘carry over’ due to AP101 being hydrocarbon based
- Easy to clean and remove using hot water and an aqueous glassware detergent or hydrocarbon solvents
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| NAAP50 | Apiezon AP101 Grease |
50g | € 152,10 | ||
| NAAP14 | Apiezon AP101 Grease |
4kg | p.o.r. |
Apiezon H Grease is a silicone-free high vacuum grease which has exceptional ‘stiction’ or sticking power and thermal conduction properties and has gained prestigious approvals from a variety of international organisations, including BAE Systems, the European Space Agency and NASA. H Grease is perfectly suited for use at high temperatures
As a high temperature, low to medium vacuum grease with good thermal conduction properties, Apiezon H Grease is used for many diverse applications. In particular H Grease is commonly used in scientific and industrial high temperature sealing applications and ideal for use with laboratory glassware; it is also favoured by the electronics and space industries where its high thermal conductivity makes it the perfect vacuum grease in situations where heat sink media requires adhesion.
Apiezon H grease has been approved by NASA as a material suitable for lubricating the gold-plated threads of small variable capacitors required to operate under high vacuum from -65 C to +125 C to prevent galling.
Properties:
- Performs well under a wide range of temperatures, from -10 to +240 C
- Retains its optimum consistency at temperatures between +10 and +110 C
- Rather than melting, it actually becomes stiffer as temperature increases and therefore is not recommended for highly stressed bearings
- Excellent heat transfer properties
- Conducts heat away from the site of operation, reducing the danger of overheating and damaging heat-sensitive components
- Powerful ‘gettering’ action absorbs potentially harmful grease and chemical impurities on metal and glass surfaces
- Easy to clean and remove as it is soluble in hydrocarbon solvents
- Vapour pressure of 1.7 x 10-9 Torr at 20 C
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B7271 | Apiezon H Grease |
25g | € 296,80 |
Apiezon L Grease is a silicone-free and halogen-free ultra high vacuum grease and has the best vapour pressure properties of all Apiezon products and is designed for use at ambient temperatures. As an ultra high vacuum grease with excellent lubrication properties and radiation resistance it is used for many diverse applications such as sealing and lubrication applications.
Apiezon L is suitable for use in ultra high vacuum applications and is regularly used by highly respected organisations such as The European Space Agency, NASA and NATO. It has been especially formulated to provide excellent lubrication while maintaining an efficient gas seal and is therefore widely used in the manufacture and servicing of high performance vacuum pumps. It is also regularly used in analytical techniques such as infrared or mass spectrometry where sample contamination must be avoided.
As a halogen-free product Apiezon L Grease has a built-in resistance to irradiation. Other high vacuum greases such as esters, silicones or halogenated paraffins decompose at radiation levels of 0.1 MGy or less. In contrast, L Grease maintains excellent lubrication properties in high radiation applications, despite a small increase in stiffness when irradiated with 4 MeV electrons to 1 MGy. Additional, Apiezon L has strong powers of absorption, particularly for other hydrocarbon molecules due to its complex hydrocarbon structure and very high molecular weight. Consequently, it is frequently used as a stationary phase in gas chromatography.
Properties:
- Recommended for use at ambient temperatures (generally between 10 to 30 C / 50 to 86 F)
- Low vapour pressure of 7 x 10-11 Torr at 20 C
- Does not suffer from contamination problems associated with silicone based greases such as ‘creep’ or ‘carry over’
- Excellent lubrication
- Built-in radiation resistance
- Powerful ‘gettering’ action, meaning it absorbs potentially harmful grease and chemical impurities on metal and glass surfaces
- Easy to clean and remove as it is soluble in hydrocarbon solvents
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| NA0L25 | Apiezon L Grease |
25g | € 216,20 | ||
| B7270 | Apiezon L Grease |
50g | € 298,30 |
Apiezon M Grease is a silicone-free and halogen-free high vacuum grease with excellent lubrication properties and radiation resistance and is ideally suited to high vacuum applications at ambient temperatures. Its inherent versatility means that it is also used for non-vacuum purposes and it is approved for use by NATO.
Apiezon M has been especially formulated to provide excellent lubrication while maintaining an efficient gas seal and is widely used in the manufacture and servicing of high performance vacuum pumps. It is regularly used in analytical techniques such as infrared or mass spectrometry where sample contamination must be avoided. Apiezon M Grease also has strong powers of absorption, particularly for other hydrocarbon molecules due to its complex hydrocarbon structure and very high molecular weight. Consequently, it is frequently used as a stationary phase in gas chromatography.
As a halogen-free product, Apiezon M Grease has a built-in resistance to irradiation. Other high vacuum greases such as esters, silicones or halogenated paraffins decompose at radiation levels of 0.1 MGy or less. In contrast, M Grease maintains excellent lubrication properties in high radiation applications, despite a small increase in stiffness when irradiated with 4 MeV electrons to 1 MGy.
Properties:
- Recommended for use in high vacuum environments at ambient temperatures (generally between 10 to 30 C / 50 to 86 F)
- Does not suffer from contamination problems associated with silicone based greases such as ‘creep’ or ‘carry over’
- Vapour pressure of 1.7 x 10-9 Torr at 20 C
- Built-in radiation resistance
- Powerful ‘gettering’ action, meaning it absorbs potentially harmful grease and chemical impurities on metal and glass surfaces
- Easy to clean and remove as it is soluble in hydrocarbon solvents
- Apiezon M Grease
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| NA0M25 | Apiezon M Grease |
25g | € 147,80 | ||
| B7272 | Apiezon M Grease |
100g | € 247,70 |
Apiezon N Grease is the cryogenic Vacuum Grease of choice, it’s silicone-free and halogen-free and specially formulated to show craze-free performance characteristics, withstanding frequent cycling between cryogenic temperatures as low as -273 C and +30 C.
The grease can be relied upon to form and maintain a vacuum seal for long periods, even when subjected to frequent thermal cycling, its unique properties mean N Grease is widely used to create reliable vacuum and pressure-tight seals in, amongst others: electron microscopes, vacuum lines; Schlenk lines; cold traps and liquid helium hoses.
N Grease has a proven track record in improving thermal contact under cryogenic conditions. This is important for the coupling of cooling systems to superconducting magnets, cryostats, temperature sensors or any system that is required to reach cryogenic temperatures as quickly as possible. Low levels of magnetic susceptibility also make it ideal for superconductor manufacturing applications.
Important in low temperature testing of semiconductor chips, laser diodes and crystals, etc., Apiezon N Grease is used to improve thermal contact between the sample boat and cold finger of a cryotstat. This cryogenic thermal contact grease ensures that samples are at the lowest possible temperatures to improve test sensitivities.
Properties:
- Withstands cryogenic temperatures as low as -273 C and +30 C
- Craze-free at cryogenic temperatures
- Abililty to fill the micropores of adjoining surfaces, so improve thermal contact
- Does not suffer from contamination problems associated with silicone based greases such as ‘creep’ or ‘carry over’
- Vapour pressure of 6 x 10-10 Torr at 20 C
- Powerful ‘gettering’ action
- Low levels of magnetic susceptibility
- Absorbs potentially harmful grease and chemical impurities on metal and glass surfaces
- Easy to clean, use and remove and is soluble in hydrocarbon solvents
- Resists cracking at extremely low temperatures
- Pliable at room temperature and solidifies at Cryogenic temperatures (allows for easy mounting and removal of sensor without causing damage)
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B7273 | Apiezon N Grease |
25g | € 336,50 |
Apiezon T Grease is a silicone-free medium temperature vacuum grease renowned for its quality and tenacity. As a vacuum grease, it is specifically designed for use in the low to medium vacuum range yet is suitable to be used in the high vacuum range at lower temperatures. It provides extra cushioning between mated surfaces and is highly effective in protecting fragile glass to glass joints.
We specifically recommend that Apiezon T Grease is used for both sealing and lubrication in medium temperature environments (but not for highly stressed bearings). T Grease confers excellent cohesive strength and therefore when joints are mated they stay mated, forming an extremely efficient, gas tight seal. T Grease has also found a niche as a barrier to oxygen transmission in both vacuum and non-vacuum situations.
Properties:
- Performs well under a wide range of temperatures, from +10 to +120 C
- Added cushioning
- Exhibits good ‘stiction’ or sticking power
- Powerful ‘gettering’ action
- Absorbs potentially harmful grease and chemical impurities on metal and glass surfaces
- Easy to clean and remove as it is soluble in hydrocarbon solvents
- Vapour pressure of 4.6 x 10-9 Torr at 20 C
- Not recommended for highly stressed bearings
T Grease has gained approval from prestigious organisations including NATO and the US Navy.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| NA0T25 | Apiezon T Grease |
25g | € 291,60 |
Apiezon PFPE 501 vacuum grease is a chemically inert, high temperature lubricant.
With an upper operating temperature of 250 C and vapour pressure of 1.3 x 10-12 at 25 C, it is robust, versatile and can be used for sealing and lubricating under the most extreme operating conditions. This includes environments where aggressive chemicals and strong oxidising agents are regularly used.
Apiezon PFPE 501 is also certified H1 food grade by NSF international, who are the global independent body that certify food service equipment and supplies for use to the industry. Having the H1 classification confirms that Apiezon PFPE 501 can be used safely in the food production chain where incidental food contact may occur. To achieve this level of accreditation with NSF, the content in the final product must not exceed 10ppm (parts per million). Find out more here.
Properties
Apiezon PFPE 501 Grease is an ultra-high vacuum grease which:
- exhibits an extremely low vapour pressure of 1.3 x 10-12 Torr at 25 C
- provides excellent lubrication
- can be used at temperatures of up to 250 C
- is chemically inert
- can be used in high oxygen environments
- is certified NSF H1 food grade
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| NAPFPE501 | Apiezon PFPE501 Grease |
100g | € 388,20 |
Apiezon Compound Q is a versatile, temporary vacuum sealing medium which exhibits good vacuum properties in the lower vacuum range. It is a soft, putty like substance which is easily moulded by hand at ambient temperatures, yet firm enough to remain in position and is readily removed when no longer required. It can be used to seal around the edges of flat unground joints, to blank off parts of an apparatus temporarily or to seal glass cylinders to metal plates to produce temporary vacuum enclosures.
Apiezon Compound Q has a vapour pressure of approximately 9 x 10-5 torr at 20 C ensuring efficacious use where the vacuum requirement is not too low. With a softening point of 45 C Compound Q should be used where the site of application remains between -10 and +30 C. Care should be taken to ensure that hands and surfaces are clean in order to preserve the low vapour pressure characteristics of the product
Upon removing, any residues of the product can be washed away with warm soapy water by using any aromatic hydrocarbon solvent (toluene, xylene) or by using a vapour degreasing bath. It is not soluble in alcohols (ethanol, IPA) or ketones (acetone, MEK) so these cannot be used for cleaning
The shelf life of Apiezon Q compound is ten years from date of manufacture, providing the product is in the original unopened packaging and has been stored at ambient (10 to 30 C) temperature.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B7274 | APIEZON Q Compound |
1kg | € 302,40 |
This oil is designed for use wherever a high viscosity oil is needed for sealing purposes. With low vapour pressures, these products can be used with confidence under vacuum environments and can provide an effective vacuum seal.
The main difference between the two products is in the higher viscosity of K oil compared to J oil; if a thicker oil is needed then K oil is the preferred choice.
These oils could also be used to seal fragile glassware in vibrational applications; however they are liquid and should only be used in applications where the oil would have nowhere to flow to.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| NAJ500 | Apiezon J oil |
500ml | p.o.r. |
The Apiezon range of waxes features three products including the Wax W, also known as Black Wax , the W100 Wax and W40 Wax. All 3 waxes in the range can be used as permanent or semi-permanent vacuum sealants or mounting media.
Apiezon waxes are equally effective at maintaining seals in vacuum systems down to 10-9 torr at 20 C (dependent on the wax) and in systems at small positive pressures. They are excellent waterproof mediums providing a total seal against liquid water and offer superior sealing against water vapour and atmospheric moisture.
Like the greases, the waxes contain a high proportion of branched and unsaturated hydrocarbons. These complex structures give a very high molecular weight and consequently strong powers of absorption, particularly for other hydrocarbon molecules. Strong absorption properties ensure that the waxes have a powerful “gettering” action, i.e. the power to absorb greasy or chemical impurities on metal and glass surfaces. Apiezon waxes have no contaminating effect on electrical equipment and are easily removed by hydrocarbon solvents, taking with it many trace impurities which are not removed by solvents alone. This has led to their extensive use in the electronics industry, where scrupulous cleanliness of metal surfaces is required.
Their excellent vapour pressure characteristics, are extremely important for a variety of applications, including thin film deposition. Volatiles will not jeopardise the vacuum within the system or contaminate thin film deposits.
These waxes are used in the manufacture of silicon transistors and integrated circuits. They are chemically inert, being resistant to etching fluids such as:
-
- HF (Hydrofluoric acid)
- HNO3 (Nitric acid)
- CH3COOH (Acetic acid)
- KOH (Potassium hydroxide)
- TMAH (Tetramethylammonium Hydroxide)
- EDP (Ethylenediamine pyrocatechol)
- NaOH (Sodium hydroxide)
Technical Data
| Approx Softening point | 80 to 90 C |
| Est. vapour pressure at 20 C / 68 F, Torr | 4.5 x 10-9 |
| Temp for Application | 130 C |
| Working Temp Range | -10 to 75 C |
| Water Pemeability g/cm/hr/mm Hg at 25 C | 1.4 x 10-8 |
| Thermal conductivity at 20 C, W/m C | 0.189 |
| Specific heat at 25 C, J/g | 1.8 |
| Loss tangent | 0.015 |
| Permittivity | 2.8 |
| Volume resistivity, ? cm | 6.31 x 1015 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B7275 | Apiezon Wax W block |
500g | € 303,60 | ||
| B7276B | Apiezon Wax W block |
1kg | € 224,40 | ||
| B7276 | Apiezon Wax W sticks |
5x20g | € 129,30 |

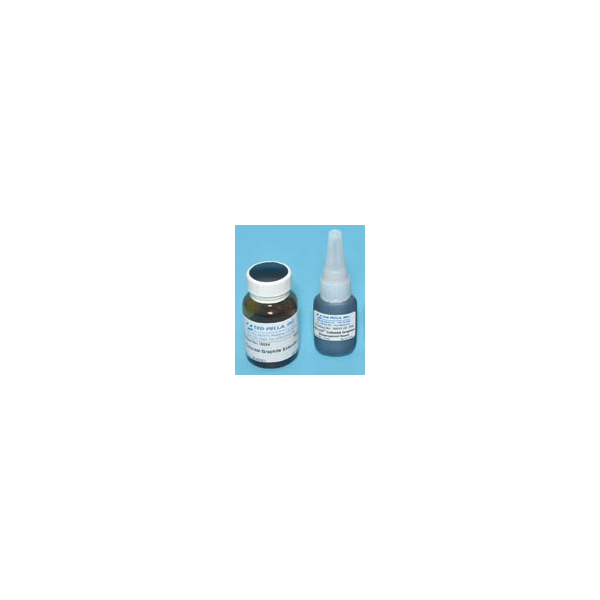

Molydag Lubricant 210
Molydag 210 is a colloidal dispersion of molybdenum disulfide in alcohol. Molydag 210 offers excellent lubrication properties, even under extreme pressures.
The material is easily applied by brush, dip or spray methods to surfaces which are not affected by alcohol.
It exhibits good adhesion to most substrates and usually air dries in 5-10 minutes.
Excess amounts should be avoided.
Applications are sliders, rotary shafts, notches, locks and anti-seize thread lubricant.
Can be used in small amounts for moving parts in vacuum (after drying).
Sold in 30g brush bottle and 20g squeeze bottle.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16061 | Molydag Lubricant 210 in brush bottle, 30g |
Each | € 12,40 | ||
| 16061-20 | Molydag Lubricant 210 in squeeze bottle, 20g |
Each | € 12,00 |

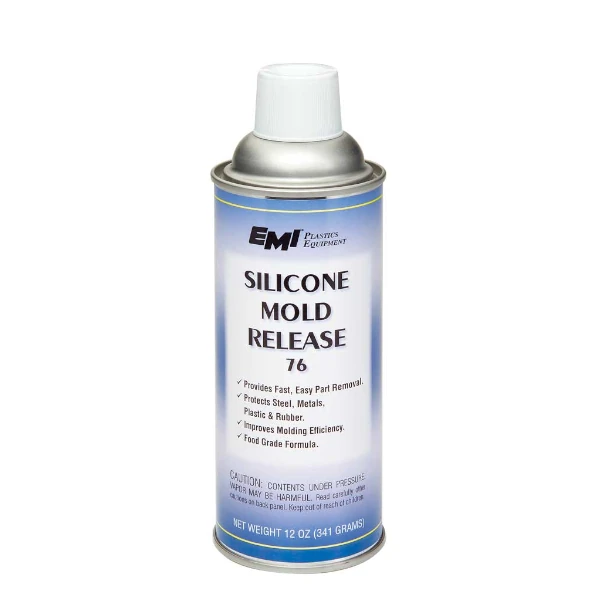

Silicone Mold Release
This superior formulation of silicon mold release is particularly useful for easy release of cold or hot embedding molds.
Cured resin embedding can be easily removed from plastic embedding mold when a thin layer of silicon mold release is sprayed on the inside of the mold.
Apply a thin coat before loading sample and embedding powder (phenolic, lucite, epoxy or diallyl phatalate) in hot embedding presses.
Also prevents sticking of materials such as plastics, rubber and waxes to molds. Contains no CFC, HCFC or chlorinated solvents.
Temperature Range: 40 F to 500 F (5 C to 260 C).
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 813-206 | Silicone Mold Release |
341g | € 17,50 |
Dow Corning High Vacuum Grease
High vacuum grease, general lab lubricant use
Dow Corning High Vacuum Grease is a stiff, non-melting silicone lubricating material which has temperature range of -40 C to 200 C.
Although it has a good stability at the higher end of the temperature range than most hydrocarbon greases, it shows a higher outgassing rate at room temperature.
It can be used for high vacuum systems up to the 1×10-6 mbar (1×10-6 torr) range.
Due to its initial outgassing, it is recommended to condition vacuum system before use.
Not for use in electron microscopes.
Also not recommended for use in evaporators which need to be Si free.
The Dow Corning High Vacuum Grease is the equivalent product to Dow Corning 976 of 976V High Vacuum grease.
Other applications include lubricant for glass stopcocks, glass joints, glass rubber connections and O-rings on binoculars.
Shelf life is 60 months from date of manufacture for unopened containers and stored at normal warehouse conditions.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 891-7 | Dow Corning High Vacuum Grease |
150g | € 101,40 |
Graphite Aerosol Lubricant
Bonderite L-GP formerly known as Aerodag G; same product now with new label
Excellent lubrication properties when sprayed on surfaces or in mechanisms such as locks, sliders and hinges.
Works well on most plastics. Can be used in vacuum systems when dry.
Other applications are conductive spray for non-conductive SEM specimen to enable imaging at low magnification and making plastics conductive for plating.
Sold in 10 oz. (284g) spray can.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16058 | Graphite Aerosol * |
284g | € 71,50 |
