Products
Variable Speed Rotator, R2

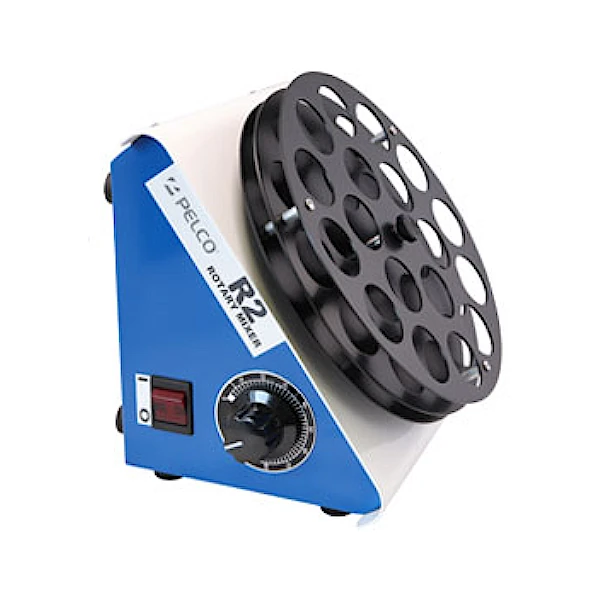

PELCO® R2 Variable Speed Rotator

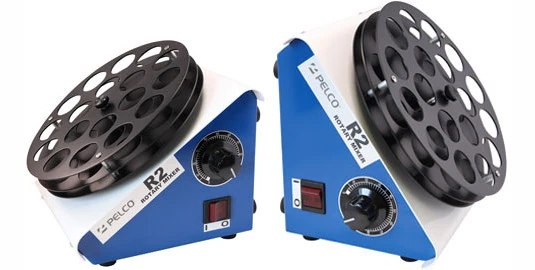

PELCO® R2 Rotator with 1051 heads shown in the 55° and 35° positions
The slow rotational speed of the PELCO® R2 lends itself to EM tissue processing techniques. Slow rotation is recommended for processing specimens and leads to more complete infiltration without air mixing, giving improved results for tissue preparations.
The PELCO® R2 has rubber cushioned feet on the bottom as well as on the back so it may be placed on either of two angles, 35° from horizontal when placed on the “bottom feet” and 55° from horizontal when placed on the “back feet”.
A high torque motor maintains constant speed at full load. Variable speed is easily set with a rotary control. Rotational speed is less than 1 to greater than 7.5 rpm. The PELCO® R2 has been tested under heavy load conditions to assure reliability.
A black-anodized head (1051) with 18 holes for bottles or vials up to 30mm in diameter comes with the R2. Our #12706 Snap-Cap® Vials are used in this head. Optional head is available (1054).
| Head: | 19.7cm O.D., 18 holes (32mm ø) |
| Body: | 18.6cm W, 16.5cm H, 20.3cm D |
| With 1051 Head Mounted: | 19.7cm W, 19.5cm H, 20.3cm D |
| Weight with 1051 Head: | 2.4Kg |
| Power Requirements: | Universal Voltage 100-240VAC, 45W, 50/60Hz |
R2 Rotator Head with Clips for 50ml tubes (#1050-2)
R2 Rotator Head with Clips for 5, 10 and 15ml tubes (#1050-3)
PELCO R2 Rotator Head with Clips for 1.5 and 2.0ml tubes (#1050-4)
The PELCO® R2 Rotator has rubber cushioned feet on the bottom as well as on the back so it may be placed on either of two angles, 35° from horizontal when placed on the “bottom feet” and 55° from horizontal when placed on the “back feet”.
A high torque motor maintains constant speed at full load. Variable speed is easily set with a rotary control. Rotational speed is less than 1 to greater than 7.5 rpm. The PELCO® R2 has been tested under heavy load conditions to assure reliability.
Optional, 1054 Rotator Head for the PELCO® R2 Rotator
Dimensions
Head: 19.7cm (7-3/4″) O.D., 31 holes (16.3mm ø)
1054 Rotator Head for the R2
1054 Rotator Head with #411 Specimen Vials loaded
#411 Clear Wheaton® Sample Vials with Rubber Lined Screw Cap
Solid top black phenolic caps with 14B white rubber liner are attached.
The vials are manufactured from Wheaton 33® low extractable borosilicate glass (meets ASTM Type I Class A and USP Type I Standards) to protect against changes in pH and maintain purity of contents. They have uniform sidewall and bottom thicknesses, are lightweight and have excellent strength and clarity. Storage down to -40° C.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 1050 | PELCO R2 Rotator with 1051 Head, 100-240VAC, 45W, 50/60Hz |
Each | € 885,00 | ||
| 1051 | R2 Rotator Head, with 18 holes (32mm ) |
Each | € 110,20 | ||
| 1050-115-1 | Replacement Motor for PELCO R2 Rotator |
Each | € 140,80 | ||
| 1054 | PELCO R2 Rotator Head, 31 holes (16.3mm ) |
Each | € 127,50 |
