Vise Clamp Holders

Products

Vise Clamp Holders

Loading...
Product

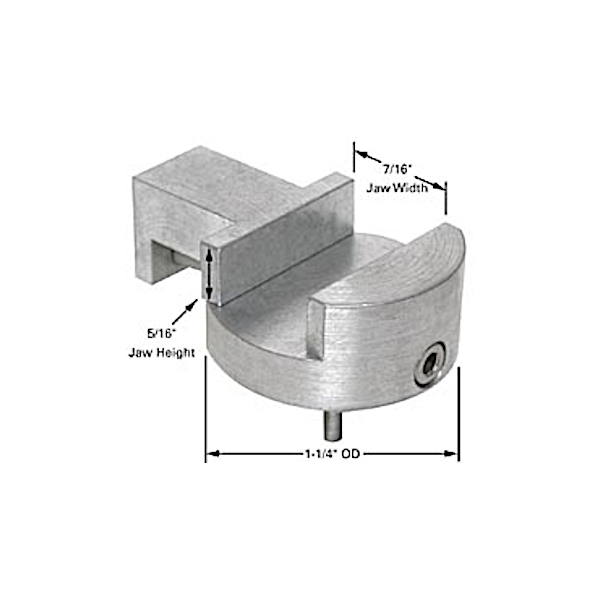

Micro Vise
A fast and clean way to hold specimens for SEM.
no. 15340

Description

Micro Vise

compatible with pin stub holder

A fast and clean way to hold specimens for SEM. The jaws are 25.4mm (1″) wide.
Maximum gap is 11mm (7/16″).

Material: machined aluminum with stainless steel allen screw.
Allen wrench included.

Screws used are 6-32 x 3/4 Soc Head, Vent and 6-32 x 5/16 Flat Head, SS

Order

Art.Description Unit PriceQuantity
15340

Micro Vise, 3.2mm (1/8″) pin

 Each € 165,00
✓
Brand:

Product
Small Springloaded Vise Clamp
Small Springloaded vise clamp for samples up to 12.7mm (1/2").
no. 15341 and 15341-20

Description

Small Springloaded Vise Clamp

Small Springloaded vise clamp for samples up to 12.7mm (1/2″).
The jaws are 25mm (1″) wide.

Jaws also accommodate 1/16″ x 1/2″ stainless steel pins for more awkward shaped samples.
4 pins are included.
Removable pushrod for easy loading is provided.

Material: machined aluminum with stainless steel pins and springs.
Overall size of vise clamp w/o pin and pushrod 30 x 25 x 12.5mm (1.18″ x 1″ x “).

Screw used is 2-56 x 1/8, Set Cup, SS

Order

Art.Description Unit PriceQuantity
15341

Small Springloaded Vise Clamp, pin

 Each € 284,70
✓
Brand:

Product
Springloaded Vise Clamp
Springloaded vise clamp for samples up to 26mm.
no. 15343

Description

Springloaded Vise Clamp

Springloaded vise clamp for samples up to 26mm.

The jaws are 25mm wide. Jaws also accommodate 1,6 x 12,7mm” stainless steel pins for more awkward shaped samples.
4 pins are included.

Removable pushrods for easy loading are provided.
Material: machined aluminum with stainless steel pins and springs.

Overall size of vise clamp w/o pin and push rods 50 x 25 x 15mm.

Order

Art.Description Unit PriceQuantity
15343

Springloaded Vise Clamp, pin

 Each € 414,10
✓
Brand:

Product

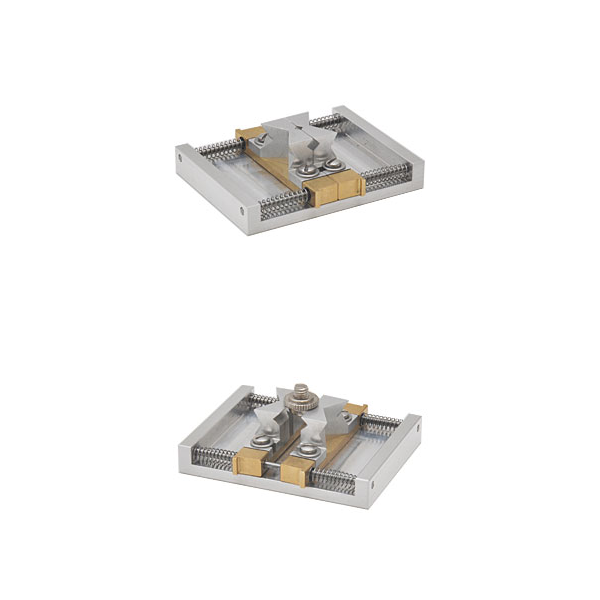

Universal Springloaded Vise
Springloaded vise clamp with reversible jaws for an opening up to 38mm.
no. 15342

Description

Universal Springloaded Vise

Springloaded vise clamp with reversible jaws for an opening up to 38mm.

The universal jaws have special slots to firmly hold round samples of various diameters both horizontally and vertically.
Maximum width of the jaws is 32mm.

Material: machined aluminum with stainless steel springs, rods, screws, washers, and brass sliders.
Overall size of the vise clamp w/o pin is 67 x 52 x 20mm (2.64″ x 2″ x 0.8″).

Screw used is 2-56 x 1/8, Set Cup, SS

Order

Art.Description Unit PriceQuantity
15342

Universal Springloaded Vise with Reversible Clamps, Pin

 Each € 324,80
✓
Brand:

Product

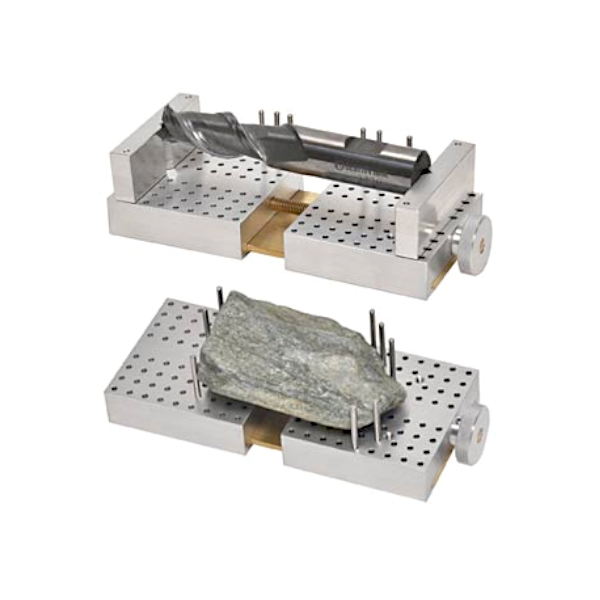

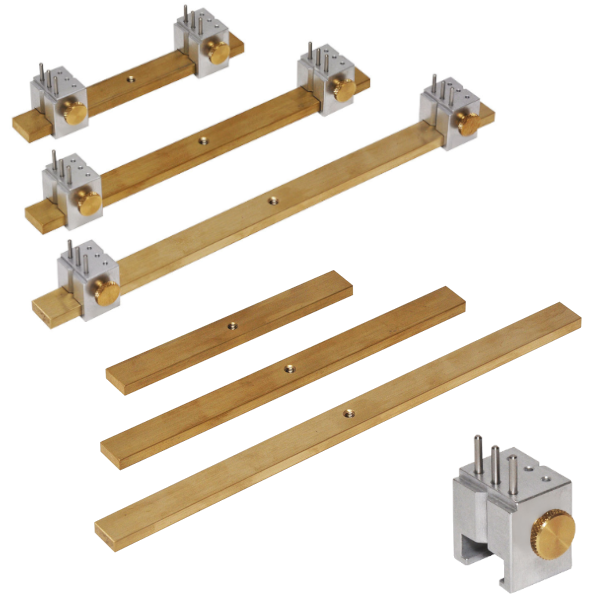

PELCO Bar Clamp Vise
The PELCO Bar Clamp Vise is available in three lengths; 102mm (4"), 152mm (6") and 203mm (8") with the same clamps for each version.
no. 15477 to 15478

Description

PELCO Bar Clamp Vise, 4″, 6″ and 8″

The PELCO Bar Clamp Vise is available in three lengths; 102mm (4″), 152mm (6″) and 203mm (8″) with the same clamps for each version.
This bar type clamp can accommodate specimens up to 72mm (3″), 127mm (5″) and 178mm (7″) in length respectively.

The jaws are reversible, offering different clamping options and they operate independently anywhere on the clamping bar.
This will allow for positioning the region of interest of the specimen within the travel range of the SEM stage.

Stainless steel 1/16″ pins (6 pins are included) can be placed on the clamps for awkwardly shaped samples.
Clamping bars and clamps can be purchased additionally to make up the best functional set for the job at hand.

Made of vacuum grade aluminum with brass bar and brass thumbscrews and stainless steel type 316 dowels.

Standard 3.2mm (1/8″) pin with 9.5mm (3/8″) length.

  • Overall size for the 102mm(4″) version: LxWxH 102 x 22 x 19mm (4″ x 7/8″ x “)
  • Overall size for the 152mm (6″) version: LxWxH 152 x 22 x 19mm (6″ x 7/8″ x “)
  • Overall size for the 203mm (8″) version: LxWxH 203 x 22 x 19mm (8″ x 7/8″ x “)

Screw used is 4-40 x 3/8, Thumb, Brass

Order

Art.Description Unit PriceQuantity
15477

PELCO Bar Clamp Vise, 102mm (4″), complete with bar and two clamps, Pin

 Each € 544,50
✓
15476

PELCO Bar Clamp Vise, 152mm (6″), complete with bar and two clamps, Pin

 Each € 578,20
✓
15478

PELCO Bar Clamp Vise, 203mm (8″), complete with bar and two clamps, Pin

 Each € 611,80
✓
Brand:

Product
Vise Clamp Holder Spares
Spares fo Bar Clamp Vise
no. 15477-10 to 15478-80

Description

PELCO Bar Clamp Vise, 4?, 6? and 8? Spares

The PELCO Bar Clamp Vise is available in three lengths; 102mm (4?), 152mm (6?) and 203mm (8?) with the same clamps for each version.
This bar type clamp can accommodate specimens up to 72mm (3?), 127mm (5?) and 178mm (7?) in length respectively.

The jaws are reversible, offering different clamping options and they operate independently anywhere on the clamping bar.
This will allow for positioning the region of interest of the specimen within the travel range of the SEM stage.

Stainless steel 1/16? pins (6 pins are included) can be placed on the clamps for awkwardly shaped samples.
Clamping bars and clamps can be purchased additionally to make up the best functional set for the job at hand.

Made of vacuum grade aluminum with brass bar and brass thumbscrews and stainless steel type 316 dowels.

Standard 3.2mm (1/8?) pin with 9.5mm (3/8?) length.

  • Overall size for the 102mm(4?) version: LxWxH 102 x 22 x 19mm (4? x 7/8? x )
  • Overall size for the 152mm (6?) version: LxWxH 152 x 22 x 19mm (6? x 7/8? x )
  • Overall size for the 203mm (8?) version: LxWxH 203 x 22 x 19mm (8? x 7/8? x )

Screw used is 4-40 x 3/8, Thumb, Brass

Order

Art.Description Unit PriceQuantity
15477-10

Additional Clamp for 102mm (4″), 152mm (6″) or 203mm (8″) bar

 Each € 222,30
✓
15477-40

Additional 102mm (4″) bar, Pin

 Each € 179,30
✓
15476-60

Additional 152mm (6″) bar, Pin

 Each € 208,00
✓
15478-80

Additional 203mm (8″) bar, Pin

 Each € 243,80
✓
15341-20

Replacement Pins for Vise Clamp, 1/2″ long

 10 € 52,50
✓
Brand:

Product

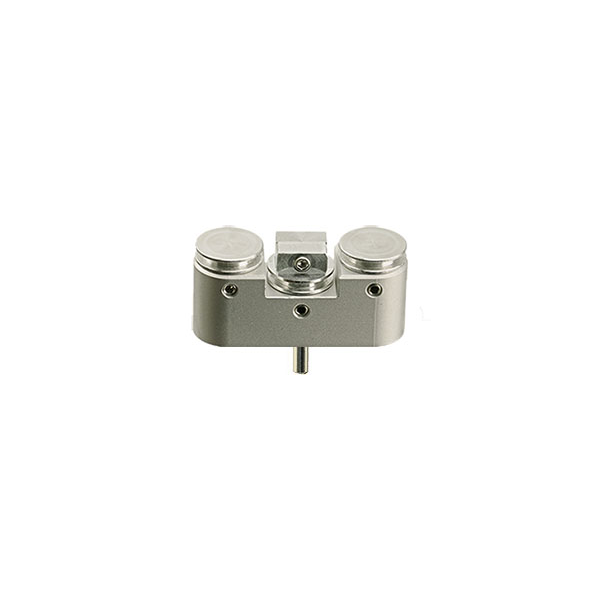

PELCO Double 1/2″ FIB Sample and Grid Holder
no. 15468

Description

PELCO Double 1/2″ FIB Sample and Grid Holder

The PELCO double FIB sample and Grid holder holds FIB samples mounted on two standard 1/2″ (12.7mm) pin stubs for FIB milling and lift-out procedures.
It also holds two FIB grids of the same thickness conveniently close to the sample to mount prepared TEM lamellae on the FIB grid for subsequent TEM imaging.
Compact and cost effective holder suitable for all FIB/SEM systems which accept pin mount holders, such as the FEI, ZEISS and Tescan systems.
For the JEOL and Hitachi systems a pin mount adapter is needed.

Made of vacuum grade aluminum with brass screws.
Philips screwdriver #0 included.

Overall size is 36.5 x 12.7 x 11.6mm (1.44″ x 0.5″ x 0.46″).
Standard 3.2mm (1/8″) pin.

Order

Art.Description Unit PriceQuantity
15468

PELCO Double 1/2″ FIB Sample and Grid Holder, Pin

 Each € 437,00
✓
Brand:

Product

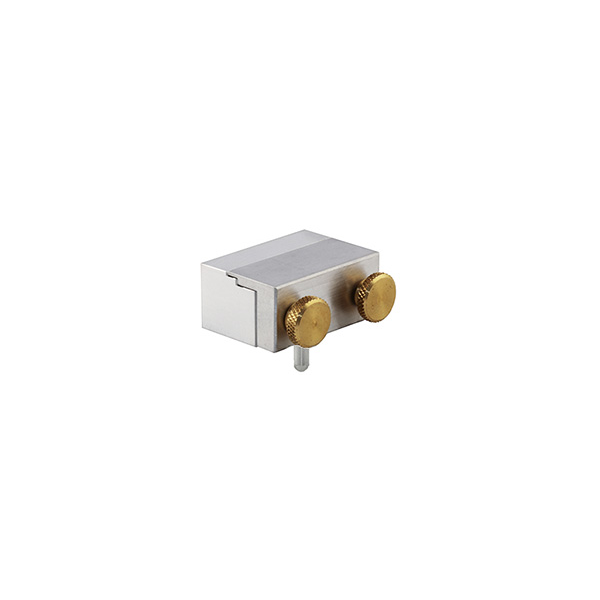

PELCO Multiple FIB Grid Holder
no. 15466

Description

PELCO Multiple FIB Grid Holder

Larger FIB grid holder capable of holding multiple FIB grids of the same thickness.
Can also be used to safely store FIB grids with thin section (lamellae) attached to them.

Brass thumbscrews facilitate easy loading and unloading.

Overall dimensions 22.5 x 29 x 13.5mm (7/8″ x 1-1/8″ x 5/8″).
Standard 3.2mm (1/8″) pin.
Material: vacuum grade aluminum with brass thumbscrews.

Screw used is 4-40 x 3/8, Thumb, Brass

Order

Art.Description Unit PriceQuantity
15466

PELCO Multiple FIB Grid Holder

 Each € 163,00
✓
Brand:

Product

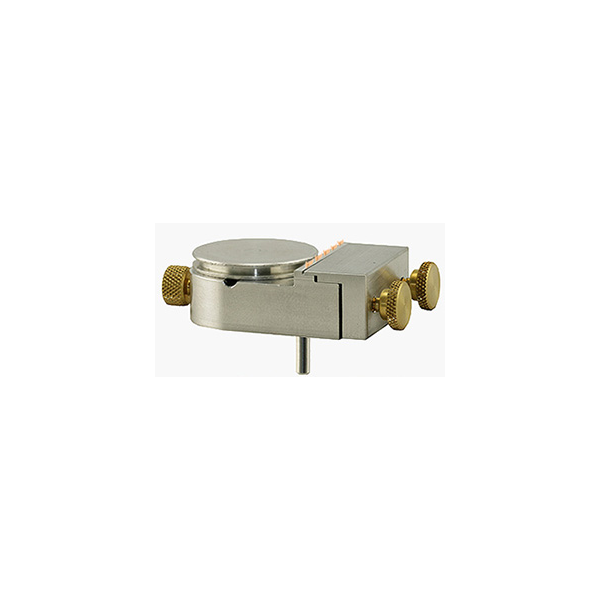

PELCO 1″ FIB Sample and Grid Holder
no. 15465

Description

PELCO 1″ FIB Sample and Grid Holder

The FIB Sample Prep and grid Holder holds an FIB sample mounted on a standard 25mm (1″) pin stub for FIB milling and lift out procedures.
It also holds FIB grids of the same thickness to mount the prepared lamellae on an FIB grid for subsequent TEM imaging.
Versatile and cost effective holder suitable for all FIB/SEM systems which accept pin mount holders such as the FEI, Zeiss and Tescan systems.
For the JEOL and Hitachi systems a pin mount adapter is needed.

Brass thumbscrews facilitate easy loading and un-loading.

Overall size is 50 x 29 x 13.5mm (2″ x 1-1/8″ x 5/8″).
Standard 3.2mm (1/8″) pin. Material: vacuum grade aluminum with brass screws.

Screws used are Screw used is 4-40 x 3/8, Thumb, Brass and 6-32 x 1/2, Thumb, Brass

Order

Art.Description Unit PriceQuantity
15465

PELCO 1″ FIB Sample and Grid Holder, Pin

 Each € 358,60
✓
Brand:
