Products
Mount Adapters

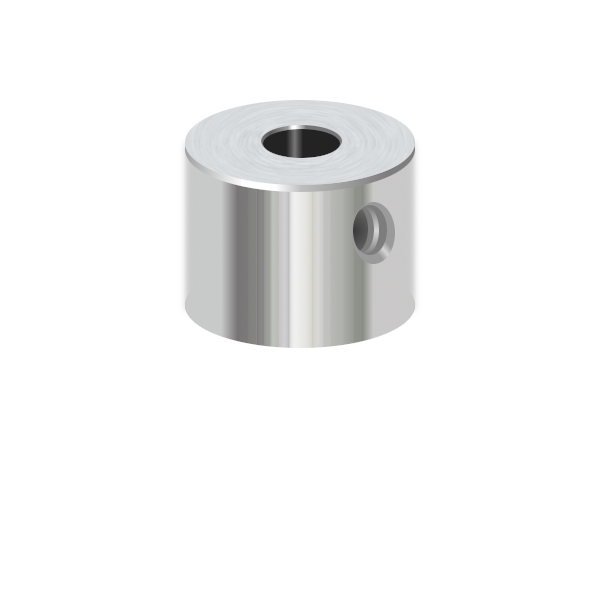

Pin Mount Adapter to JEOL 9.5mm cylinder mount
Pin mount adapter, 9.5 x 9.5mm H for JEOL.
Enables the use of standard pin mount with 1/8″ (3.2mm) pin on JEOL SEM.
Made from aluminum with stainless set screw.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15362 | Specimen Pin-Mount Adapter, 9.5 x 9.5mm L |
Each | € 40,40 |

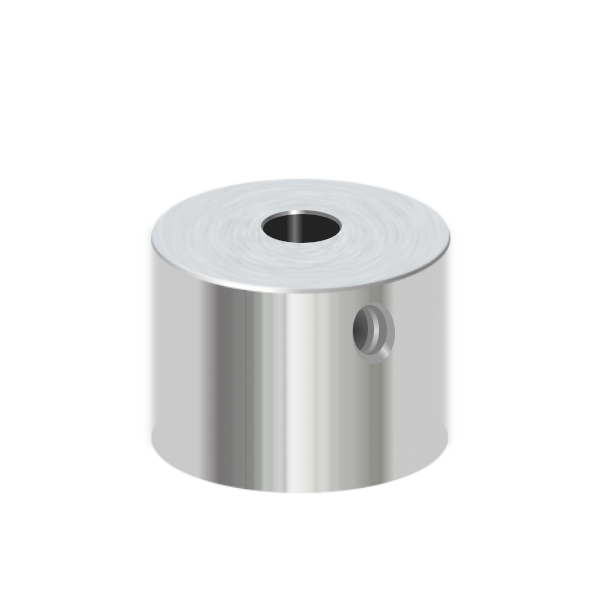

Pin Mount Adapter to JEOL 12.2mm cylinder mount
Pin mount adapter, 12.2 x 10mm H for JEOL.
Enables the use of standard pin mount with 1/8″ (3.2mm) pin on JEOL SEM.
Made from aluminum with stainless set screw.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15362-12 | Pin Mount adapter to JEOL 12.2mm mount |
Each | € 46,40 |

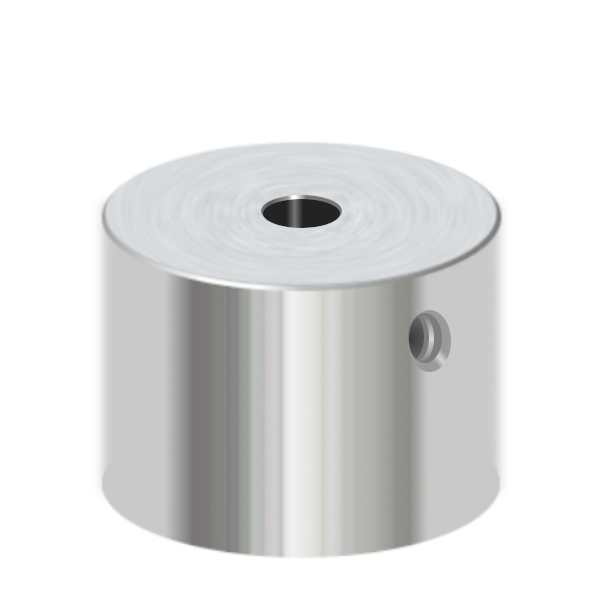

Pin Mount Adapter to JEOL 15mm cylinder mount
Pin mount adapter, 15 x 10mm H for JEOL.
Enables the use of standard pin mount with 1/8″ (3.2mm) pin on JEOL SEM.
Made from aluminum with stainless set screw.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15362-15 | Pin Mount adapter to JEOL 15mm mount |
Each | € 40,40 |

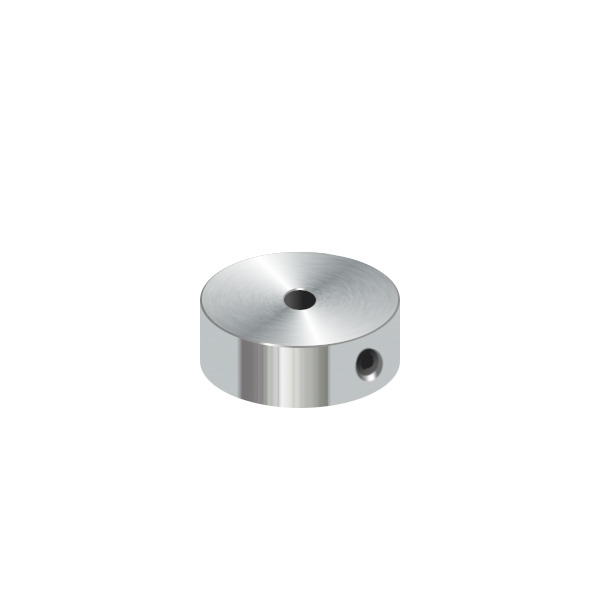

Pin Mount Adapter to JEOL 25mm cylinder mount
Pin mount adapter, 25 x 10mm H for JEOL. Enables the use of standard pin mounts with 1/8″ (3.2mm) pin on JEOL SEMs (including JEOL NEOSCOPE).
Made from aluminum with stainless set screw.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16153-9 | Pin Mount adapter to JEOL 25mm mount |
Each | € 43,40 |

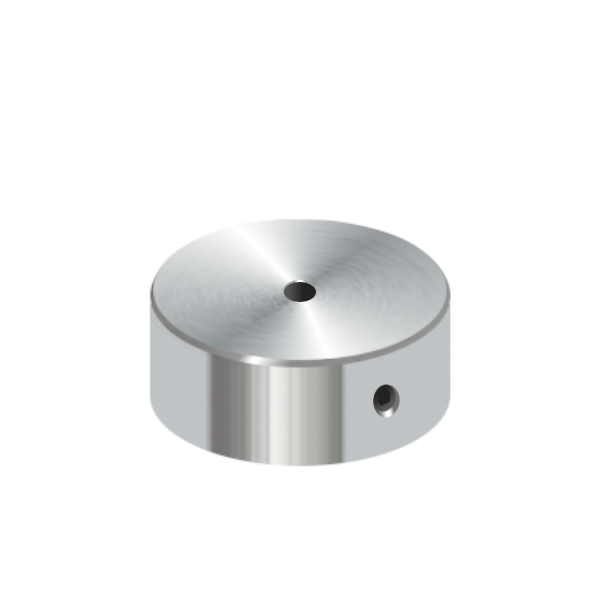

Pin Mount Adapter to JEOL 32mm cylinder mount
Pin mount adapter, 32 x 10mm H for JEOL. Enables the use of standard pin mounts with 1/8″ (3.2mm) pin on JEOL SEMs (including JEOL NEOSCOPE).
Made from aluminum with stainless set screw.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16216-9 | Pin Mount adapter to JEOL 32mm mount |
Each | € 42,80 |

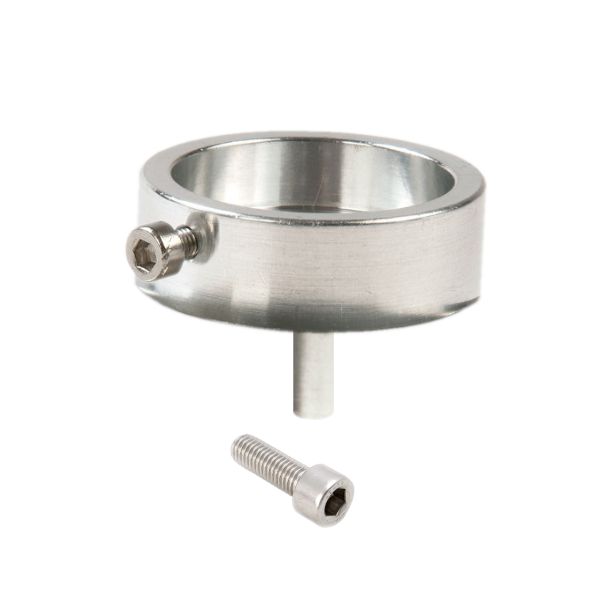

JEOL or ISI/ABT/Topcon mounts to pin stub
Small cylinder to pin mount adapter stubs.
Enables the use of 9.5 and 12.2mm JEOL or 15mm ISI cylinder mounts on pin mount holder (FEI/Philips, Zeiss/LEO, Cambridge Instruments, Leica, Amray, Tescan and CamScan).
Pin length 3/8″
Material: machined aluminum with stainless steel Allen screws of 5 and 8mm.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15301 | JEOL or ISI cylinder mount adapter to Pin Stub |
Each | € 66,20 |

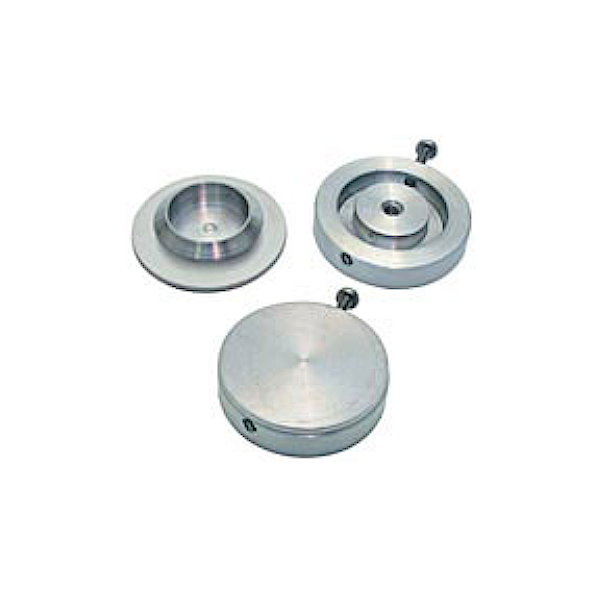

S-4 Mount Adapter, M4
The S-4 mount adapter allows the use of the S-4 specimen mounts (Cambridge Instruments, Leica, CamScan) on standard Hitachi M4 thread.
31mm diameter, 6mm height. Material: machined aluminum with stainless steel screw.
Note: Top Image shows S-4 mount left of the adapter, bottom: S-4 mount inserted into adapter.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15317 | S-4 Mount Adapter, M4 |
Each | € 66,90 |

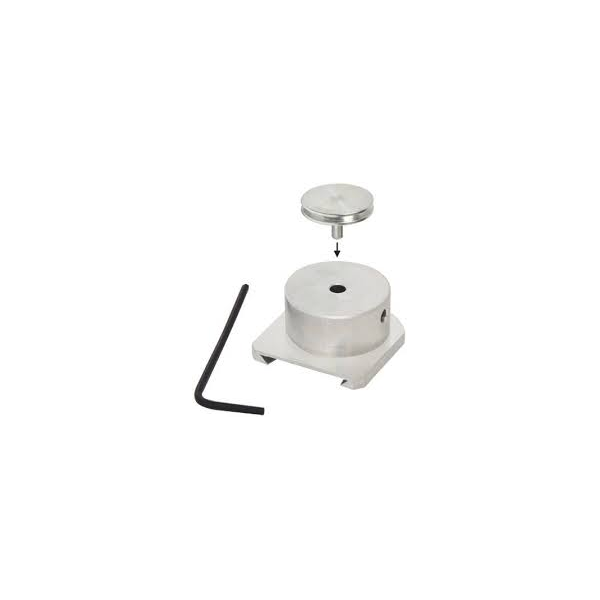

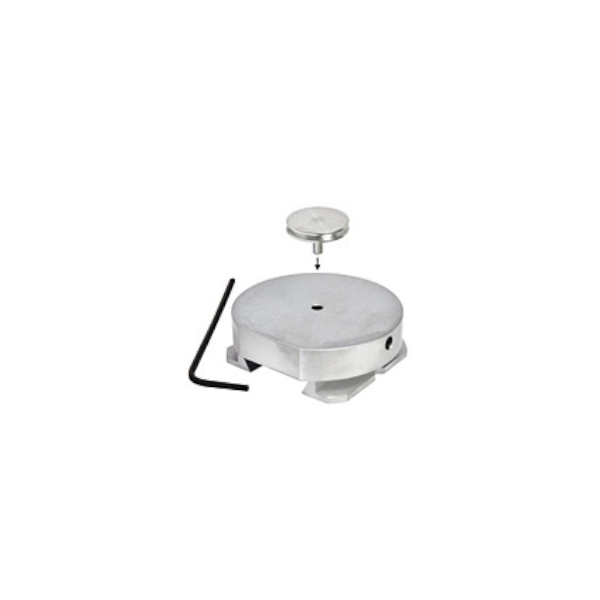

JEOL Stage Adapter for Pin Mounts
Fits JEOL SEM: 6510/6390/6380/6360/6010/5700/5600/5500/5410/5400/5300/T330/T220/T300/T200/TT100/T20
Aluminum dovetail stage adapter for using standard 3.2mm (1/8″) pin mounts with the JEOL SEM’s listed above.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15399-10 | JEOL Stage Adapter for Pin Mounts |
Each | € 351,40 |
JEOL 6400/5800 Stage Adapter for Pin Mounts
Fits JEOL SEM: 5800/5900/5910/6460/6480/6490/6610
Aluminum dovetail stage adapter for using standard 3.2mm (1/8″) pin mounts with the JEOL SEM’s listed above.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15396-10 | JEOL 6400/5800 Stage Adapter for Pin Mounts |
Each | € 351,40 |

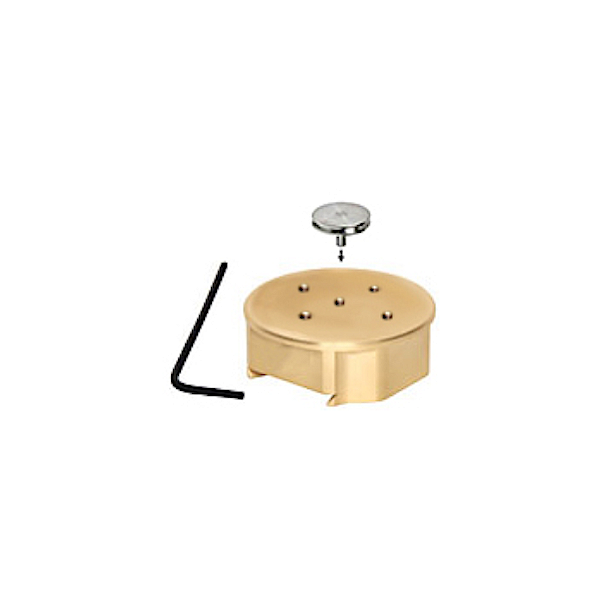

JEOL 7000/6500 Stage Adapter for Pin Mounts
Fits JEOL SEM: 7800F/7601F/7600F/7100F/7000F/6700F/6500F/iT300
Solid brass dovetail stage adapter for using standard 3.2mm (1/8″) pin mounts with the JEOL SEM’s listed above.
Can hold up to 5 standard 12.7mm (1/2″) pin stubs or one larger pin stub.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15371-6710 | JEOL 7000/6500 Stage Adapter for Pin Mounts |
Each | € 504,20 |
PELCO Pin Stub Extender
12.5mm (1/2″) high, pin stub extender allows bringing pin stubs and pin stub sample holders closer to the pole piece without moving the SEM sample stage.
Multiple extenders are stackable.
Compatible with all standard 3.2mm (1/8″) pin stubs or pin stub SEM holders with maximum pin length of 10mm (0.4″).
Made of vacuum grade aluminum with stainless steel allen set screw.
Allen key included
Screw used is M3 x 3mm, Set, SS
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15318 | PELCO Pin Stub Extender, 12.5mm (1/2″), 3.2mm (1/8″) Pin |
Each | € 63,80 |
