Metallographic Mount Holders

Products

Metallographic Mount Holders

Loading...
Product

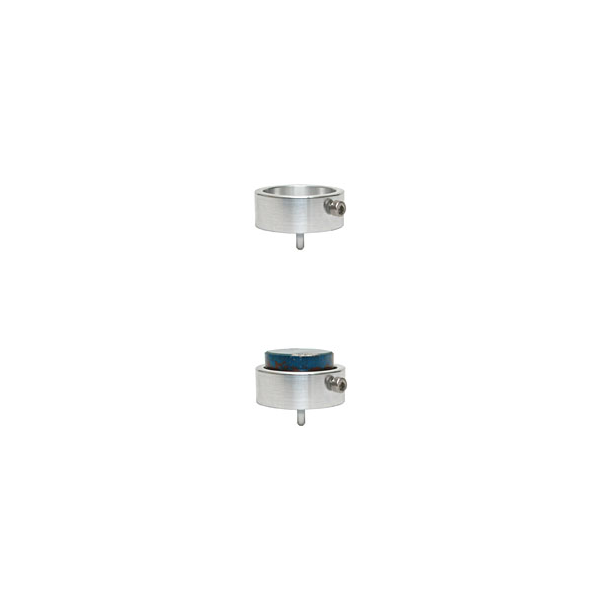

Metallurgical Mount Holder, 1″ and 25mm
Specimen holder for 1" and 25mm metallurgical mounts.
no. 15304

Description

Metallurgical Mount Holder, 1″ and 25mm

Specimen holder for 1″ and 25mm metallurgical mounts.
Standard pin stub 3.2mm (1/8″).

Material: machined aluminum with stainless steel allen screws. Depth 8mm (5/16″).
Allen wrench included.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Order

Art.Description Unit PriceQuantity
15304

Metallurgical Mount Holder, 1″ and 25mm dia., 3.2mm (1/8″) dia. Pin

 Each € 83,10
✓
Brand:

Product

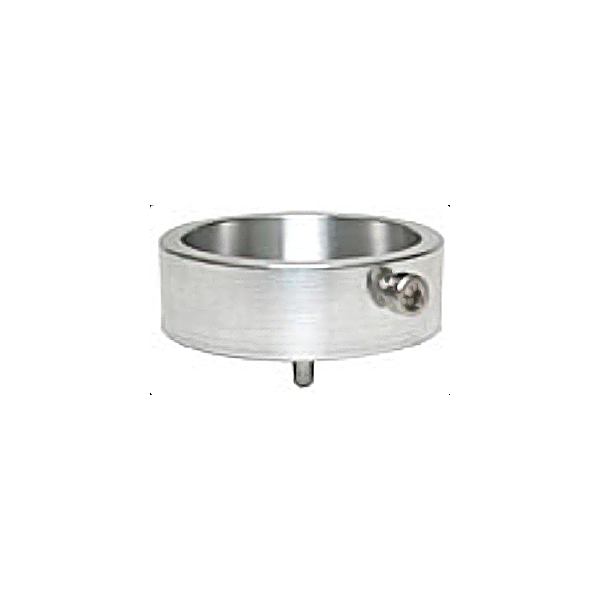

Metallurgical Mount Holder, 1-1/4″ and 30mm
Accepts the standard 1-1/4" and 30mm metallurgical specimen mount.
no. 15307

Description

Metallurgical Mount Holder, 1-1/4″ and 30mm

Accepts the standard 1-1/4″ and 30mm metallurgical specimen mount. 3.2mm (1/8″) pin .
Depth = 8mm (5/16″).

Material: machined aluminum with stainless steel allen set screw.
Allen wrench included.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Order

Art.Description Unit PriceQuantity
15307

Metallurgical Mount Holder, 1-1/4″ and 30mm dia., 3.2mm (1/8″) dia. Pin

 Each € 95,30
✓
Brand:

Product

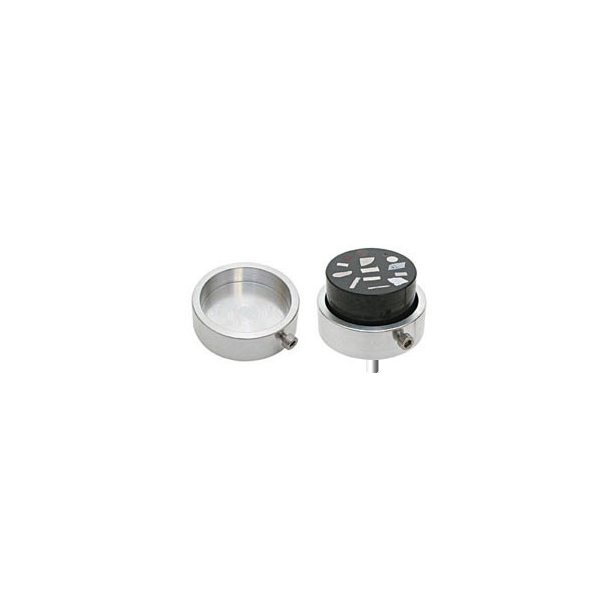

Metallurgical Mount Holder, 1-1/2″ and 40mm
Specimen holder for 1-1/2" and 40mm metallurgical mounts
no. 15306

Description

Metallurgical Mount Holder, 1-1/2″ and 40mm

Specimen holder for 1-1/2″ and 40mm metallurgical mounts.

Standard pin stub 3.2mm (1/8″).
Material: machined aluminum with stainless steel allen screws.
Depth is 8mm (5/16″).
Allen wrench included.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Order

Art.Description Unit PriceQuantity
15306

Metallurgical Mount Holder, 1-1/2″ and 40mm dia., 3.2mm (1/8″) dia. Pin

 Each € 111,30
✓
Brand:

Product

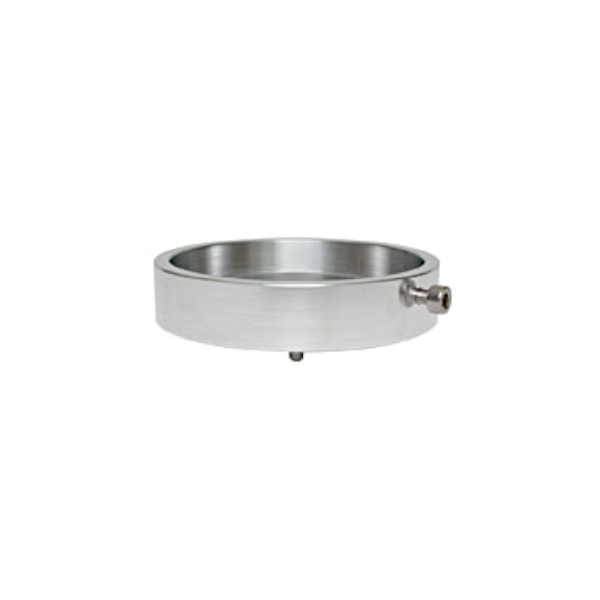

Metallurgical Mount Holder, 2″ and 50mm
Specimen holder for 2" and 50mm metallurgical mounts.
no. 15298

Description

Metallurgical Mount Holder, 2″ and 50mm

Specimen holder for 2″ and 50mm metallurgical mounts.

Standard pin stub 3.2mm (1/8″).
Material: machined aluminum with stainless steel allen screws.
Depth is 8mm (5/16″).
Allen wrench included.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Order

Art.Description Unit PriceQuantity
15298

Metallurgical Mount Holder, 2″ and 50mm dia., 3.2mm (1/8″) dia. Pin

 Each € 120,40
✓
Brand:

Product

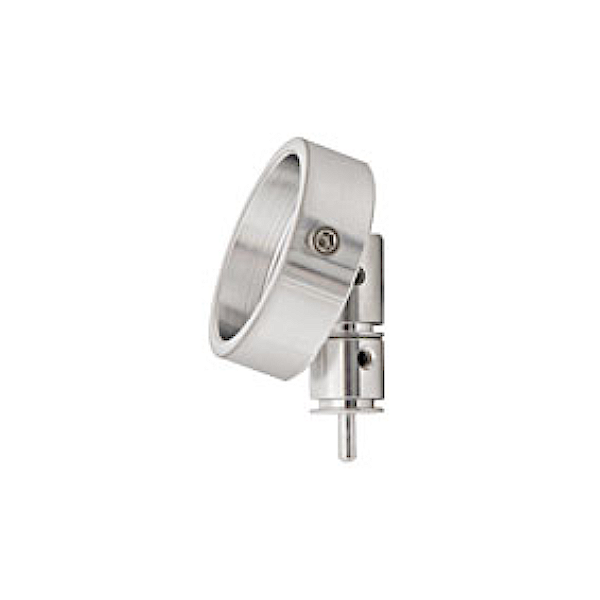

EBSD Holder for 1-1/4″/32mm Mounts
70 pre-tilt EBSD holder for standard 1-1/4" /32mm embedding mounts.
no. 15328

Description

EBSD Holder for 1-1/4″/32mm Mounts

70 pre-tilt EBSD holder for standard 1-1/4″ /32mm embedding mounts.
With this mount there is no need to tilt the SEM specimen stage which avoids drift and enables quick setup for EBSD analysis.

Standard 3.2mm (1/8″) pin.
Material: vacuum grade aluminum with stainless steel set screws and allen key.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS and M3 x 3mm, Set, SS

Order

Art.Description Unit PriceQuantity
15328

EBSD Holder for 1-1/4″/32mm mounts, 70 Pre-Tilt, Pin

 Each € 216,60
✓
Brand:

Product

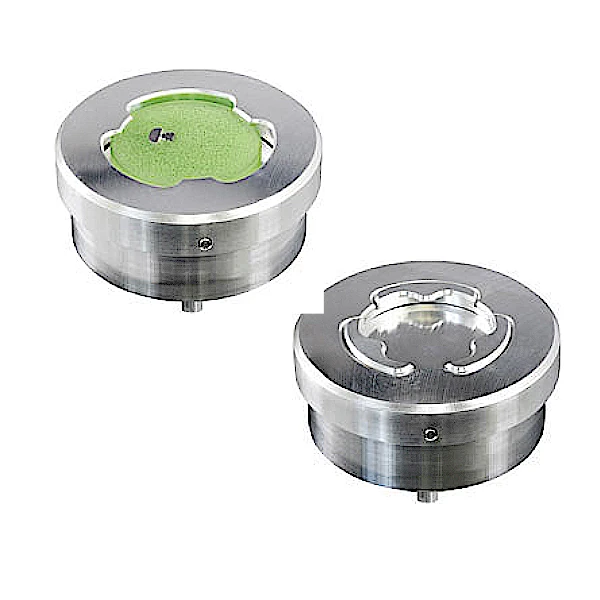

Top Referencing Metallographic Mount Holder, 25 to 32mm diameter
Spring-loaded specimen holder for single metallographic mounts
no. 15481 and 15481-1

Description

Spring-loaded specimen holder for single metallographic mounts 1″ to 1.5″ in diameter.
Two different heights allow for samples up to 0.5″ (12.7mm) or 0.5-1.125″ (12.7-28.6mm).

Shown with, and without, an example of a mounted sample.
The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount.

The removable insert is used for 1″ samples and is removed for larger samples.
Ideal for wide area imaging, and stitching images with minimal focus change between stage moves.

Supplied with a short M4 x 6mm removable pin stub.
Fixture dimensions are 2.2″ (56mm) in diameter overall, and 0.975″ (24.8mm) tall with standard caps and 1.475″ (37.5mm) tall with the 15481-4 caps.

Order

Art.Description Unit PriceQuantity
15481

Referencing Holder for Single Met Mount with Pin

 Each € 469,20
✓
15481-1

Top Referencing Holder for Single Met Mount with Pin

 Each € 487,60
✓
Brand:

Product

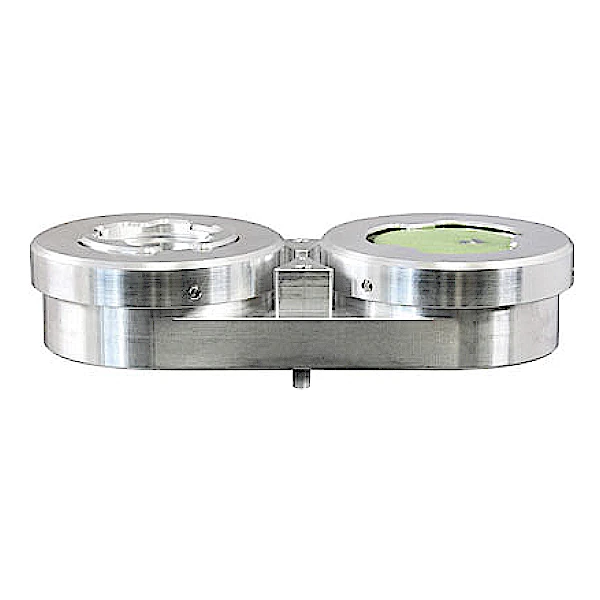

Dual Top Referencing Metallographic Mount Holder
Dual spring-loaded specimen holder for two metallographic mounts
no. 15482 and 15482--

Description

Dual spring-loaded specimen holder for two metallographic mounts 1″ to 1.5″ in diameter.
Two different heights allow for samples up to 0.5″ (12.7mm) or 0.5-1.125″ (12.7-28.6mm). T

he sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount.
The removable insert is used for 1″ samples and is removed for larger samples. Ideal for wide area imaging, and stitching images with minimal focus change between stage moves.

Two locations for 12.7 mm pin stubs are included for mounting of analysis standards with the samples.
In order for standards to be at the mounted sample height when using the 0.5-1.125″ cap, a pin stub extender (15318) is needed (not included).

Supplied with a short M4 x 6mm removable pin stub. Fixture dimensions are 4.88 x 2.2″ (124 x 56mm) overall, and 0.975″ (24.8mm) tall with standard caps and 1.475″ (37.5mm) tall with the 15481-4 caps.

Order

Art.Description Unit PriceQuantity
15482-1

Referencing Holder for Dual Met Mount with Pin

 Each € 702,20
✓
15482

Top Referencing Holder for Dual Met Mount with Pin

 Each € 665,50
✓
Brand:

Product

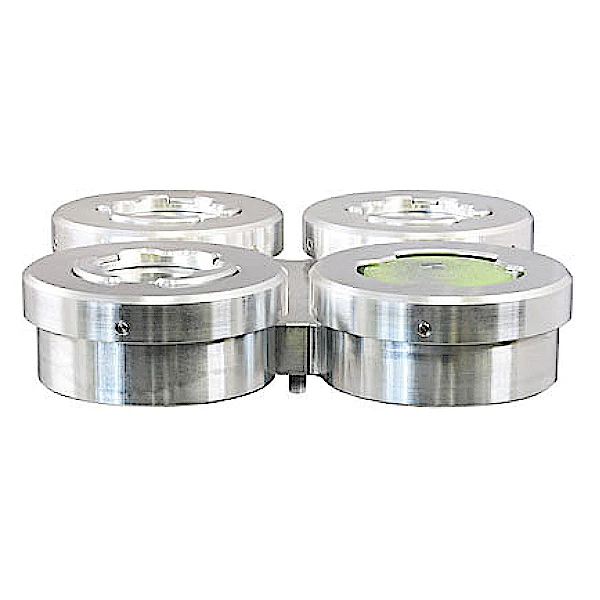

Quad Top Referencing Metallographic Mount Holder, 25 to 38mm diameter
no. 15483 and 15483-1

Description

Spring-loaded specimen holder for four metallographic mounts 1″ to 1.5″ in diameter.
Two different heights allow for samples up to 0.5″ (12.7mm) or 0.5-1.125″ (12.7-28.6mm).

The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount.
The removeable insert is used for 1″ samples and is removed for larger samples.

Four locations for 12.7 mm stubs are included for mounting of analysis standards with the samples.
In order for standards to be at the mounted sample height when using the 0.5-1.125″ cap, a pin stub extender (15318) is needed (not included).

Ideal for wide area imaging, and stitching images with minimal focus change between stage moves.

Supplied with a short M4 x 6mm removable pin stub.
Fixture dimensions are 4.9 x 4.9″ (125 x 125mm) overall, and 0.975″ (24.8mm) tall with standard caps and 1.475″ (37.5mm) tall with the 15481-4 caps.

Order

Art.Description Unit PriceQuantity
15483-1

Top Referencing Holder for Quad Met Mount with Pin

 Each € 1.305,60
✓
15483

Top Referencing Holder for Quad Met Mount with Pin

 Each € 1.234,70
✓
Brand:

Product

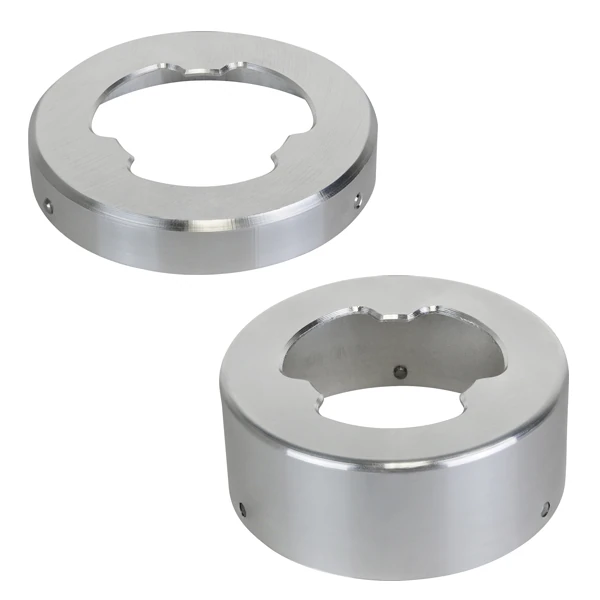

Replacement Caps Metallographic Mount Holder
Replacement caps
no. 15480 and 15480-1

Description

Replacement caps are available to freely swap between maximum sample height 0.5″ and 0.5-1.125″ variations using the same Top Referencing Metallographic Mount Holder base.
Cap diameter is 2.2″ (56mm) overall.

Order

Art.Description Unit PriceQuantity
15480-1

Cap for Top Referencing Holder, 0.5-1.125″ (30mm) sample height

 Each € 119,50
✓
15480

Cap for Top Referencing Holder, max 0.5″ (13mm) sample height

 Each € 95,60
✓
