Low Profile FIB Mounts
These special low profile pin mounts are available as flat, as a 90° mount, and with specific angles ideally suited to accommodate specimens with small working distances in FIB, DualBeam and CrossBeam systems. Made out of aluminum. Fully compatible with standard pin stub mounts (pin 3.2mm diameter) for sample storage and transport.
These mounts can be used directly in FEI and TESCAN systems with the standard pin length and ZEISS/LEO systems with the short 6mm pin and with pin adapters in Hitachi and JEOL systems.
Seven types are available:
- Universal flat pin mount with either standard or short pin
- Universal 90 degree pin mount with either standard or short pin
- 38° complimentary angle pin mount for FEI Quanta and Helios Dualbeams
- 36° complimentary angle pin mount for ZEISS/LEO CrossBeam, NVISON, and AURIGA systems
- 35° complimentary angle pin mount for TESCAN LYRA and VELA FIBXSEM systems
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

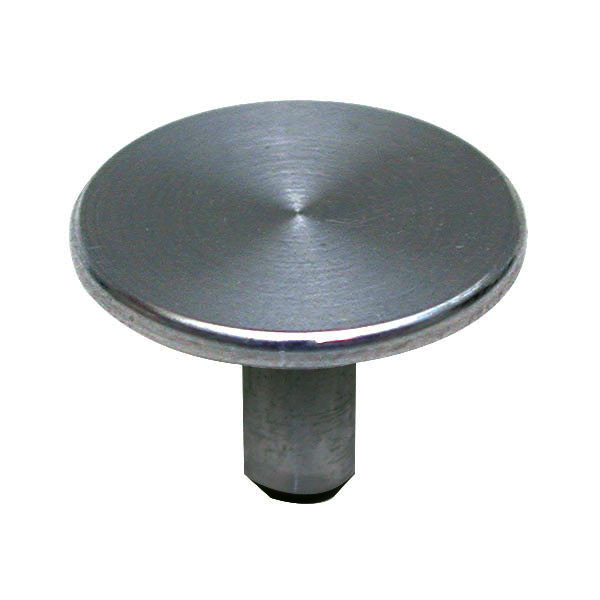

| 16170 | Low profile flat FIB pin mount |
Each | € 3,30 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16176 | Low profile flat FIB pin mount with short pin (6mm) for ZEISS/LEO systems |
Each | € 2,60 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

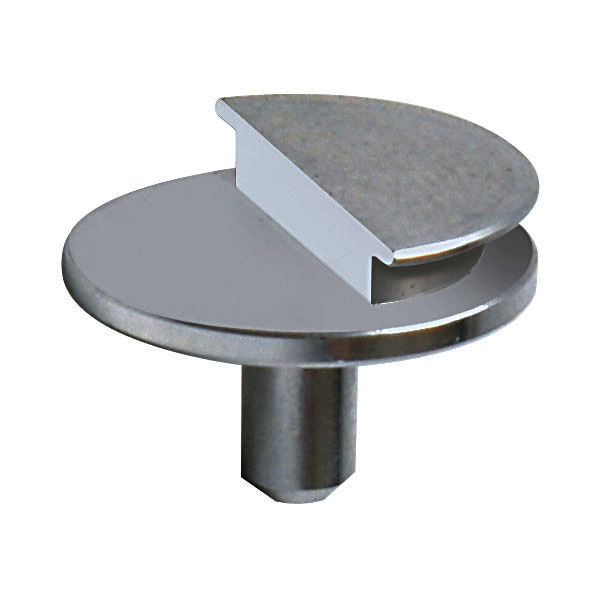

| 16171 | Low profile 90 FIB pin mount |
Each | € 5,60 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

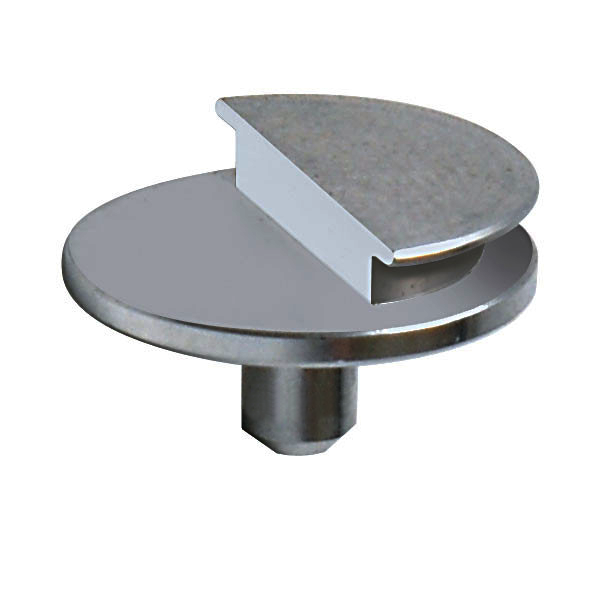

| 16177 | Low profile 90 FIB pin mount with short pin (6mm) for ZEISS/LEO systems |
Each | € 6,20 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

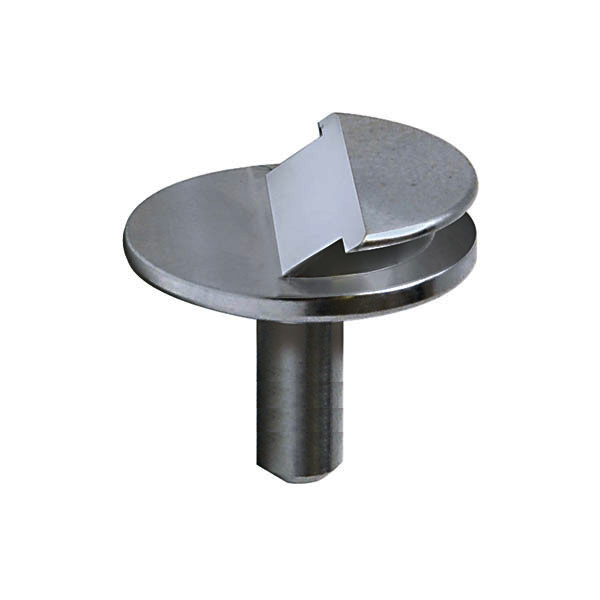

| 16172 | Low profile 38 FIB mount for FEI |
Each | € 5,20 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

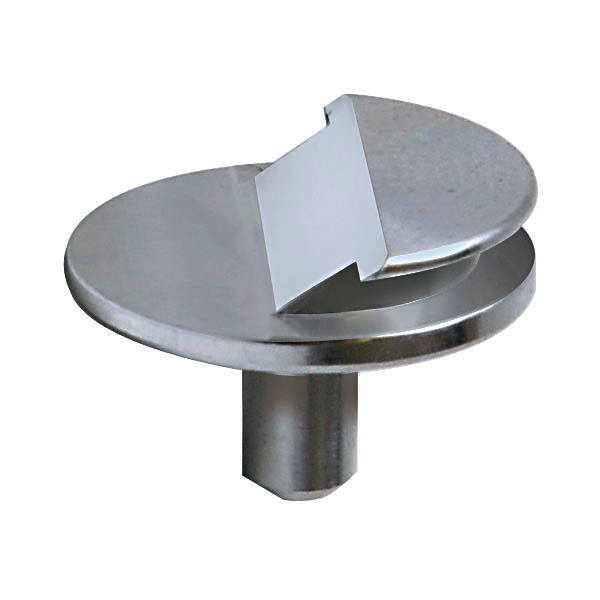

| 16173 | Low profile 36 FIB mount with short pin (6mm) for ZEISS/LEO |
Each | € 6,70 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16174 | Low profile 35 FIB mount with short pin (6mm) for TESCAN |
Each | € 6,70 |
