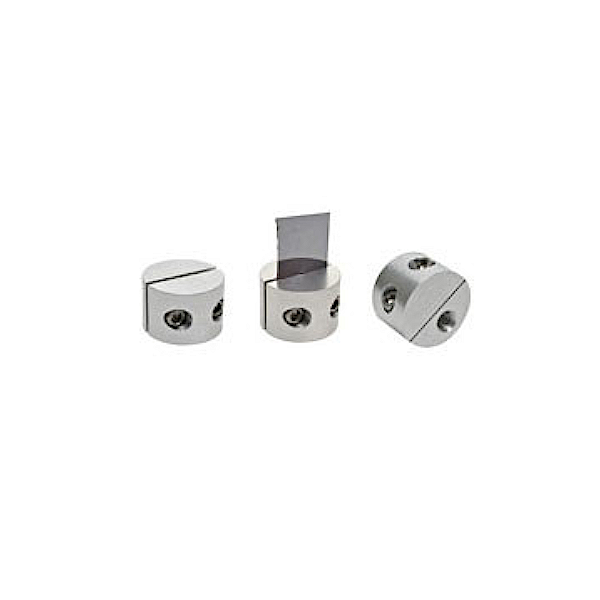

Thin Specimen Split Mount
(JEOL or ISI/ABT/TOPCON)
Double hex screw tightening for a firm hold, fits directly into JEOL or ISI/ABT/TOPCON, 15mm (0.591″) x 10mm (0.394″) high.
Material: machined aluminum with stainless steel allen set screws.
Allen wrench included.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
15335 | Thin Specimen Split Mount, 15 x 10mm |
Each | € 38,70 |

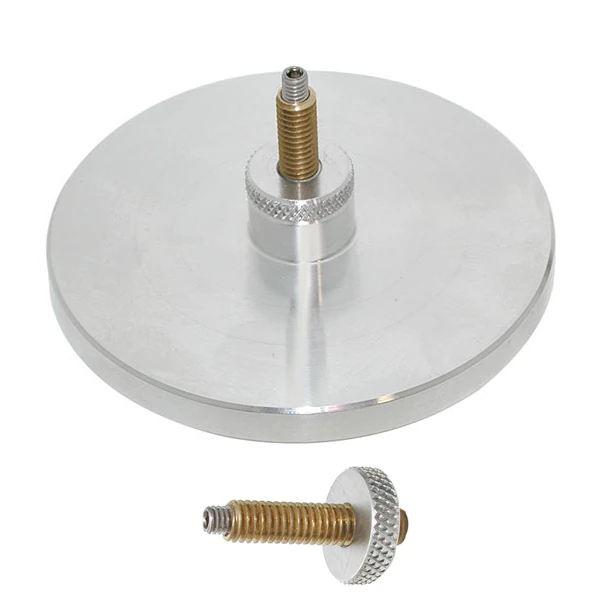

NeoScope Stage Adapter Kit
The NeoScope Benchtop SEM Adapter Kit needs to be fitted on the NeoScope specimen stage to enable using the PELCO specimen holders.
The adjustable height pillars allow for easy height adjustment needed for the NeoScope SEM.
The top of the adjustable height pillar is fitted with an M4 screw, so any holder or mount with an M4 threaded hole can be mounted as long as the total height of the stage adapter, pillar, specimen holder and sample does not exceed a total height of 50mm.
Just make sure the top of the specimen is level with the top of the height gauge supplied with the stage adapter kit and the specimen will fit into the NeoScope SEM.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
15398 | NeoScope Stage Adapter Kit, includes base plate adapter, 18mm and 25mm adjustable height pillars, locking nut, and height gauge. |
Each | € 179,30 | ||
15398-10 | Replacement NeoScope Stage Base Adapter plate. |
Each | € 129,60 |
Small Set Screw Vise
Small set screw vise with an open slot of 4mm (0.157″) wide and 5mm (0.197″) deep. 15 x 12mm x M4.
Material: machined aluminum with stainless steel allen set screw.
Allen wrench included.
Screw used is M3 x 6mm set screw, stainless steel.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
16335 | Small Set Screw Vise, M4, 15 x 12mm H, M4 |
Each | € 35,40 |

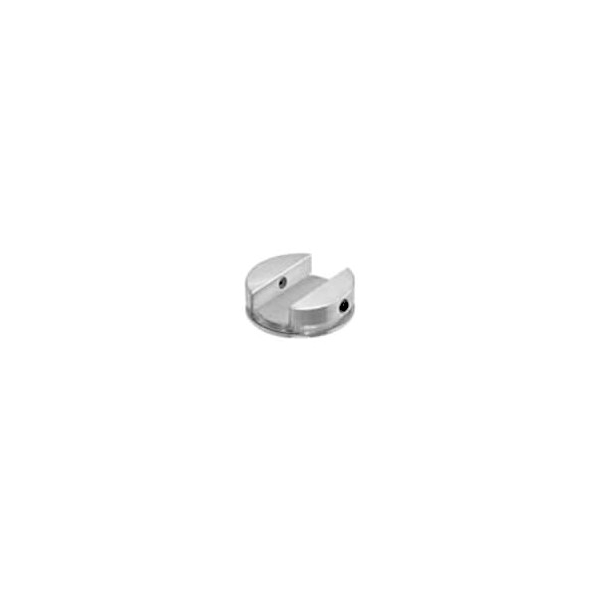

Large Set Screw Vise
Set screw vise with an open slot of 10mm (0.394″) wide x 5mm (0.197″) deep. 25mm (1″) x 10mm (0.394″) high.
Material: machined aluminum with stainless steel set screw.
Allen wrench included.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
16271 | Large Set Screw Vise, 25 x 10mm |
Each | € 63,90 |

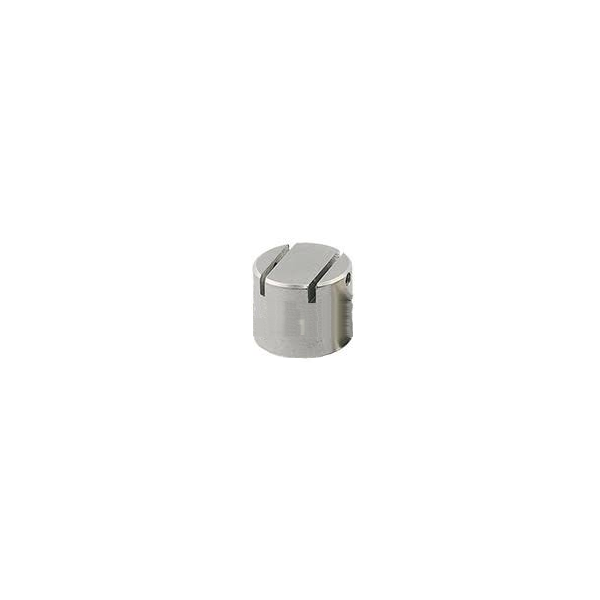

Double Slotted Mini Vise
Double Slotted set screw vise with 2 ea. 1mm wide by 3mm deep slots, for JEOL, 12.2 x 10mm.
Clamp thin specimens and cross sections without the need for tape or conductive paint.
Material: machined aluminum with 2 stainless steel allen set screws.
Allen wrench included.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
16342 | Double Slotted Set Screw Vise, 12.2 x 10mm |
Each | € 34,60 | ||
16344 | Double Slotted Set Screw Vise, 15 x 10mm |
Each | € 39,40 |

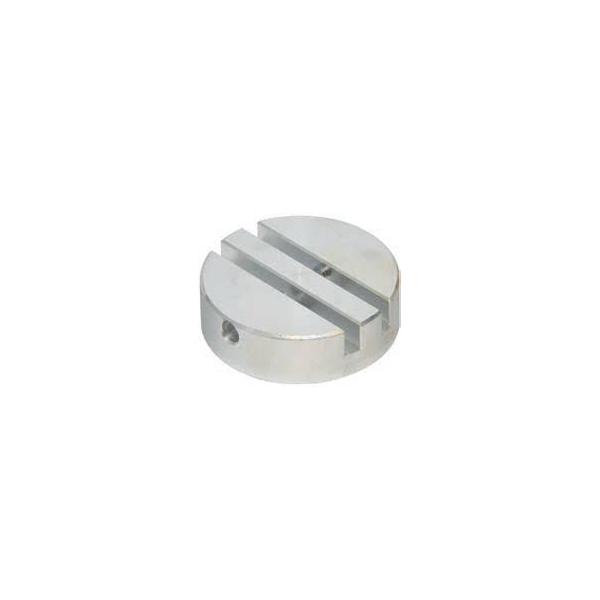

Large Double Slotted Vise
Large Double Slotted Set Screw Vise with 2 ea. 2.5mm by 5mm deep slots.
Dimensions 25×10 mm (1 x 0.4″).
Clamp thin specimens and cross sections without the need for tape of conductive paint.
Material: machined aluminum with 2 stainless steel allen set screws.
Allen wrench included.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
16272 | Large Double Slotted Set Screw Vise, 25 x10mm |
Each | € 48,10 | ||
16312 | Large Double Slotted Set Screw Vise, 32 x 10mm, M4 |
Each | € 71,80 |

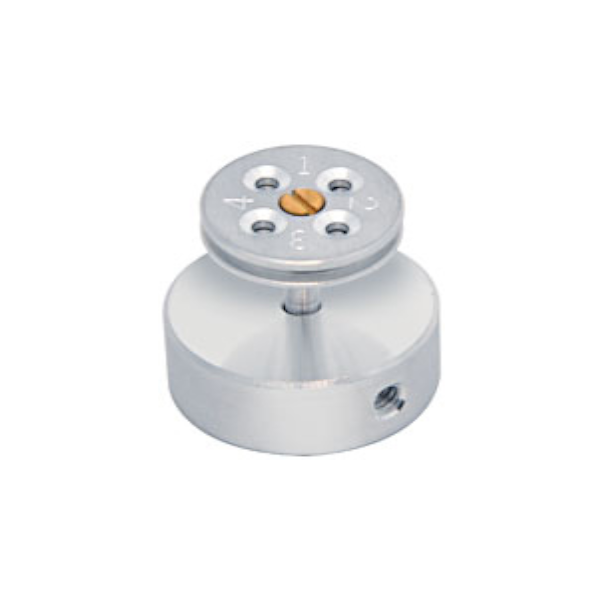

TEM Grid Holder on 32mm Stub
This TEM grid holder holds up to 4 TEM grids.
It enables imaging and analyzing specimens on TEM grids in the SEM. For EDS applications it is beneficial to place thin films on a TEM grid or small particles on a TEM grid with a support film.
This can significantly reduce background in the EDS spectrum and increase detection limits of the EDS detector.
Hole size in the top and base is 2.1mm.
Opening angle on the holes in the top and base is 120 to reduce electron scattering and improve X-ray collection.
Overall diameter is 18mm (0.7″), overall height is approximately 25mm (1″) with a stand-off pin mounted on a 32 x 10mm JEOL mount.
The stand-off pin minimizes electron and X-ray scattering contribution from the stage.
TEM grid locations are numbered. Material: vacuum grade aluminum with brass screw.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
15469-32 | TEM Grid Holder for 4 Grids, 32mm JEOL |
Each | € 281,20 |

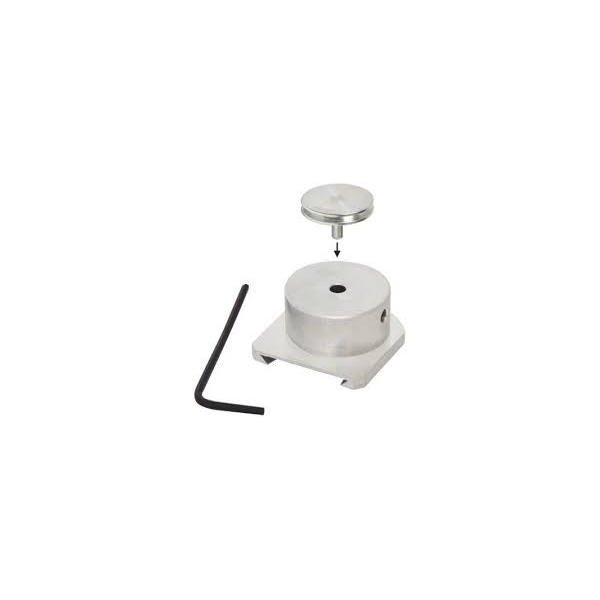

JEOL Stage Adapter for Pin Mounts
Fits JEOL SEM: 6510/6390/6380/6360/6010/5700/5600/5500/5410/5400/5300/T330/T220/T300/T200/TT100/T20
Aluminum dovetail stage adapter for using standard 3.2mm (1/8″) pin mounts with the JEOL SEM’s listed above.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
15399-10 | JEOL Stage Adapter for Pin Mounts |
Each | € 351,40 |

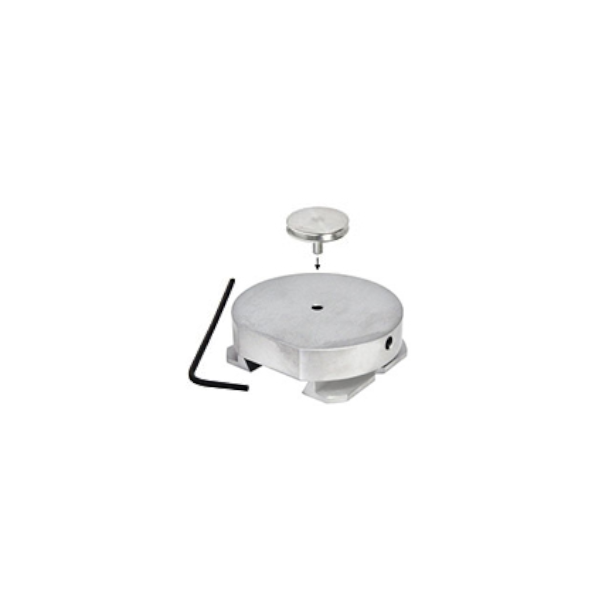

JEOL 6400/5800 Stage Adapter for Pin Mounts
Fits JEOL SEM: 5800/5900/5910/6460/6480/6490/6610
Aluminum dovetail stage adapter for using standard 3.2mm (1/8″) pin mounts with the JEOL SEM’s listed above.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
15396-10 | JEOL 6400/5800 Stage Adapter for Pin Mounts |
Each | € 351,40 |
JEOL 7000/6500 Stage Adapter for Pin Mounts
Fits JEOL SEM: 7800F/7601F/7600F/7100F/7000F/6700F/6500F/iT300
Solid brass dovetail stage adapter for using standard 3.2mm (1/8″) pin mounts with the JEOL SEM’s listed above.
Can hold up to 5 standard 12.7mm (1/2″) pin stubs or one larger pin stub.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
15371-6710 | JEOL 7000/6500 Stage Adapter for Pin Mounts |
Each | € 504,20 |

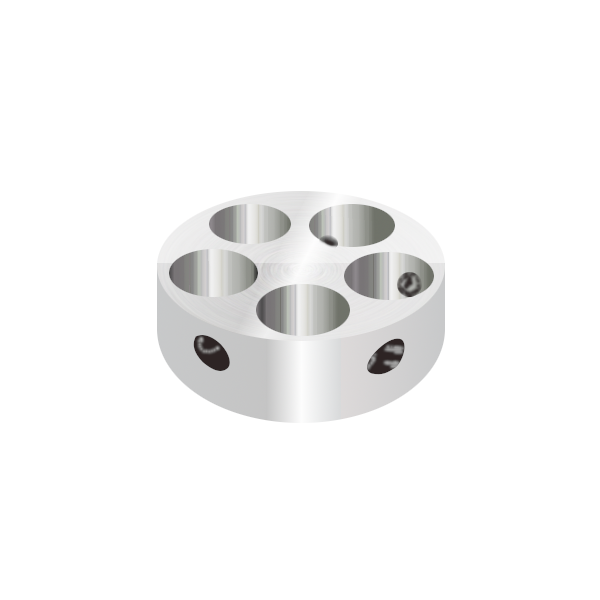

Multi Holder for 5 JEOL Stubs
Holds up to five 9.5mm JEOL cylinder mounts.
Made of aluminum with stainless steel set screws.
Allen wrench included.
Size is 31.5 x 10mm and fits in standard 32mm mount holder
Screw used is 6-32 x 1/8, hex set screw, stainless steel.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
15315-4 | Multi Specimen Holder for JEOL Stubs, M4 |
Each | € 94,50 |
