EBSD Pre-tilt Holders & Mounts

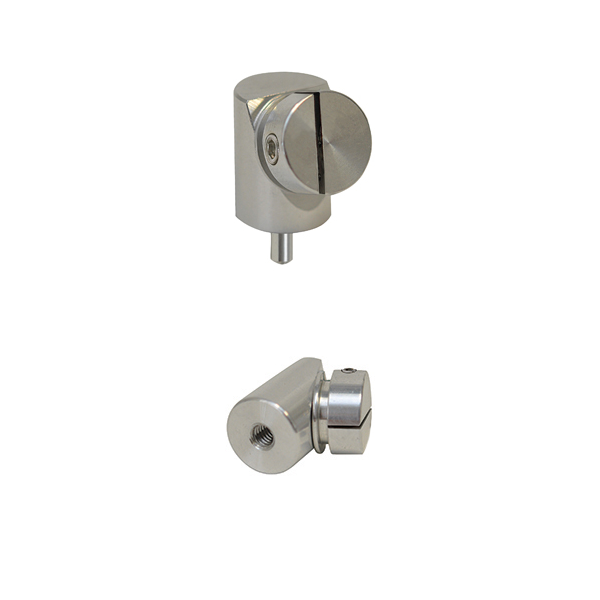

PELCO EBSD Pre-Tilt Holder for Thin Specimens
70 pre-tilt EBSD holder has a removable pin to allow M4 mounting.
Made of machined aluminum with stainless steel Allen set screw.
Holder is fully adjustable, rotatable through 360 .
Thin specimen split mount with special wide opening up to 6.4mm (1/4″), height of head is 7.4mm (0.29″).
Stainless steel.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15352 | Thin speciment mount for ESBD |
Each | € 120,40 |

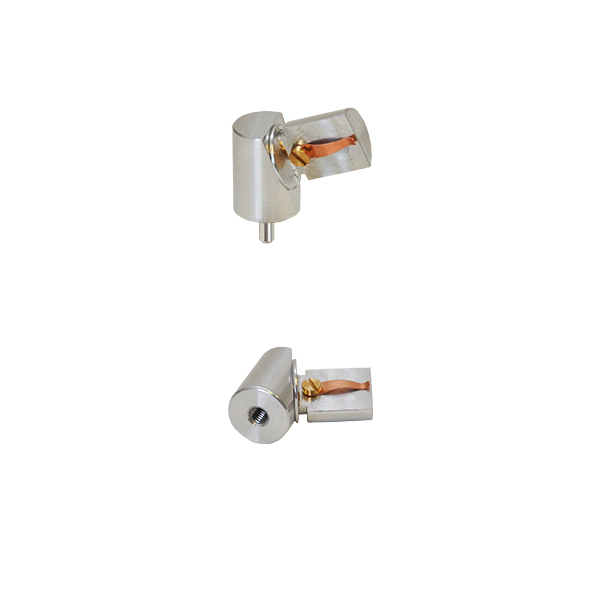

PELCO EBSD Pre-Tilt Holder for Thin Specimens with SEMClipTM
70 pre-tilt EBSD holder has a removable pin to allow M4 mounting.
Made of machined aluminum with stainless steel Allen set screw.
Holder is fully adjustable, rotatable through 360 .
PELCO SEMClipTM 12.5mm (1/2″), Single Clip mount.
An easy, quick and clean way to mount any type of thin specimen.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15353 | Pelco semclip thin spec, ESBD |
Each | € 120,40 |

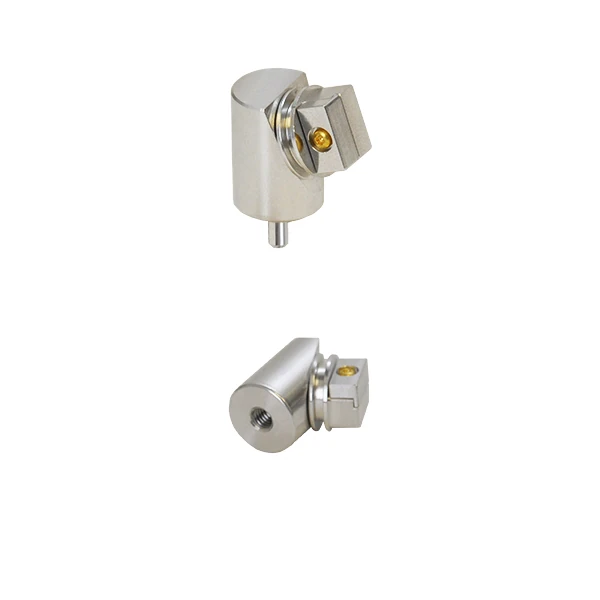

PELCO EBSD Pre-Tilt Holder for FIB Grids
FIB grid holder mounted on a standard 70 pre-tilt holder.
Holds up to 2 FIB grids of the same thickness.
Holder is fully adjustable, rotatable through 360 .
Has a removable pin to allow M4 mounting.
Made of machined aluminum with stainless steel Allen set screw.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15354 | PELCO EBSD Holder for FIB Grids, Pre-tilt 70 , 3.2mm (1/8″) Pin |
Each | € 135,60 |

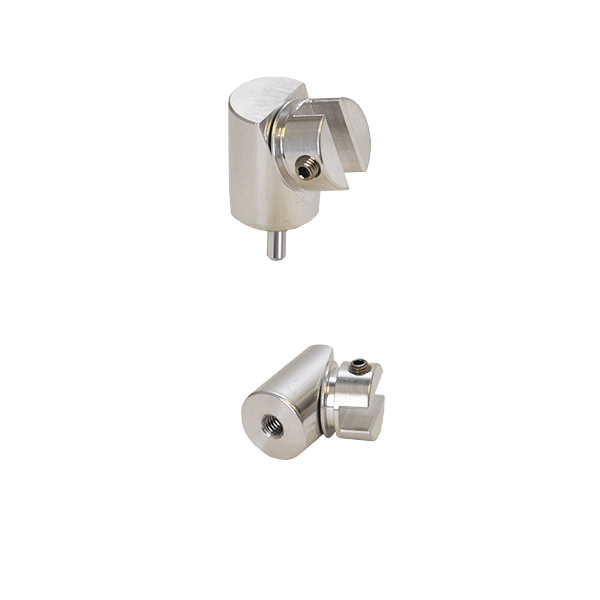

PELCO EBSD Pre-Tilt Holder with Small Set Screw Vise
70 pre-tilt holder with removable 3.2mm (1/8″) pin to allow M4 mounting.
Machined aluminum with stainless steel Allen set screw.
Holder is fully adjustable, rotatable through 360 .
Single stainless steel set screw into an open slot that is 4mm (0.157″) wide x 5mm (0.197″) deep. 12.7mm (1/2″) x 17.7mm (0.70″) high.
Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15355 | PELCO EBSD Holder with Small Set Screw Vise, Pre-tilt, Pre-tilt 70 , 3.2mm (1/8″) Pin |
Each | € 120,40 |

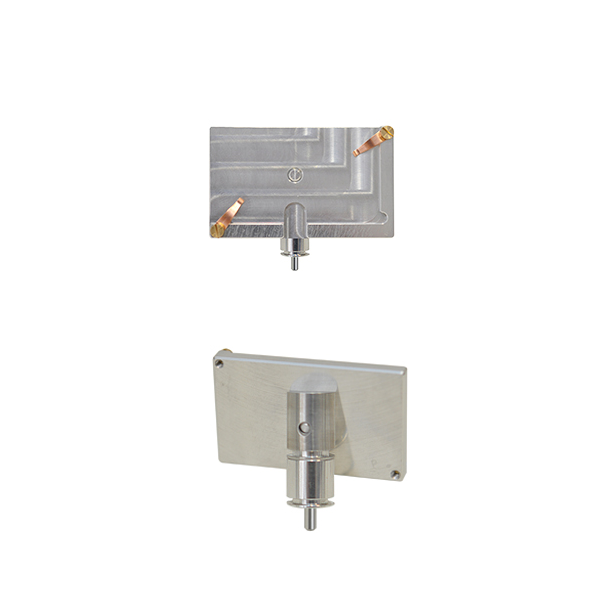

PELCO EBSD Pre-Tilt Glass Slide Holder on Pin Stub
70 pre-tilt EBSD holder with variable size geologic/petrographic thin section holder.
Holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm.
Two clips are provided for secure holding.
Tweezers insert enables easy loading.
Allen wrench included.
Holder is fully adjustable, rotatable through 360 .
Screws used are M3 x 3mm set, stainless steel, clip screw is M2 x 3mm pan head, brass, 3.2mm (1/8 ) pin.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15336 | PELCO EBSD Pre-Tilt Glass Slide Holder on Pin Stub |
Each | € 396,70 |
JEOL and ISI/ABT/Topcon Mounts
70 EBSD Aluminum Specimen Mounts, 15 x 10mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16370 | Specimen Mount, 70 for EBSD, 15 x 10mm, 10,50 |
Each | € 6,50 |

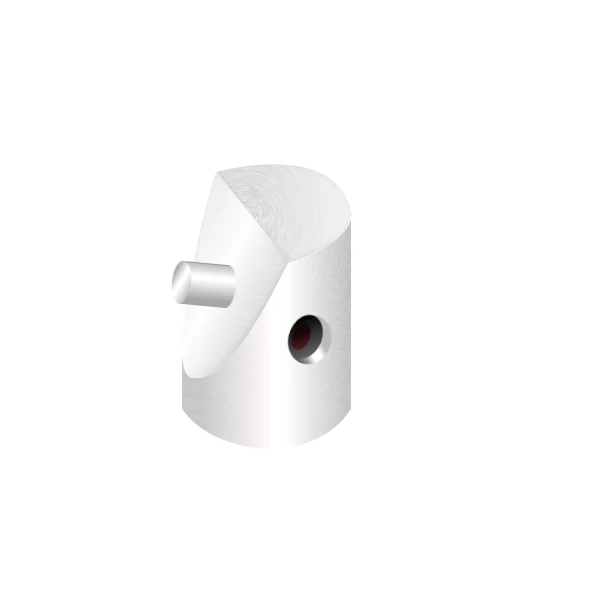

70 EBSD Pre-Tilt Holder for Hitachi Mounts and Pin Stubs
Accepts 15mm Hitachi mounts on M4 thread.
Pin can be rotated and fixed for optimum position.
When the pin with M4 thread is removed, this holder also accepts a standard 12.7mm (1/2″) pin stub with 3.2mm (1/8″) pin.
This holder is made of machined aluminum with stainless steel Allen set screw.
Allen wrench included.
Screw used is M3 x 3mm set screw, stainless steel.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15428-70 | 70 Pre-Tilt Holder, M4 |
Each | € 83,90 |
#15463-70

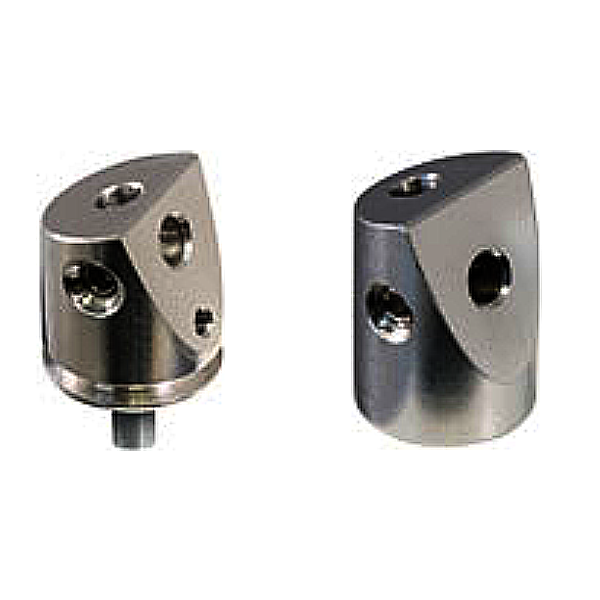

70 and 20 EBSD Pre-Tilt Holder accepts standard pin stubs.
Holder is machined from aluminum with pin 7.9mm (5/16″) long and standard 3.2mm (1/8″) diameter.
Allen set screw is M3 x 3mm made of stainless steel. Allen wrench included.
#15463-74
70 and 20 EBSD Pre-Tilt Holder accepts standard pin stubs.
Holder is machined from aluminum with M4 threaded base.
Allen set screw is M3 x 3mm made of stainless steel. Allen wrench included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15463-74 | 70 and 20 EBSD Pre-Tilt Stub Holder, M4 |
Each | € 103,70 | ||
| 15463-70 | 70 and 20 EBSD Pre-Tilt Stub Holder, pin |
Each | € 103,70 |

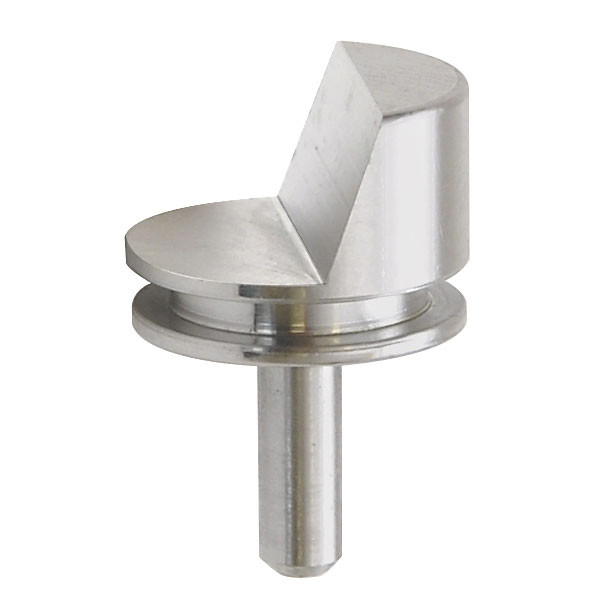

Low profile 70 EBSD SEM Mount 12.7mm for FEI, Tescan, Zeiss (also for Philips, Leo, Cambridge, AMRAY, Leica, CamScan, ETEC) SEM’s.
Aluminum, grooved edge, 9.5mm pin height
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16109 | Low Profile 70 Mount, 12.7mm |
Each | € 7,90 |
70 EBSD Pre-Tilt Pin Stub Holder
Accepts standard 12.7mm (1/2″) pin stubs with 3.2mm (1/8″) pin.
70 EBSD Pre-Tilt Holder w/o tilting specimen stage.
Grooved, machined aluminum with stainless steel Allen set screw.
Allen wrench included.
Screw used is M3 x 3mm, Set, SS
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15329-70 | 70 EBSD Pre-Tilt Pin Stub Holder, 3.2mm (1/8″) Pin |
Each | € 79,10 |

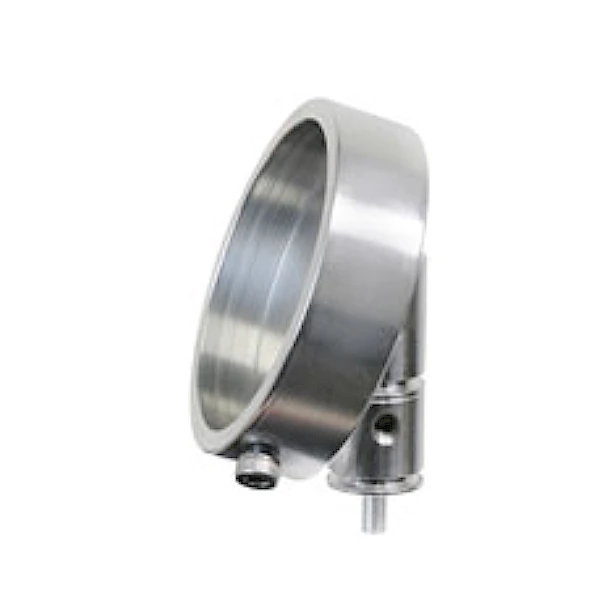

EBSD Holder for 1″/25mm Mounts
70 pre-tilt EBSD holder for standard 1″ /25mm embedding mounts.
With this mount there is no need to tilt the SEM specimen stage which avoids drift and enables quick setup for EBSD analysis.
Standard 3.2mm (1/8″) pin.
Material: vacuum grade aluminum with stainless steel set screws and allen key.
Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS and M3 x 3mm, Set, SS
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15327 | EBSD Holder for 1″/25mm Mounts, 70 Pre-Tilt, Pin |
Each | € 200,80 |

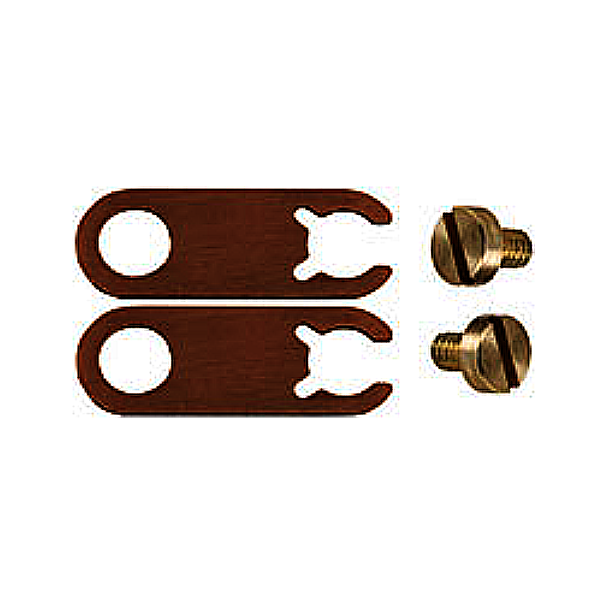

Replacement clips and screws for t-EBSD holders. Clips are made of a phosphor bronze alloy.
Thickness of clip is 0.254 mm (0.010″), overall length is 10.77mm (0.424″), and width is 3.99mm (0.157″).
Replacement M2 screws are made of brass and are 3mm in length.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15463-20 | Replacement TEM Grid Holder Clips |
3 | € 72,60 | ||
| 16399-10 | PELCO Screws, Brass, M2 x 3mm length |
10 | € 30,30 |
