Mount Adapters, M4

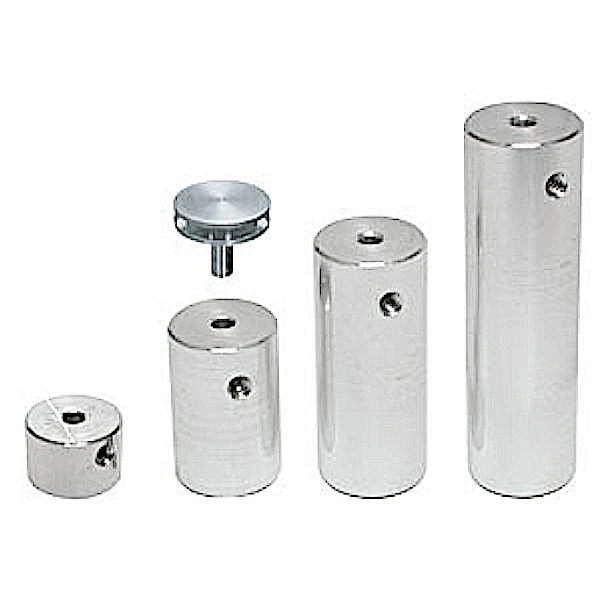

Pin Mount Adapters to Hitachi M4 Thread
(Height extenders)
The pin mount adapters to M4, with standard 3.2mm (1/8″) hole in the top and M4 thread in the base are available in 4 sizes:
- 15 x 15mm H (low)
- 16 x 25mm H (medium)
- 16 x 38mm H (high)
- 16 x 55mm H (extended)
They enable the use of standard pin mounts with 3.2mm (1/8″) pin on Hitachi M4 thread.
Longer adapters are used for short working distances without raising the specimen stage.
Made from vacuum grade aluminum with stainless steel set screw.
Allen wrench included.
When combined with the pin mount adapters (#15319, #15319-9 or #15319-2) these pin to M4 adapters can also be used as height extenders for pin mount style stage used on FEI/Philips, ZEISS/LEO/, Cambridge, Leica, Tescan, CamScan and Amray SEMs. They can even be stacked to make them higher.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15363-2 | Pin Mount Adapter to Hitachi M4 15x15mm H |
Each | € 36,30 | ||
| 15387-2 | Single Pin Stub to M4 adapter, Medium, 16x25mm |
Each | € 44,40 | ||
| 15361 | Single Pin Stub to M4 adapter, High, 16x38mm |
Each | € 40,40 | ||
| 15364 | Single Pin Stub to M4 adapter, Extended, 16x55mm |
Each | € 40,40 |

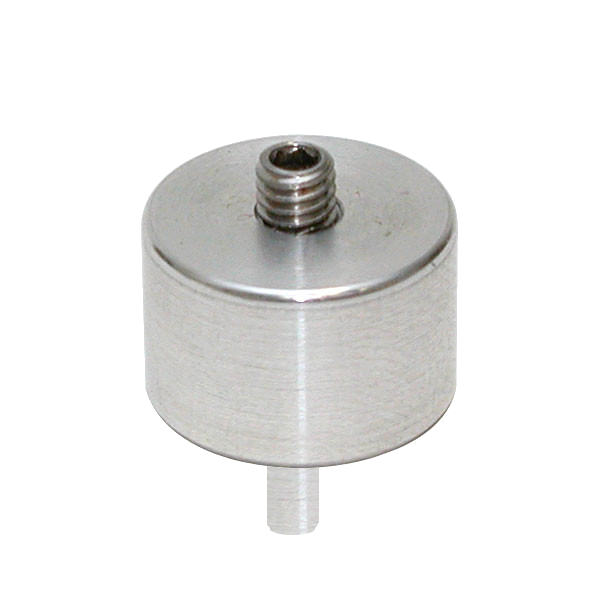

Hitachi M4 Adapter to pin stub
Hitachi M4 adapter to standard 1/8″ (3.2mm) pin stub.
Enables the use of Hitachi mounts and specimen holders with M4 thread on SEMs with pin mount holder (FEI/Philips, Zeiss/LEO, Cambridge Instruments, Leica, Amray, Tescan and CamScan).
Suitable for larger specimen holders.
Pin length 3/8″
Table diameter 5/8″ (15.9mm).
Made from Aluminum with stainless steel screw.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15316 | Adapter Pin to M4 Thread |
Each | € 55,70 |

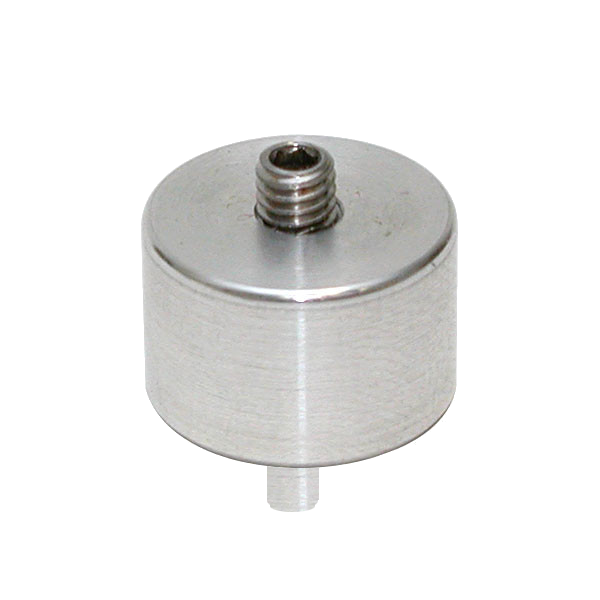

Hitachi M4 to Zeiss pin stub
Hitachi M4 adapter to standard 1/8″ (3.2mm) pin stub.
Enables the use of Hitachi mounts and specimen holders with M4 thread on Zeiss/LEO SEMs and SEM/FIB systems.
Suitable for larger specimen holders.
Pin length 6mm, table diameter 5/8″ (15.9mm).
Made from Aluminum with stainless steel screw.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15316-9 | Short Adapter Pin to M4 Thread |
Each | € 55,70 |

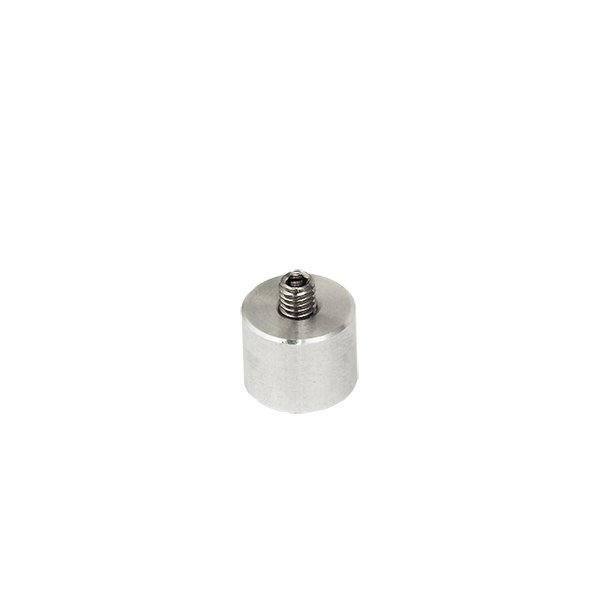

Hitachi M4 Adapter to 9.5mm JEOL cylinder mount
Hitachi M4 adapter to standard 9.5mm JEOL cylinder mount.
Enables the use of Hitachi mounts and PELCO modular specimen holders with M4 thread on JEOL SEMs.
Cylinder mount 9.5 x 9.5mm.
Made from aluminum with stainless steel screw.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15367-25 | M4 Adapter to JEOL 9.5mm mount |
Each | € 41,00 |

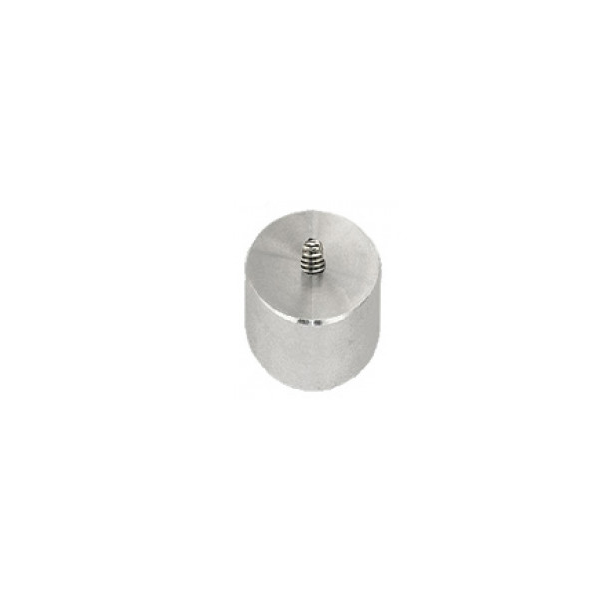

Hitachi M4 Adapter to 12.2mm JEOL cylinder mount
Hitachi M4 adapter to standard 12.2mm JEOL cylinder mount.
Enables the use of Hitachi mounts and PELCO modular specimen holders with M4 thread on JEOL SEMs.
Cylinder mount 12.2 x 10mm.
Made from aluminum with stainless steel screw.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15367-40 | M4 Adapter to JEOL 12.2mm mount |
Each | € 41,00 |

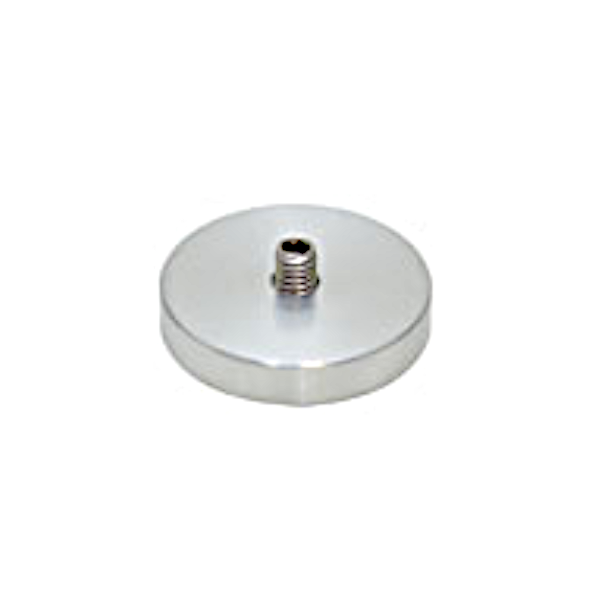

Hitachi M4 Adapter to 25mm JEOL cylinder mount
Hitachi M4 adapter to standard 25mm JEOL cylinder mount.
Enables the use of Hitachi 15 and 25mm mounts with M4 thread on JEOL SEMs (including JEOL NEOSCOPE).
Cylinder mount 25 x 5mm. Made from aluminum with stainless steel screw.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16150-9 | M4 Adapter to JEOL 25mm mount |
Each | € 40,40 |

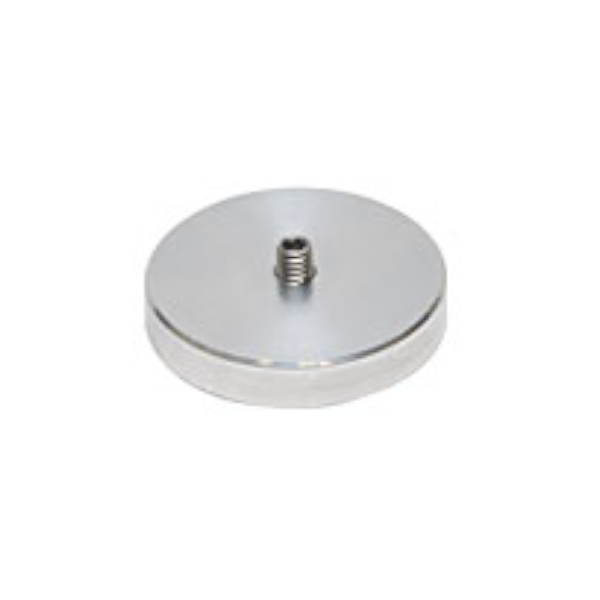

Hitachi M4 Adapter to 32mm JEOL cylinder mount
Hitachi M4 adapter to standard 32mm JEOL cylinder mount.
Enables the use of Hitachi 15, 25 and 32mm mounts with M4 thread on JEOL SEMs (including JEOL NEOSCOPE).
Cylinder mount 32 x 6mm.
Made from aluminum with stainless steel screw.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16217-9 | M4 Adapter to JEOL 32mm mount |
Each | € 42,80 |

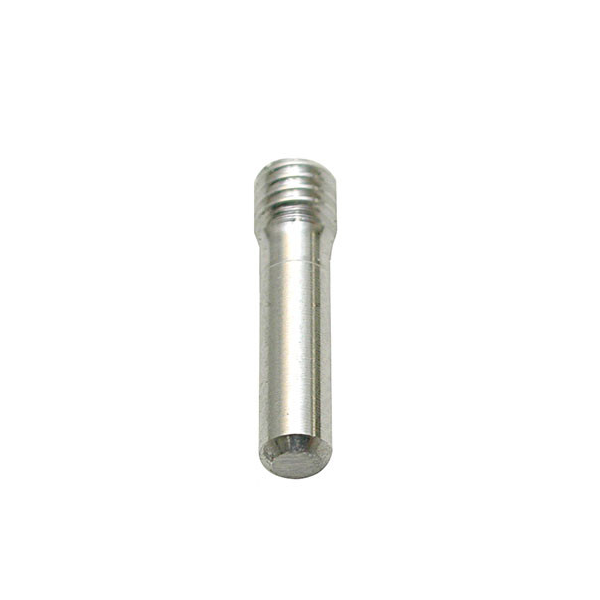

Low Profile Hitachi M4 Pin Mount Adapter
Low profile pin with standard 1/8″ (3.2mm) diameter with 3/8″ (9.5mm) length and 4mm M4 thread.
Converts any Hitachi M4 type specimen mount into a pin stub style mount (FEI/Philips, Cambridge Instruments, Leica, Amray, Tescan and CamScan).
Can also be used to adapt Hitachi specimen holders with M4 thread to pin stub mounts which are used on many SEM platforms.
Made from aluminum.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15319 | Low Profile M4 to Pin Stub Adapter |
Each | € 35,60 |

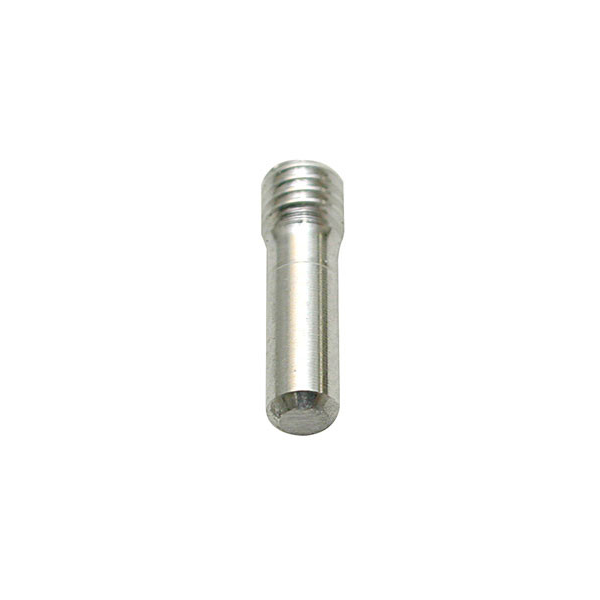

Short M4 to Zeiss/LEO Pin Mount Adapter
Low profile pin with standard 1/8″ (3.2mm) diameter with 1/4″ (6mm) length and 4mm M4 thread.
Converts any Hitachi M4 type specimen mount into a Zeiss pin stub style mount.
Made from aluminum.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15319-9 | Short Low Profile M4 to Pin Stub Adapter (Zeiss/LEO) |
Each | € 39,60 |

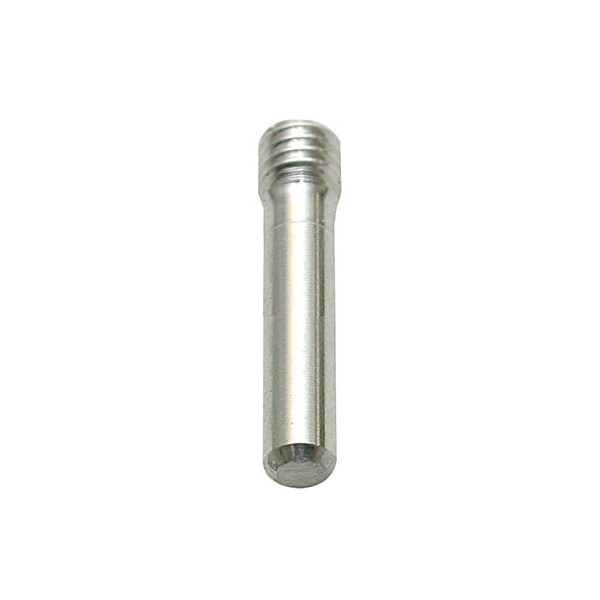

Long M4 to Pin Mount Adapter
Long profile pin with standard 1/8″ (3.2mm) diameter with 5/8″ (14.75mm) length and 4mm M4 thread.
Converts any Hitachi M4 type specimen mount into an Amray pin stub style mount.
Made from aluminum.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15319-2 | Long Profile M4 to Pin Stub Adapter (AMRAY) |
Each | € 39,60 |
