EBSD Pre-tilt Holders & Mounts, M4

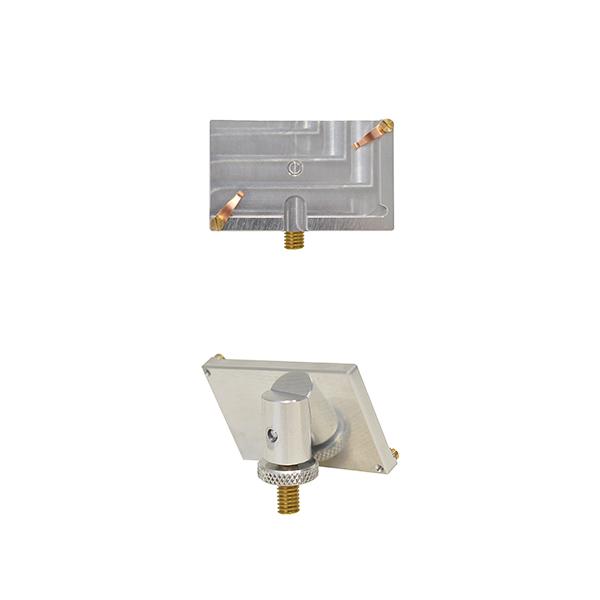

PELCO EBSD Pre-Tilt Glass Slide Holder, M4
70 pre-tilt EBSD holder with variable size geologic/petrographic thin section holder.
Holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm.
Two clips are provided for secure holding.
Tweezers insert enables easy loading.
Allen wrench included.
Fully adjustable, rotatable through 360 .
Screws used are M3 x 3mm set, stainless steel, M4 x 8mm stainless steel socket head cap screw, clip screw is M2 x 3mm pan head, brass, M4 threaded hole.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15336-4 | PELCO EBSD Pre-Tilt Glass Slide Holder, M4 |
Each | € 418,80 |
Hitachi Angled Mounts

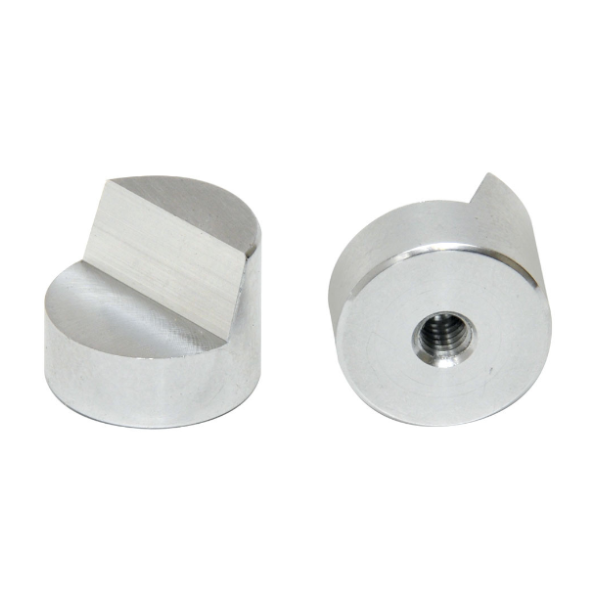

70 EBSD Aluminum Specimen Mounts, 15 x 12mm, M4
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16333 | 70 , EBSD Specimen Mount, 15 x 12mm x M4 |
Each | € 8,30 |

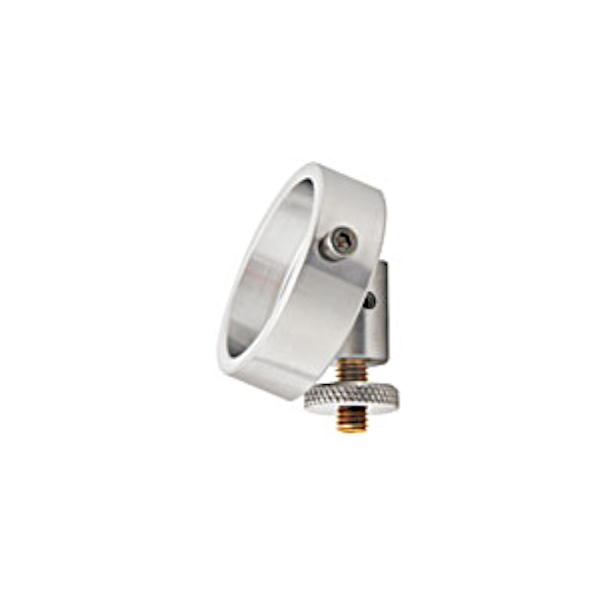

EBSD Holder for /32mm (1-1/4″) Mounts
70 pre-tilt EBSD holder for standard 1-1/4″ /32mm embedding mounts.
With this mount there is no need to tilt the SEM specimen stage which avoids drift and enables quick setup for EBSD analysis.
M4 compatible thread in base.
Made of vacuum grade aluminum with stainless steel Allen set screws.
Allen wrench included.
Screws used are M3 x 3mm set screw, stainless steel and M4 x 8mm socket head cap screw, stainless steel.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15328-4 | EBSD Holder for 1-1/4″/32mm mounts, 70 Pre-Tilt, M4 |
Each | € 218,70 |

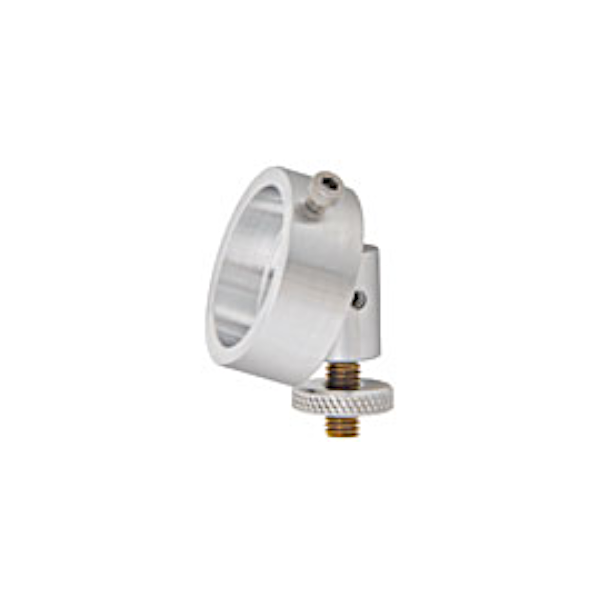

EBSD Holder for 25mm (1″) Mounts
70 pre-tilt EBSD holder for standard 25mm (1″) embedding mounts.
With this mount there is no need to tilt the SEM specimen stage which avoids drift and enables quick setup for EBSD analysis.
M4 compatible thread in base.
This holder is made of vacuum grade aluminum with stainless steel Allen set screws.
Allen wrench included.
Screws used are M3 x 3mm set screw, stainless steel and M4 x 8mm socket head cap screw, stainless steel.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15327-4 | EBSD Holder for 1″/25mm mounts, 70 Pre-Tilt, M4 |
Each | € 201,60 |
