Etched Si CDMS ISO
Pelcotec™ Etched Si CDMS ISO
Critical Dimension Magnification Standard
Easy to use and very useful for quick and precise SEM, FE-SEM, FIB, CD-SEM, LM, and AFM
magnification calibration in the X axis from the etched lines.
Available as NIST Traceable or as Certified against NIST Standard
Fully-featured and traceable calibration standards for a wide measurement range. They are made using the latest semiconductor and MEMS manufacturing techniques for etching features yielding superior line edge quality (Line edge roughness of +/- 0.3nm per 1um length of line edge) and are ideal for low keV imaging (≤1keV).
The Pelcotec™ Etched Si CDMS Calibration Standard is available in two feature size ranges individually certified to a NIST standard in an ISO 17205:2017 accredited calibration laboratory. Recertification of these ISO critical dimension standards in an ISO 17205:2017 accredited calibration laboratory is available.
Pelcotec™ Etched Si CDMS-1T-ISO
Fully traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation). Has features from 2.0mm to 1um for a magnification range from 10x – 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Pelcotec™ Etched Si CDMS -0.1T-ISO
Fully traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation). Has features from 2.0mm to 100nm for a magnification range from 10x – 200,000x; for all SEM and most FE-SEM applications.
* Pelcotec™ Etched Si CDMS-1C-ISO
Individually certified in an ISO 17205:2017 accredited calibration laboratory against a NIST standard. Has features from 2.0mm to 1µm for a magnification range from 10x – 20,000x; ideal for desk top SEMs and low to medium magnification applications.
* Pelcotec™ Etched Si CDMS-0.1C-ISO
Individually certified in an ISO 17205:2017 accredited calibration laboratory against a NIST standard with features from 2.0mm to 100nm for a magnification range up to 10x – 200,000x; for all SEM and most FE-SEM applications.
Pelcotec™ Technical Notes for CDMS ISO – Critical Dimension Magnification Standards (149KB PDF)
* Recertification in an ISO 17025:2017 accredited calibration laboratory available.
Feature sizes for the Pelcotec™ Etched Si CDMS-1T-IS0 and -1C-ISO are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm and 1µm
Feature sizes for the Pelcotec™ Etched Si CDMS-0.1T-ISO and -0.1C-ISO are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm and 100nm
500nm, 250nm and 100nm lines are only on the Etched Si CDMS-0.1T-ISO and 0.1C-ISO products
The Pelcotec™ Etched Si CDMS ISO Critical Dimensions and Magnification Standards are made on an ultra flat silicon substrate with a precision etched lines for features sets from 100nm to 2µm. Due to its sturdy construction, the CDMS standard can be cleaned using a plasma cleaner on low settings.

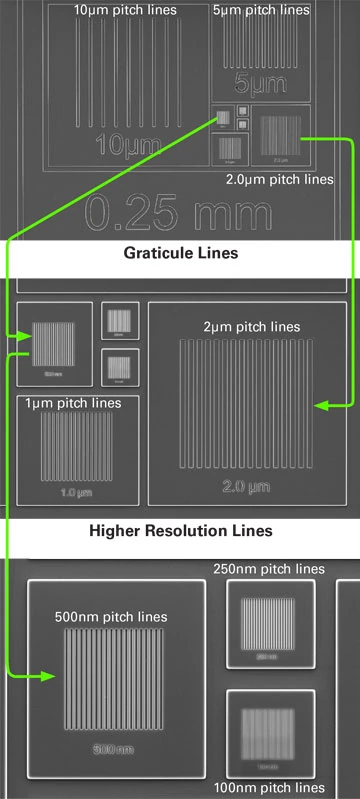

The smaller features are nested for easy navigation and quick calibration. The accuracy of the features is 0.3% or better. The actual size of the standard is 2.5 x 2.5mm with a thickness of 525µm ±10µm. There is no coating on the Si surface. Each Pelcotec™ Etched Si CDMS ISO Calibration Standard has a unique identification number.
They are available either unmounted or mounted on SEM holders A-R. For AFM applications the Pelcotec™ Etched Si CDMS ISO is mounted on a 12mm AFM disc; for LM applications it is mounted on a 25 x 75mm glass slide.
The Etched Si CDMS standard may also be mounted on a custom mount of your choice.
Store the Pelcotec™ Etched Si CDMS ISO Calibration Standard in a vacuum desiccator such as the PELCO® SEM Sample Stub Vacuum Desiccator.
| Pelcotec™ Etched Si CDMS-1-ISO | Pelcotec™ Etched Si CDMS-0.1-ISO | |
|---|---|---|
| Substrate: High conductivity silicon (resistivity of 0.001 – 0.002 Ohm/cm) | ✓ | ✓ |
| Substrate size: 2.5 x 2.5mm | ✓ | ✓ |
| Substrate thickness: 525 ±10µm | ✓ | ✓ |
| Unique serial identification number per chip | — | ✓ |
| Calibration squares at 2mm, 1mm, 0.5mm, 0.25mm | ✓ | ✓ |
| Graticule lines perpendicular to the X axis ruled at 10µm, 5µm, 2µm and 1µm pitch | ✓ | ✓ |
| High Resolution version only – Additional graticule lines perpendicular to X axis ruled at 500, 250 and 100nm pitch | — | ✓ |
| Traceable at the wafer level to NIST (ISO 17025:2017 Sampling Scope of Accreditation) | T versions | T versions |
| Direct certification of CDMS chip to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) | C versions | C versions |
| Recertification of CDMS chip to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) available | C versions only | C versions only |
| Available unmounted | ✓ | ✓ |
| SEM mounts A-R available | ✓ | ✓ |
| Precision better than 0.3% | ✓ | ✓ |
| Line edge roughness of +/- 0.3nm per 1um length of line edge | ✓ | ✓ |
| Measurements reported with an uncertainty (k=2)* of ±0.012μm | ✓ | ✓ |
Traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) with features from 2mm to 1µm for magnification 10x-20,000x, ideal for desktop SEM.
Feature sizes: 2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, and 1µm
