Critical Dimension (CD)
Calibration Test Specimens
for SEM, FIB, and AFM

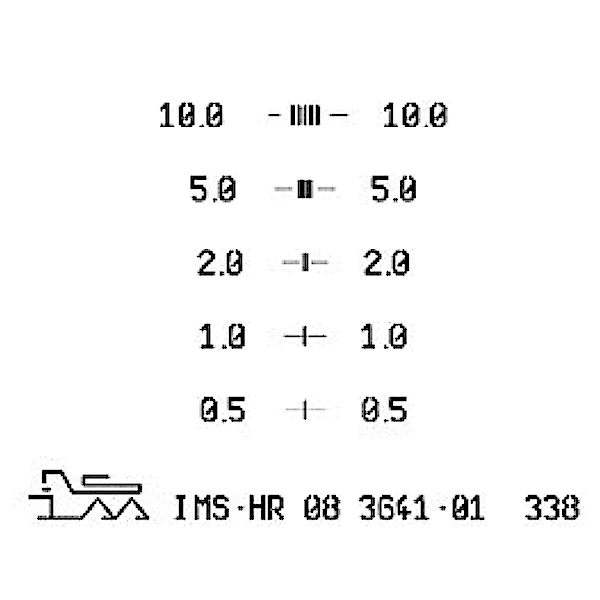

Version with a 10-5-2-1-0.5um structure
This CD calibration test specimen comprises 5 line patterns, each one clearly identified by its pitch.
Each pattern has five bars and spaces of equal pitch:10.0um, 5.0µm, 2.0µm, 1.0µm and 0.5µm. The central line area may be used for AFM measurements.
The patterns are etched into Si with a depth of approximately 200nm. There is no coating on the Si surface.
Two types are offered:
- non-certified
- certified by PTB (Physikalische Technische Bundesanstalt - German counter part of NIST) and individually numbered.
Based on the measurement of 9 different standards, the accuracy and uniformity are:
Pattern Size | 10µm | 5µm | 2µm | 1µm | 0.5µm |
Accuracy | 0.20% | 0.22% | 0.35% | 0.56% | 0.78% |
Uniformity | 0.27% | 0.34% | 0.53% | 0.80% | 1.2% |
for SEM, FIB, and AFM
“Critical Dimension (CD) structures” are particularly useful for SEM / FIB magnification calibration and may be used for AFM.
Microscopists and engineers using high performance SEMs or FIB systems will find this calibration test specimen useful. The 4.8 x 4.8mm silicon standard has a series of patterns with a side length of 480 m around its edges, helpful for orientation. There are three versions available.
Based on the measurement of 9 different standards, the accuracy and uniformity are:
Pattern Size | 10 m | 5 m | 2 m | 1 m | 0.5 m |
---|---|---|---|---|---|
Accuracy | 0.20% | 0.22% | 0.35% | 0.56% | 0.78% |
Uniformity | 0.27% | 0.34% | 0.53% | 0.80% | 1.2% |
SEM Holders
Type | Prod. No. | Data (D=Head dia.; P=Pin dia.; PL=Pin (length) | |
---|---|---|---|
A | 16111 | ![]() |
Pin Mount: D=12.7mm; P=3.2mm; PL= 7.9mm, FEI/Philips, Cambridge, Leica, TESCAN, CAMSCAN, ASPEX, Phenom |
B | 16261 | ![]() |
Pin Mount: D=12.7mm; P=3.2mm; PL=14.3mm, AMRAY |
C | 16221 | ![]() |
9.5mm dia. x 9.5mm Cylinder, JEOL |
D | 16281 | ![]() |
15mm dia. x 15mm Cylinder, JEOL, ISI/ABT/TOPCON |
E | 16291 | ![]() |
15mm dia. x 10mm Cylinder, JEOL, ISI/ABT/TOPCON |
F | 16111-9 | ![]() |
Pin Mount: 12.7mm x 3.2mm pin. PL=6mm, ZEISS/LEO SEMS FESEMs/FIBS |
G | You Supply Mount or Mount of Your Choice, not listed here (contact customer service) | ||
K | 16324 | ![]() |
15mm dia. x 6mm Cylinder, M4 Hitachi, Agilent / Keysight |
L | 16327 | ![]() |
25mm dia. x 6mm Cylinder, M4 Hitachi, Agilent / Keysight |
M | 16231 | ![]() |
12.2mm dia. x 10mm Cylinder, JEOL |
O | 16115 | ![]() |
31.7mm dia. x 6.47mm, Cambridge S4 Mount |
P | 16242 | ![]() |
Pin Mount: 12.7mm dia. x 15.7mm height, AMRAY special slotted head |
Q | 16153 | ![]() |
25mm dia. x 10mm Cylinder, JEOL |
R | 16144 | ![]() |
Pin mount: D=25.4mm; pin=3.2mm, FEI/Philips, Cambridge, Leica, TESCAN, CAMSCAN, ASPEX, Phenom |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
618-5 | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, unmounted |
Each | € 142,70 | ||
618-5A | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount A |
Each | € 159,00 | ||
618-5B | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount B |
Each | € 159,00 | ||
618-5C | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount C |
Each | € 159,00 | ||
618-5D | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount D |
Each | € 159,00 | ||
618-5E | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount E |
Each | € 159,00 | ||
618-5F | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount F |
Each | € 159,00 | ||
618-5G | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount G, You Supply Mount |
Each | p.o.r. | ||
618-5K | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount K |
Each | € 159,00 | ||
618-5L | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount L |
Each | € 159,00 | ||
618-5M | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount M |
Each | € 159,00 | ||
618-5O | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount O |
Each | € 159,00 | ||
618-5P | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount P |
Each | € 159,00 | ||
618-5Q | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount Q |
Each | € 159,00 | ||
618-5R | CD Structure 10-5-2-1-0.5 m Specimen, non-certified, Mount R |
Each | € 159,00 |
for SEM, FIB, and AFM
“Critical Dimension (CD) structures” are particularly useful for SEM / FIB magnification calibration and may be used for AFM.
Microscopists and engineers using high performance SEMs or FIB systems will find this calibration test specimen useful. The 4.8 x 4.8mm silicon standard has a series of patterns with a side length of 480 m around its edges, helpful for orientation. There are three versions available.
Based on the measurement of 9 different standards, the accuracy and uniformity are:
Pattern Size | 10 m | 5 m | 2 m | 1 m | 0.5 m |
---|---|---|---|---|---|
Accuracy | 0.20% | 0.22% | 0.35% | 0.56% | 0.78% |
Uniformity | 0.27% | 0.34% | 0.53% | 0.80% | 1.2% |
SEM Holders
Type | Prod. No. | Data (D=Head dia.; P=Pin dia.; PL=Pin (length) | |
---|---|---|---|
A | 16111 | ![]() |
Pin Mount: D=12.7mm; P=3.2mm; PL= 7.9mm, FEI/Philips, Cambridge, Leica, TESCAN, CAMSCAN, ASPEX, Phenom |
B | 16261 | ![]() |
Pin Mount: D=12.7mm; P=3.2mm; PL=14.3mm, AMRAY |
C | 16221 | ![]() |
9.5mm dia. x 9.5mm Cylinder, JEOL |
D | 16281 | ![]() |
15mm dia. x 15mm Cylinder, JEOL, ISI/ABT/TOPCON |
E | 16291 | ![]() |
15mm dia. x 10mm Cylinder, JEOL, ISI/ABT/TOPCON |
F | 16111-9 | ![]() |
Pin Mount: 12.7mm x 3.2mm pin. PL=6mm, ZEISS/LEO SEMS FESEMs/FIBS |
G | You Supply Mount or Mount of Your Choice, not listed here (contact customer service) | ||
K | 16324 | ![]() |
15mm dia. x 6mm Cylinder, M4 Hitachi, Agilent / Keysight |
L | 16327 | ![]() |
25mm dia. x 6mm Cylinder, M4 Hitachi, Agilent / Keysight |
M | 16231 | ![]() |
12.2mm dia. x 10mm Cylinder, JEOL |
O | 16115 | ![]() |
31.7mm dia. x 6.47mm, Cambridge S4 Mount |
P | 16242 | ![]() |
Pin Mount: 12.7mm dia. x 15.7mm height, AMRAY special slotted head |
Q | 16153 | ![]() |
25mm dia. x 10mm Cylinder, JEOL |
R | 16144 | ![]() |
Pin mount: D=25.4mm; pin=3.2mm, FEI/Philips, Cambridge, Leica, TESCAN, CAMSCAN, ASPEX, Phenom |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
618-7 | CD Structure 10-5-2-1-0.5 m Specimen, unmounted |
Each | € 2.007,40 | ||
618-7A | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount A |
Each | € 1.826,00 | ||
618-7B | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount B |
Each | € 1.826,00 | ||
618-7C | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount C |
Each | € 1.826,00 | ||
618-7D | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount D |
Each | € 1.826,00 | ||
618-7E | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount E |
Each | € 1.826,00 | ||
618-7F | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount F |
Each | € 1.826,00 | ||
618-7G | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount G, You Supply Mount |
Each | p.o.r. | ||
618-7K | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount K |
Each | € 1.826,00 | ||
618-7L | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount L |
Each | € 1.826,00 | ||
618-7M | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount M |
Each | € 1.826,00 | ||
618-7O | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount O |
Each | € 1.826,00 | ||
618-7P | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount P |
Each | € 1.826,00 | ||
618-7Q | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount Q |
Each | € 1.826,00 | ||
618-7R | CD Structure 10-5-2-1-0.5 m Specimen, Certified, Mount R |
Each | € 1.826,00 |

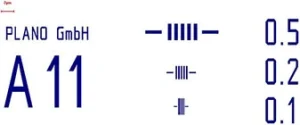

![]() (overview with location bars)
|

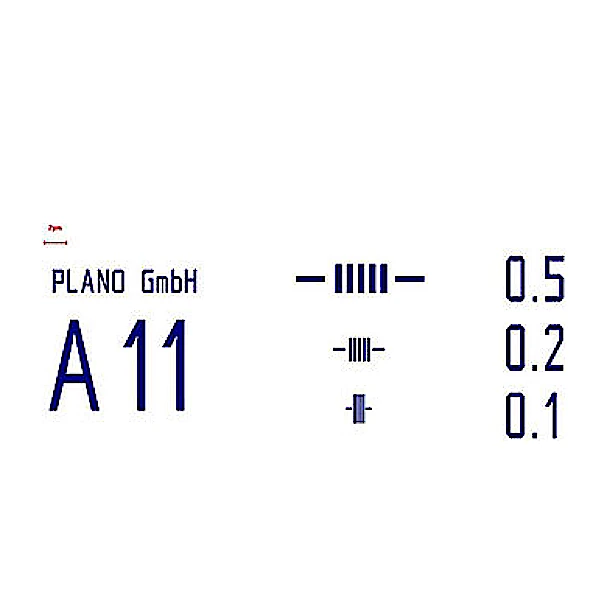

Version with a 500-200-100nm structure
(structure)
|
This advanced CD calibration test specimen is suited for calibrating smaller structures. The 500-200-100nm test specimen comprises 3 line patterns, each identified by its pitch.
Each pattern has 5 bars and spaces with equal pitch: 500nm, 200nm and 100nm. The central area may be used for AFM measurements.
The patterns are etched into Si with a depth of approx. 45-50nm. There is no coating on the Si surface.
On some CD calibration targets one of the 100nm lines can be missing. This is a normal occurrence and does not influence performance of the specimen.
Pattern Size | 500nm | 200nm | 100nm |
---|---|---|---|
Accuracy | 0.30% | 0.55% | 0.50% |
Uniformity | 0.24% | 0.60% | 1.20% |
SEM Holders
Type | Prod. No. | Data (D=Head dia.; P=Pin dia.; PL=Pin (length) | |
---|---|---|---|
A | 16111 | ![]() |
Pin Mount: D=12.7mm; P=3.2mm; PL= 7.9mm, FEI/Philips, Cambridge, Leica, TESCAN, CAMSCAN, ASPEX, Phenom |
B | 16261 | ![]() |
Pin Mount: D=12.7mm; P=3.2mm; PL=14.3mm, AMRAY |
C | 16221 | ![]() |
9.5mm dia. x 9.5mm Cylinder, JEOL |
D | 16281 | ![]() |
15mm dia. x 15mm Cylinder, JEOL, ISI/ABT/TOPCON |
E | 16291 | ![]() |
15mm dia. x 10mm Cylinder, JEOL, ISI/ABT/TOPCON |
F | 16111-9 | ![]() |
Pin Mount: 12.7mm x 3.2mm pin. PL=6mm, ZEISS/LEO SEMS FESEMs/FIBS |
G | You Supply Mount or Mount of Your Choice, not listed here (contact customer service) | ||
K | 16324 | ![]() |
15mm dia. x 6mm Cylinder, M4 Hitachi, Agilent / Keysight |
L | 16327 | ![]() |
25mm dia. x 6mm Cylinder, M4 Hitachi, Agilent / Keysight |
M | 16231 | ![]() |
12.2mm dia. x 10mm Cylinder, JEOL |
O | 16115 | ![]() |
31.7mm dia. x 6.47mm, Cambridge S4 Mount |
P | 16242 | ![]() |
Pin Mount: 12.7mm dia. x 15.7mm height, AMRAY special slotted head |
Q | 16153 | ![]() |
25mm dia. x 10mm Cylinder, JEOL |
R | 16144 | ![]() |
Pin mount: D=25.4mm; pin=3.2mm, FEI/Philips, Cambridge, Leica, TESCAN, CAMSCAN, ASPEX, Phenom |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
618-4 | CD Structure 500-200-100nm Specimen, non-certified, unmounted |
Each | € 866,10 | ||
618-4A | CD Structure 500-200-100nm Specimen, non-certified, Mount A |
Each | € 868,90 | ||
618-4B | CD Structure 500-200-100nm Specimen, non-certified, Mount B |
Each | € 868,90 | ||
618-4C | CD Structure 500-200-100nm Specimen, non-certified, Mount C |
Each | € 868,90 | ||
618-4D | CD Structure 500-200-100nm Specimen, non-certified, Mount D |
Each | € 868,90 | ||
618-4E | CD Structure 500-200-100nm Specimen, non-certified, Mount E |
Each | € 868,90 | ||
618-4F | CD Structure 500-200-100nm Specimen, non-certified, Mount F |
Each | € 868,90 | ||
618-4G | CD Structure 500-200-100nm Specimen, non-certified, Mount G, You Supply Mount |
Each | p.o.r. | ||
618-4K | CD Structure 500-200-100nm Specimen, non-certified, Mount K |
Each | € 868,90 | ||
618-4L | CD Structure 500-200-100nm Specimen, non-certified, Mount L |
Each | € 868,90 | ||
618-4M | CD Structure 500-200-100nm Specimen, non-certified, Mount M |
Each | € 868,90 | ||
618-4O | CD Structure 500-200-100nm Specimen, non-certified, Mount O |
Each | € 868,90 | ||
618-4P | CD Structure 500-200-100nm Specimen, non-certified, Mount P |
Each | € 868,90 | ||
618-4Q | CD Structure 500-200-100nm Specimen, non-certified, Mount Q |
Each | € 868,90 | ||
618-4R | CD Structure 500-200-100nm Specimen, non-certified, Mount R |
Each | € 868,90 |
