Products
Processing
PELCO HistoWave Cassette SystemCan be used as a stand alone system or in the PELCO TissueVac accessory.
|
|||
 |
|||

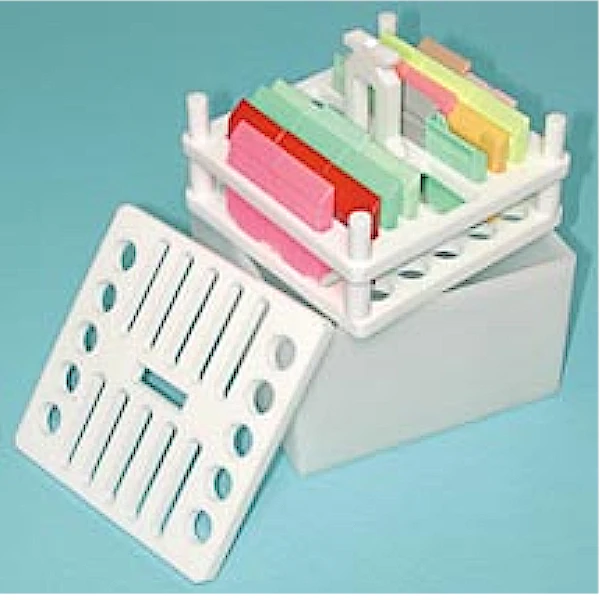

| Cassette Rack shown assembled and loaded. Note the two over-sized (white) cassettes being accommodated in the center of the rack. |
|||
|
The PELCO HistoWave Cassette System consists of a Cassette Tank and Cassette Rack. The design provides for ease of loading, unloading and fluid exchange during processing. The system will hold 26 standard-sized plastic cassettes or 22 standard and 2 over-sized cassettes. There is a hole in the handle for the temperature probe. The amount of reagent needed to cover 1 or 26 cassettes is approximately 500ml. It is easiest to add solutions when the system is assembled. The system is made of microwave-compatible and solvent-resistant plastics. Use the optionally available Paraffin Heating Tile, Prod. No. 36150-1, under the Cassette Tank when more heat generation is required in the Microwave Tissue Processor for paraffin embedding. Note: The PELCO HistoWave Cassette System may also be used in the PELCO TissueVac Vacuum Chamber, Prod. No’s 36161 and 36160, which is an accessory for the PELCO BioWave Pro and previous PELCO Microwave Processors.
|
|||
 |
 |
|
 |
| Cassette Tank | PELCO HistoWave Cassette System loaded and assembled. | Cassette Holder with cassettes may be rested on tank to facilitate draining. | Optional Paraffin Heating Tile |
|
Dimensions of Cassette Holder (with handle): Size of Standard Histology Cassette: Size of Over-Sized Histology Cassette: |
|||
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36150 | PELCO HistoWave Cassette System |
Each | € 569,70 | ||
| 36151 | PELCO HistoWave Cassette Tank only |
Each | € 366,50 | ||
| 36151-1 | PELCO HistoWave Cassette Rack only |
Each | € 400,30 | ||
| 36150-1 | PELCO HistoWave Paraffin Heating Tile |
Each | € 67,90 |
PELCO Prep-Eze Microwave-use Specimen Holders
The PELCO Prep-Eze Holder accomodates processing 6-12 specimen batches.
The unique design provides simpler handling and reduction in the volume of chemicals needed.
The PELCO Prep-Eze fits with the 36135 Polypropylene Petri Dishes.
The outside dimensions of the holders are: 50.8mm diameter x 19mm High 44.5mm High with handle)
No. 36157-1 has 6 wells, 12.7mm diameter x 17mm deep.
No. 36158-1 has 12 wells, 9.5mm diameter x 17mm deep.
The mesh openings are 420 m.
The small hole can be used to hold the temperature probe for specimen level temperature control.
 |
 |
| 36157-3 | 36158-3 |
Numbered mats, available for both sizes, are plastic laminated to resist chemicals and may be written on with a dry erase marker.
With the holder placed on the mat, easy identification of specific wells is possible.
The kits includes one specimen holder, one ID mat and 20 polypropylene petri dishes (58 x 15mm, Prod. No. 36135) suitable for use in the microwave.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36157 | PELCO Prep-Eze™ 6-well Kit |
Each | € 151,00 | ||
| 36157-1 | PELCO Prep-Eze™ 6-well Holder |
Each | € 119,50 | ||
| 36157-3 | PELCO Prep-Eze™ 6-well I.D. Mat |
3 | € 34,70 | ||
| 36158 | PELCO Prep-Eze™ 12-well Kit |
Each | € 180,80 | ||
| 36158-1 | PELCO Prep-Eze™ 12-well Holder |
Each | € 166,40 | ||
| 36158-3 | PELCO Prep-Eze™ 12-well I.D. Mat |
3 | € 34,70 |
PELCO Microwave Microcentrifuge Tube Holder
Made from PTFE, designed to hold 18 conventional polyethylene microcentrifuge tubes.
Firmly holds tubes in water bath or on PELCO ColdSpot Pro during processing.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36134 | PELCO Microwave Microcentrifuge Tubes PTFE Holder |
Each | € 75,80 |

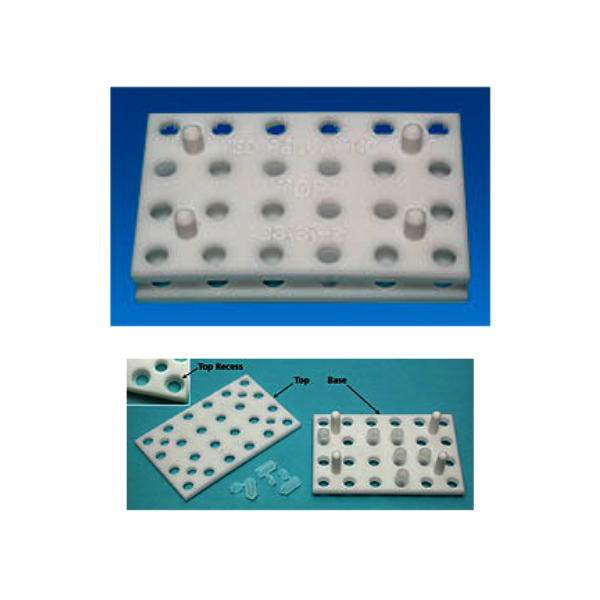

PELCO Microwave Capsule Holder with Lid
The improved PELCO Microwave Capsule Holder has three design features that set it apart from the previous design.
- “Stops” on the legs to keep the capsule base level during loading
- A hole with a stop in the base to allow the 00 embedding capsule to be set in place easily
- The new capture top that has a recess to keep the embedding capsule lid in place throughout the polymerization process in the microwave
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36131-2 | PELCO Microwave Capsule Holder with Lid |
Each | € 283,30 |
| Microwave Resin Polymerization System
Designed for resin polymerization using the 36131 or 36131-2 Capsule Holders in the PELCO BioWave Microwave Tissue Processor During microwave-assisted resin polymerization the microwave polymerization system is placed on the Microwave Polymerization Stand on the PELCO ColdSpot Pro. The insulator pad is placed on the surface of the water and the lid placed on the tray. This new system controls the rate of heating and the temperature maximum (100 C) without the loss of water during the polymerization process. Microwave wattage will control the heating rate which ensures a quality polymerization each run. |
|||
 |
 |
||

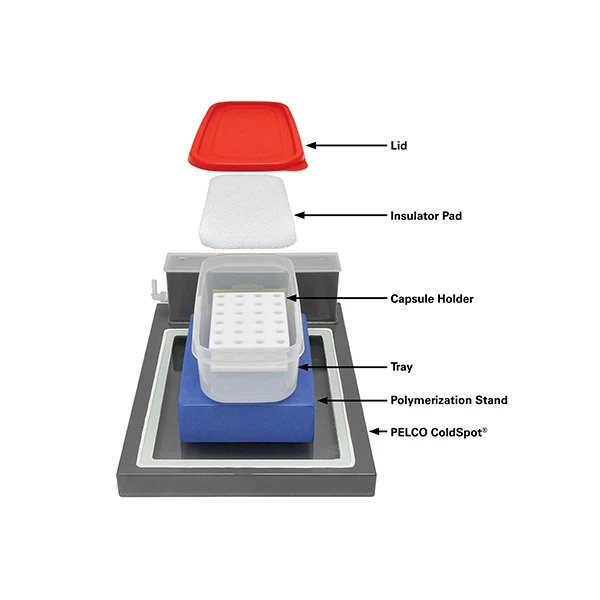

| Microwave Polymerization System shown with the Polymerization Stand (36133-20) and PELCO Microwave Capsule Holder (36131-2) on the PELCO ColdSpot Pro (36116-10) |
Microwave Polymerization Stand (36133-20) | ||
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36133 | Microwave Polymerization System |
Each | € 48,10 | ||
| 36133-10 | Replacement Insulator Pads, 1/2″ thick |
3 | € 20,90 |
Polypropylene Petri Dishes
Polypropylene Petri Dishes are microwave transparent and sturdy.
These dishes can be coupled with the PELCO Prep-Eze holders for microwave processing.
Bottom inside dimensions: 50mm dia. x 12mm deep
Lid inside dimensions: 56mm dia. x 10mm deep
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36135 | Polypropylene Petri Dishes, 50mm ID x 12mm, pk/100 |
Each | € 48,10 | ||
| 36135-5 | Polypropylene Petri Dishes, 50mm ID x 12mm, pk/500 |
Each | € 213,50 |
Corning Costar Tissue Culture Plates
Tissue Culture-treated Plates are designed for a wide range of applications including general cell growth experiments, cloning studies, virus isolation and in vitro testing.
Plate bottoms have a uniform thickness, allowing for distortion-free observation. Alphanumeric coordinates are placed on the same focal plane as cell growth, for convenient referencing of cell position. Gripping edges make handling easier.
All plates have non-reversible covers with condensation rings to minimize evaporation and the risk of contamination.
Plates are made of optically clear, medical-grade non-pyrogenic polystyrene, TC-treated, sterile and are used for processing of tissue on the bench or in the microwave. The corresponding Wellplate Inserts are No. 36168 for the 6 cavity, No. 36170 for the 12 cavity, and No. 36172 for the 24 cavity.
Ordering Information
| No. of Wells | Well Dia. | Well Growth Area | Total Well Volume | Working Volume | |
|---|---|---|---|---|---|
| 36168-6 | 6 | 35mm | 9.5cm2 | 15ml | 2-3ml |
| 36170-12 | 12 | 22.6mm | 3.8cm2 | 7ml | 1ml |
| 36172-24 | 24 | 16mm | 1.9cm2 | 3.4ml | 0.5ml |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36168-6 | Tissue Culture Plate, 6 wells |
10 | € 79,20 | ||
| 36170-12 | Tissue Culture Plate, 12 wells |
10 | € 87,00 | ||
| 36172-24 | Tissue Culture Plate, 24 wells |
10 | € 96,30 |
Amplate Roller
Manufactured with a comfort grip to assist in creating a perfect seal when used with SecureSeal Sealing Film.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36167 | Amplate roller |
Each | € 57,60 |
8-Section Staining Nets
Dimensions: 89 x 38mm.
Available with netting of 32 mesh or 64 mesh
Rod in center of net can be grasped to lift net from Staining Dish.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36154-32 | 8-Section Staining Net, 32 mesh |
Each | € 148,60 | ||
| 36154-64 | 8-Section Staining Net, 64 mesh |
Each | € 148,60 |
Pyrex Staining Dish
100mm diameter x 50mm H, for use with above Staining Nets.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 36754-60 | Pyrex Staining Dish |
Each | € 80,30 |
