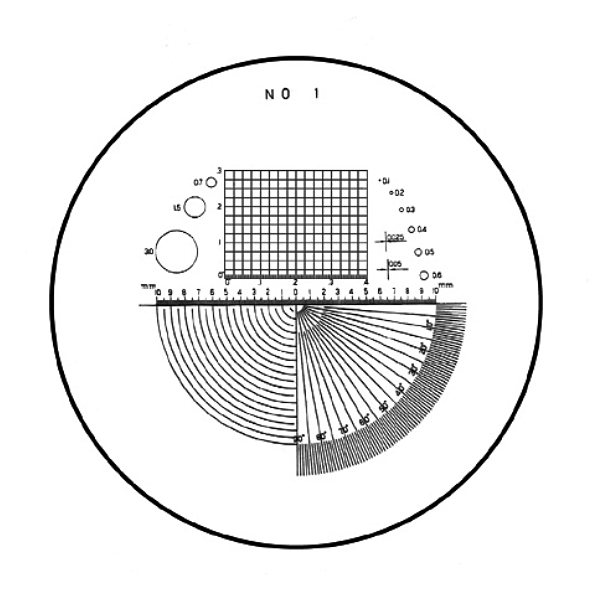

Reticle No. 1
Degrees: 0-90 (1 intervals)
Circles: 0.1 to 3.0mm dia.
Scale: 0 to 10mm (0.1mm divisions)
Inch Scale: 0 to 0.4″ (0.005″ divisions)
Squares 0.025″
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75311 | Reticle No. 1 for 7x |
Each | € 22,40 | ||
| 75331 | Reticle No. 1 for 10x |
Each | € 22,40 |

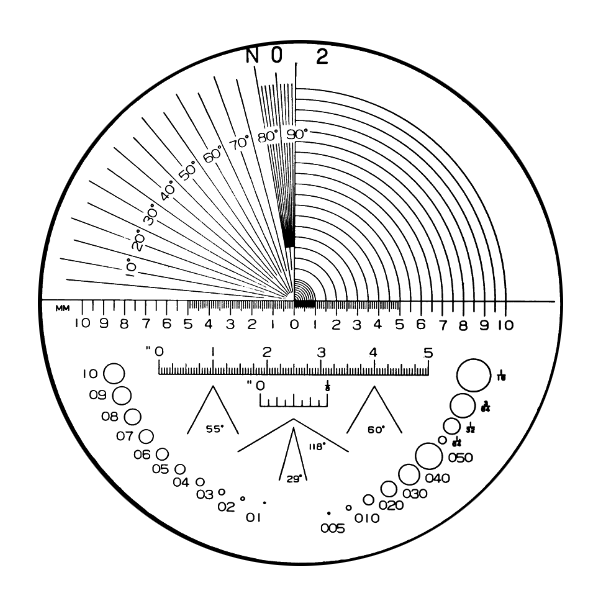

Reticle No. 2
Degrees: 0-90 (one 10 area marked in 1 intervals)
Circles: 0.1 to 1.0mm dia. and .005 to 1/16″ dia.
Scales: 0 to .5″ (0.005″ divisions); 0 to 1/8″ (1/64″ divisions); 0 to 10mm (0.1mm divisions)
Angles: 29 , 50 , 55 , 118
Radius: 0-90 (0.1 and 0.5mm divisions).
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75312 | Reticle No. 2 for 7x |
Each | € 22,40 | ||
| 75332 | Reticle No. 2 for 10x |
Each | € 22,40 |

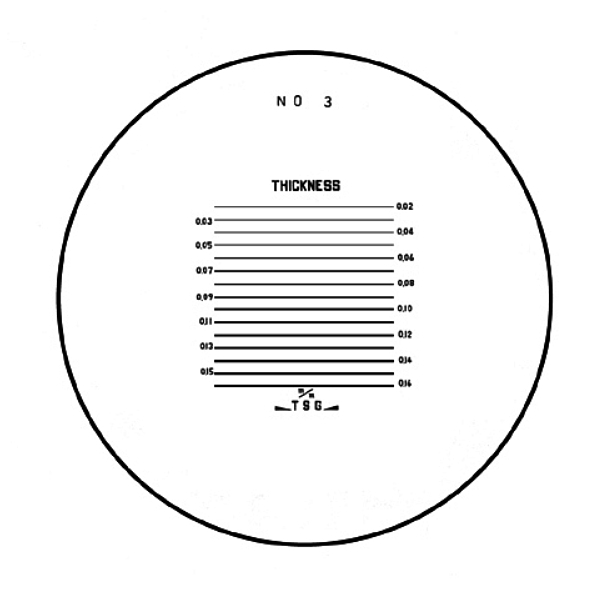

Reticle No. 3
Lines 0.02 to 0.16mm thick
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75313 | Reticle No. 3 for 7x |
Each | € 22,40 | ||
| 75333 | Reticle No. 3 for 10x |
Each | € 22,40 |

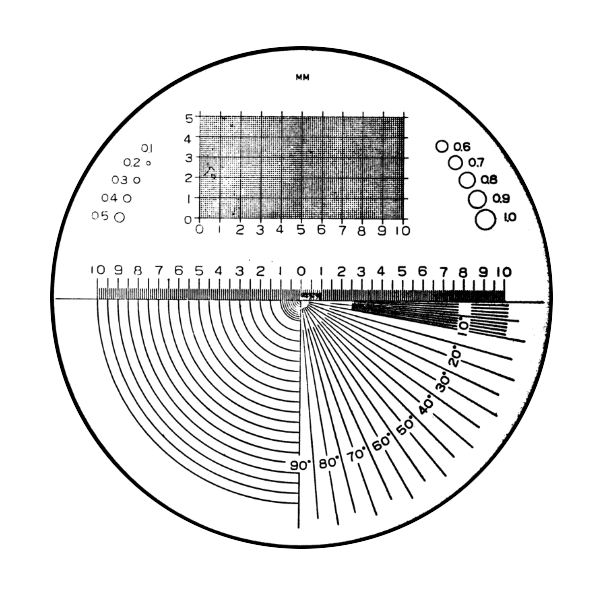

Reticle No. 4
Degrees: 0-90 (one 10 area marked in 1 itervals)
Scale: 0 to 10mm (0.1mm divisions)
Squares: 5 x 10mm (0.1mm divisions)
Circles: 0.1 to 1.0mm dia. (0.1mm divisions)
Radius: 0-90 (0.1 and 0.5mm divisions)
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75314 | Reticle No. 4 for 7x |
Each | € 22,40 |

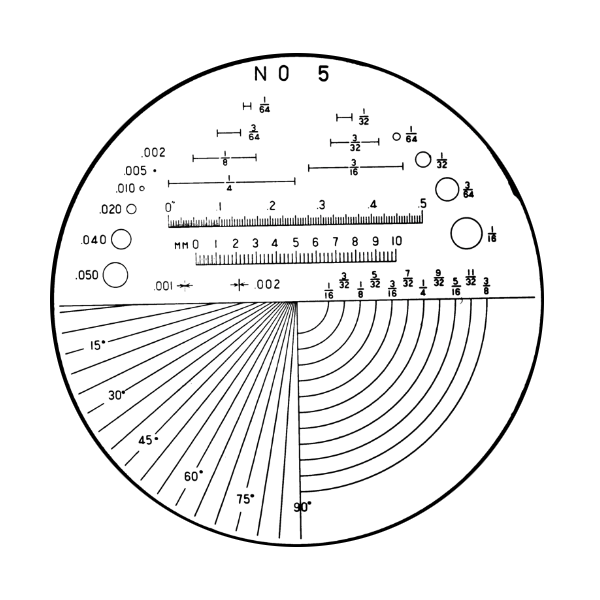

Reticle No. 5
Degrees: 0-90 (5 intervals)
Scales 0 to 0.5″ (0.005″. divisions); 0 to 10mm (0.2mm divisions)
Circles 1/64 to 1/16″; .002 to .050mm
Radius: 0-90 (1/16 to 3/8″ at 1/32″ divisions)
Line lengths: 1/64 to 1/4″ (1/32″ divisions)
Line thickness: .001″ and .002″
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75315 | Reticle No. 5 for 7x |
Each | € 22,40 | ||
| 75335 | Reticle No. 5 for 10x |
Each | € 22,40 |

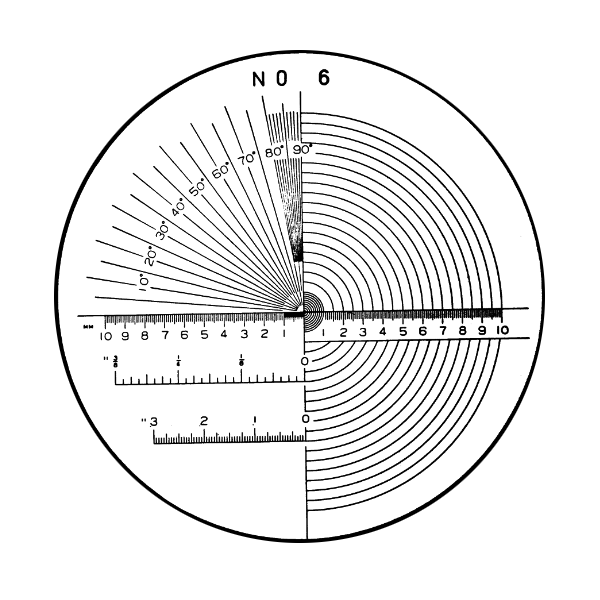

Reticle No. 6
Degrees: 0-90 (one 10 area marked in 1 intervals)
Scales: 0 to 10mm (0.1mm divisions); 0 to 3/8″ (1/64″ divisions); 0 to .3″ (.005″ divisions)
Radius: 0 to 180 (.5mm divisions)
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75316 | Reticle No. 6 for 7x |
Each | € 22,40 | ||
| 75336 | Reticle No. 6 for 10x |
Each | € 22,40 |

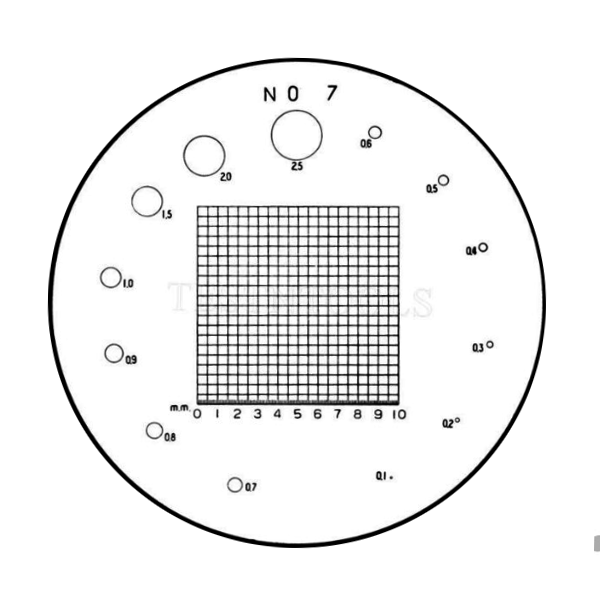

Reticle No. 7
Squares: 10 x 10mm (0.5mm divisions with 0.1mm markings)
Circles 0.1 to 2.5mm diameter
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75317 | Reticle No. 7 for 7x |
Each | € 22,40 | ||
| 75337 | Reticle No. 7 for 10x |
Each | € 22,40 |

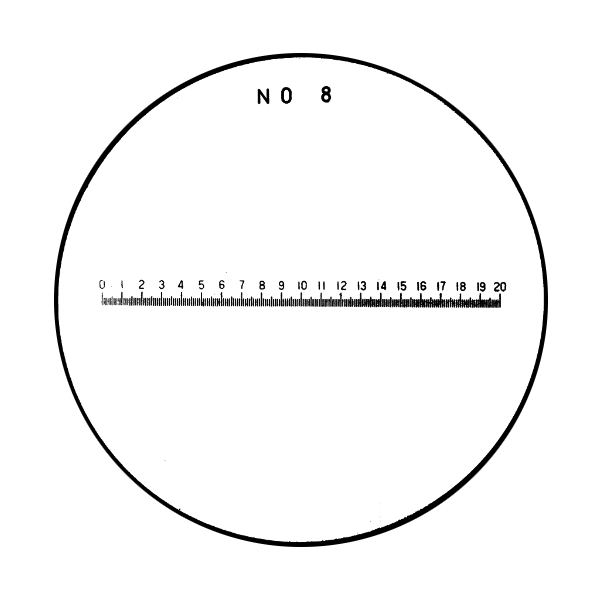

Reticle No. 8
Scale: 0 to 20mm (0.1mm divisions)
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75318 | Reticle No. 8 for 7x |
Each | € 22,40 | ||
| 75338 | Reticle No. 8 for 10x |
Each | € 22,40 | ||
| 75358 | Reticle No. 8 for 15x |
Each | € 28,60 |

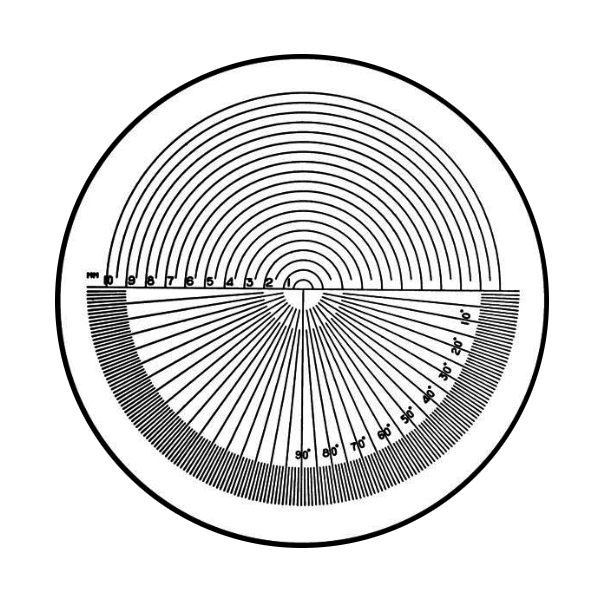

Reticle No. 9
Degrees: 0-180 (1 intervals)
Radius: 0 to 180 , 0 to 10mm (0.5mm divisions)
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75319 | Reticle No. 9 for 7x |
Each | € 22,40 | ||
| 75339 | Reticle No. 9 for 10x |
Each | € 14,70 |

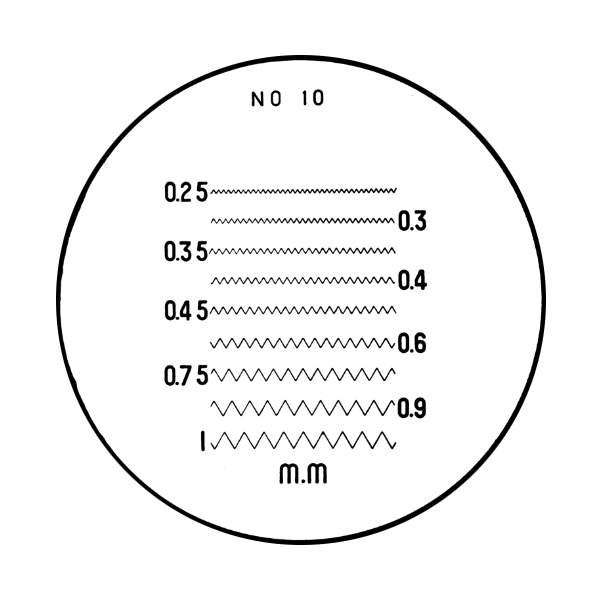

Reticle No. 10
Screw Threads: 0.25, 0.3, 0.35, 0.4, 0.6, 0.75, 0.9, 1mm
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75320 | Reticle No. 10 for 7x |
Each | € 22,40 |

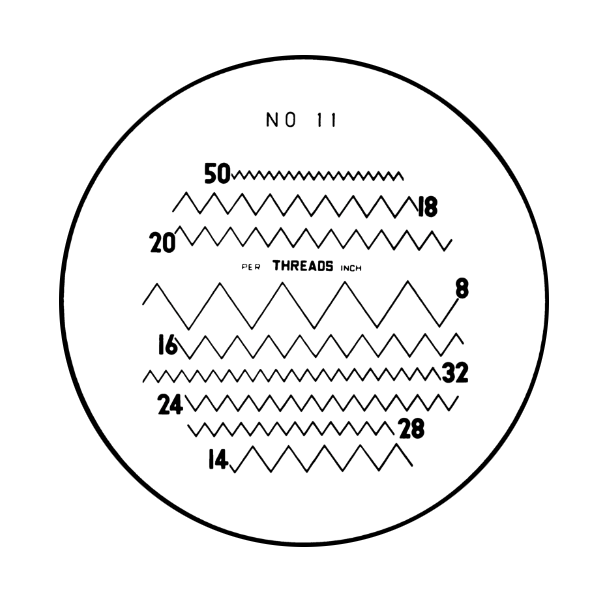

Reticle No. 11
Screw Threads: 50, 18, 20, 8, 16, 32, 24, 28, 14 per inch.
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75321 | Reticle No. 11 for 7x |
Each | € 22,40 | ||
| 75341 | Reticle No. 11 for 10x |
Each | € 22,40 |

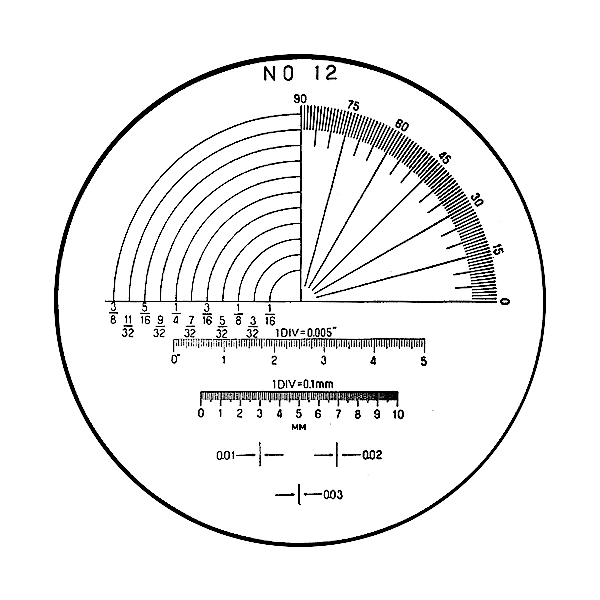

Reticle No. 12
Degrees: 0-90 (1 intervals)
Radius: 1/16 to 3/8″ (1/32″ divisions)
Scales: 0 to .5″ (0.005″ divisions); 0 to 10mm (0.1mm divisions)
Line Thickness: 0.01″, 0.02″, 0.03″
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75322 | Reticle No. 12 for 7x |
Each | € 22,40 | ||
| 75342 | Reticle No. 12 for 10x |
Each | € 22,40 |

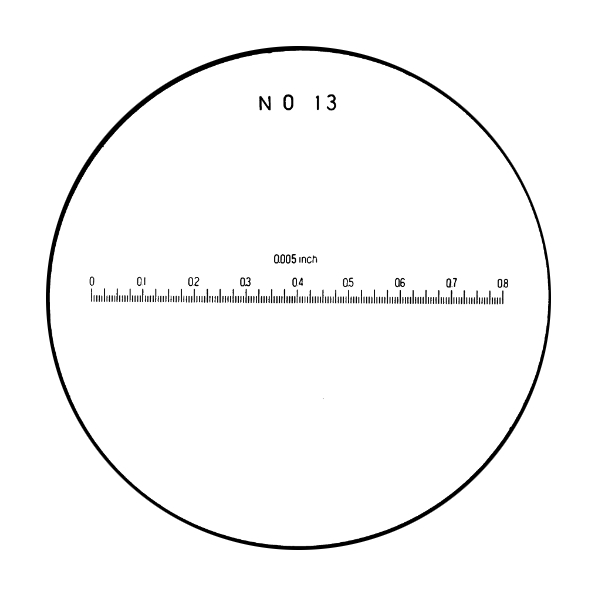

Reticle No. 13
Scale: 0 to 0.8″ (0.005″ divisions)
Reticles for 7x and 10x Measuring Magnifiers, 751, 752, 741 and 743
Scale Diameters: 10x = 35mm, 7x = 26mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 75346 | Reticle No. 13 for 7x, inch scale |
Each | € 22,40 | ||
| 75348 | Reticle No. 13 for 10x, inch scale |
Each | € 22,40 | ||
| 75360 | Reticle No. 13 for 15x, inch scale |
Each | € 33,00 |
