Cargille Immersion Oils.
Cargille Immersion Oils are in full accord with the FDA requirements.
To date, no other immersion oils meet the FDA criterias.
Cargille Immersion Oils are PCB (polychlorinated biphenyls) free.
- Cargille immersion oil type A, low viscosity, low fluorescence for short focus objectives.
- Cargille immersion oil type B, high viscosity, generally accepted for medical work.
- Cargille immersion oil type LDF, very low fluorescence.
- Cargille immersion oil type FF, fluorescence free.
Immersion Oil Selection Guide
Standard Light Microscopy
Type A & B, with viscosities of 150 and 1250 cSt (centistokes), respectively, meet these requirements.
The greater the gap between cover glass and objective, or condenser and slide, the more desirable high viscosity becomes.
Type A, with 150 cSt, reduces any tendency to trap air bubbles, thus avoiding image degradation.
Type B, with 1250 cSt, is thick enough for viewing multiple slides with one application, thus saving time during batch processing.
Cargille Immersion Oils A, B, NVH, OVH and 300 can be blended for intermediate viscosities.
Inverted or Inclined Microscopy and Projection Instruments
Use immersion oils type NVH or OVH.
The greater the gap between the objective and the cover glass or between the microscope slide and the objective, the more necessary high viscosity becomes.
The very high viscosities of type NVH at 21,000 cSt and Type OVH at 46,000 cSt give excellent results for these applications.
Automated Hematology Systems
Type 300 has been specifically designed to meet results for optimum optical imaging and mechanical processing, medium viscosity of 300 cSt.
Cargille Immersion Oil Specifications
Fluorescence Microscopy
Fluorescence microscopy require special immersion oils with extremely low fluorescence.
Type LDF and HF both exhibit extremely low fluorescence.
Type HF exhibits slightly more fluorescence than type LDF, but type HF is halogen-free.
Type FF is virtually fluorescence free, but not ISO compliant. Viscosities for type LDF, HF and FF are 500 cSt, 700 cSt and 150 cSt respectively.
For non-critical fluorescence application, one could also consider immersion oils type A and B which both have low fluorescence.
Elevated temperatures (>23° to 37°C)
Use type 37.
Elevated temperatures can be caused by sub-stage illuminators, environment or other causes.
Developed for working at human body temperatures there is no image degradation above the standard calibration temperature of 23C.
Can be blended with type B to place the temperature of calibration proportionally between 23° and 37°C. Type B and type 37 both have a viscosity of 1250 cSt at their respective calibration temperatures.
Why do Cargille Immersion Oils Meet the DIN 58 884?
(Deutsches Institut Für Normung e.V.)
Refractive index, dispersion and temperature standardizations are the key specifications for optical clarity and high resolution. (Viscosity and other physical properties are directed toward specific applications and convenience of the user.)
Immersion oil specifications must meet the design requirements of old instruments and become the design criteria for new instruments.
Without these specifications, it would be much harder for the microscopist to find the proper oil for his or her particular instruments’ requirements and optical imagery would suffer.
The specifications adopted by DIN resulted from their study of instrument requirements of many manufacturers.
The proposed specifications were submitted for review, with Cargille Laboratories serving as liaison for the American manufacturers.
The present trend toward tighter specification for optical properties is under a program of the International Standards Organization (ISO).
Unique Applications – Special Properties
Because of widespread availability, consistent quality, and close specifications, Cargille Oils are used as:
- A temporary mounting media
- Fluid mounts (permitting specimen rotation)
- Calibration liquids
- Optical coupling fluids
- Combination protective coating and examination fluid
- Transparency medium for translucent materials
- Filter clearing agent (as recommended by Millipore Corp.)
Important Comments
Cargille Immersion Oils are supplied as a microscopy accessory by American Optical and Bausch & Lomb, and accepted for use by all foreign microscope manufacturers.
Cargille Immersion Oils are synthetic hydrocarbons, natural petroleum derivatives that contain no solvents and no PCB’s.
These oils are stable, non-drying, odorless, safe for lens and handling, and easily removable.
msds
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
L4397A-1 | Immersion Oil Type A |
30ml | € 115,40 | ||
L4397A-3 | Immersion Oil Type A |
480ml | € 260,00 | ||
L4397B-1 | Immersion Oil Type B |
30ml | € 123,90 | ||
L4397B-2 | Immersion Oil Type B |
120ml | € 170,70 | ||
L4397B-3 | Immersion Oil Type B |
480ml | € 260,00 | ||
L4397DF-1 | Immersion Oil Type LDF |
30ml | € 154,80 | ||
L4397DF-2 | Immersion Oil Type LDF |
120ml | € 228,50 | ||
L4397DF-3 | Immersion Oil Type DF |
480ml | € 330,90 | ||

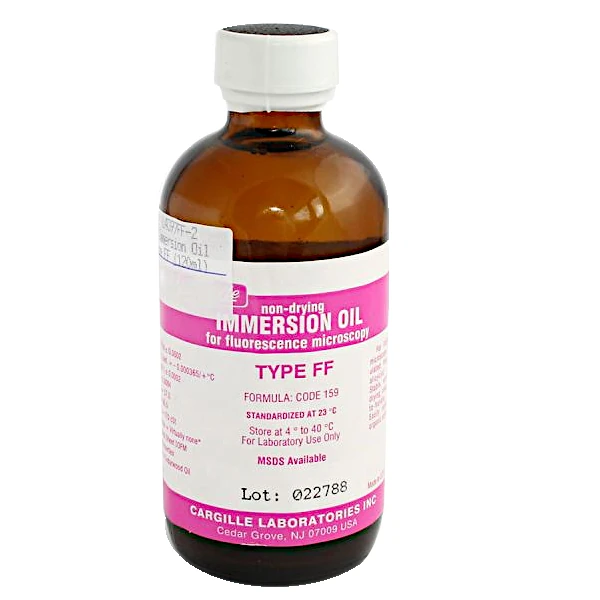

L4397FF-1 | Immersion Oil Type FF |
30ml | € 143,70 | ||
L4397FF-2 | Immersion Oil Type FF |
120ml | € 228,50 | ||
L4397FF-3 | Immersion Oil Type FF |
480ml | € 350,60 |

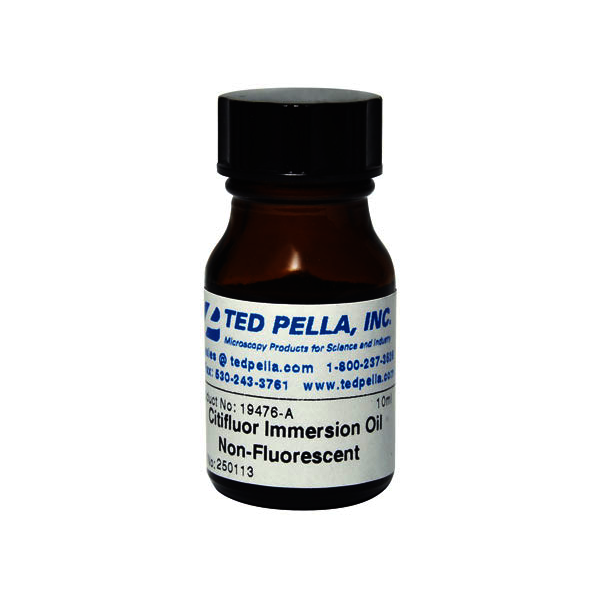

Citifluor AF87
Citifluor AF87 is a medium viscosity immersion oil with a refractive index of ~1.52 at room temperature (20 C).
This oil is ideal for confocal laser scanning microscopy and FISH label with DAPI and Cy dyes.
Citifluour AF87 should be stored at room temperature.
Low temperature may cause sediment to develop and reduce performance.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
19476-A | Citifluor Non-Flourescent Immersion Oil, AF87 |
10ml | € 78,30 |
