Products

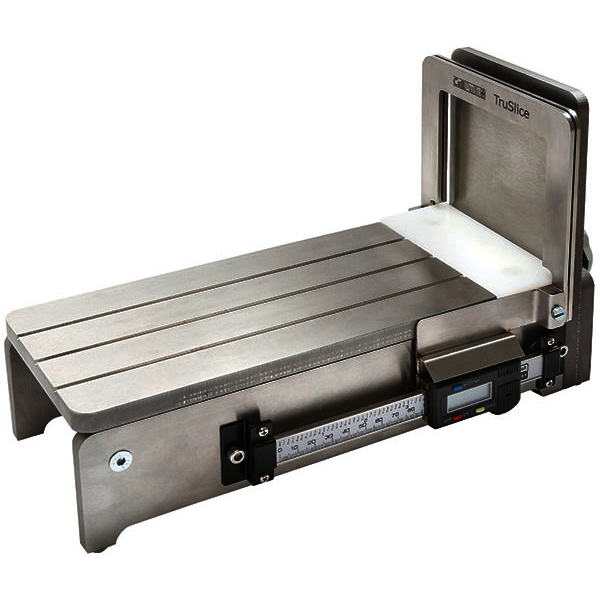

TruSlice Digital
TruSlice Digital Specimen Grossing System
Newly redesigned.
Accepts larger tissues than previous TruSlice Digital and is easier to break down for cleaning into 3 pieces.
Also manufactured from 316 stainless steel, the TruSlice Digital Cut-up System is designed for robustness and minimal use of bench space.
With all the benefits of the TruSlice system, TruSlice Digital utilizes an adjustable moving knife guide rather than color coded inserts. Incorporating a digital display, users can quickly vary slice thickness from 1mm to 10mm, offering greater flexibility to the user.
Features & Benefits
- Enables accurate and consistent slicing of tissue specimens
- Reduces the time taken to gross specimens
- Suitable for slicing both fresh and fixed tissue
- Ensures consistent high quality processing and reduced processing times
- Small footprint takes up minimal bench space
- Quick and easy to re-configure slice thickness
- Easy to clean
- 50mm and 75mm Clear Perspex Immobilization Plates facilitate grossing of soft tissue specimens
- Optional UKAS Calibration Set ensures confidence in the accuracy of the cut up system
- Adjustable moving knife guide with digital display, can be set for any slice thickness from 1 to 10mm; not restricted to a pre-defined slice thickness.
System Includes
- TruSlice Digital Specimen Cut-up System
- TruSlice 50mm and 75mm Immobilization Plates
- TruSlice Digital Cutting Insert
- MacroKnife 250mm (10″) Lung Knife
- TruSlice Digital Quick Start Instructions for Use
- 3mm and 4mm Allen Keys
- Waterproof Case 521mm (20.5″) with Foam
- Super Mega Slim Cassette Sample Pack
Specifications
- Dimensions: W 120mm x D 310mm H 195mm (4.7 x 12.2 x 7.7″)
- Cutting Face: W101mm x H 87.5mm (4 x 3.4″)
- Weight: 10Kg (22lbs)
- Material: 316 Stainless Steel
- Inserts: HDPE Plastic
TruSlice Digital Specimen Grossing System
Manufactured from 316 stainless steel, the TruSlice Digital Cut-up System is designed for robustness and minimal use of bench space.
With all the benefits of the TruSlice system, TruSlice Digital utilizes an adjustable moving knife guide rather than color coded inserts.
Incorporating a digital display, users can quickly vary slice thickness from 1mm to 10mm, offering greater flexibility to the user.
Features & Benefits
- Enables accurate and consistent slicing of tissue specimens
- Reduces the time taken to gross specimens
- Suitable for slicing both fresh and fixed tissue
- Ensures consistent high quality processing and reduced processing times
- Small footprint takes up minimal bench space
- Quick and easy to re-configure slice thickness
- Easy to clean
- 50mm and 75mm Clear Perspex Immobilization Plates facilitate grossing of soft tissue specimens
- Optional UKAS Calibration Set ensures confidence in the accuracy of the cut up system
- Adjustable moving knife guide with digital display, can be set for any slice thickness from 1 to 10mm; not restricted to a pre-defined slice thickness.
System Includes
- TruSlice Digital Specimen Cut-up System
- TruSlice 50mm and 75mm Immobilization Plates
- TruSlice Digital Cutting Insert
- MacroKnife 250mm (10″) Lung Knife
- TruSlice Digital Quick Start Instructions for Use
- 3mm and 4mm Allen Keys
- Waterproof Case 521mm (20.5″) with Foam
- Super Mega Slim Cassette Sample Pack
Specifications
| Dimensions: | W 120mm x D 310mm x H 195mm (4.7 x 12.2 x 7.7″) |
| Cutting Face: | W101mm x H 87.5mm (4 x 3.4″) |
| Weight: | 10Kg (22lbs) |
| Material: | 316 Stainless Steel |
| Inserts: | HDPE Plastic |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 27132 | TruSlice Digital Specimen Grossing System |
Each | € 4.652,30 |

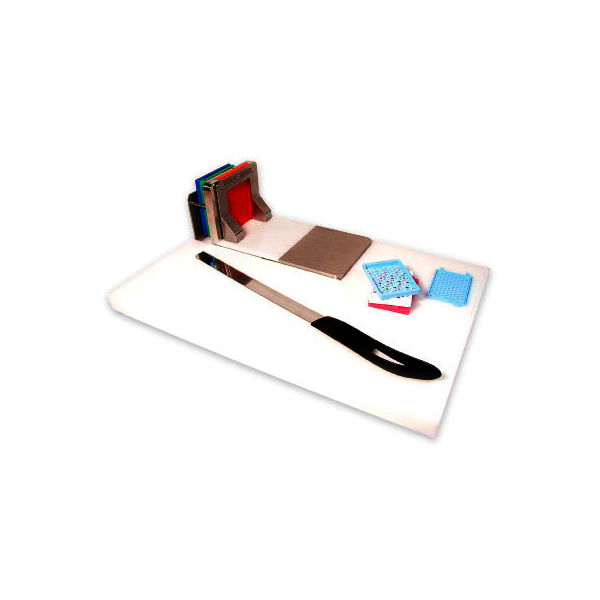

SureCut Dissection Board
The SureCut Dissection Board allows the TruSlice Specimen Grossing System to integrate with a cutting board.
The polypropylene manufactured cut up boards are durable, thick and easy to clean.
They provide a stable cutting platform.
This aids in the slicing, collection and handling of tissue specimens.
The polypropylene boards will not dull knives or fine surgical cutting blades.
Rubber feet are attached to each corner to stop slips.
- Durable
- Easy to clean
- Polypropylene prevents knife edge dulling
- May be set up for left or right-handed slicing
Dimensions: 300 x 300 x 12mm (11.8 x 11.8 x 0.47″)
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 27131-1 | TruSlice SureCut Board, White |
Each | € 339,20 |

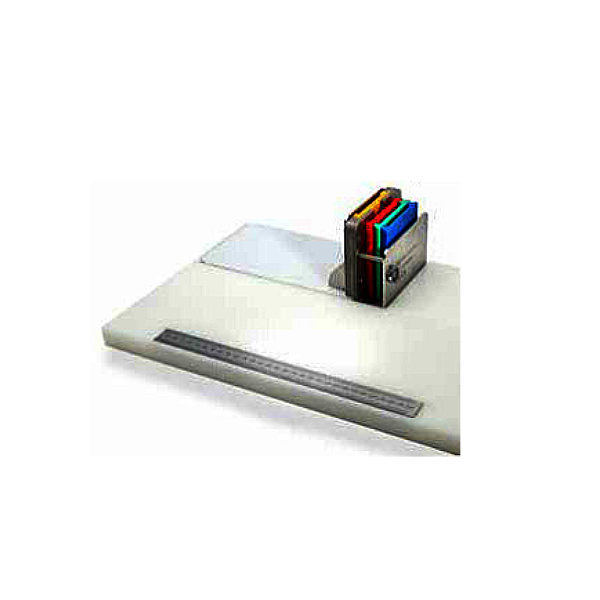

Steel Ruler
- UKAS calibrated, high quality no-rust steel ruler
- 300mm (12″) length x 25mm (1″) wide with metric/imperial scale
- Black figures and graduations permanently contrasted against a satin chrome anti-glare finish
- Metric divisions subdivided to 0.5mm
- Imperial divisions subdivided down to 64ths and 100ths
- Measurement accuracy is standardized at 20 C
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 27131-2 | Steel Ruler, Rigid, 300mm (12″) UKAS Certified |
Each | € 289,10 |

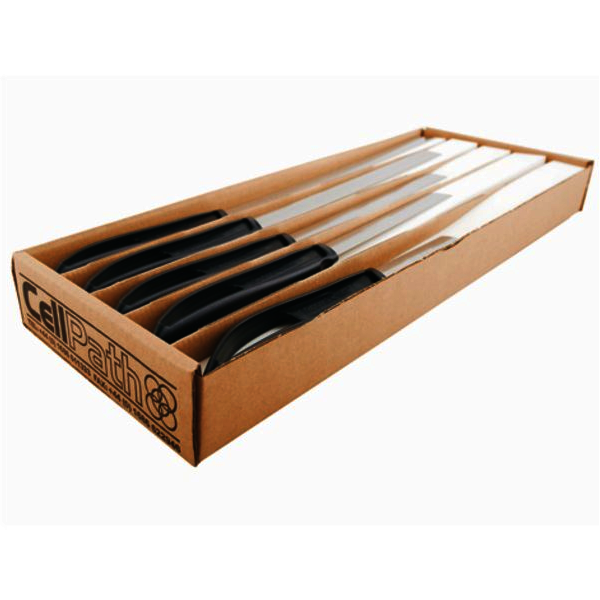

Black Diamond Knives
250mm (10″) Lung Knife, box of 10
- High quality Sheffield Stainless Steel
- Long lasting edge
- Completely disposable; eliminates contamination
- Molded ergonomic handle with finger guard
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 27131-3 | TruSlice Immobilization Plate, 50mm (2″) |
Each | € 67,10 |

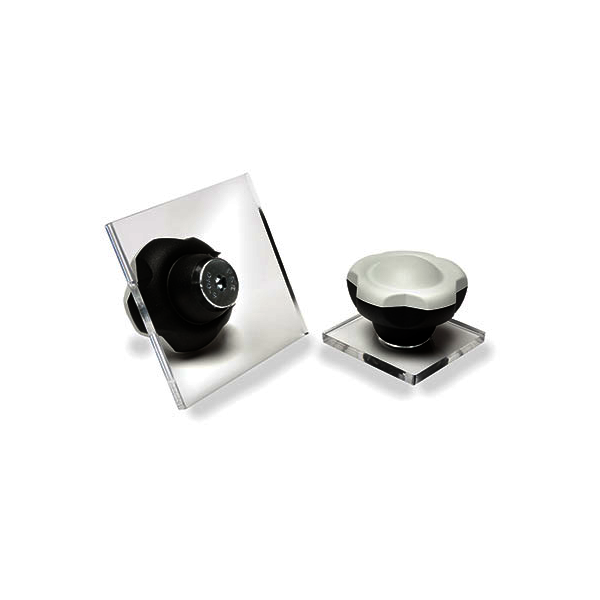

TruSlice Immobilization Plates
The Clear Perspex Immobilization Plate enables the grossing person to visually control the pressure to a specimen for a precise slice of the tissue specimen.
By visually controlling the pressure to the tissue, deformation of the specimen may be prevented during slicing.
The 50mm immobilization plate is provided with the TruSlice systems.
An optional 75mm Immobilization Plate is available for handling large tissues.
Dimensions:
50mm Immobilization Plate: 50 x 50mm (2″)
75mm Immobilization Plate: 75 x 75mm (3″)
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 27131-4 | TruSlice Immobilization Plate, 75mm (3″) |
Each | € 84,00 |
