PELCO® Holey Silicon Nitride Support Film for TEM

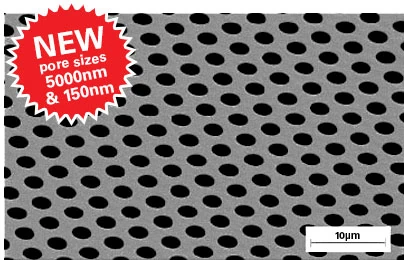

200nm membrane with holes from 5µm down to 100nm

Holey 200nm silicon nitride support frame on 3mm frame

0.5 x 0.5mm window with
holey silicon nitride membrane
imaged from back side

Advanced MEMS technologies have been applied to incorporate many improvements into this truly unique next generation Holey Silicon Nitride Support Membrane.
Holey membranes or support films are also referred to as perforated or patterned films; there is no film or membrane covering the holes.

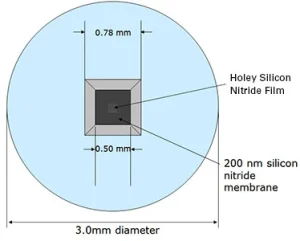

The platform for this holey silicon nitride support film is the low stress 200nm amorphous silicon nitride support film on a circular 3mm silicon frame with a 0.5 x 0.5mm window. There are twelve hole sizes available ranging from 100nm to 5µm.
This design has a number of advantages over previously offered products:
- Large open area
- Closely packed, higher pore
- density using hexagonal pore pattern
- Added resilience of membrane
- Practical hole size for experiments
- TEM standard circular shape and size
- EasyGrip™ edge for improved handling
The PELCO® Silicon Nitride Support Films are resistant to solvents, acids and bases, allowing for dynamic experiments directly on the holey membrane.
The Silicon Nitride Support Films allow for high temperature experiments/imaging up to 1000°C. Films can be easily cleaned using glow discharge or plasma cleaning techniques.
They also provide a carbon-free background for TEM imaging and analysis. The clean manufacturing techniques avoid the debris particles that are often found on other makes of silicon nitride support films.

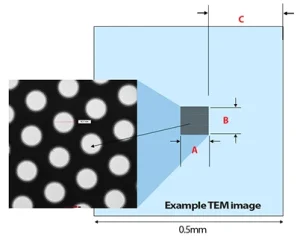

Defining parameters for the PELCO® Holey Silicon Nitride Support Films are:
Membrane Thickness: | 200nm for added resilience |
Window Size: | 0.5 x 0.5mm |
Pore Diameter: | Sizes are within 10% of diameter |
Pattern: | Close packed hexagonal arrangement of rows and columns – see table |
Perforated Area: | See table |
Nominal Porosity: | Range between 22.3% to 22.8% |
Frame Thickness: | Silicon support structure is 200µm standard. This allows for fitting in standard TEM holders and gives a sturdy support frame |
Surface Roughness: | The RMS (Rq) is 0.65 +/- 0.06nm which gives a mean roughness (Ra) of 0.45 +/- 0.02nm |
Frame Diameter: | TEM standard 3mm diameter disc, fully compatible with regular TEM holders and with EasyGrip™ edges for improved handling |
Packaging: | The PELCO® Holey Silicon Nitride Support Films are packaged under cleanroom conditions. Each box holds 10 support films. |
Back Side of PELCO® Holey Silicon Nitride Support Film (enlarged) | Front Side of PELCO® Holey Silicon Nitride Support Film (enlarged) |
![]() | ![]() |
PELCO Holey Silicon Nitride Support Film for TEM
|
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
21536-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 5 m pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21535-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 2.5 m pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21580-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 1.25 m pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21581-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 1.0 m pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21582-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 750nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21583-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 500nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21584-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 400nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21588-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 300nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21587-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 250nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21586-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 200nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 397,30 | ||
21590-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 150nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 611,10 | ||
21585-10 | PELCO Holey Silicon Nitride Support Film, 200nm, 100nm pores, 0.5 x 0.5mm window, 3mm |
10 | € 611,10 |

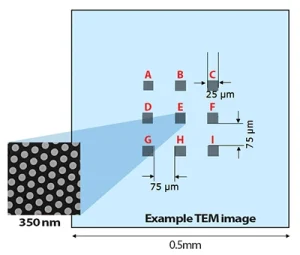

PELCO Holey Silicon Nitride Support Film Multi Pore
HOLE SIZE
|
PORE TYPE
|
PITCH µm
|
ARRAY
|
POSITION
|
---|---|---|---|---|
1250nm
|
circular
|
2.0 m
|
12 x 12
|
A
|
900nm
|
circular
|
1.5 m
|
17 x 17
|
B
|
600nm
|
circular
|
1.0 m
|
25 x 25
|
C
|
400nm
|
circular
|
0.8 m
|
31 x 31
|
D
|
350nm
|
circular
|
0.6 m
|
42 x 42
|
E
|
250nm
|
circular
|
0.5 m
|
50 x 50
|
F
|
200nm
|
circular
|
0.4 m
|
65 x 65
|
G
|
150nm
|
circular
|
0.3 m
|
80 x 80
|
H
|
70-100nm
|
circular
|
0.2 m
|
125 x 125
|
I
|
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
21589-10 | PELCO Holey Silicon Nitride Support Film, 200nm, multiple pore sizes, 1000, 750, 500, 400, 350, and 300nms, 0.5 x 0.5mm window, 3mm |
10 | € 670,00 |
