Grid Holder Blocks

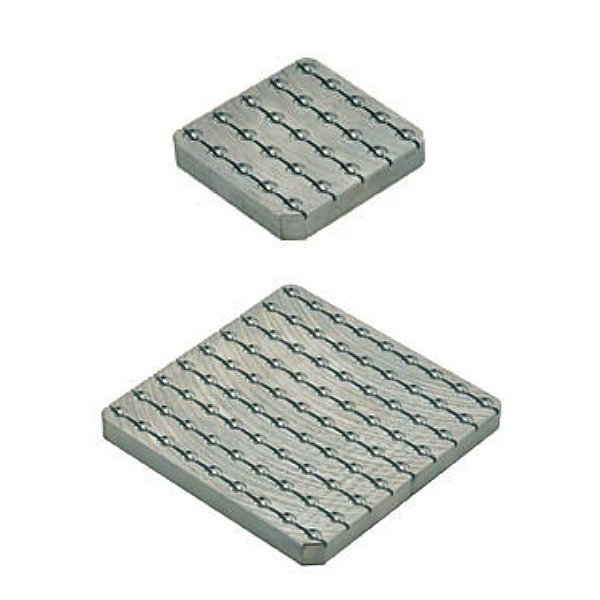

PELCO TEM Grid Holder Blocks
The PELCO TEM grid holder blocks are designed to hold a number of TEM grids when they need to cleaned in a glow discharge system such as the PELCO easiGlow system or if they need to be coated in a carbon coater such as the Cressington 208C high vacuum carbon coater.
The TEM grid holder blocks are made of a solid piece of vacuum grade aluminum and have recessed positions for each grid with slots for easy loading and lifting the grids with fine pointed tweezers.
Each position also has an additional centre recess to avoid any contact with the grid support area and the block.
Handling of TEM grids with these blocks is much easier and more secure than using glass slides.
The PELCO TEM grid holder blocks are available in two sizes: 25 grids and 81 grids.
The larger size is ideal for use coating system with a larger chamber or with rotary-tilting stages.
Dimensions of 25 TEM grid version: 35 x 35 x 6.4mm.
Dimensions of 81 TEM grid version: 63.5 x 63.5 x 6.3mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16820-25 | PELCO TEM Grid Holder Block for 25 TEM Grids |
Each | € 88,00 | ||
| 16820-81 | PELCO TEM Grid Holder Block for 81 TEM Grids |
Each | € 137,20 |

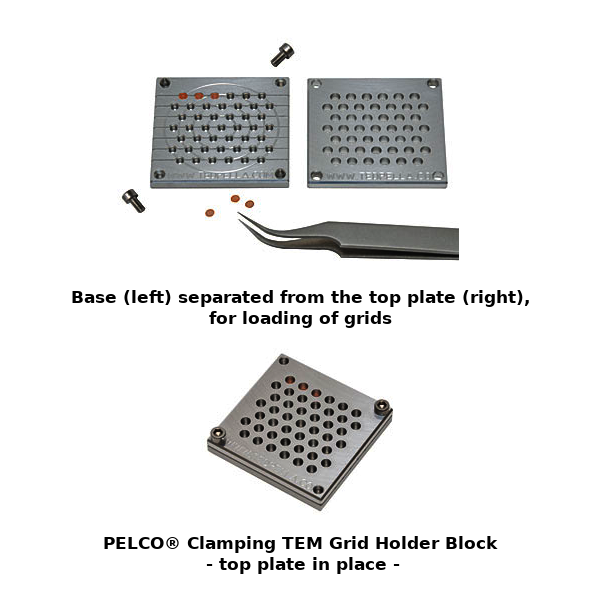

PELCO Clamping TEM Grid Holder Block
The PELCO Clamping TEM Grid Holder Block is designed to hold the 3mm or 3.05mm grids securely at the rim for coating and handling.
Designed to use in vacuum deposition systems for applications such as carbon evaporation, sputtering or electron beam deposition.
This clamping block can also be used for secure shipping of TEM grids.
This block holds a maximum of 45 grids in a densely packed area.
The top opening holes are slightly tapered with an opening of 2.5mm at the bottom.
The base part has venting holes ( 1mm) for vacuum pumping with counter bored cavities to hold the TEM grids.
Grooves are provided for easy loading and removing the TEM grids.
The top plate has raised rims to clamp the grids securely.
The top and base plate are easily assembled using the tapered guiding pins and are held together with two allen screws.
Overall size is 48 x 48 x 10mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16830-45 | PELCO Clamping TEM Grid Holder Block for 45 Grids |
Each | € 319,50 |
