Ultraviolet Lamps

Products

Ultraviolet Lamps

  • Biowave Pro+
  • Centrifuges
  • Diamond saws & cutting
    • Cutlam 1.1
    • Cutlam 3.1
    • Cutlam 4.0
      • Cutlam 5.0
      • Cutlam Micro 1.1
      • Cutlam Micro 2.0
      • Cutlam Micro 3.0
      • PELCO Precision Wire Saw
  • Drying System
  • PELCO Dimpler
  • Pelco easiCore
  • PELCO Scribing & Cleaving
    • PELCO FlexScribe
    • PELCO FlipScribe
    • PELCO LatticeAx
      • PELCO Small Sample Cleaver
      • PELCO LatticeAx 120
      • PELCO LatticeAx 225
      • PELCO LatticeAx 420
      • Replacement Indenters
  • Polishing & Grinding
    • XP 20 Grinder/Polisher
    • Smartlam 2.0
    • Smartlam 3.0
    • Masterlam 1.0
    • Masterlam 1.1
    • Masterlam 3.0
    • Rectilam 2.0
  • PELCO Rotators
    • Single Speed Rotator, R1
    • R2 Variable Speed Rotator
    • R2 Rotator with Heads with Clips for Test Tubes
  • SawMicrotome
  • Sputter Coater
  • McIlwain Tissue Chopper
  • Tissue Slicers
    • easiSlicer
    • Loading...
      Product
      Description
      Order
      Product

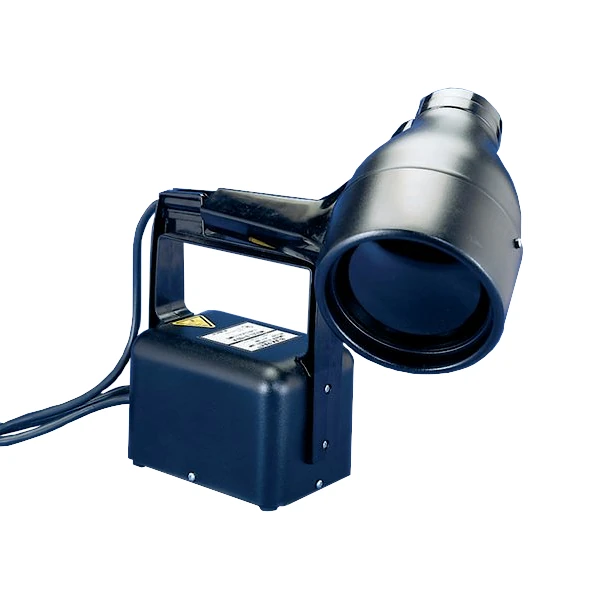

      Blak-Ray UV, Ultraviolet Lamp with Spot Bulb
      Blak-Ray delivers high intensity long-wave (365nm) ultraviolet light.
      no. 23050 to 23054

      Description

      Blak-Ray UV, Ultraviolet Lamp with Spot Bulb

      Blak-Ray delivers high intensity long-wave (365nm) ultraviolet light. 100 watt lamp for an intensity of 21,700 W/cm @ 5cm or 8,900 W/cm @ 25cm distance.

      Applications in microscopy such as specimen staining and curing polymers. At 45cm the spot-bulb produces a highly intense center of illumination approximately 13cm in diameter.
      The lamp head rotates a full 360 and can be removed for convenient hand use.
      The lamp head (scratch-resistant, powder painted aluminum) is connected to the transformer by an 6.5 foot (2m) cord. 365nm long-wave UV is not germicidal, germicidal effect requires UVC (100-280nm).

      UV Spectral Chart (212KB PDF)

      A 12.7cm (5″) Black Light filter is recessed in the head.
      A second filter option will reduce visible light, so that finer detail is achieved on the subject.

      Order

      Art.Description Unit PriceQuantity
      23050

      Ultraviolet Lamp, Spot-Bulb, 115VAC

      Each € 1.830,10
      ✓
      spinner
      23050-220

      Ultraviolet Lamp, Spot-Bulb, 220VAC

      Each € 1.984,40
      ✓
      spinner
      23051

      UV Bulb for Style 23050 units after 6-2002

      Each € 242,90
      ✓
      spinner
      23054

      Extra Filter for Style 23050

      Each € 154,40
      ✓
      spinner
      Brand: Ted Pella

      Product
      Description
      Order
      Product

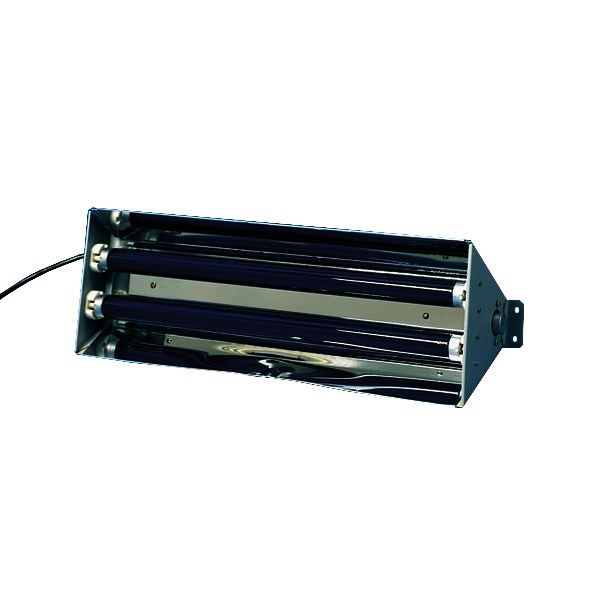

      Blak-Ray Ultraviolet Lamp
      High intensity ultraviolet lamps which give broad coverage of long wavelength UV for large areas.
      no. 23060 to 23065

      Description

      Blak-Ray Ultraviolet Lamp

      may be used for curing of certain embedding media

      High intensity ultraviolet lamps which give broad coverage of long wavelength UV for large areas. Two 15-watt self-filtering longwave tubes.

      1600 W/cm of 365nm UV radiation at 15cm (6″). 365nm long-wave UV is not germicidal, germicidal effect requires UVC (100-280nm).
      The metal lamp housing with aluminum reflector is 502 x 152 x 108mm (length x widest section x depth) (19-3/4 x 6 x 4-1/4″).

      Includes wall brackets.
      Weight: 2.3kg (5 lbs). UL listed.

      Order

      Art.Description Unit PriceQuantity
      23060

      Ultraviolet Lamp, (without UV Tubes), 115 VAC

      Each € 1.150,10
      ✓
      spinner
      23061

      Ultraviolet Lamp, (with UV Tubes), 115 VAC

      Each € 1.277,80
      ✓
      spinner
      23062

      Ultraviolet Lamp, (without UV Tubes), 220VAC

      Each € 1.311,00
      ✓
      spinner
      23065

      Ultraviolet Tube, 15 watts (2 required)

      Each € 75,20
      ✓
      spinner
      Brand: Ted Pella
