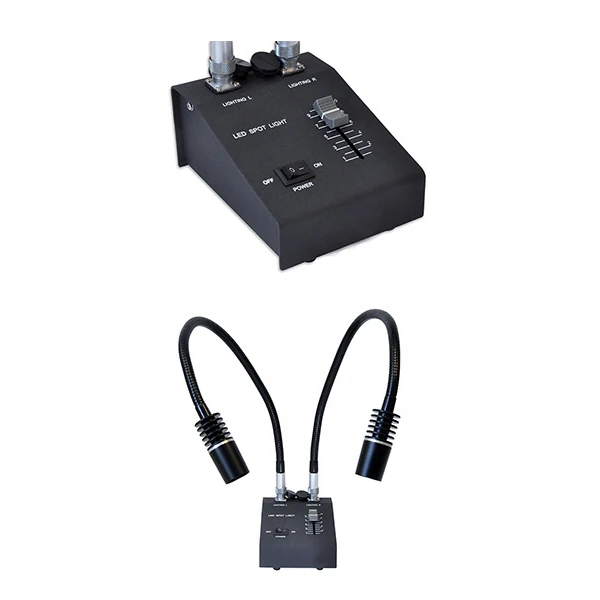

Dual Gooseneck Bright White LED Light
New dual gooseneck 6W LED work light provides excellent value with two focused spotlights and the convenience of a small footprint.
The light fits easily on a desk top or lab bench and features two 45cm goosenecks which can be positioned to suit your specific requirements.
Each gooseneck offers 3W output for very bright, shadow-free illumination.
The LED lamp housing is made of aluminum alloy.
The base unit includes a dimmer switch for controlling light intensity. Integral to the unit is an automatic universal voltage converter compatible with 100-240V, 50-60Hz.
An ideal, cost effective solution for stereo microscope illumination, sample preparation, dissection, small parts assembly or any procedure requiring bright, task specific or targeted illumination.
Specifications
|
|
---|---|
Internal illuminator | 21V/150W EKE Halogen Lamp, Working life 200H |
Illumination output | >120,000 Lux |
Color Temperature Output | 2500 – 3200 K (no filter) 5000K max with filter |
Temperature | 0 – 45 C |
Input rating | 200W, 115/230 VAC 15% 50/60Hz |
Output rating | 3-21V DC 10% (working voltage), 7A max |
Size of power supply | 220 x 193 x 112mm W x L x H (7.9″ W x 7.6″ L x 4.4″ H) |
Weight | 3 kg (6.6 lb) |
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
22435 | Dual Gooseneck Bright White LED Light |
Each | € 427,80 |

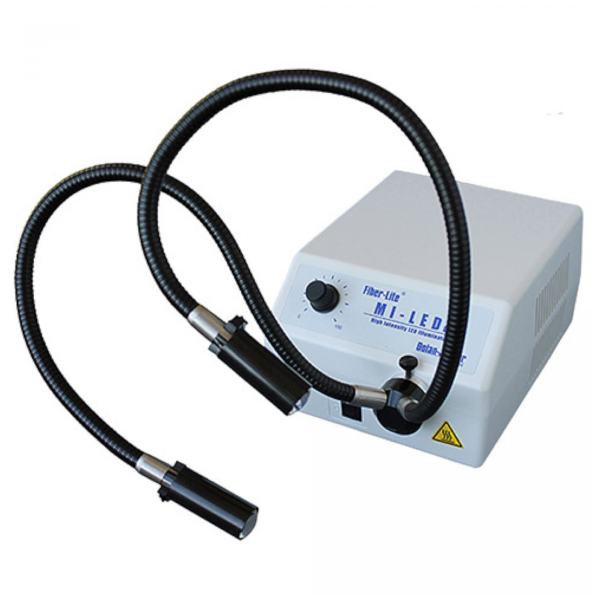

Dolan-Jenner Mi-LED Fiber Optic Illuminator
Dual Gooseneck
Designed for light microscopy but equally good for any application requiring focused, cold light illumination. 2000+ Lumens, 5000K color temperature, high power white LED cold light source with a lamp life of 40,000 hours.
Solid state intensity control is variable between 10 and 100%.
Dual goosenecks feature focusable lenses for spot-size adjustment.
Base unit incorporates fan cooled universal power supply.
Base is 178 W x 125 H x 224mm D)
Dual goosenecks are 584mm each; Weight is 3.2kg.
- High power white LEDs
- Consistent 5000K color temperature
- Excellent light output uniformity
- Low (IR) heat
- Universal power supply (100-240VAC, 50/60Hz)
- Low energy consumption
- Small footprint
- 2-year warranty
- ETL, CE & RoHS Certification
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
22425-LED | Fiber-Lite LED Dual Gooseneck Illuminator |
Each | € 1.947,20 |

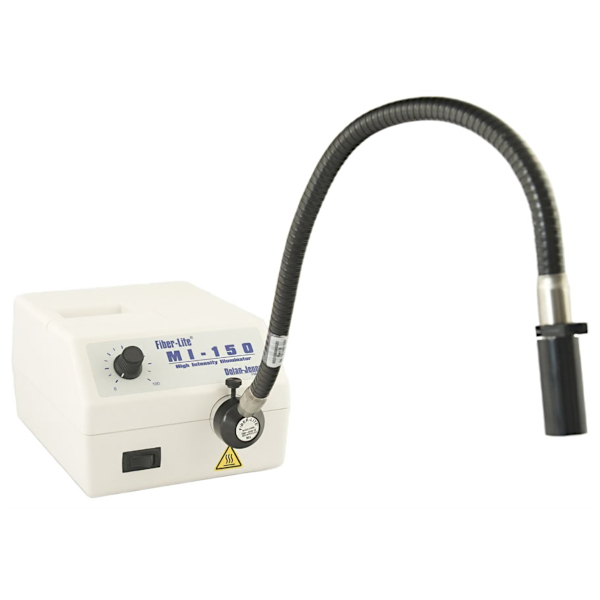

Dolan-Jenner Mi-150 Microscopy Illuminators
Cool to the touch, 0-100% solid state intensity control, focusing lens on fiber optics.
Designed with the light microscopy user in mind. 380,000 foot-candles of high intensity cold light with a lamp life over 10,000 hours at 50% intensity. There is minimum light leakage for photo-sensitive applications.
- Focusing lens has a 28mm focal length for focusing the light of the fiberoptics. Dimensions of the focusing head are: 22.25mm x 60.25mm L. Lens diameter is 19mm.
- Fiberoptic flexible cable is 16mm with black PVC over a metal bore.
- Internal fiberoptic: 9.2mm
- Fiberoptic end-cap dimensions: 1/2″ x 1-1/2″
- Easy access lamp change channel
- Noise level less than 25 db
- Illuminator Weight: 4.19Kg
- 115 or 230VAC, 50/60Hz
- UL, CE, C-UL approved
- Small foot print: 15.3 x 21.6 x 13.5cm H
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
22424 | Fiber-Lite Illuminator, 150 watts, with single Gooseneck 20″ Fiberoptics Cable, EKE Lamp, 115VAC |
Each | € 1.470,10 | ||
22424-230 | Fiber-Lite Illuminator, 150 watts, with single Gooseneck 20″ Fiberoptics Cable, EKE Lamp, 230VAC |
Each | € 1.285,60 | ||
22424-20 | Replacement 20″ Fiberoptics Cable |
Each | € 482,70 | ||
22425-1 | Replacement EKE Lamp, 150 Watt |
Each | € 50,60 | ||
22425 | Fiber-Lite Illuminator, 150 watts, with double Gooseneck 23″ Fiberoptics Cable, EKE Lamp, 115VAC |
Each | € 1.688,10 | ||
22425-230 | Fiber-Lite Illuminator, 150 watts, with double Gooseneck 23″ Fiberoptics Cable, EKE Lamp, 230VAC |
Each | € 1.688,10 |
