PELCO® FIB Lift-Out TEM Grids
The typical thickness of the copper lift-out grids is 35µm +/-5µm. The Cu FIB lift-out grids also have a thinner ridge on the inside, where the lamellas can be attached and are protected when stored.

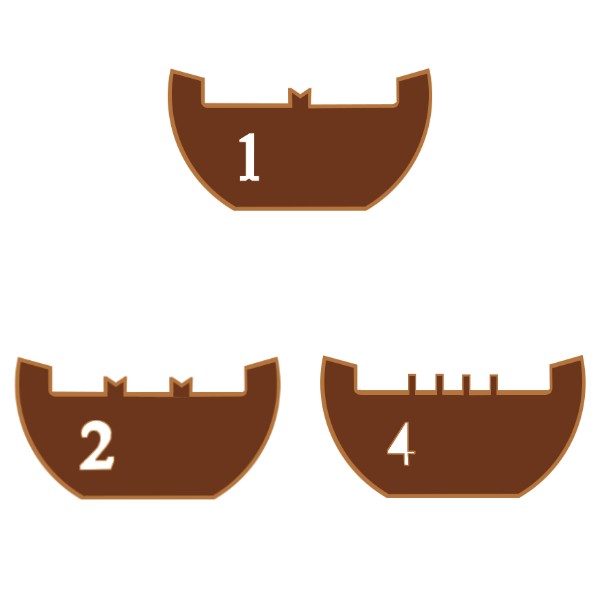

Available with either one or two wider v-shaped posts or four narrow flat posts with identification number etch through. Use single or dual wider posts for attaching single lamellas or the four posts for attaching a larger number of lamellas.
Size of wide post is 250 x 35 x 190µm (W x D x H), size of narrow post is 80 x 35 x 190µm (W x D x H). Sold in packs of 100.
FIB grid with 2 wide posts available with thickness of 55µm ±5µm as well.

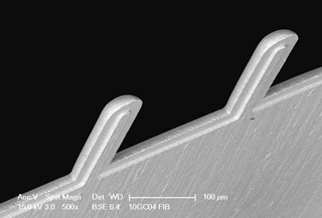

SEM image of copper FIB lift-out TEM grid narrow
posts showing set-back and shape
SEM image of copper FIB lift-out TEM grid
wide post showing set-back and shape
The typical thickness of the copper lift-out grids is 35 m +/-5 m.
The Cu FIB lift-out grids also have a thinner ridge on the inside, where the lamellas can be attached and are protected when stored.
Available with either one or two wider v-shaped posts or four narrow flat posts with identification number etch through.
Use single or dual wider posts for attaching single lamellas or the four posts for attaching a larger number of lamellas.
Size of wide post is 250 x 35 x 190 m (W x D x H), size of narrow post is 80 x 35 x 190 m (W x D x H).
Sold in packs of 100.
FIB grid with 2 wide posts available with thickness of 55 m 5 m as well.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 10GC01 | PELCO FIB Lift-Out TEM Grids, single, wide post, copper |
100 | € 121,90 | ||
| 10GC02 | PELCO FIB Lift-Out TEM Grids, 2 wide posts, copper |
100 | € 106,70 | ||
| 10GC02T | PELCO FIB Lift-Out TEM Grids, 2 wide posts, copper, 55 thickness |
100 | € 123,00 | ||
| 10GC04 | PELCO FIB Lift-Out TEM Grids, 4 narrow posts, copper |
100 | € 137,40 |

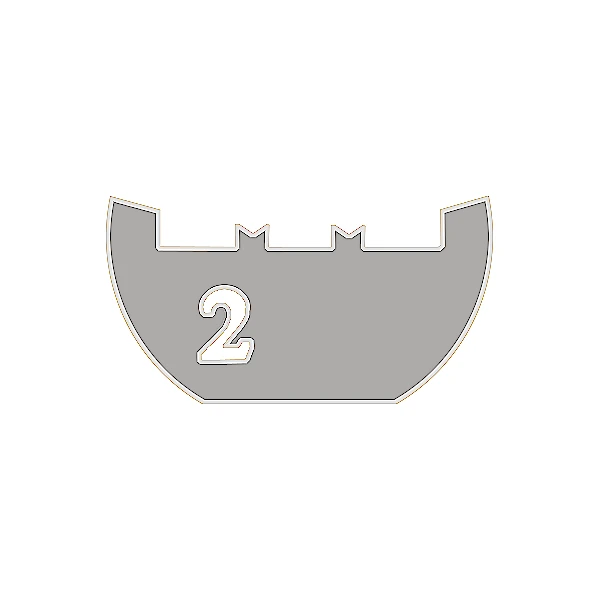

Molybdenum PELCO FIB Lift-Out Grid TEM Grids
The typical thickness for the molybdenum lift-out grids is 50 m +/-5 m.
Use Mo where Cu can’t be tolerated.
Only available with two wide posts.
Size of wide post is 250 x 50 x 190 m (W x D x H).
Sold in packs of 25.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 10GM02 | PELCO FIB Lift-Out TEM Grids, 2 wide posts, molybdenum |
25 | € 189,10 |

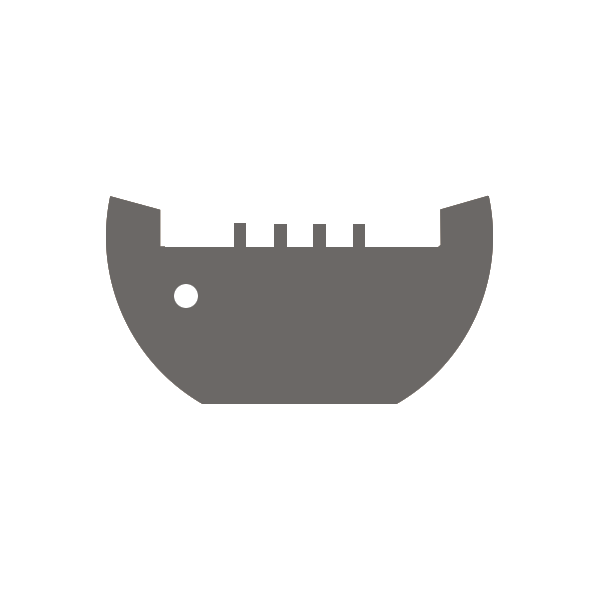

Silicon PELCO FIB Lift-Out Grid TEM Grids
The thickness of the silicon lift-out grids is 100 m which makes them compatible with all standard TEM holders.
Perfect half circular shape which fits nicely in the TEM grid holder.
Debris-free, metal-free lift-out grids which readily bond with Pt to attach the lamellas.
Straight edges, similar to the Cu and Mo grids; easy to handle. B-doped, conductive silicon minimizes charging during sample preparation and TEM imaging.
Available with four narrow posts, which can be shaped if needed.
Post size is 80 x 100 x 190 m (W x D x H).
Sold in packs of 10.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 21490-10 | PELCO FIB Lift-Out TEM Grids, 4 narrow posts, silicon |
10 | € 291,60 |

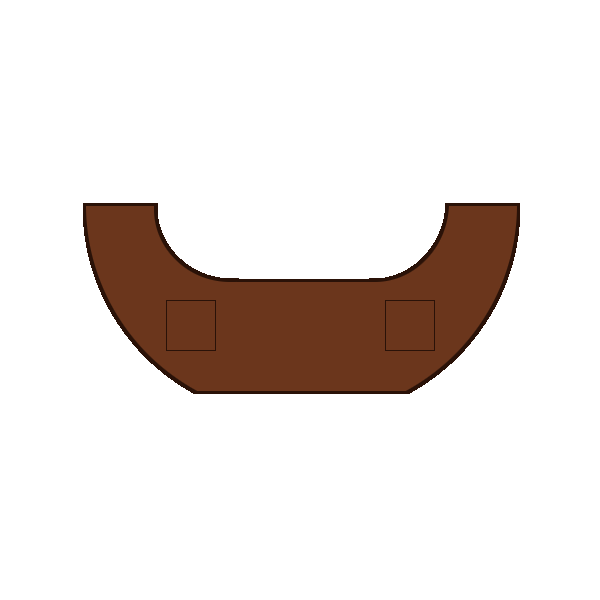

PELCO FIB Lift-Out Half Grid
The PELCO FIB Lift-Out Half Grid is made of stiff copper beryllium with a thickness of 100 m.
Has two dots on one side for easy identification.
Diameter 3mm with a height of 1.5mm.
Slot is 2mm wide x 0.5mm deep.
This robust half grid offers easy handling and good protection for the TEM lamellas.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 4510-HALF | PELCO Half Grids for FIB Applications, vial/25 |
25 | € 36,70 |
