The complete range of accessories, consumables and lift-out grids for the Omniprobe AutoProbe™ 100, 200, 250 and 300 tools u sed on FIB and SEM/FIB systems such as FEI DualBeam™, ZEISS CrossBeam® / NVision, TESCAN FIB-SEM, and JEOL JIB-4500.

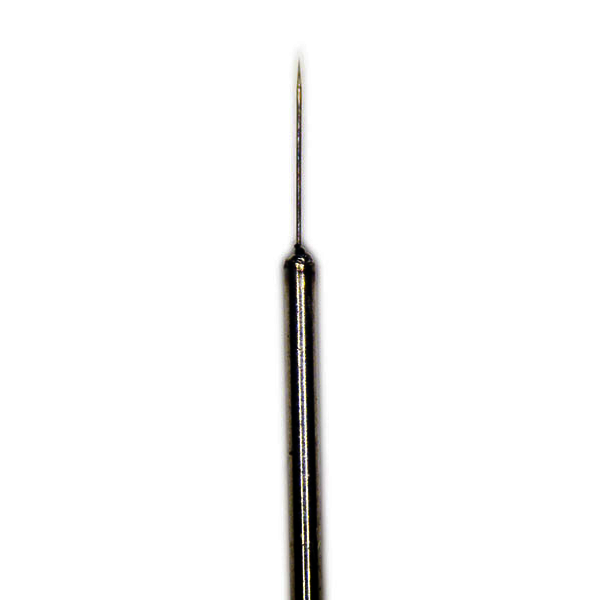

Tip with Ni Shank for AutoProbe 100 & 200
Custom probe tip design for the AutoProbe 100 & 200 systems. Nickel tube shank with a diameter of 0.508mm and a tungsten tip with a diameter of 76 m.
Tip radius is 0.5 m with a 13 taper angle for maximum lifetime.
Nickel shank ~33.25mm long.
Tungsten tip ~35.5mm with the tungsten whisker starting at 2.3mm from the tip.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-101 | Tip with Ni shank for the Omniprobe AutoProbe™ 100 & 200 |
10 | € 588,80 |

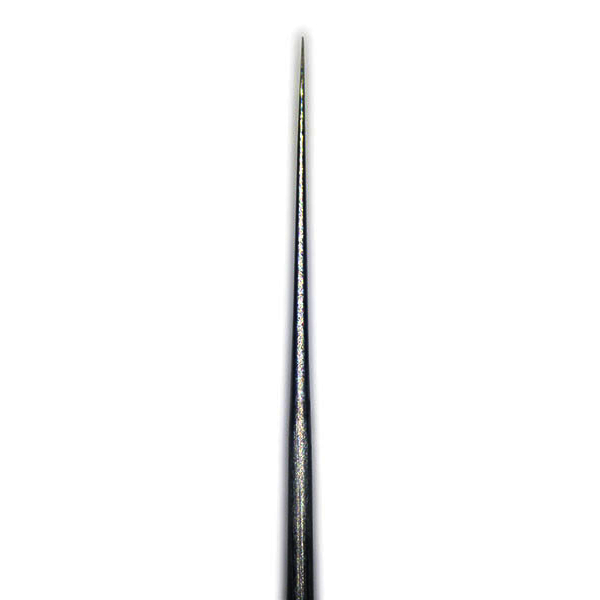

Standard W Probe Tips for AutoProbe 100 & 200
Custom probe tips for the AutoProbe 100 and 200 systems.
All Tungsten design with a tip radius of 0.5 m and a 10-13 taper angle for maximum life time.
Shank diameter is 0.508mm.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-102 | Standard W Tip for the Omniprobe AutoProbe™ 100 & 200 |
10 | € 194,30 |
Narrow W Probe Tips for AutoProbe 100 & 200
Custom narrow probe tips for the AutoProbe 100 and 200 systems.
All Tungsten design with a sharper tip radius of <0.5 m and a 8-10 taper angle.
Shank diameter is 0.508mm.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-106 | Narrow W Tip for the Omniprobe AutoProbe™ 100 & 200 |
10 | € 452,30 |

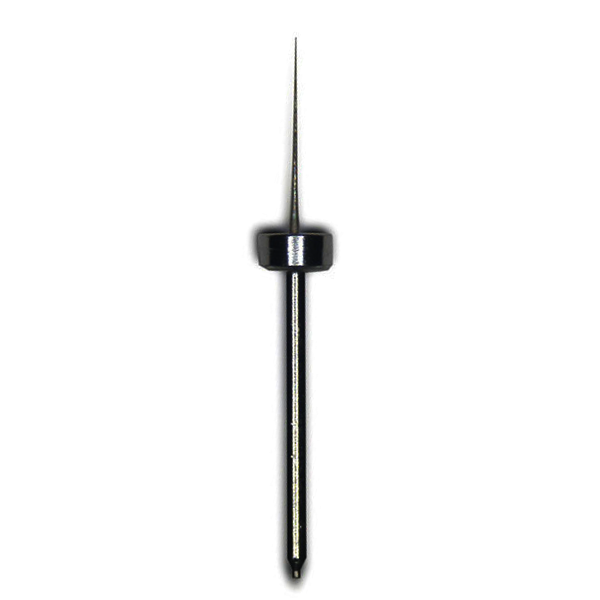

Probe Tips for in situ Tip Exchange for AutoProbe 300 & 400
Custom probe tips for the AutoProbe 300 system for in situ probe tip exchange systems.
Tungsten tip with stainless steel shank, tip radius is 0.5 m with an 8-10 taper angle.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-103 | in situ probe tips for the Omniprobe AutoProbe™ 300 & 400 |
20 | € 1.493,40 |

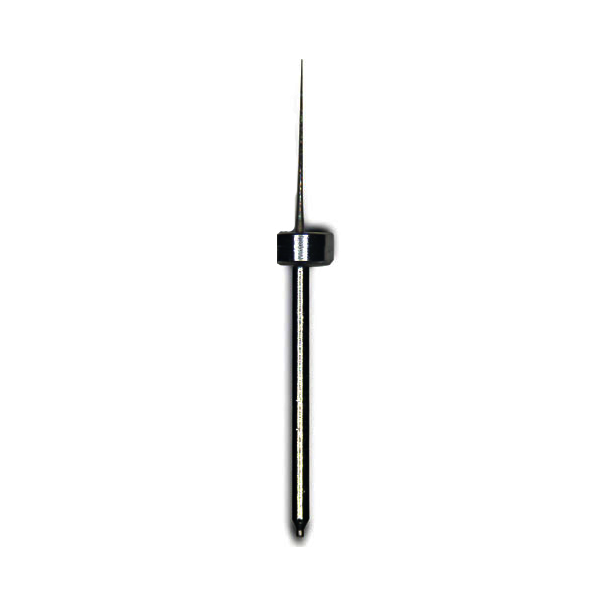

Keyed Probe Tips for the AutoProbe 300 & 400
Custom keyed probe tips with a flat on the collar for secure positioning in the Omniprobe AutoProbe 300/400 probe tip holder.
Tungsten tip with stainless steel shank, flat on collar, tip radius is 0.5 m with an 8-10 taper angle.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-107 | Keyed Probe tips for the Omniprobe AutoProbe™ 300 & 400 |
20 | € 598,60 |

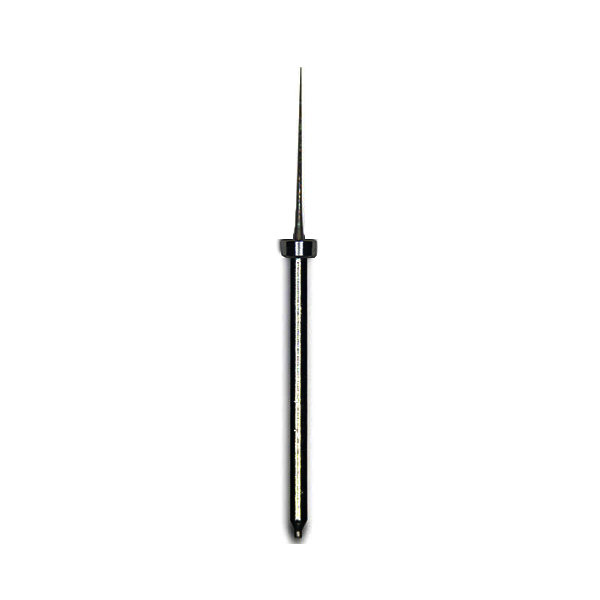

AutoProbe 300 & 400 Probe Tips for the FEI Helios Front Port
Custom probe tips for the Omniprobe AutoProbe 300/400 systems with a reduced collar diameter to accomodate the 50 elevation angle on the FEI Helios front port systems.
Tungsten tip with stainless steel shank, smaller collar, tip radius is 0.5 m with an 8-10 taper angle.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-108 | Omniprobe AutoProbe™ 300 & 400 Probe Tips for the FEI Helios Front Port |
20 | € 1.212,50 |

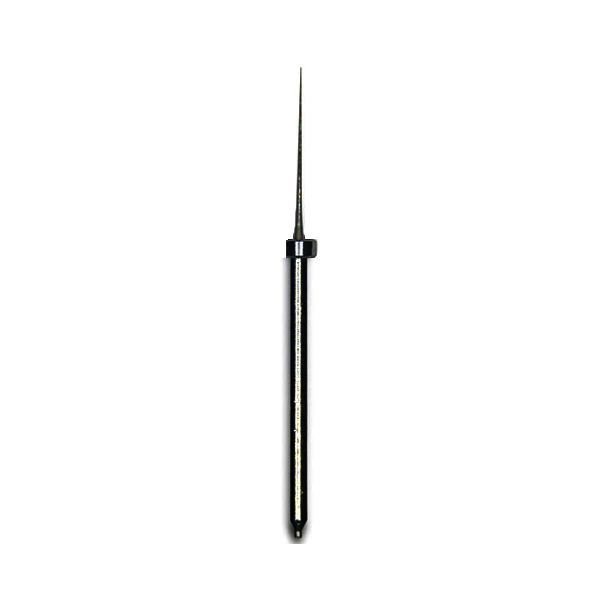

Keyed AutoProbe 300 & 400 Probe Tips for the FEI Helios Front Port
Custom keyed probe tips for the Omniprobe AutoProbe 300/400 systems with a flat on the reduced collar diameter to accomodate the 50 elevation angle on the FEI Helios front port systems. Tungsten tip with stainless steel shank, flat on smaller collar, tip radius is 0.5 m with an 8-10 taper angle.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-109 | Keyed Omniprobe AutoProbe&™ 300 & 400 Probe Tips for the FEI Helios Front Port |
20 | € 618,80 |
Tips for AutoProbe 250 & 200 Equipped with Short-Cut-Box
Custom probe tips for the AutoProbe 250 & 200 systems.
Compatible with short-cut. All-tungsten design with a 0.508mm (0.020″) shank diameter.
The tip radius better than 0.5 m with a taper of 6 taper angle for greater precision.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-105 | W tips for the Omniprobe AutoProbe™ 250 & 200 with Short-Cut |
10 | € 387,20 |

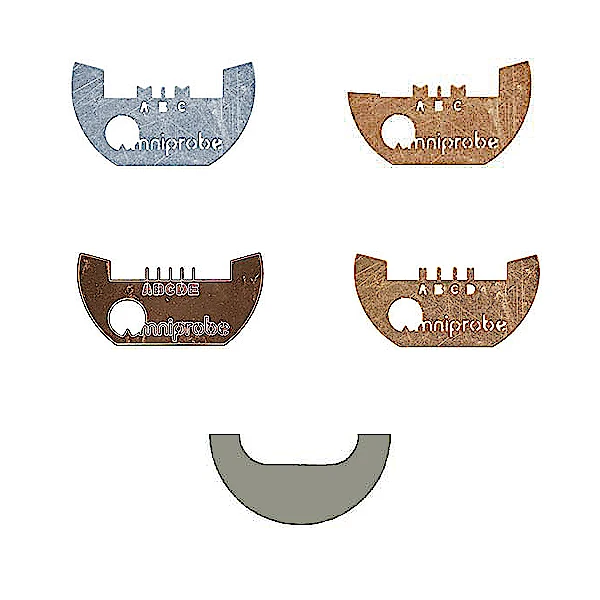

Omniprobe Lift-Out Grids
The Omniprobe Lift-Out Grids are specifically designed to accept the TEM lamellas milled out by FIB or SEM/FIB systems.
Typical thickness of the grids is 25-30 m with a diameter of 3mm.
The posts are designed for optimum access and provide a secure area for attaching (welding) the lamella(s).
The Omniprobe grids fit standard TEM holders and provide a non-obscured view of the thin sections attached to the posts.
Available in standard Cu with 3, 4 and 5 posts and in Mo With 3 and 4 posts.
All Lift-Out Grids have multiple indexed mounting positions for easy identification and positioning in the TEM.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-203 | Omniprobe Lift-Out Grids, Cu with 3 posts |
100 | € 388,70 | ||
460-2033 | Omniprobe Lift-Out Grids, Cu with 3 posts, shallow downset |
100 | € 267,20 | ||
460-223 | Omniprobe Lift-Out Grids, Mo with 3 posts |
25 | € 524,80 | ||
460-2031-S | Omniprobe Lift-Out Grids, Cu with 3 posts and side access |
100 | € 266,00 | ||
460-204 | Omniprobe Lift-Out Grids, Cu with 4 posts |
100 | € 388,90 | ||
460-205 | Omniprobe Lift-Out Grids, Cu with 5 posts |
100 | € 399,60 | ||
460-206 | Omniprobe Beryllium Half Ring Grids, Be |
10 | € 1.013,90 |

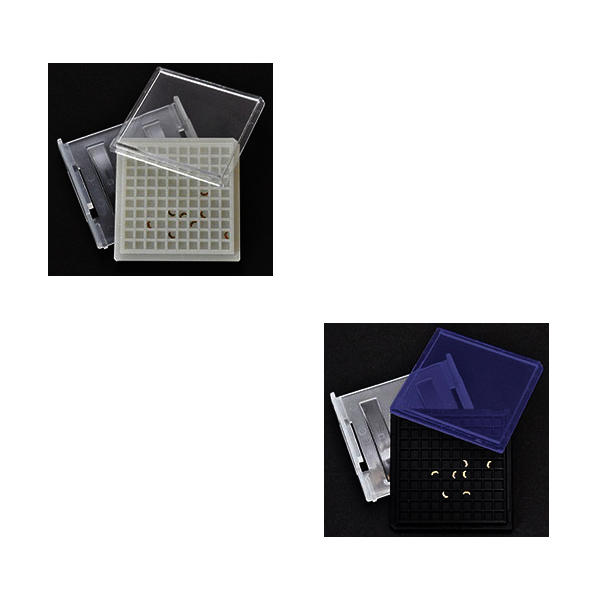

GSB-100 Storage Box for FIB Lift Out Grids
GSB-100 Storage Box for 100 FIB lift out grids or storing standard 3mm TEM grids flat.
No adhesive in tray (made from ABS).
Cavity size is 3.34 x 3.34 x 1.5mm.
Complete with clear polystyrene lid and clear polypropylene clip.
Stackable.
Overall size is 55 x 51 x 10.7mm.
Anti-Static GSB-100 Storage Box for FIB Lift Out Grids
Same internal and external dimensions as standard GSB-100 storage box, but with anti-static tray made of black conductive polypropylene.
Complete with anti-static cover and polypropylene clip.
Stackable.
Overall size is 55 x 51 x 10.7mm.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-200B | GSB-100 Storage Box for 100 FIB Lift Out Grids |
Each | € 11,00 | ||
460-200SD | Anti-Static GSB-100 Storage Box for 100 FIB Lift Out Grids |
Each | € 12,50 |

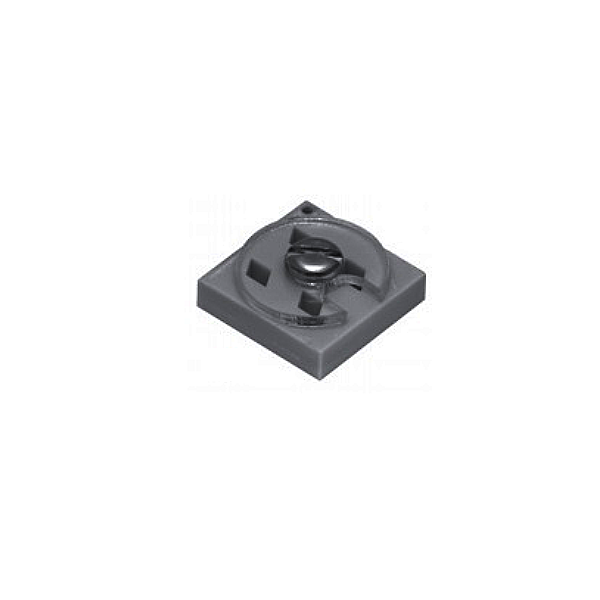

PELCO FIB Grid Box for Lift-Out Grids or Half Grids
Four position grid box with lid for holding FIB lift-out grids or half grids.
The PELCO FIB Lift-Out Grid Box cavity depth is only 1.7mm, thus preventing the grids from rotating in the diamond shaped cavity.
The FIB grids can be relatively easily loaded/unloaded using sharp tweezers.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
160-54 | 4 Position PELCO FIB Grid Box with Lid |
Each | € 16,00 |

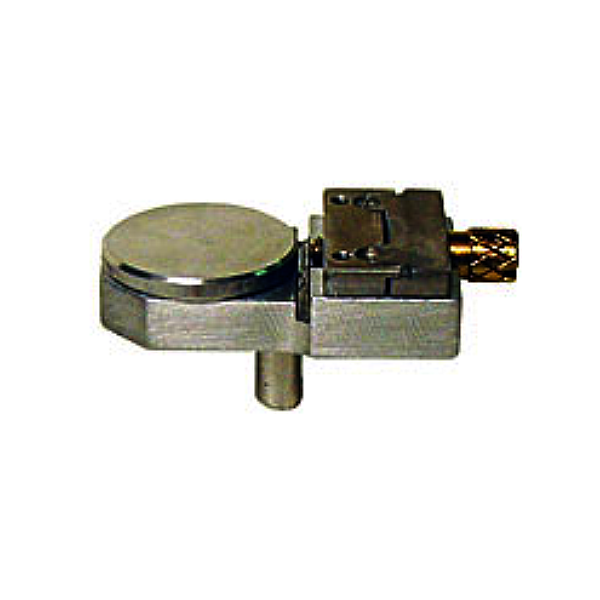

Low Profile Single Sample and Grid Holder
Single sample and TEM grid holder for FIB and SEM/FIB systems with stations for two TEM lift-out grids and one sample mount.
This holder has a standard pin style post base: 3.2 x 8.1mm compatible with most standard pin stub holders.
Made of aluminum and non-magnetic materials.
Art. | Description | Unit | Price | Quantity | |
---|---|---|---|---|---|
460-319 | Low Profile Double TEM Grid and Single Sample Holder, Al |
Each | € 2.032,90 |
