Embedding Molds

Products

Embedding Molds

Loading...
Product

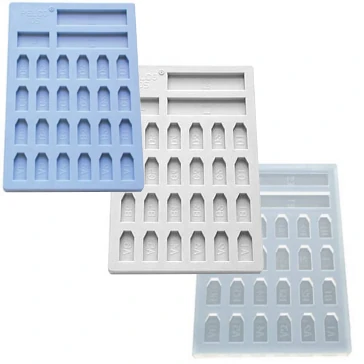

PELCO Flat Embedding Molds – Blue, White or Translucent
PELCO Flat Embedding Molds - Blue, White or Translucent
no. 105 to 10504

Description

PELCO Flat Embedding Molds Blue, White or Translucent
Alphanumeric self-impression cavities, pretrimmed end.
Available in blue, white, or translucent silicone rubber.
Maximum temperature: 218 C (425 F).

Design: R.F. Bils

1 x 1.7cm x 3mm deepMold size:105 x 70 x 7mm thick


Number of cavities: 24
Numbering: A1- A6, B1-B6, C1-C6, D1-D6
Special cavities: 2 troughs 1 x 3cm x 3mm deep
1 trough: 1 x 1.7cm x 3mm deep
Mold size: 105 x 70 x 7mm thick
Order

Art.Description Unit PriceQuantity
105

PELCO Flat Embedding Mold, Blue

 Each € 33,00
✓
105-2

PELCO Flat Embedding Mold, White

 Each € 17,30
✓
10504

PELCO Flat Embedding Mold, Translucent

 Each € 16,00
✓
Brand:

Product

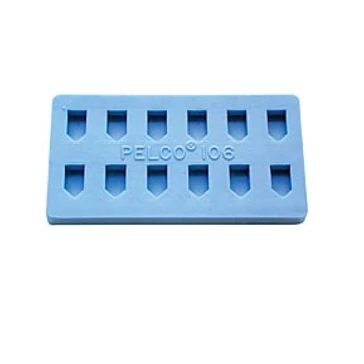

Small Flat Embedding Mold
Small Flat Embedding Mold
no. 106

Description
PELCO Small Flat Embedding Mold

Designed for thicker specimens. Blue silicone rubber, no numbering.
Maximum temperature: 218 C (425 F).

Number of cavities: 12
Mold size: 80 x 45 x 7mm thick
Order

Art.Description Unit PriceQuantity
106

PELCO Small Flat Embedding Mold

 Each € 19,50
✓
Brand:

Product
110 Flat Embedding Mold
110 Flat Embedding Mold
no. 110

Description
110 Flat Embedding Mold

Consecutive numbering, pretrimmed end, blue silicone rubber.
Maximum temperature: 218 C (425 F).

Number of cavities: 20
Numbering: 1-20
Mold size: 89 x 76 x 7mm thick/td>
Order

Art.Description Unit PriceQuantity
110

PELCO 20 Cavity Embedding Mold

 Each € 24,90
✓
Brand:

Product

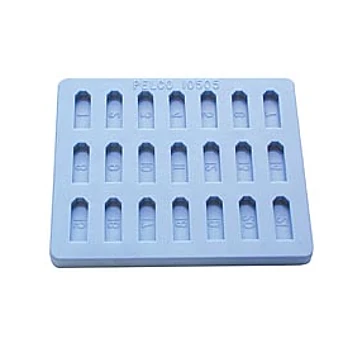

21 Cavity EM Embedding Mold
21 Cavity EM Embedding Mold
no. 10505

Description
21 Cavity EM Embedding Mold

Single pretrimmed end with consecutive numbering. Blue silicone rubber.
Maximum temperature: 218 C (425 F).

Number of cavities: 21
Numbering: 1-21
Mold size: 74 x 61 x 6mm thick
Order

Art.Description Unit PriceQuantity
10505

PELCO 21 Cavity EM Embedding Mold

 Each € 23,90
✓
Brand:

Product

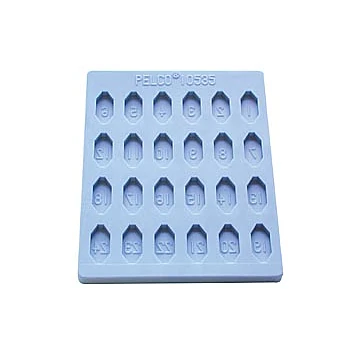

Double End Tapered Embedding Mold
Double End Tapered Embedding Mold
no. 10535

Description
Double End Tapered Embedding Mold

Pretrimmed double ends for each cavity, doubling specimen capacity. Consecutive numbering, blue silicone rubber.
Maximum temperature: 218 C (425 F).

Number of cavities: 24
Numbering: 1-24
Mold size: 67 x 85 x 7mm thick
Order

Art.Description Unit PriceQuantity
10535

PELCO Double End Mold

 Each € 17,40
✓
Brand:

Product

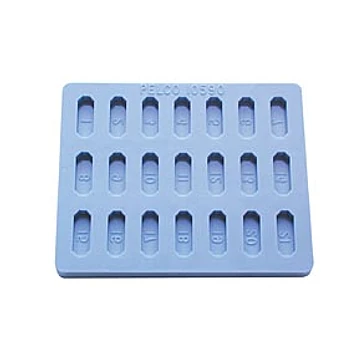

10590 Double End Mold
10590 Double End Mold
no. 10590

Description
10590 Double End Mold

Double pretrimmed ends, consecutive numbering, blue silicone rubber.
Maximum temperature: 218 C (425 F).

Number of cavities: 21
Numbering: 1-21
Mold size: 72 x 62 x 6mm thick
Order

Art.Description Unit PriceQuantity
10590

PELCO Double End Mold

 Each € 20,90
✓
Brand:

Product

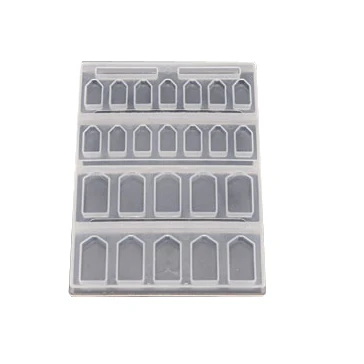

PELCO 111 LDPE Flat Embedding Mold, Disposable
PELCO 111 LDPE Flat Embedding Mold, Disposable
no. 111

Description

PELCO 111 LDPE Flat Embedding Mold, Disposable

Completely disposable, translucent, low density polyethylene. Single use avoids cross contamination.
Flexible for easy block removal. Economic alternative to silicone molds.

Maximum temperature for normal embedding processes: 80 C
Maximum temperature for short duration: 95 C

Number of cavities and size:
14 for 1/8″ x 1/4″ x 1/2″ blocks
10 for 1/8″ x 3/8″ x 3/4″ blocks

Mold size: 111 x 76 x 6.4mm thick

Sold in package of 10 molds

Order

Art.Description Unit PriceQuantity
111

PELCO LDPE Flat Embedding Mold, Disposable

 10 € 21,50
✓
Brand:

Product

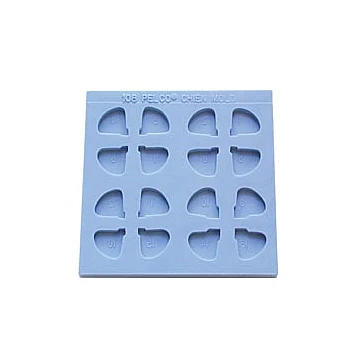

Chien Embedding Mold
Chien Embedding Mold
no. 108

Description
Chien Embedding Mold

Cut transverse and lateral sections from the same sample. Start with position at 45 , then rotate 180 to cut transverse sections. Blue silicone rubber. Maximum temperature: 218 C (425 F).

Number of Cavities: 16
Numbering: 1-16
Mold Size: 72 x 72 x 8mm thick
Order

Art.Description Unit PriceQuantity
108

Chien Embedding Mold

 Each € 28,30
✓
Brand:

Product

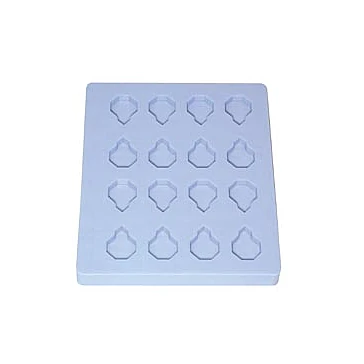

Modified Chien Embedding Mold
Modified Chien Embedding Mold
no. 108-2

Description
Modified Chien Embedding Mold

Cut transverse and lateral sections from the same sample. Start with position at 45 , then rotate 180 to cut transverse sections. Blue silicone rubber. Maximum temperature: 218 C (425 F). Thinner block – fits into all ultramicrotome flat specimen holders.

Number of Cavities: 16
Mold Size: 64 x 76 x 8mm thick
Order

Art.Description Unit PriceQuantity
108-2

Modified Chien Embedding Mold

 Each € 29,30
✓
Brand:

Product

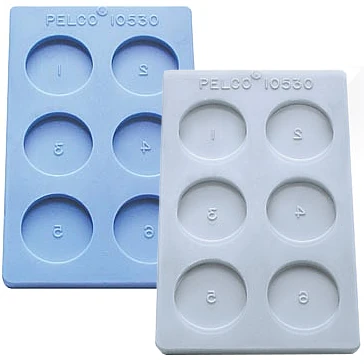

Disc Block Embedding Mold
Disc Block Embedding Mold
no. 10530 and 10530-C

Description
Disc Block Embedding Mold

Consecutive numbering, round wells, blue/clear silicone rubber.
Maximum temperature: 218 C (425 F).

Number of Cavities: 6
Numbering: 1-6
Mold Size: 80 x 50 x 7mm thick
Order

Art.Description Unit PriceQuantity
10530

PELCO Disc Block Embedding Mold, Blue

 Each € 18,70
✓
10530-C

PELCO Disc Block Embedding Mold, Clear

 Each € 16,00
✓
Brand:

Product

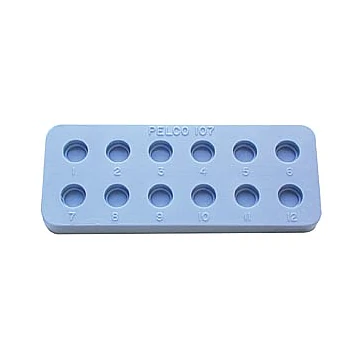

Ambrose Mesa Mold
Ambrose Mesa Mold
no. 107

Description
Ambrose Mesa Mold

Specimens are embedded against the large flat bottom surface of the mold, 7mm in diameter, for improved orientation.
A BEEM size 00 capsule with the tip removed can be inserted part way into the cavity, before filling with the plastic.

Blue silicone rubber. Maximum temperature: 218 C (425 F).

Number of Cavities: 12
Numbering OUTSIDE of Cavities: 1-12
Mold Size: 97 x 38 x 11mm thick
Order

Art.Description Unit PriceQuantity
107

Ambrose Mesa Mold

 Each € 28,60
✓
Brand:

Product

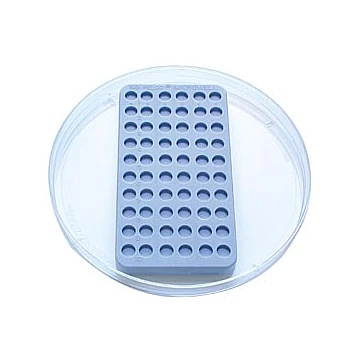

PELCO Microwell Staining Mold
Microwell Staining Mold
no. 103

Description

PELCO Microwell Staining Mold

for immunocytochemistry

Excellent for immunocytochemistry as well as post staining.
Small, save costly reagents.

4.8mm diameter x 1.8mm deep wells.
The 60 wells are number and letter coded for better identification.
Fits into a standard petri dish.
Blue silicone rubber.

Mold size: 78 x 42 x 6mm thick.

Order

Art.Description Unit PriceQuantity
103

PELCO Microwell Staining Mold

 Each € 22,00
✓
Brand:

Product

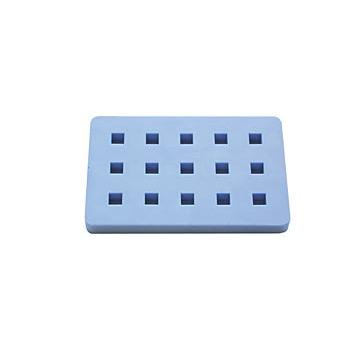

Corticosterone Pellet Mold / Implant Mold
Corticosterone Pellet Mold
no. 106A

Description
Corticosterone Pellet Mold / Implant Mold

Animal implantation experimental application using pellets formed in the 106A.
Blue silicone rubber.
Maximum temperature: 218 C (425 F)

Cavities: 4.5 x 4.5 x 5mm
Number of Cavities: 15
Mold size: 44 x 68 x 6mm thick
Order

Art.Description Unit PriceQuantity
106A

Corticosterone Pellet Mold

 Each € 20,50
✓
Brand:

Product

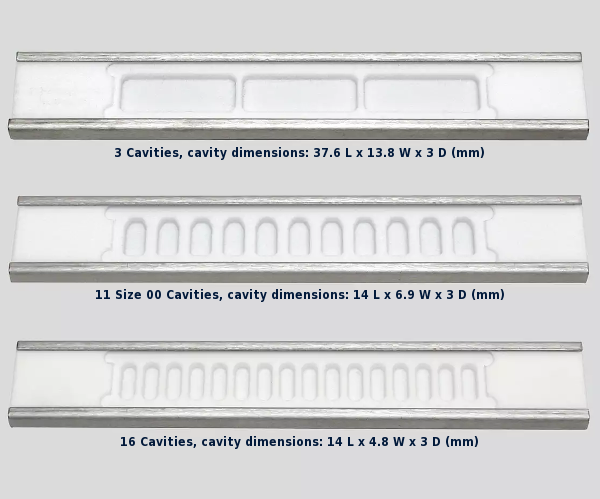

Molds for Flat Embedding
Molds for Flat Embedding
no. 10506 to 10508

Description

Molds for Flat Embedding – Machined from PTFE Resin

for electron microscopy specimen embedding cured acrylics are successfully released

Especially useful when embedding with LR White, LR Gold, and Lowicryls for electron microscopy
Can be used for both low temperature UV and thermal polymerization

Unique configuration provides recesses for Thermanox Cover Slips or ACLAR film to insure anaerobic polymerization (see ACLAR under “Embedding”)

Following curing, each of the specimen blocks can be removed by flexing the Mold.
To restore flatness of the mold, simply slide it back into the provided metal Clamping Frame.
PTFE resin is nonreactive and provides durability, flexibility and ease of release.

Order

Art.Description Unit PriceQuantity
10506

Flat Embedding PTFE Mold with Metal Frame, 16 cavities

 Each € 106,00
✓
10506-10

Flat Embedding PTFE Mold with Metal Frame, 11 size 00 cavities

 Each € 103,90
✓
10508

Flat Embedding PTFE Mold with Metal Frame, 3 cavities

 Each € 107,70
✓
Brand:

Product

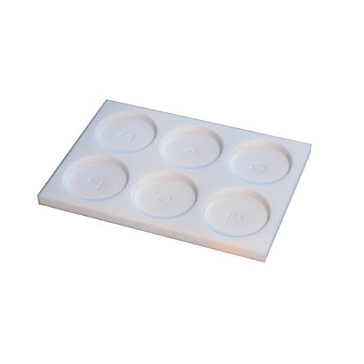

PTFE Flat Embedding Mold
PTFE Flat Embedding Mold
no. 10509

Description

PTFE Flat Embedding Mold

Six tapered round openings, 34mmOD at top and 32mmOD at the bottom, 3mm deep.
The cavities are numbered 1-6 at the bottom.

(idea courtesy of Doug Price, University of Kentucky)

Order

Art.Description Unit PriceQuantity
10509

Flat Embedding PTFE Mold, 6 cavities

 Each € 115,30
✓
Brand:

Product

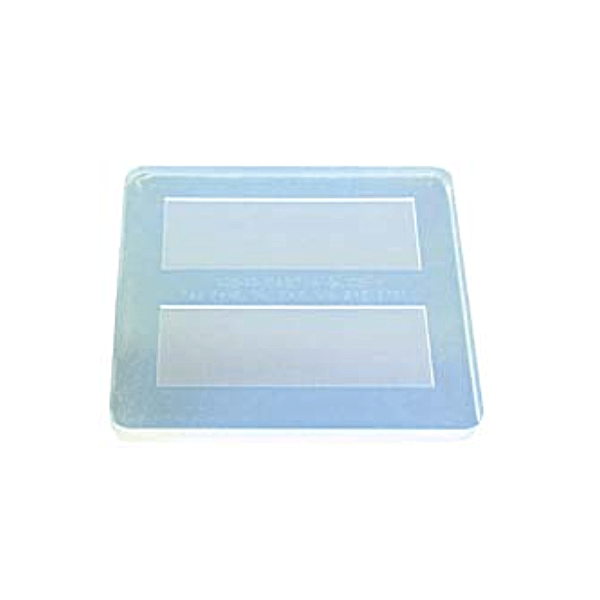

Giammara-Hanker Cast-A-Slide Mold
Survey slides, LM, TEM & STEM, HVEM cytochemistry
no. 10545

Description

Giammara-Hanker Cast-A-Slide Translucent Mold

survey slides, LM, TEM & STEM, HVEM cytochemistry

Silicone rubber slide mold.
Produces 2 slides, 1″ x 3″ (25 x 75mm).

Fixed vibratory microtome sections or cytochemically stained cells, post-fixed with osmium tetroxide, are dehydrated and infiltrated with resin by routine or rapid embedding methods.
The sample is placed into a mold recess and resin teased to the edges.

Photomicrography may be performed.
Selected specimens are excised, glued to blank blocks with cyanoacrylate adhesive and are then sectioned for ultramicroscopy.
Translucent.

  • Reference: Giammara BL, Hanker JS, 1982. Epoxy slide embedment for LM, TEM, STEM and HVEM cytochemistry.
    40th Ann Proc Elec Mic Soc Amer. Wash DC, ed. G.W. Bailey, pp 358-359.



Order

Art.Description Unit PriceQuantity
10545

Giammara-Hanker Cast-A-Slide Mold

 Each € 17,60
✓
Brand:

Product

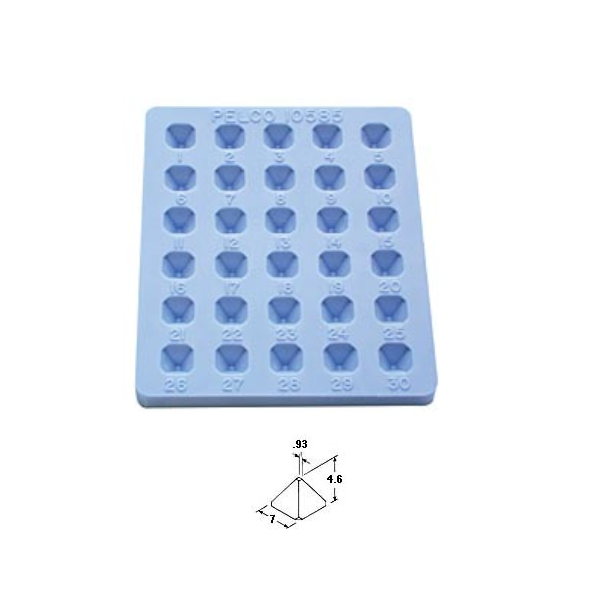

Pyramid-Tip Mold
Excellent for sample preparation of specimens which are difficult to orient.
no. 10585

Description

Pyramid-Tip Mold

Excellent for sample preparation of specimens which are difficult to orient.
The tips easily and quickly attach to plastic cylinders.
When tip is mounted it is identical in dimensions to a BEEM 00 size capsule.

Blue silicone rubber.

  • Maximum temperature: 218 C.
  • Number of Cavities: 30
  • Numbering: OUTSIDE of Cavities, 1-30
  • Mold Size: 61 x 72 x 6mm thick
Order

Art.Description Unit PriceQuantity
10585

PELCO Pyramid-Tip Mold

 Each € 22,00
✓
Brand:

Product

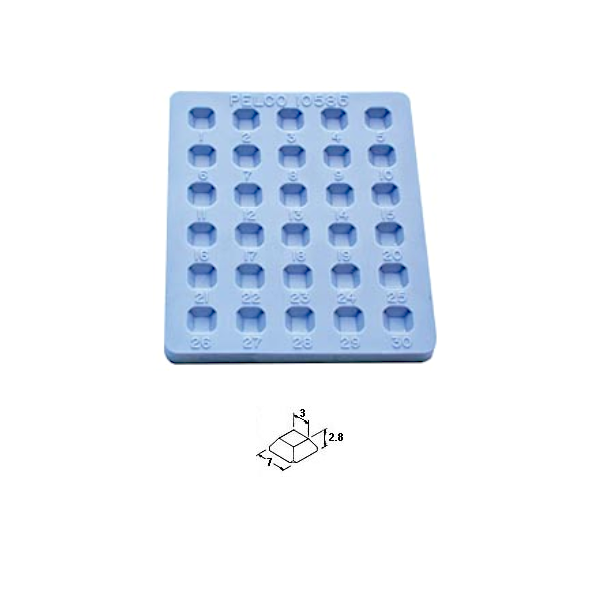

3mm Square Face Mold
With this mold a larger specimen may be placed in a wider tip area resulting in a larger initial section.
no. 10586

Description

3mm Square Face Mold

for embedding larger specimens, uses less resin

With this mold a larger specimen may be placed in a wider tip area resulting in a larger initial section.
Once solidified the block may be glued to the end of a plexiglas rod or other holding device. (See Mounting Cylinders.)

Blue silicone rubber.

  • Maximum temperature: 218 C.
  • Number of Cavities: 30
  • Numbering: Outside of cavities, 1-30
  • Block Faces: 3 x 3mmMold Size:
  • 61.5 x 72 x 6mm thick
Order

Art.Description Unit PriceQuantity
10586

PELCO 3mm Square Face Mold

 Each € 22,00
✓
Brand:
