Products
Brain and Biopsy Punches

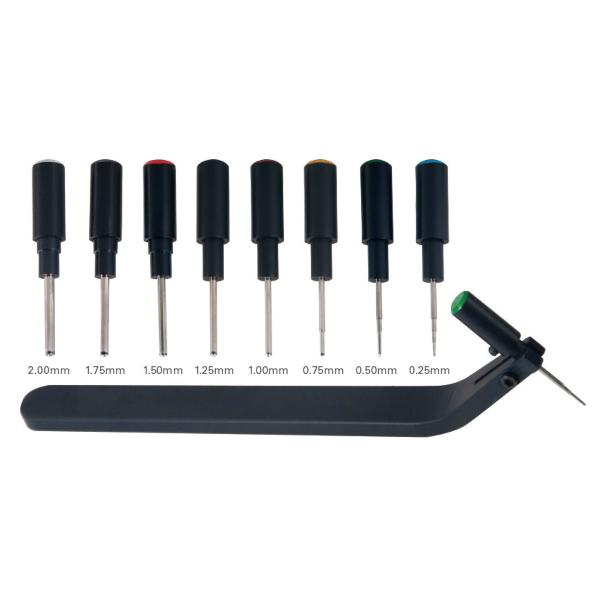

Precision Brain Punches
The new Precision Brain Punches make it possible to isolate tiny (down to 250 micron in diameter) areas out of exact locations in the brain (the Palkovits Punch technique). They are thus ideal for targeted removal of specific brain nuclei, tracts and other subdivisions.
Each punch has an electropolished sharp end for smooth cuts and minimal tissue adhesion. Punch sizes are 0.25, 0.50, 0.75, 1.0, 1.25, 1.50, 1.75 and 2.00 ( 5%) mm. The smaller tubes are reinforced by an outer layer of concentric tubing except at the tip. Convenient handle improves aim. The handle is shaped to minimize visual obstruction and maximize punch pressure.
The nuclei are punched from frozen brain sections on glass slides and expelled into the collection media. The spring-loaded nylon expellers avoid risk of contamination that might be caused by expelling with breath. Volume of the extracted tissue can be calculated with precision based on the punch diameter and frozen section thickness.
Eight conveniently color-coded punches range from 0.25 to 2.0mm and are available as sets or individually, with or without the handle.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15114-5 | Precision Brain Punch Set, 0.25-1.25mm, includes handle |
Each | € 1.058,60 | ||
| 15114-3 | Precision Brain Punch Set, 1.50-2.00mm, includes handle |
Each | € 756,20 | ||
| 15112-25 | Precision Brain Punch, 0.25mm |
Each | € 208,60 | ||
| 15113-25 | Precision Brain Punch, 0.25mm, with handle |
Each | € 456,50 | ||
| 15112-50 | Precision Brain Punch, 0.50mm |
Each | € 208,60 | ||
| 15113-50 | Precision Brain Punch, 0.50mm, with handle |
Each | € 456,50 | ||
| 15112-75 | Precision Brain Punch, 0.75mm |
Each | € 208,60 | ||
| 15113-75 | Precision Brain Punch, 0.75mm, with handle |
Each | € 456,50 | ||
| 15112-100 | Precision Brain Punch, 1.00mm |
Each | € 208,60 | ||
| 15113-100 | Precision Brain Punch, 1.00mm, with handle |
Each | € 456,50 | ||
| 15112-125 | Precision Brain Punch, 1.25mm |
Each | € 208,60 | ||
| 15113-125 | Precision Brain Punch, 1.25mm, with handle |
Each | € 456,50 | ||
| 15112-150 | Precision Brain Punch, 1.50mm |
Each | € 208,60 | ||
| 15113-150 | Precision Brain Punch, 1.50mm, with handle |
Each | € 456,50 | ||
| 15112-175 | Precision Brain Punch, 1.75mm |
Each | € 208,60 | ||
| 15113-175 | Precision Brain Punch, 1.75mm, with handle |
Each | € 456,50 | ||
| 15112-200 | Precision Brain Punch, 2.00mm |
Each | € 208,60 | ||
| 15113-200 | Precision Brain Punch, 2.00mm, with handle |
Each | € 456,50 | ||
| 15114 | Handle for Precision Brain Punch |
Each | € 278,40 |

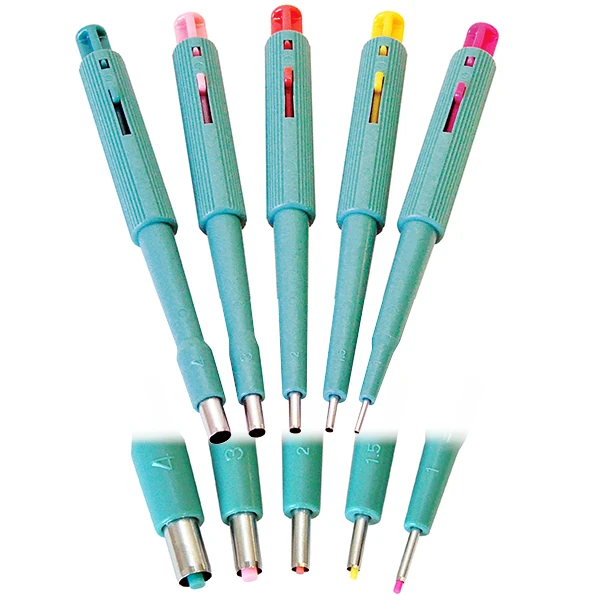

Miltex Biopsy Punch with Plunger
The Miltex Biopsy Punch with Plunger is a disposable coring tool designed to core, punch and retrieve samples from thin or soft substrate source materials such as tissue, gels, paper, cloth, leaves, paint chips and films. These punches are an alternative for the Harris Uni-Core punches.
The Miltex Biopsy Punch with Plunger consists of a ribbed plastic embossed handle with a razor sharp seamless stainless steel cutting tip. Each Miltex Biopsy Punch with Plunger is individually packaged sterile with a shelf life of 5 years. Each punch has an internal plunger designed for safe and efficient removal of the specimen from the tip. These punches are available in 5 core size diameters: 1.0, 1.5, 2.0, 3.0 and 4.0mm. All punches are color coded by size. Maximum depth: 7mm
This is a disposable sampling tool, ideal for tissue processing or forensic applications. For some applications where contamination is not an issue, the Miltex Biopsy Punch with Plunger is reusable after cleaning.
Cleaning Tip: Clean cutting tip between each sample extraction by coring blank filter paper; rinse with ethanol or spray with compressed air to remove dried artifacts.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15110-10 | Miltex Biopsy Punch with Plunger, ID 1.0mm, OD 1.27mm, Green/Fuschia |
Each | € 10,30 | ||
| 15110-15 | Miltex Biopsy Punch with Plunger, ID 1.5mm, OD 1.75mm, Green/Yellow |
Each | € 10,30 | ||
| 15110-20 | Miltex Biopsy Punch with Plunger, ID 2.0mm, OD 2.36mm, Green/Brown |
Each | € 10,30 | ||
| 15110-30 | Miltex Biopsy Punch with Plunger, ID 3.0mm, OD 3.37mm, Green/Pink |
Each | € 10,30 | ||
| 15110-40 | Miltex Biopsy Punch with Plunger, ID 4.0mm, OD 4.36mm, Green/Blue |
Each | € 10,30 |

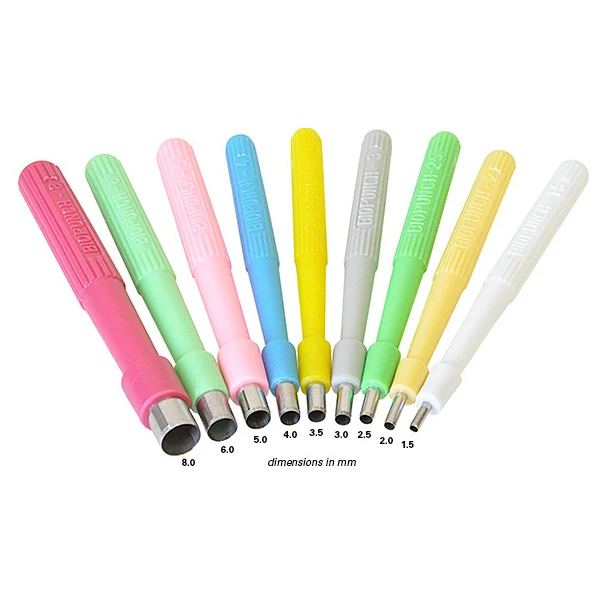

BIOPUNCH
Core, Punch and Retrieve Samples from Thin or Soft Substrate Materials
The Biopunch is a coring tool designed to core, punch and retrieve samples from thin or soft substrate source materials such as tissue, gels, paper, cloth, leaves, paint chips and films.
The Biopunch consists of a sure grip hollow plastic embossed handle with a razor sharp seamless stainless steel cutting tip protected by a clear removable cap. Each Biopunch is individually packaged sterile with lot number and expiration date clearly imprinted on the package. Available in 9 core size diameters: 1.5 to 8.0 mm or a Mix Pack of 5: 2.0 to 6.0mm, all punches are color coded by size. Maximum depth: 8mm
This is a disposable sampling tool, ideal for tissue processing or forensic applications. For some applications where contamination is not an issue, the Biopunch is reusable after cleaning.
Cleaning Tip: Clean cutting tip between each sample extraction by coring blank filter paper; rinse with ethanol or spray with compressed air to remove dried artifacts.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15111-15 | Biopunch, ID 1.5mm, OD 2.04mm |
5 | € 19,80 | ||
| 15111-20 | Biopunch, ID 2.0mm, OD 2.42mm |
5 | € 19,80 | ||
| 15111-25 | Biopunch, ID 2.5mm, OD 2.99mm |
5 | € 19,80 | ||
| 15111-30 | Biopunch, ID 3.0mm, OD 3.40mm |
5 | € 19,80 | ||
| 15111-35 | Biopunch, ID 3.5mm, OD 3.98mm |
5 | € 19,80 | ||
| 15111-40 | Biopunch, ID 4.0mm, OD 4.41mm |
5 | € 19,80 | ||
| 15111-50 | Biopunch, ID 5.0mm, OD 5.48mm |
5 | € 19,80 | ||
| 15111-60 | Biopunch, ID 6.0mm, OD 6.47mm |
5 | € 19,80 | ||
| 15111-80 | Biopunch, ID 8.0mm, OD 8.50mm |
5 | € 19,80 | ||
| 15111-99 | Biopunch, Mix-Pack, 2-6mm |
5 | € 23,10 |

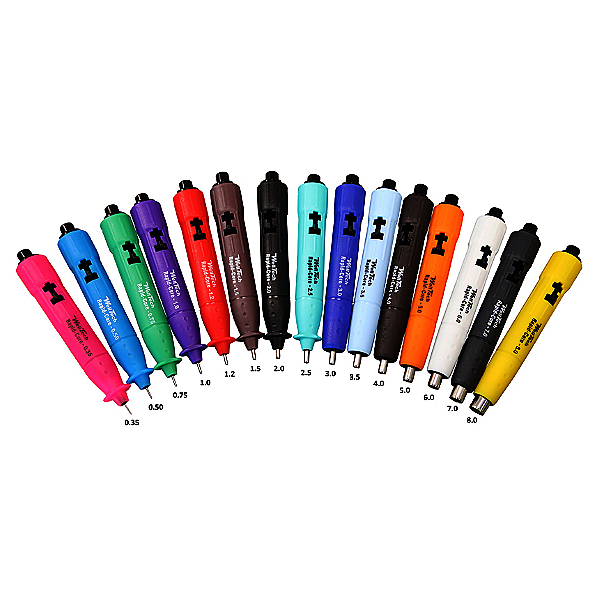

Rapid-Core is a multi-purpose sampling tool, designed with a retractable cutting cannula. It features easy operation, is safe to use, and is fast and precise. The body of the tool is made from polypropylene (PP) and the cutting tip from stainless steel 304 (SS304).
The Rapid-Core razor sharp stainless steel cutting tip is designed to cut, retrieve and store cored samples from source materials such as skin, tissue, gels, paper, cloth, leaves, paint chips, films or other thin, soft substrates.
The Rapid-Core is recommended as a special DNA sampling tool and ideal for forensic and laboratory sampling purposes.
Each Rapid-Core Punch is ethylene oxide sterilized in a self-sealing sterilization pouch. This product will not withstand steam sterilization in an autoclave.
Features:
- Single application disposable sampling punch
- Retractable cutting cannula
- Body is made of polypropylene
- Stainless steel 304 (SS304) razor sharp cutting tip
- Individually packaged
- Sterile
Specifications:
- Sizes: 0.35, 0.5, 0.75, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 7.0, 8.0mm
- Material: PP – body, 304 stainless steel – cutting cannula (tip)
- Packaging: individually packaged
- Sterilization: EO (ethylene Oxide)
- Patent: US patent no. US 9,655,598 B2
| Product No. | Size (mm) |
I.D. (mm) |
O.D. (mm) |
Wall Thickness (mm) |
|---|---|---|---|---|
| 15115 | 0.35 | 0.33 | 0.63 | 0.15 |
| 15115-1 | 0.5 | 0.50 | 0.80 | 0.15 |
| 15115-2 | 0.75 | 0.77 | 1.07 | 0.15 |
| 15115-3 | 1.0 | 0.96 | 1.26 | 0.15 |
| 15115-4 | 1.2 | 1.2 | 1.5 | 0.15 |
| 15115-5 | 1.5 | 1.5 | 1.9 | 0.20 |
| 15115-6 | 2.0 | 2.0 | 2.4 | 0.20 |
| 15115-7 | 2.5 | 2.5 | 2.9 | 0.20 |
| 15115-8 | 3.0 | 3.0 | 3.4 | 0.20 |
| 15115-9 | 3.5 | 3.5 | 3.9 | 0.20 |
| 15115-10 | 4.0 | 4.0 | 4.4 | 0.20 |
| 15115-11 | 5.0 | 5.0 | 5.5 | 0.25 |
| 15115-12 | 6.0 | 6.0 | 6.5 | 0.25 |
| 15115-13 | 7.0 | 7.0 | 7.5 | 0.25 |
| 15115-14 | 8.0 | 8.0 | 8.5 | 0.25 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15115 | Rapid Core, ID 0.35mm, OD 0.63mm, Pink |
Each | € 9,60 | ||
| 15115-1 | Rapid Core, ID 0.5mm, OD 0.80mm, Blue |
Each | € 9,60 | ||
| 15115-2 | Rapid Core, ID 0.75mm, OD 1.07mm, Green |
Each | € 9,60 | ||
| 15115-3 | Rapid Core, ID 1.0mm, OD 1.26mm, Purple |
Each | € 9,60 | ||
| 15115-4 | Rapid Core, ID 1.2mm, OD 1.5mm, Red |
Each | € 9,60 | ||
| 15115-5 | Rapid Core, ID 1.5mm, OD 1.9mm, Brown |
Each | € 9,60 | ||
| 15115-6 | Rapid Core, ID 2.0mm, OD 2.4mm, Black |
Each | € 9,60 | ||
| 15115-7 | Rapid Core, ID 2.5mm, OD 2.9mm, Teal |
Each | € 9,60 | ||
| 15115-8 | Rapid Core, ID 3.0mm, OD 3.4mm, Royal Blue |
Each | € 9,60 | ||
| 15115-9 | Rapid Core, ID 3.5mm, OD 3.9mm, Light Blue |
Each | € 9,60 | ||
| 15115-10 | Rapid Core, ID 4.0mm, OD 4.4mm, Black |
Each | € 9,60 | ||
| 15115-11 | Rapid Core, ID 5.0mm, OD 5.5mm, Orange |
Each | € 9,60 | ||
| 15115-12 | Rapid Core, ID 6.0mm, OD 6.5mm, White |
Each | € 9,60 | ||
| 15115-13 | Rapid Core, ID 7.0mm, OD 7.5mm, Black |
Each | € 9,60 | ||
| 15115-14 | Rapid Core, ID 8.0mm, OD 8.5mm, Yellow |
Each | € 9,60 |

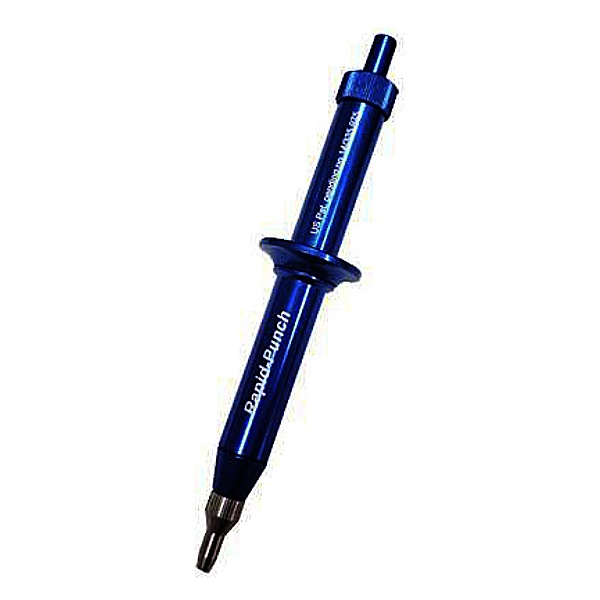

The Rapid-Punch consists of a razor sharp cutting tip designed to cut, retrieve and store cored samples from source materials such as tissue, gels, paper, cloth, leaves, paint chips, films or other thin substrates. The Rapid-Punch is recommended as a special DNA sampling tool and ideal for forensic and most laboratory sampling purposes.
This multi-purpose sampling tool kit is manufactured with 6061-T6 grade aluminum (full CNC machined aluminum alloy parts) with replaceable stainless steel cutting tips. The cutting tips are sharpened SS440C stainless steel, heat treated to HRC 58 hardness. The cutting tips are designed for numerous and precise sampling operations.
Features:
- Full CNC machined 6061-T6 aluminum alloy punch parts
- Replaceable cutting tips
- Cutting Tip: sharpened SS440C stainless steel with heat treatment to HRC 58 hardness
- Sizes I.D.: 0.5, 1.0, 1.2, 2.0 & 3.0mm
- Designed for numerous and precise sampling operations
- Durable lifetime, up to 2000 punches
- All new plunger system and changeable plunger sizes
- Recommended for repeated and mass sampling applications
- Autoclavable
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15116 | Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 0.5mm |
Each | € 189,10 | ||
| 15116-1 | Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 1.0mm |
Each | € 189,10 | ||
| 15116-2 | Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 1.2mm |
Each | € 189,10 | ||
| 15116-3 | Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 2.0mm |
Each | € 189,10 | ||
| 15116-4 | Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 3.0mm |
Each | € 189,10 |

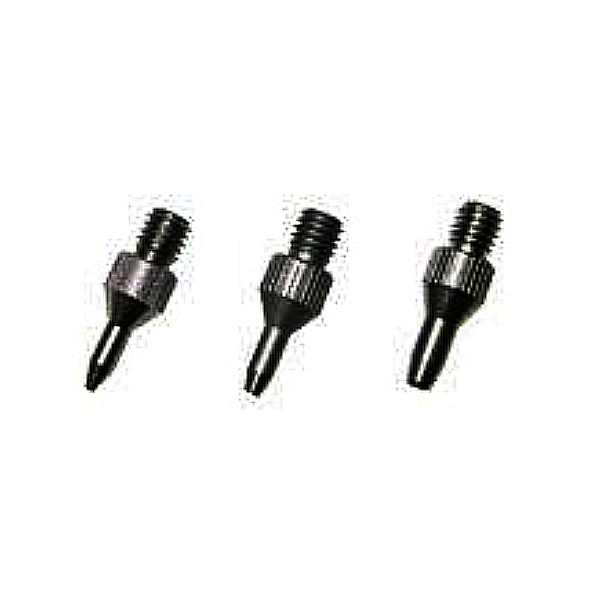

Specifications: Sizes?0.5, 1.0, 1.2, 2.0 & 3.0mm ID |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15116-T | Replacement Tip Rapid Core, ID 0.5mm, OD 0.80mm |
Each | € 51,40 | ||
| 15116-T1 | Replacement Tip Rapid Core, ID 1.0mm, OD 1.26mm |
Each | € 51,40 | ||
| 15116-T2 | Replacement Tip Rapid Core, ID 1.2mm, OD 1.5mm |
Each | € 51,40 | ||
| 15116-T3 | Replacement Tip Rapid Core, ID 2.0mm, OD 2.4mm |
Each | € 51,40 | ||
| 15116-T4 | Replacement Tip Rapid Core, ID 3.0mm, OD 3.4mm |
Each | € 51,40 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15116-P | Replacement Plunger for Rapid Core, ID 0.5mm |
Each | € 8,80 | ||
| 15116-P1 | Replacement Plunger for Rapid Core, ID 1.0mm |
Each | € 8,80 | ||
| 15116-P2 | Replacement Plunger for Tip Rapid Core, ID 1.2mm |
Each | € 8,80 | ||
| 15116-P3 | Replacement Plunger for Rapid Core, ID 2.0mm |
Each | € 8,80 | ||
| 15116-P4 | Replacement Plunger for Rapid Core, ID 3.0mm |
Each | € 8,80 |
| green, 1.5mm thickness

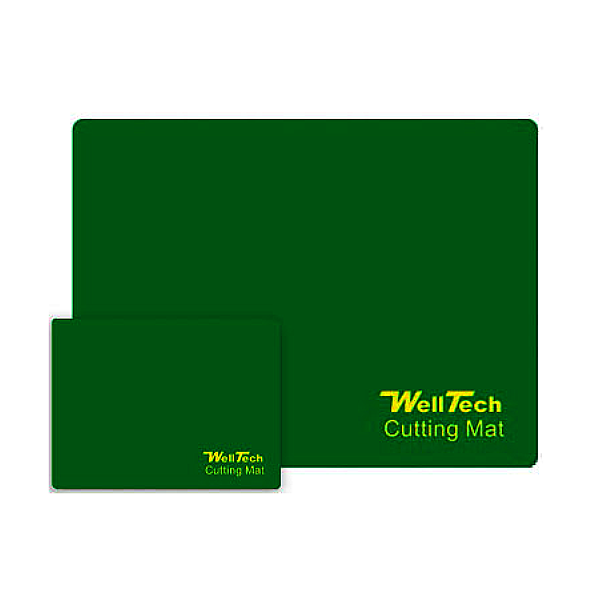

The five-layer PVC composite Cutting Mat allows user to cut cleanly through an object and into the mat. The Cutting Mat is reversible and has a self-healing surface. Small: 2.5 x 3″(63.5 x 76mm) |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 15087-1 | Cutting Mat, Large, Green, 6 x 8″ (152 x 203mm) |
Each | € 35,20 | ||
| 15087 | Cutting Mat, Small, Green, 2.5 x 3″ (63.5 x 76mm) |
Each | € 13,20 |
