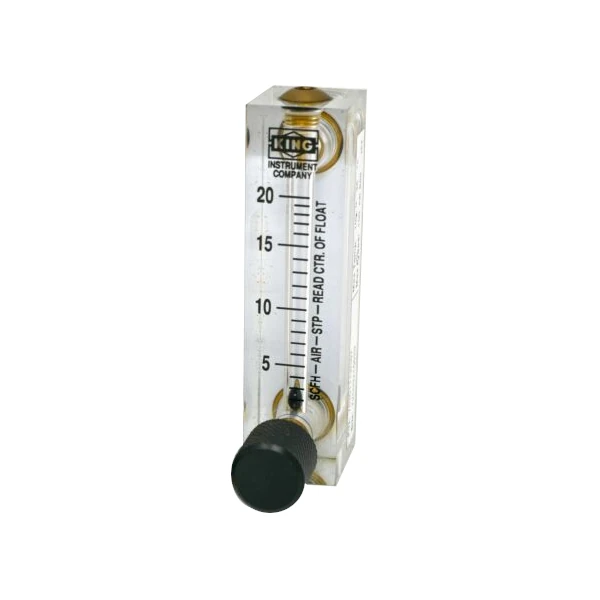

Flowmeter
Precisely displays the volume of nitrogen flow to any cabinet – inlets are provided for mounting flowmeters on PL Desiccator Cabinets.
1 Flowmeter, 2-20 SCFH required per door (chamber) for non-plenum desiccators and plenum desiccators with 3 and 4 doors (chambers).
1 Flowmeter, 10-100 SCFH required per plenum desiccator with 5 to 10 doors (chambers).
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 22619 | Flowmeter, 10-100 SCFH |
Each | € 190,10 | ||
| 22619-1 | Flowmeter, 2-20 SCFH |
Each | € 191,00 |

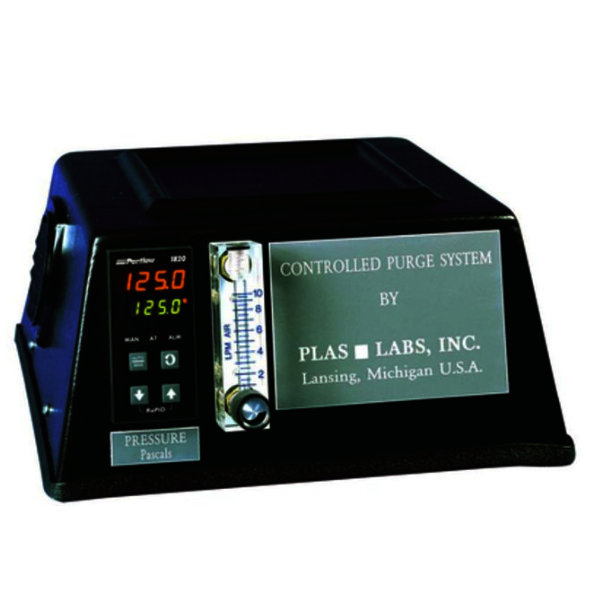

Controlled Purge System, 800-CPS
The Controlled Purge System maintains positive pressure in any of PL desiccator cabinets.
This self regulating Purge System controls nitrogen (inert) gas consumption by regulating flow rate.
An integral pressure sensor continually monitors chamber pressure level.
If the pressure inside the chamber falls below the adjustable setpoint, the controller opens the inert gas supply valve.
Once the desired pressure has been restored, the controller closes the valve.
The gas flow rate can be adjusted via the flow meter on the front of the control box.
Basic features of the unit include: programmable logic controller, pressure sensor, black Noryl housing, flow meter for inert gas, solenoid valve, and push-to-seal fittings for gas line and chamber connections.
Power requirements:115/230 VAC; 50-60 Hz.
| Overall dimensions | : | 12.50″ wide x 12.50″ deep x 7.00″ high |
| Warranty | : | One year |
| Pressure range | : | 0 to +2″ WC (export models: 0 to +500 Pa) |
| Accuracy | : | 0.5% for full scale |
| Control accuracy | : | 0.5% for full scale |
| Resolution | : | 0.1 |
| Flow meter range | : | 0-10 LPM |
| Inert Gas connection | : | Push-to-seal fitting (8 foot ” O.D. hose included) |
| Gas inlet pressure | : | 50 psi max. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 22235 | Controlled Purge System, 800-CPS |
Each | € 6.757,50 |

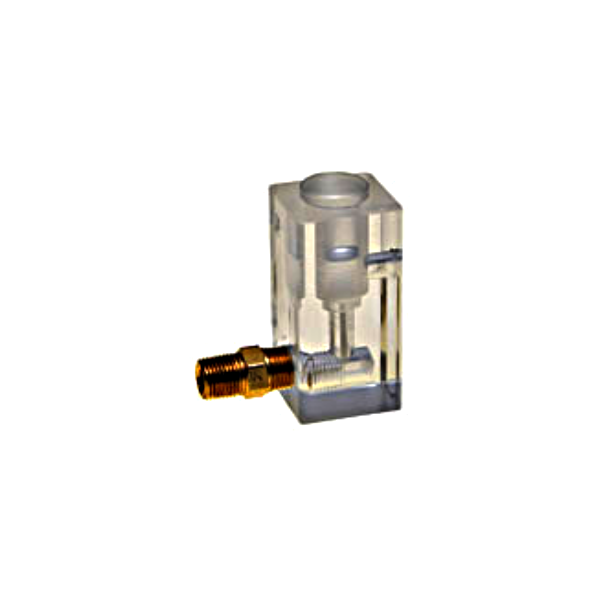

Pressure Relief Valve
Continuously bleeds off excess internal pressure to maintain a safe positive pressure within the desiccator, which extends the life of desiccator doors and gasketing.
One should be used on each chamber when nitrogen is used to fill the desiccator (regardless of plenum or non-plenum desiccator).
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 22617 | Pressure Relief Valve |
Each | € 123,10 |
