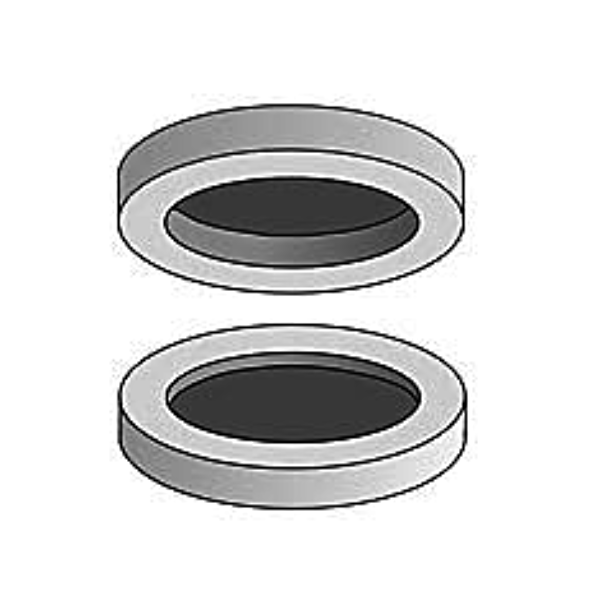

PELCO Freezer Hats for High Pressure Freezing
Freezer Hats are used in such Cryo instruments as:
Balzers
Leica
Cressington
ABRA

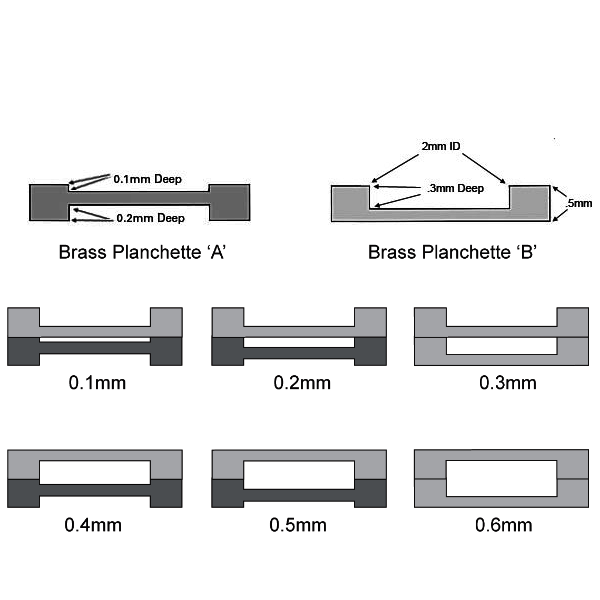

Planchet designs are roughly shown below in cross section. They are available in brass only. Depths of cavity in the planchets are 0.1, 0.2 and 0.3mm. Using the two planchets, one on the other, in various combinations, permit the cavity thicknesses as illustrated below.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 39200 | PELCO Freezer Hats, Brass, Specimen Holders, 2 Chambers, Type A |
50 | € 8,00 | ||
| 39201 | PELCO Freezer Hats, Brass, Specimen Holders, 1 Chamber, Type B |
50 | € 7,80 |

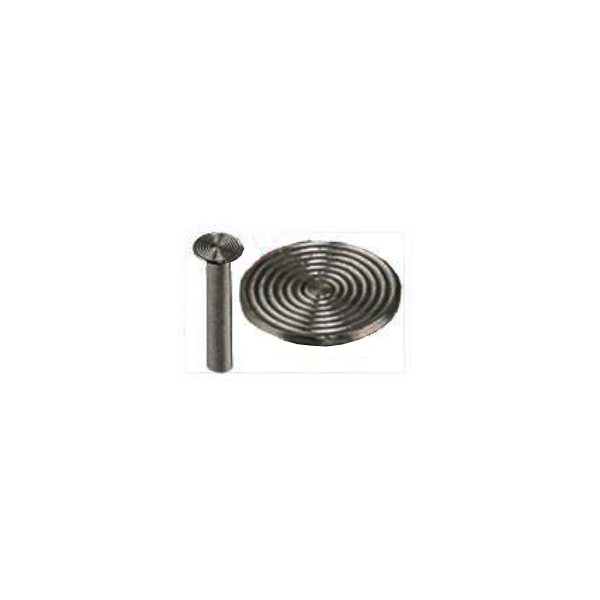

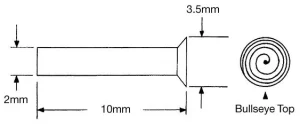

Specimen Pin
for Cryoultramicrotomy
Aluminum specimen mount pin for mounting samples for cryoultramicrotomy in the Reichert FC4D/Ultracut E Low Temperature Sectioning System.
Also for quick-freeze devices such as Gentleman-Jim and KF-80.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16948 | Cryo Specimen Pins, Bullseye |
Each | € 3,50 |

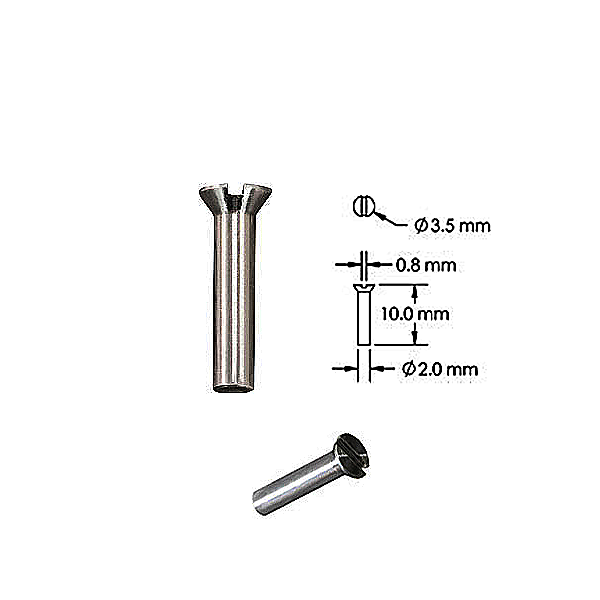

or Cryo-ultramicrotomy
Slotted aluminum specimen mount pin for mounting samples for cryo-ultramicrotomy in the RMC LN Ultra cryo-ultramicrotome and the Leica cryo-ultramicrotome systems such as the Leica EM UC6 and Leica EM UC7.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16949 | Cryo Specimen Pins, Slotted |
50 | € 6,40 |

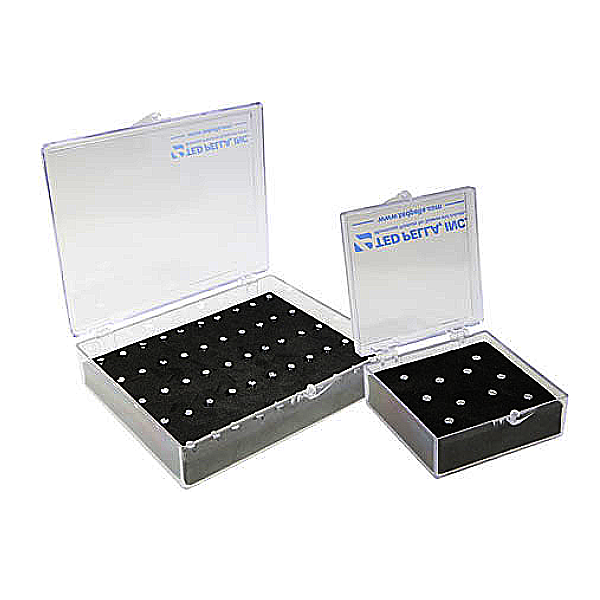

These clear, styrene storage boxes contain a dense, closed cell foam insert that have slots cut out.
The slots can be used to hold pins such as the Cryo Specimen Pins (#16948, 16949) or Gatan 3View Pins (#16950-1, 16950-3).
Pins shown are sold separately.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16951 | Styrene Storage Box, 2 x 2 x 3/4″ for 10 pins |
Each | € 24,20 | ||
| 16952 | Styrene Storage Box, 4-5/8 x 3-1/2 x 1″ for 50 pins |
Each | € 32,30 |

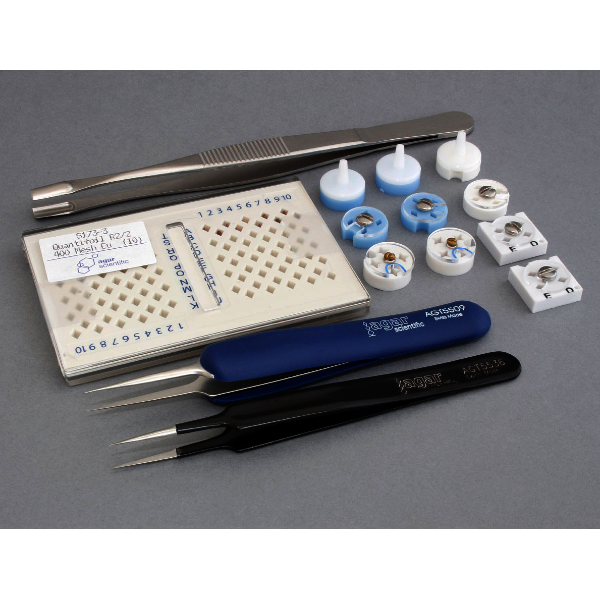

‘Introduction to Cryo-EM’ Consumables Kit
Our ‘Introduction to Cryo-EM’ Consumables Kit contains a number of products which we recommend to cryo users.
This kit will set you up with the basics you require to get started with grid preparation, perfect for both new and existing users looking to try different techniques, test suitability and explore other product ranges
The kit includes a pack of R2/2 Quantifoils on 400 mesh copper grids, which is a good starting point.
A variety of cryo-grid boxes are supplied for grid storage, the round boxes are compatible with most plunge freezers and the type of grid box chosen is usually based on personal preference.
The AGG3729 squared box has also been included which is compatible with the Gatan CT3500.
The kit also includes 3 types of tweezers, ESD soft grip with extra fine tips, ESD epoxy coated stainless steel with anti-magnetic properties and the component handling tweezers which are useful for handling grid boxes with the screw type lid.
Kit Contents
| Code | Description | Qty |
| AGT5509 | ESD Soft Grip Tweezers, 115mm, Extra Fine Tips | 1 |
| AGT5066 | Component Handling Tweezers Type 571 | 1 |
| AGT5536 | Fine ESD Epoxy coated Tweezers SS – Anti-Magnetic | 1 |
| AGG3727 | Round Cryo TEM Grid Box with Lid | 2 |
| AGG3735 | Round Cryo TEM Grid Box with Pin Type Lid | 2 |
| AG160-40W | Cryo TEM Grid Box, Round, White, with Clear Lid | 1 |
| AG160-42W | Cryo TEM Grid Box, Round, White, with Pin Type Lid | 1 |
| AGG3729 | Square Cryo TEM Grid Box with Lid | 2 |
| AGG3736 | 4-hole Cryo TEM storage box, Round shape to fit FEI Vitrobot | 2 |
| AGS173-3 | Quantifoil 2um dia (2um) 400 Mesh Copper (Pack of 10) | 1 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G5010 | Intro to Cryo Consumable Kit |
Each | € 408,90 |

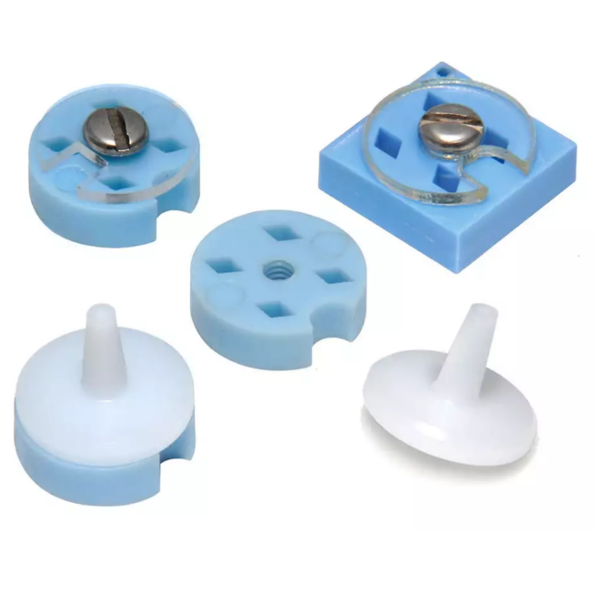

Cryo Grid Boxes for Cryo Systems & Cryo Applications
The Cryo Grid boxes are used for storing and transferring vitrified cryo-EM specimens prepared with cryo-devices like the FEI Vitrobot, Gatan CP3, Leica EM 6P, as well as other cryo vitrification systems.
There are two versions of these boxes, each with 4 storage positions.
The round one is the most widely used and is available in two colors and three versions: with clear lid, pin type lid, and without lid.
The round boxes can be used on the Gatan 626 and CT3500 cryo transfer systems and on the FEI Vitrobot and Gatan CP3.
The square Cryo TEM grid box includes a non-static rotatable lid and fits the Gatan CT3500 Cryo-Transfer Holder and Gatan CP3.
All boxes have a UNC 5/40 thread in the center.
On versions with clear lids, the lid is held in place with a stainless steel screw.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 160-40W | Cryo Grid Box, round, White, with lid |
Each | € 16,20 | ||
| 160-41W | Cryo Grid Box, round, White, base only |
Each | € 12,10 | ||
| 160-42W | Cryo Grid Box, round, White, with pin type lid |
Each | € 29,90 | ||
| 160-44 | Cryo Grid Box with lid, square for Gatan CT3500 |
Each | € 29,00 | ||
| 160-43 | Replacement Clear Lid for Prod. No. 160-40, 160-41 and 160-44 Cryo Grid Boxes |
Each | € 5,00 | ||
| 160-40 | Cryo Grid Box, round, Blue, with lid |
Each | € 16,20 | ||
| 160-41 | Cryo Grid Box, round, Blue, base only |
Each | € 12,10 | ||
| 160-42 | Cryo Grid Box, round, Blue, with pin type lid |
Each | € 29,90 | ||
| 160-47 | Pin Type Lid, round |
Each | € 20,20 |

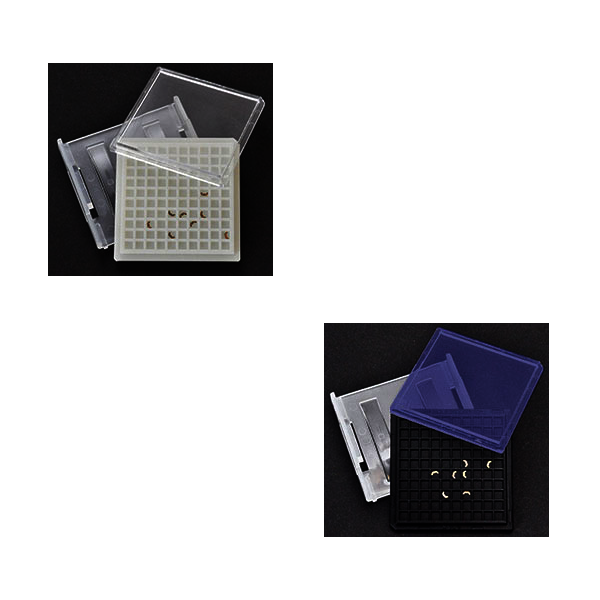

GSB-100 Storage Box for FIB Lift Out Grids
GSB-100 Storage Box for 100 FIB lift out grids or storing standard 3mm TEM grids flat.
No adhesive in tray (made from ABS).
Cavity size is 3.34 x 3.34 x 1.5mm.
Complete with clear polystyrene lid and clear polypropylene clip.
Stackable.
Overall size is 55 x 51 x 10.7mm.
Anti-Static GSB-100 Storage Box for FIB Lift Out Grids
Same internal and external dimensions as standard GSB-100 storage box, but with anti-static tray made of black conductive polypropylene.
Complete with anti-static cover and polypropylene clip.
Stackable.
Overall size is 55 x 51 x 10.7mm.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 460-200B | GSB-100 Storage Box for 100 FIB Lift Out Grids |
Each | € 11,00 | ||
| 460-200SD | Anti-Static GSB-100 Storage Box for 100 FIB Lift Out Grids |
Each | € 12,50 |

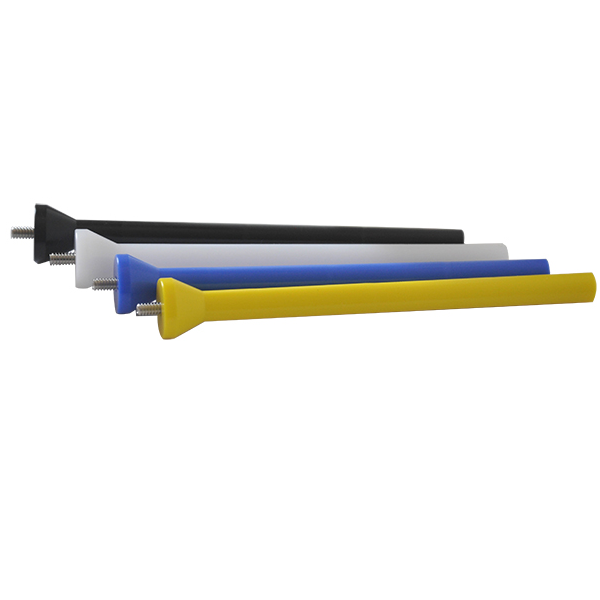

Multicolor Cryo Grid Box Handling Rod
Now available in four different colors, the Handling Rod screws into the threaded center of #160-41 round cryo grid box for pick-up and storage applications.
Can be used to store the cryo grid box in liquid nitrogen.
Available in white, yellow, blue, and black.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 160-46 | Cryo Grid Box Handling Rod, White |
Each | € 32,30 | ||
| 160-46-4 | Cryo Grid Box Handling Rod, Yellow |
Each | € 32,30 | ||
| 160-46-6 | Cryo Grid Box Handling Rod, Blue |
Each | € 32,30 | ||
| 160-46-0 | Cryo Grid Box Handling Rod, Black |
Each | € 32,30 |

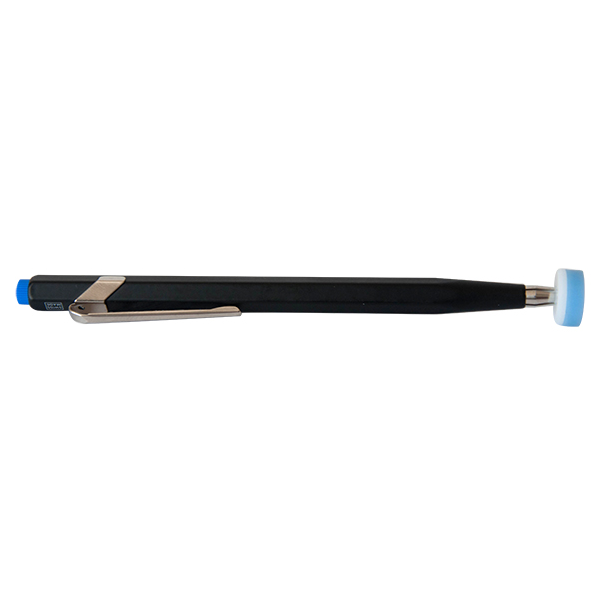

Gripper Tool for Cryo Grid Box
An ergonomic and efficient device to open the pin type lid (#160-47) of a cryo grid box (#160-42 and 160-42W).
Spring-loaded pin vise grips the pin type lid firmly and securely.
High quality aluminum body construction is good for working in liquid nitrogen.
Ribbed barrel design makes it easy to unscrew the lid.
This handy tool can also be used to carry the covered cryo grid box.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 160-48 | Gripper Tool for Cryo Grid Box Pin Type Lid |
Each | € 58,20 |

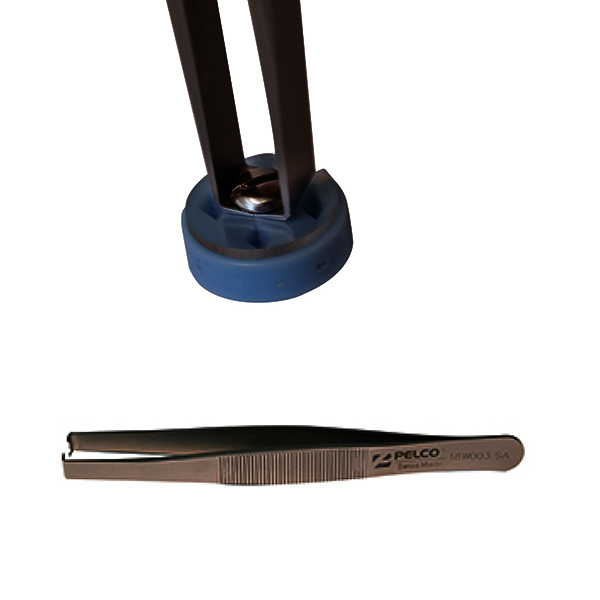

Cryo Grid Box Metal Gripper Tool
The Cryo Grid Box Metal Gripper Tool is used to handle Cryo Grid Boxes #160-40, 160-40W, 160-44, 160-42, 160-42W by firmly grasping the head of the screw or the base of the pin.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 160-50 | Stainless Steel Gripper for Cryo Grid Box |
Each | € 75,60 |
Cryogenic Protective Face Shield
- The injection molded polycarbonate clear shield is shaped to hug your chest and side of your face when in use, and pivots up and out of the way when your task is done.
- The padded head gear has a ratchet band in the back and a pin-and-lock system over the top for a 2-way adjustable fit.
- A lightweight design meets ANSI Z87.1 requirements, is CE Cat. II, and is impact resistant.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 81713 | Cryogenic Protective Face Shield |
Each | € 135,10 |
Cryo freezer hats
These freezer hats for holding specimens in high pressure freezing equipment are available in brass only.

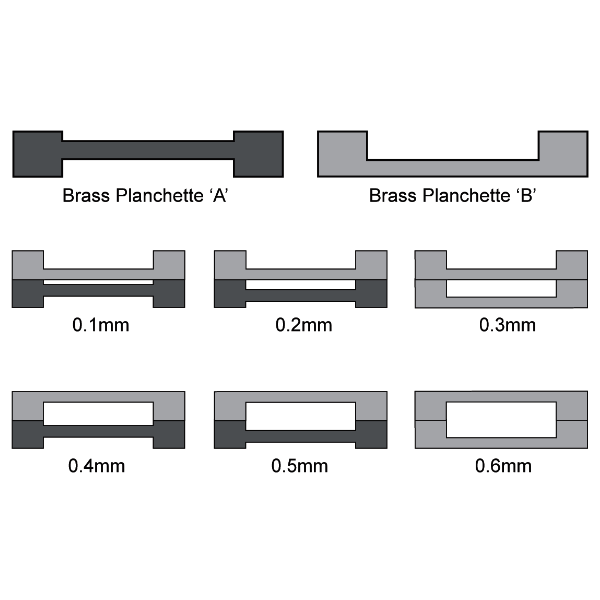

The planchette designs are illustrated.
The depths of cavity are 0.1, 0.2 and 0.3mm.
Using two planchettes, one on another, in various combinations, allows cavity thicknesses of 0.1, 0.2, 0.3, 0.4, 0.5 and 0.6mm to be achieved.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G3466 | Freezer Hats Type A |
50 | € 408,70 | ||
| G3467 | Freezer Hats Type B |
50 | € 423,70 |

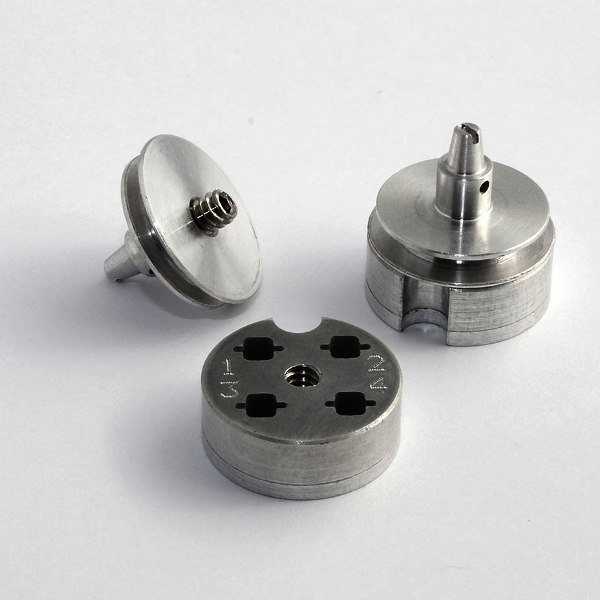

Metal Cryo Grid Box
Skilfully designed and refined with the microscopist in mind, Agar Scientific’s new metal cryo grid box is designed for practical, easy access grid storage in cryogenic conditions.
- Manufactured in durable and shatter-proof cryo grade Aluminium throughout
- Numbered wells 1-4, all made to accommodate autogrid rings and standard TEM grids allowing easy tweezer access
- Pin-type lid with unique step to prevent pick-up tools from sliding down or getting caught
- Compatible with auto grid rings and Thermo Fisher Scientific loading system
- Reduce electrostatic charging
- Can be cleaned with solvents or autoclave to avoid cross-contamination when re-using grid box
- Robust materials used for a long-life
- Optional Cryo-Gripper (AGT1002) for easy retrieval
Options:
These grid boxes are available individually serialised for accurate, secure record keeping.
A minimum order quantity will apply, please contact sales for more information.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G1001 | Metal Cryo Grid Box |
Each | € 65,60 | ||
| T1002 | Cryo Gripper, 2mm |
Each | p.o.r. |

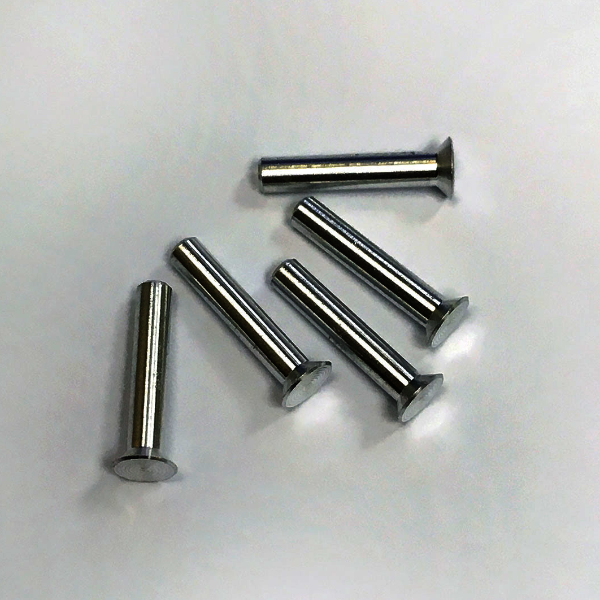

Sample pins for Cryo-Ultramicrotomes
These cryo pins have 2mm diameter pins and are compatible with the Leica and RMC Cryo-Ultramicrotomes.
Manufactured from cryo compatible aluminium
Concentric grooves on the sample surface ensure better adhesion
Reversed tapered head with a diameter of 3.5mm
Overall length 10mm
Supplied in packs of 10, 50 and 100.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G350-10 | Sample pin for cryo ultramicrotomes, 2mm dia, Aluminium |
Each | € 27,20 | ||
| G350-50 | Sample pin for cryo ultramicrotomes, 2mm dia, Aluminium |
50 | € 124,70 | ||
| G350-100 | Sample pin for cryo ultramicrotomes, 2mm dia, Aluminium |
100 | € 222,20 |

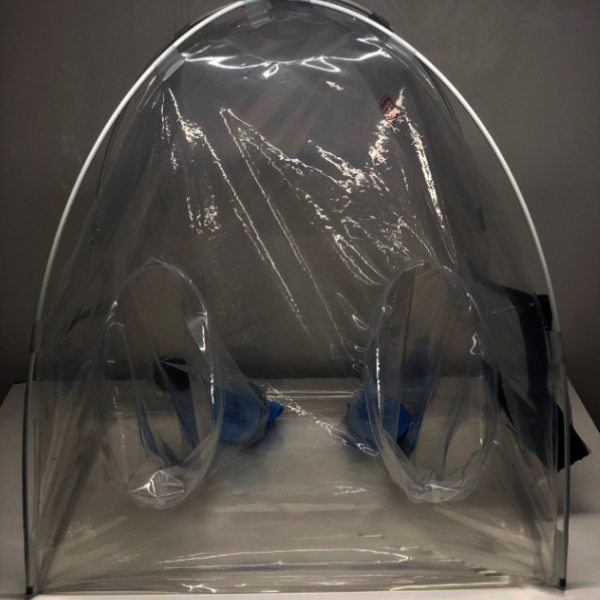

Pop-Up Glovebag Safety Isolator
This instant pop-up benchtop isolator transforms your lab into a safe, enclosed working environment.
Ideal for small scale powder, liquid, instrument and inert-gas operations.
Allows the user to accelerate the speed of material testing, weighing and dispensing using the Pop-Up Glovebag.
Key features:
- Easy set-up (less than 2 minutes installation)
- 2x Glove Port access Large gas-prof zip for material/equipment introduction and removal
- Wide choice of anti-static materials including FDA approved films
- Integrated P3 Filter for environmental and operator protection
- Integrated service sleeve for utility cables
- Easy to clean with IPA wipes
- Ergonomic design
- Typical Size (LxWxH): 770mm x 620mm x 740mm
The Pop-up Glovebag is multifunctional and can be used for various lab based containment applications, including:
- IPC (In Process Control)
- Weighing and dispensing in a controlled environment
- Material QA testing
- Instrument protection & housing
- Granulation Solution preparation
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B6203 | Pop-up Isolator glovebag |
Each | € 742,60 |

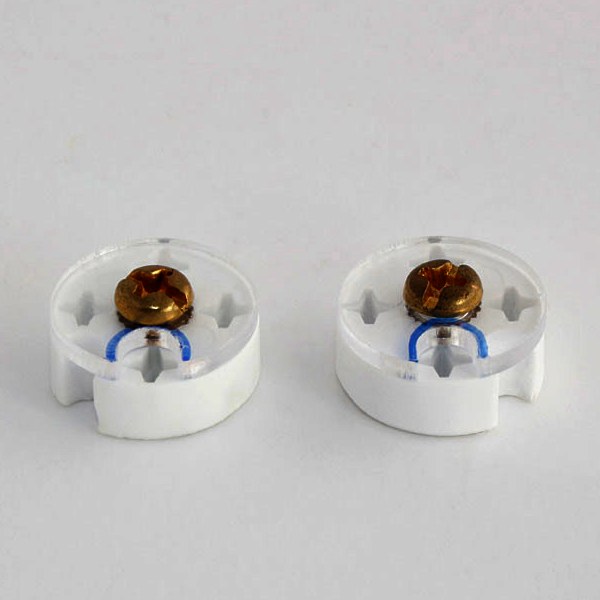

Cryo EM round storage box, 4 hole, to fit FEI Vitrobot
4-hole Cryo-EM grid storage box. Round shape to fit FEI Vitrobot with brass screw and threaded insert.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G3736 | 4-hole Cryo-EM storage box, Round shape to fit FEI Vitrobot |
Each | € 15,40 |

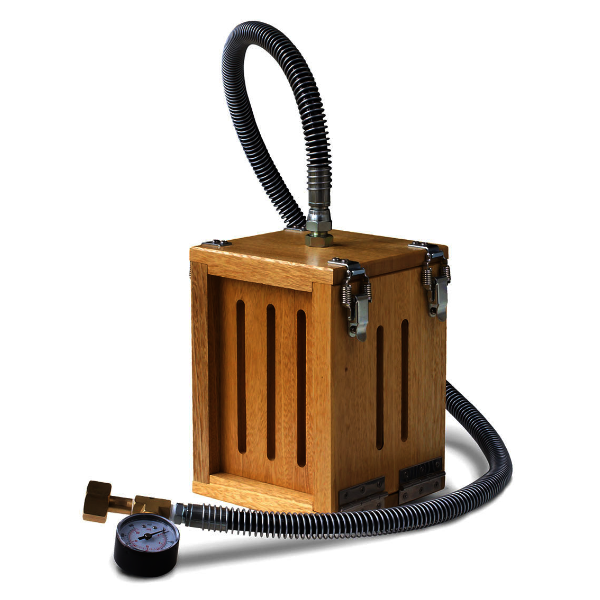

Portable Dry Ice Maker
The Portable Dry Ice Maker is the fastest way of providing a block of dry ice to your lab.
It is compact and lightweight, requires no electric power and is safe and simple to use.
Most importantly, it is always there in the lab to give you immediate access to dry ice when you need it.
The economy of having your dry ice on tap can provide considerable financial savings over a relatively short period as the cost of having dry ice delivered to your lab can be prohibitive.
The Portable Dry Ice Maker produces a block of approx 1kg in weight in less than 2 minutes, and all you have to do is connect the unit to a cylinder of CO2, and turn on the tap. Remember, it has to be a liquid cylinder with an internal siphon.
The Portable Dry Ice Maker works on the principle of adiabatic expansion (the Joule-Thompson effect).
The liquid CO2 in the cylinder is at a pressure greater than 60kg/cm2, so when it is released into the unit, which is at atmospheric pressure, the liquid CO2 vaporises and expands.
As a result of this expansion, the liquid changes to snow and is compacted into a block within the unit.
The block measures 80mm x 110mm x 180mm and weighs approx 1kg.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B4010 | Portable Dry Ice Maker |
Each | € 636,50 |
