AFM Mica Discs
Highest quality grade V1 mica, 0.21mm thick.
no. 50 to 50-20

Description

AFM Mica Discs

Highest quality grade V1 mica, 0.21mm (0.0085 ) thick. Interleaved, in packages of 10. Can be mounted on AFM/STM discs.

Available in four diameters:
10mm
12mm
15mm
20mm

Order

Art.Description Unit PriceQuantity
50

Highest Grade V1 AFM Mica Discs, 10mm

 10 € 14,70
✓
50-12

Highest Grade V1 AFM Mica Discs, 12mm

 10 € 20,20
✓
50-15

Highest Grade V1 AFM Mica Discs, 15mm

 10 € 23,30
✓
50-20

Highest Grade V1 AFM Mica Discs, 20mm

 10 € 31,90
✓
Brand:

Product

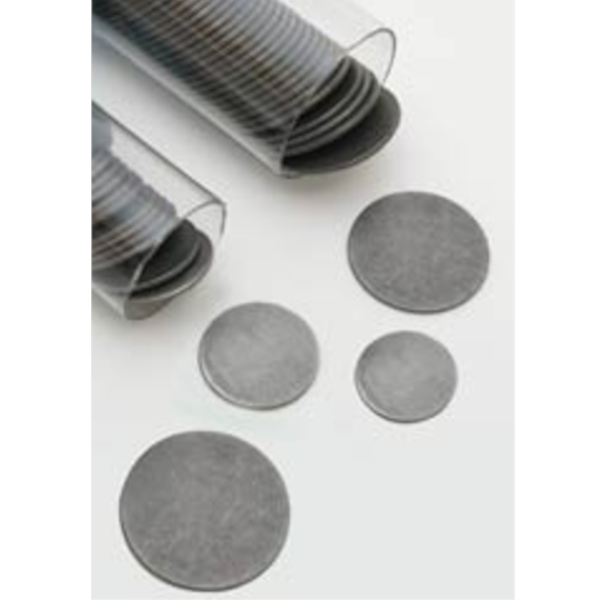

AFM/STM Metal Specimen Discs
High quality magnetic stainless steel (alloy 430) discs for Atomic Force Microscopy
no. 16208 to 16223

Description

AFM/STM Metal Specimen Discs

High quality magnetic stainless steel (alloy 430) discs for Atomic Force Microscopy are offered, with smooth edges and consistently flat surfaces.
The AFM/STM disks are 20 gauge which is 0.0359″ (0.91mm) with a range of 0.0329″ to 0.0389″ (0.835mm to 0.988mm) thickness.

Available in 6, 10, 12, 15 and 20mm diameter, supplied in packs of 50 in a clear tube which will fit into the PELCO AFM/STM Diskpenser .

Order

Art.Description Unit PriceQuantity
16223

AFM/STM Metal Specimen Discs, 6mm – per 50,100,150 pieces

 Each € 1,10
✓
16207

AFM/STM Metal Specimen Discs, 10mm – per 50,100,150pieces

 Each € 0,80
✓
16208

AFM/STM Metal Specimen Discs, 12mm – per 50,100 or 150 pieces

 Each € 0,90
✓
16218

AFM/STM Metal Specimen Discs, 15mm – per 50,100 or 150 pieces

 Each € 0,90
✓
16219

AFM/STM Metal Specimen Discs, 20mm – per 50,100 or 150 pieces

 Each € 1,60
✓
Brand:

Product

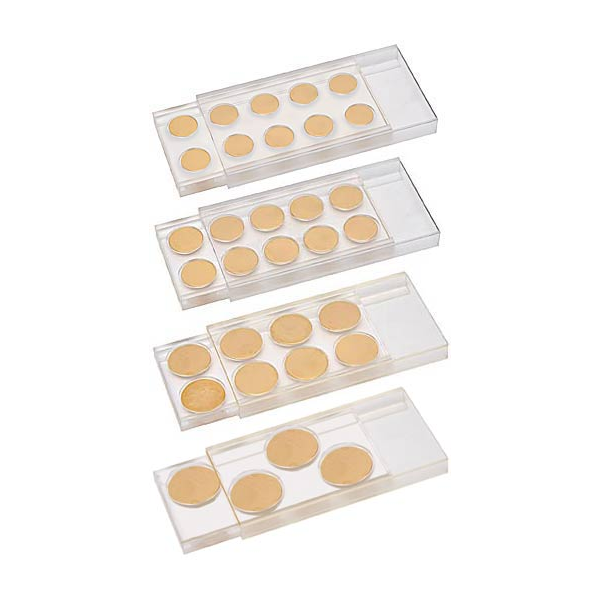

PELCO Gold Coated AFM/STM Metal Specimen Discs
PELCO Gold Coated AFM/STM Discs provide excellent substrates for mounting specimens due to their excellent resistance to electromigration
no. 16207-G to 16219-G

Description

PELCO Gold Coated AFM/STM Metal Specimen Discs

Advanced Nanotechnology Specimen Support
PELCO Gold Coated AFM/STM Discs provide excellent substrates for mounting specimens due to their excellent resistance to electromigration, high electrical and thermal conductivity and high temperature operation properties. Gold is the most inert metal. Its adhesion to polymers is expected to be lower than that of other metals, however polymer irradiation with UV light and plasma discharge have been reported to enhance metal-polymer adhesion.

High quality gold coated magnetic stainless steel (alloy 430) discs for Atomic Force Microscopy are offered with smooth edges and consistently flat surfaces. The AFM/STM discs are 22 gauge which is 0.0299″ (0.76mm) with a range of 0.0269″ to 0.0329″ (0.68 to 0.84mm) thickness, coated on all sides with 0.25 microns of gold. The discs are supplied in PELCO AFM/STM Disc Carriers. They are available in 10, 12, 15 and 20mm diameter.

Order

Art.Description Unit PriceQuantity
16207-G

PELCO AFM Metal Specimen Discs, Gold Coated, 10mm dia., 10 discs in AFM Disc Carrier

 Each € 100,50
✓
16208-G

PELCO AFM Metal Specimen Discs, Gold Coated, 12mm dia., 10 discs in AFM Disc Carrier

 Each € 95,50
✓
16218-G

PELCO AFM Metal Specimen Discs, Gold Coated, 15mm dia., 8 discs in AFM Disc Carrier

 Each € 87,90
✓
16219-G

PELCO AFM Metal Specimen Discs, Gold Coated, 20mm dia., 4 discs in AFM Disc Carrier

 Each € 81,40
✓
Brand:

Product

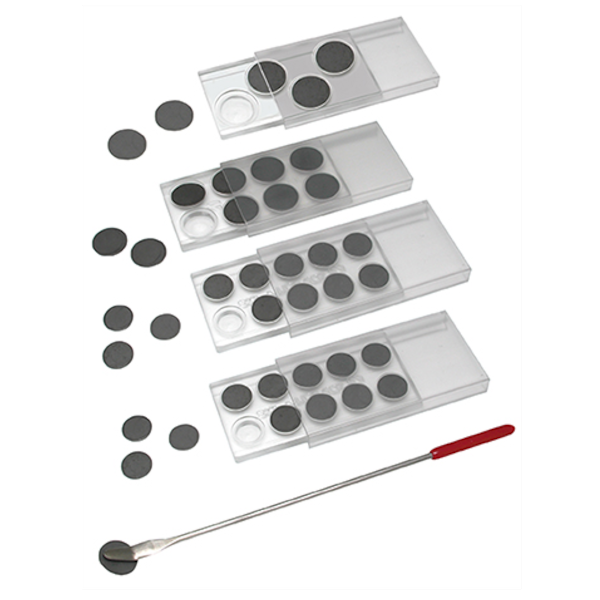

PELCO AFM Disc Carriers & AFM Disc Magnetic Pickup Tool
An inexpensive way to store 10, 12, 15 and 20mm AFM/STM discs in a dust-free environment.
no. 16209 to 16220

Description

PELCO AFM Disc Carriers & AFM Disc Magnetic Pickup Tool

An inexpensive way to store 10, 12, 15 and 20mm AFM/STM discs in a dust-free environment. Discs are placed face down into a stepped cavity where the specimen is protected.
The cavity allows for a maximum specimen height of 3.2mm (1/8″).

The AFM/STM discs are retrieved by using the convenient PELCO AFM Disc Pickup Tool, comprised of a plastic handle, stainless steel shaft and a magnetic pad on the tip.
Fingers need not touch the disc.

Sliding cover. Box size: 76.2 L x 40 W x 7.5 H (mm) (3″ L x 1.58″ W x .295″ H)

Order

Art.Description Unit PriceQuantity
16220

PELCO AFM Disc Magnetic Pickup Tool

 Each € 9,90
✓
16209

PELCO AFM Disc Carrier, 10mm, (holds 10)

 Each € 23,30
✓
16210

PELCO AFM Disc Carrier, 12mm, (holds 10)

 Each € 23,30
✓
16214

PELCO AFM Disc Carrier, 15mm, (holds 8)

 Each € 43,50
✓
16206

PELCO AFM Disc Carrier, 20mm, (holds 4)

 Each € 23,30
✓
Brand:

Product

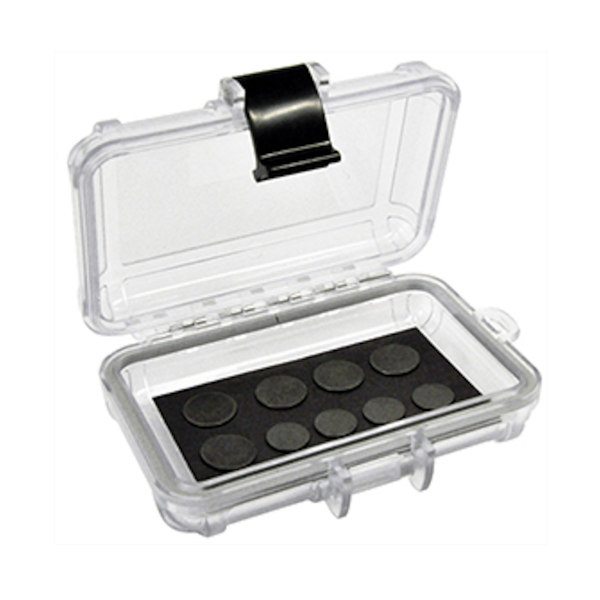

PELCO X-TREME AFM/STM Disc Storage Box
Very strong and rugged clear polycarbonate box to store stainless steel AFM discs with 6, 10, 12, 15 or 20mm diameter.
no. 16224

Description

PELCO X-TREME AFM/STM Disc Storage Box

Very strong and rugged clear polycarbonate box to store stainless steel AFM discs with 6, 10, 12, 15 or 20mm diameter.

The PELCO X-TREME storage box is watertight, crushproof and dustproof.
The strong hinges, locking clasps and O-ring seal makes this box suitable for transport, shipping and storage of the stainless steel AFM discs.
Ideal for storing calibration and test samples.

The box has a single pole magnetic layer in the base with a size of 47 x 86mm (1.85″ x 3.4″).
A marker pen can be used to write on the magnetic material.
Outside dimensions 112 x 77 x 36mm (4.4″ x 3″ x 1.4″), maximum specimen height is 21mm (0.81″).

Storage capacity:
5 ea of the 20mm AFM discs
8 ea of the 15mm AFM discs
10 ea of the 12mm AFM discs
21 ea of the 6mm AFM discs

Order

Art.Description Unit PriceQuantity
16224

PELCO X-TREME AFM/STM Disc Storage Box

 Each € 27,90
✓
Brand:

Product

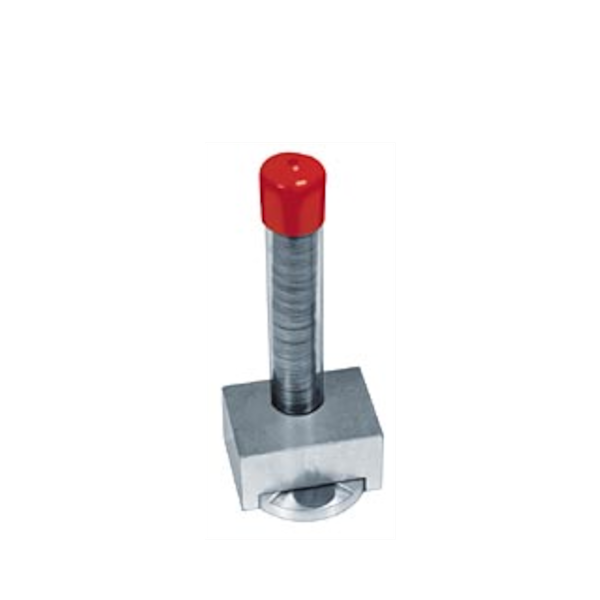

PELCO AFM Diskpenser
A practical way to store and dispense AFM/STM discs.
no. 16204

Description

PELCO AFM Diskpenser

A practical way to store and dispense AFM/STM discs.

The plastic tubes in which the discs are packaged may be inserted into the PELCO Diskpenser.
With a turn of the cylinder one disc is dispensed, ready to be picked up with the PELCO Disc Gripper as shown below.

The PELCO Diskpenser will dispense either 10, 12 or 15mm Discs.

Order

Art.Description Unit PriceQuantity
16204

PELCO AFM Diskpenser

 Each € 129,20
✓
Brand:

Product

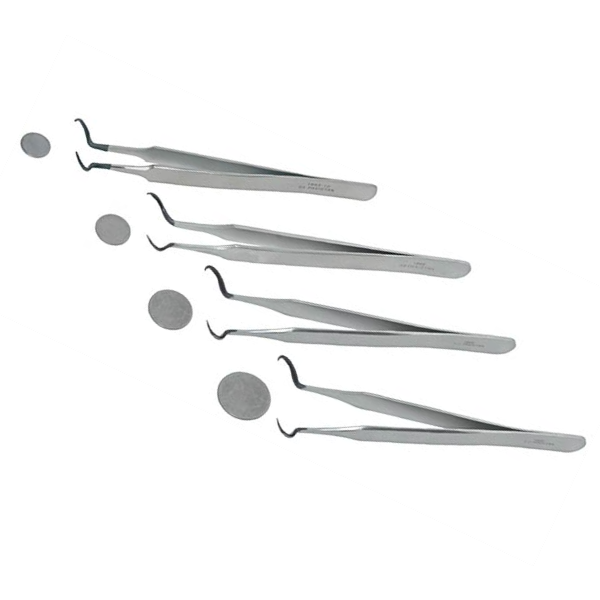

PELCO AFM Disc Grippers
Specially designed rubber coated tips for picking up AFM/STM discs from a flat surface.
no. 1668 to 1672

Description

PELCO AFM Disc Grippers

Specially designed rubber coated tips for picking up AFM/STM discs from a flat surface.

Transfer Atomic Force Microscopy Discs from Diskpenser to PELCO AFM Workstation to Microscope and to PELCO AFM Disc Carrier or AFM Disc Storage Box with ease.

Order

Art.Description Unit PriceQuantity
1668

PELCO 12mm AFM Disc Grippers

 Each € 14,70
✓
1671

PELCO 10mm AFM Disc Grippers

 Each € 22,00
✓
1669

PELCO 15mm AFM Disc Grippers

 Each € 22,00
✓
1672

PELCO 20mm AFM Disc Grippers

 Each € 22,00
✓
Brand:

Product

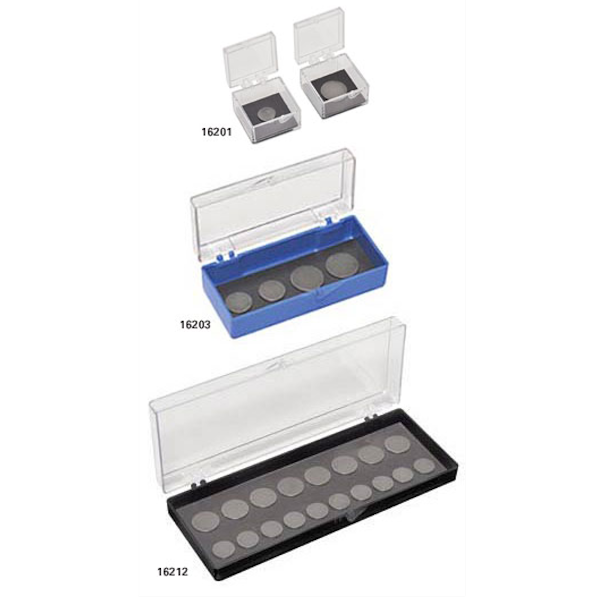

PELCO AFM/STM Disc Storage Boxes
The PELCO AFM/STM Disk Storage Boxes have a single pole magnetic in the base of the box to store stainless AFM discs with 6, 10, 12, 15 or 20mm diameter.
no. 16201 to 16212

Description

PELCO AFM/STM Disc Storage Boxes

The PELCO AFM/STM Disk Storage Boxes have a single pole magnetic in the base of the box to store stainless AFM discs with 6, 10, 12, 15 or 20mm diameter.
Designed to sort and organize AFM/STM samples and protect them from dust.

These storage boxes are ideal for storing and transferring AFM/STM samples in the lab.
A marker pen can be used to write on the magnetic material to mark the sample positions.

Samples can be lifted from the storage boxes using PELCO AFM Disk Grippers (shown below).
ot ideal for shipping AFM samples. The PELCO Disk Carriers are better suited for shipping AFM disks.

Single storage box holds one AFM disc of either 6, 10, 12, 15 or 20mm diameter.
Inside measurements of the clear styrene box are 25.4 x 25.4 x 15.9mm (1″ x 1″ x 5/8″).
Sold in packages of 5.

Small storage box holds up to 4 discs depending on size of the AFM discs.
Inside measurements of the styrene box are 70 x 28 x 18mm (2-3/4″ x 1-1/8″ x 11/16″).
Box has a clear lid and a blue base.

Large storage box holds up to 20 AFM discs depending on size of the AFM disks.
Inside measurements of the styrene box are 152 x 51 x 18mm (6″ x 2″ x 11/16″).
Box has a clear lid and a black base.

Order

Art.Description Unit PriceQuantity
16201

PELCO Single AFM/STM Disc Storage Box, Small

 5 € 21,30
✓
16203

PELCO AFM/STM Disc Storage Box, Small

 Each € 8,80
✓
16212

PELCO AFM/STM Disc Storage Box, Large

 Each € 19,00
✓
Brand:

Product

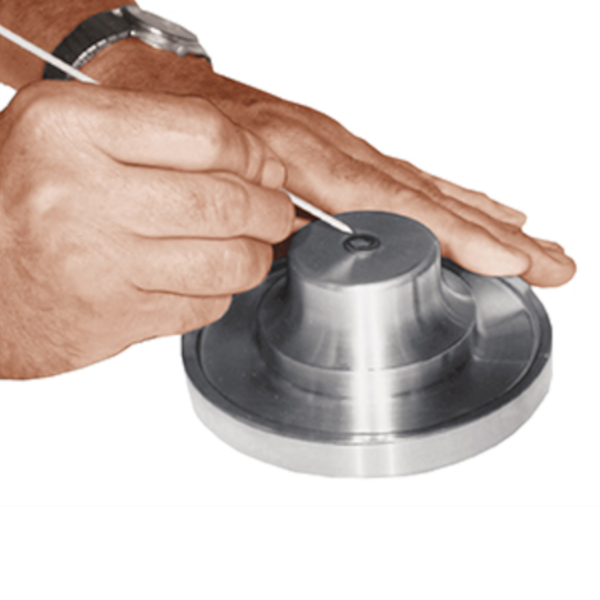

PELCO Atomic Force Microscopy Workstation
Turned from solid aluminum, this workstation features an adjustable internal magnet to securely hold a metal AFM/STM Specimen Disc in place.
no. 15010

Description

PELCO Atomic Force Microscopy Workstation

Turned from solid aluminum, this workstation features an adjustable internal magnet to securely hold a metal AFM/STM Specimen Disc in place.

A tray around the circumference of the central disc holder may be used to catch residue or hold additional discs.

Order

Art.Description Unit PriceQuantity
15010

PELCO AFM Workstation

 Each € 182,30
✓
Brand:

Product

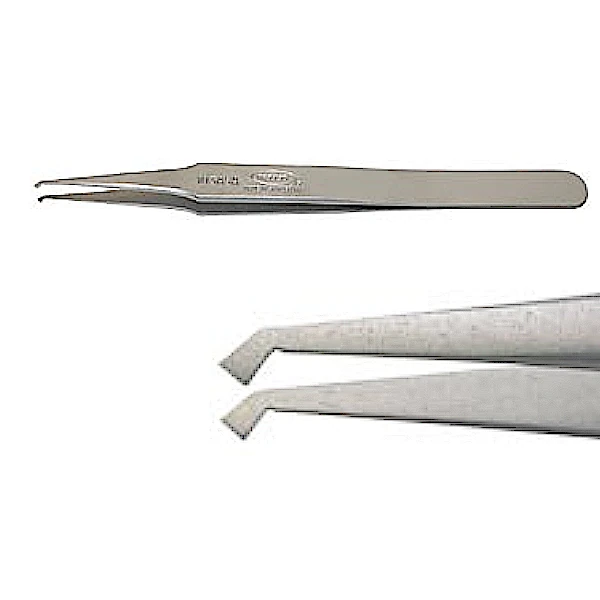

AFM/STM Cantilever Tweezers, Non-magnetic Stainless Steel
no. 5599

Description

AFM/STM Economy Cantilever Tweezers, Non-magnetic Stainless Steel

Easily grasp AFM/STM cantilevers / probes with these precise, non-magnetic stainless steel AFM Probe Tweezers.

117mm)long.

Although these tweezers are made from non-magnetic stainless steel, magnetization can occur in the presence of strong magnetic fields.

Order

Art.Description Unit PriceQuantity
5599

AFM/STM Cantilever Tweezers, NM-SS

 Each € 19,50
✓
Brand:

Product

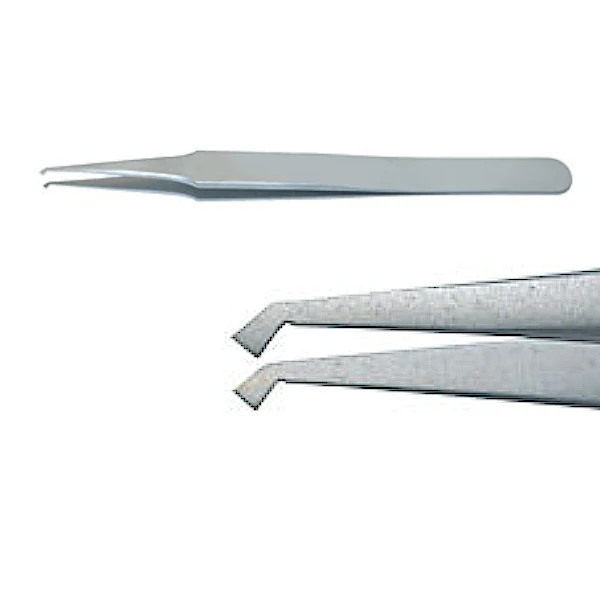

AFM/STM Cantilever Tweezers, Titanium
no. 5596-TI

Description

AFM/STM Cantilever Tweezers, Titanium

Easily grasp magnetic AFM/STM cantilevers / probes with these precise titanium, absolutely non-magnetic tweezers.

117mm long.

Order

Art.Description Unit PriceQuantity
5596-TI

AFM/STM Cantilever Tweezers, Titanium

 Each € 46,10
✓
Brand:

Product

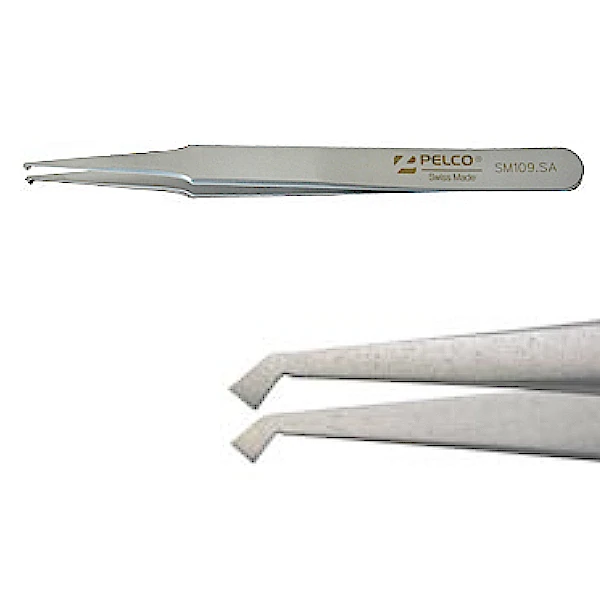

AFM/STM Precision Cantilever Tweezers, Non-magnetic Stainless Steel
no. 5599-P

Description

AFM/STM Precision Cantilever Tweezers, Non-magnetic Stainless Steel

Precision formed, Swiss made, low carbon, non-magnetic, austenitic steel.
Material number 1.4435, DIN X2CrNiMo 18-14-3, AISI number 316L

Ffor precise manipulation of cantilevers and probes.

120mm
Non-magnetizable.

Order

Art.Description Unit PriceQuantity
5599-P

AFM/STM Cantilever Tweezers, NM-SS

 Each € 39,10
✓
Brand:

Product
Silicon Chip Specimen Supports
Silicon Chip Specimen Supports low background specimen supports for SEM viewing
no. 16004 to 16008

Description

Si-chips are opaque, of low electrical resistance and have surface properties equal to glass (including smoothness).
They are also good substrates for growing or mounting cells. Si-chips are precleaned before packaging.

Also ideal for imaging small particles due to low background signal.
Chips that can be easily separated in the laboratory.

Availability:

  • 4″ wafer precut into 5 x 7mm chips approximately 187 chips/wafer
  • 4″ wafer precut into 5 x 5mm chips approximately 270 chips/wafer
  • 4″ wafer precut into 10 x 10mm chips approximately 55 chips/wafer
  • 4″ wafer precut into 20 x 20mm chips approximately 10 chips/wafer
  • 4″ wafer precut into 20 x 30mm chips approximately 6 chips/wafer
Order

Art.Description Amount PriceQuantity
16003

4″ (10cm) dia., 3 x 3mm diced Silicon Wafer

 600 chips per wafer € 169,50
✓
16007

4″ (10cm) dia., 5 x 7mm diced Silicon Wafer

 187 chips per wafer € 152,40
✓
16008

4″ (10cm) dia., 5 x 5mm diced Silicon Wafer

 270 chips per wafer € 152,40
✓
16006

4″ (10cm) dia., 10 x 10mm diced Silicon Wafer

 55 chips per wafer € 152,40
✓
16004

4″ (10cm) dia., 20 x 20mm diced Silicon Wafer

 10 chips per wafer € 152,40
✓
16005

4″ (10cm) dia., 20 x 30mm diced Silicon Wafer

 6 chips per wafer € 152,40
✓
Brand:

Product

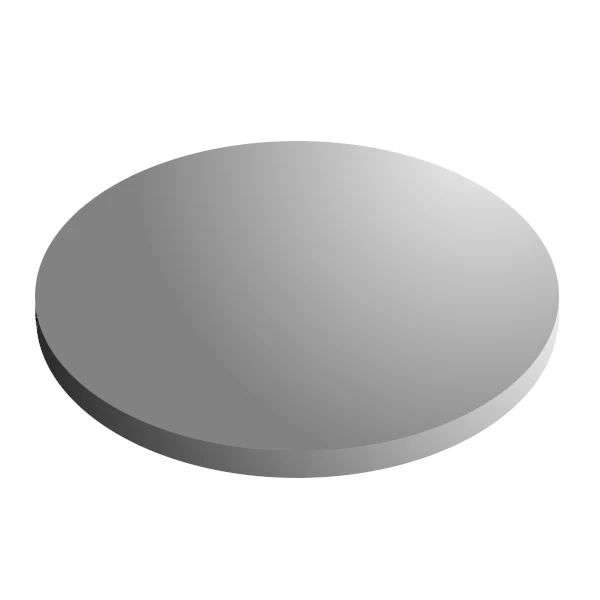

Silicon Nitride Coated and Silicon 3mm Disc
These 3mm Silicon discs have an ultra-flat (Ra 0.45 0.2nm) 50nm ultra-low-stress Silicon Nitride layer on both sides.
no. 21555-10 to 21558-10

Description

These 3mm Silicon discs have an ultra-flat (Ra 0.45 0.2nm) 50nm ultra-low-stress Silicon Nitride layer on both sides. Also available with a hydrophilic or hydrophobic surface coating or just as a silicon disk.
The disks are made with the same state-of-the-art manufacturing techniques as the PELCO Silicon Nitride Support Films.

The disk are perfectly round and have the Easygrip edge for easy handling.
Clean surface, no broken edges and free of debris often associated with other manufacturing processes.

The ultra-low-stress film is nonstoichiometric and closer to SiN than Si3N4. They can be used for a number of applications:

  • Specimen mounts for SEM and FESEM applications
  • Specimen discs for AFM applications
  • Blanks to build the PELCO Liquid Cell together with the PELCO Silicon Nitride Membrane

Product Specifications

  • Film Thickness: 50nm ultra-low-stress Silicon Nitride on both sides
  • Hydrophilic: 5nm atomic layer-deposited hydroxylated alumina on 50nm ultra-low-stress silicon nitride More Details
  • Hydrophobic: 5nm atomic layer-deposited alumina and fluoro-methylsilane on ultra-low-stress silicon nitride. More Details
  • Disk Thickness: 200 m silicon support
  • Disk Diameter: 3mm
  • Surface Roughness: The RMS (Rq) is 0.65 +/- 0.06nm which gives a mean roughness (Ra) of 0.45 +/- 0.02nm



Packaging: The PELCO Silicon Nitride Discs with hydrophilic or hydrophobic coating are packaged under cleanroom conditions. The discs are packed in a vial holding 10 discs.

MSDS

MSDS

Download Material Safety Data Sheet
Order

Art.Description Unit PriceQuantity
21555-10

PELCO Silicon Nitride Coated Discs, 3mm

 10 € 163,00
✓
21556-10

PELCO Silicon Nitride Coated Discs with hydrophilic coating, 3mm

 10 € 239,10
✓
21557-10

PELCO Silicon Nitride Coated Discs with hydrophobic coating, 3mm

 10 € 239,10
✓
21558-10

PELCO Silicon Discs, 3mm, No Coating

 10 € 145,90
✓
Brand:

Product
Cross Section AFM/STM Mounts
The Cross Section AFM/STM Mounts and AFM/STM Sample Holders offer a convenient way to clamp and position cross sectional samples for AFM imaging
no. 16213-1 to 16213-10

Description

Cross Section AFM/STM Mounts and AFM/STM Sample Holders

The Cross Section AFM/STM Mounts and AFM/STM Sample Holders offer a convenient way to clamp and position cross sectional samples for AFM imaging.
The holders are all made from high quality magnetic stainless steel (alloy 430) so they can be easily attached to the magnetic sample holder of the AFM system.

The small 12mm diameter, 4.5mm height and 3.5mm feature depth will make the cross section holders compatible with most AFM systems on the market.

Order

Art.Description Unit PriceQuantity
16213-6

90 AFM Sample Mount. Use (conductive) adhesive to mount specimen.

 Each € 41,80
✓
16213-10

90 AFM Sample Mount with Spring Clip to conveniently mount thin cross section sample

 Each € 70,40
✓
16213-4

Set Screw Vise to mount AFM samples up to 4mm thickness. Allen key for set screw included.

 Each € 72,60
✓
16213-1

Dual Set Screw Vise to AFM mount samples up to 1mm thickness. Allen key for set screws included.

 Each € 72,60
✓
Brand:

Product
Disc Punches
Punch circles from raw materials
no. 54740 - 54743

Description

Disc Punches

punch circles from raw materials

SEM: For placing adhesive tapes or sheet material on specimen mounts, punch a conveniently sized circle, prior to mounting.

TEM: Punch circles from ACLAR film for growing cells on a rod-type holder end for ultramicrotomy.
Thinner, 2mil ACLAR now available for easier punching.

Maximum thickness for punching: 1.7mm.

Order

Art.Description Unit PriceQuantity
54740

Disc Punch, 7.9mm circle (5/16″)

 Each € 91,50
✓
54741

Disc Punch, 9.5mm circle (3/8″)

 Each € 88,50
✓
54742

Disc Punch, 11mm circle (7/16″)

 Each € 94,60
✓
54743

Disc Punch, 12.7mm circle (1/2″)

 Each € 94,60
✓
Brand:

Product
PELCO Gold Coated Microscope Slide
High quality glass, standard microscope slides coated with 50nm of gold with a 5nm chromium adhesion layer between the glass slide surface and the gold coating.
no. 26002-G

Description

PELCO Gold Coated Microscope Slide

High quality glass, standard microscope slides coated with 50nm of gold with a 5nm chromium adhesion layer between the glass slide surface and the gold coating.
Can be used for a wide range of nanotechnology, biotechnology and AFM applications.

Also suitable as an opaque microscopy support.
Both Cr and Au are evaporated on the glass slide using a vacuum evaporation system.

The gold surface is not atomically flat, but has bumps in the nm range.
The gold slides are individually packed in a slide mailer. The gold slides are autoclavable.

Specifications:

  • Glass slide: 75 x 25mm , 1mm thickness, soda lime glass
  • Chromium adhesion layer thickness: 5nm
  • Gold layer thickness: 50nm (+/- 5nm)
  • Gold purity: 99.999%
Order

Art.Description Unit PriceQuantity
26002-G

Gold Coated 75 x 25mm Microscope slide, 50nm Au

 Each € 128,20
✓
Brand:
