Products
Conductive

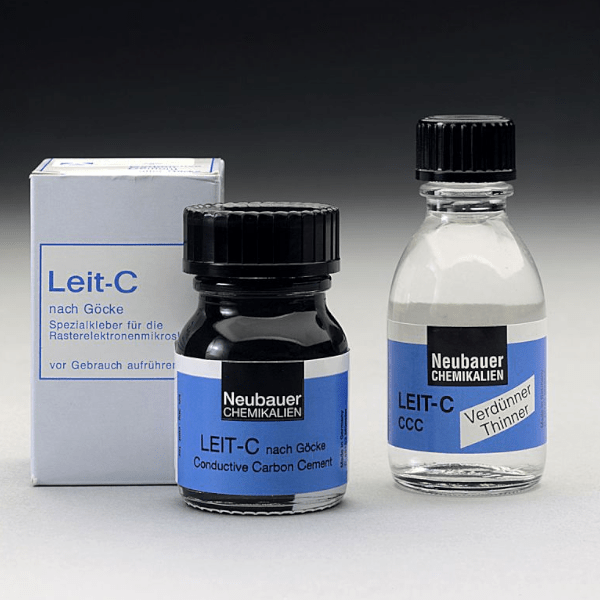

Conducting carbon cement (Leit-C)
This is a suspension of very fine conducting carbon particles in a volatile carrier, suitable for forming conducting bonds between specimens and stubs.
These products are Highly flammable and Irritants.
Technical Note
 |
Download Technical Note |
MSDS
|
Download Material Safety Data Sheet – G3300 Leit-C |
 |
Download Material Safety Data Sheet – G3300A Leit-C Thinners |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G3300 | Conducting carbon cement (Leit-C) |
30ml | € 87,70 | ||
| G3300A | Leit C Thinners 30ml |
30ml | € 21,20 |

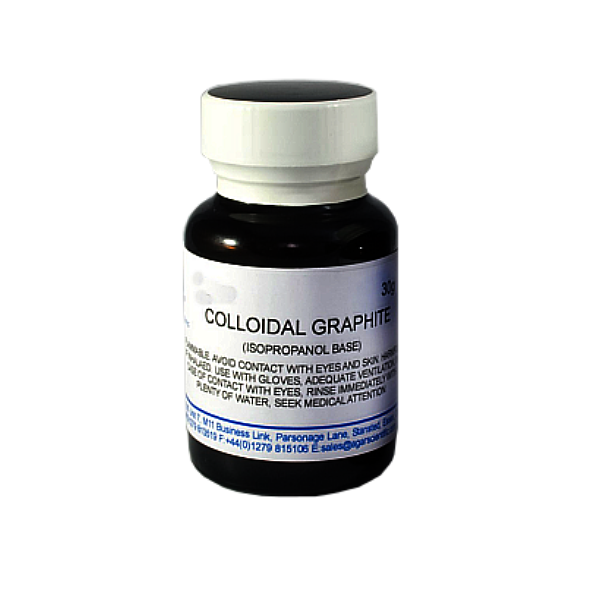

PELCO Isopropanol Based Graphite Paint
Conductive graphite paint, primarily designed for SEM sample preparation.
The graphite flakes, with an average size of 1 m, are bonded by a cellulose resin with isopropanol as diluent.
Good bonding properties on most materials. Graphite content is 20%. Ideal to mount samples on sample stubs or to make a conductive path to the sample surface.
Let fully dry before using in the SEM. Maximum service temperature: 200 °C.
Use Graphite Paint Extender to dilute when needed.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16053 | PELCO Conductive Graphite, Isopropanol base * |
30g | € 11,80 | ||
| 16053-20 | PELCO Conductive Graphite, Isopropanol base, Squeeze Bottle* |
20g | € 10,30 | ||
| 16054 | Graphite Paint Extender, 30ml * |
30ml | € 12,50 |

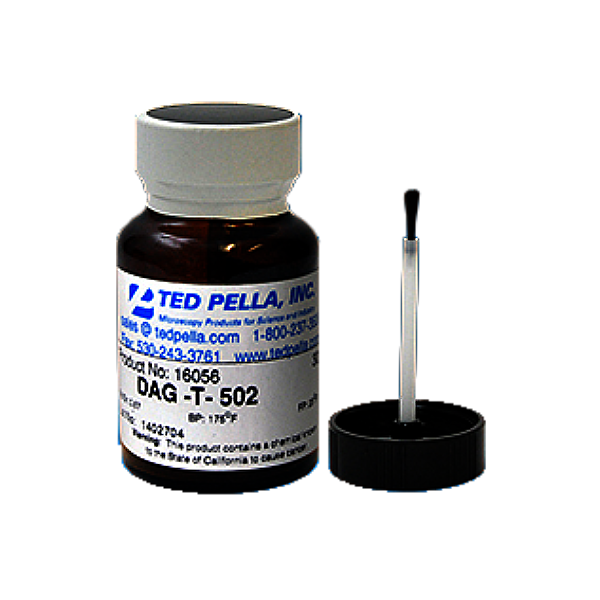

DAG-T-502 Carbon Paint
one component, ready to use; formerly called Electrodag 502
Provides conductivity for SEM non-conductive samples which require grounding.
DAG-T-502 is a combination of specially processed carbon particles in a fluoroelastomer resin system providing good conductivity.
This carbon cement remains flexible over a temperature range of -40 C to 260 C and cures at room temperature. 502 resists oxidation and has good adhesion qualities.
The diluent is methyl ethyl ketone (MEK) and has fluid consistency.
Acetone (#16023) can be used as a thinner/extender or as a cleaner.
Solids content is 12.6%. Service temperature range is -40 °C to 260 °C.
The specimen mount surface should be clean and dry before application. Keep the container tightly capped when not in use and avoid breathing the vapor.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16056 | DAG-T-502 Carbon Paint * |
30g | € 20,60 | ||
| 16023 | Acetone, Thinner/Extender/Cleaner |
30ml | € 9,80 |

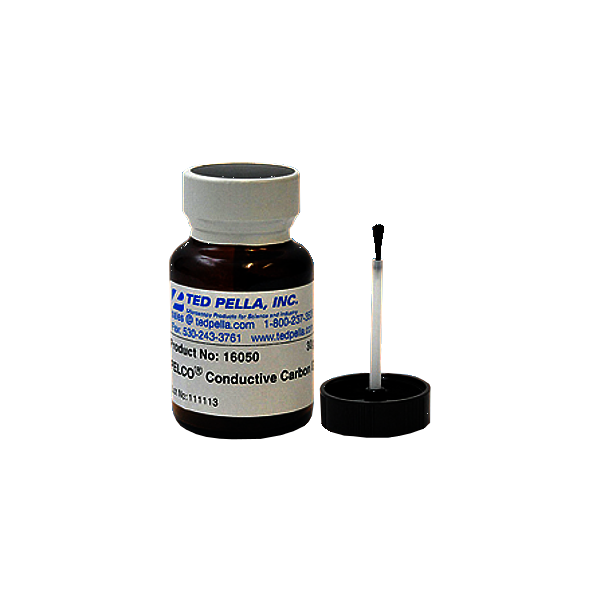

PELCO Conductive Carbon Glue
Conductive carbon glue with an acrylic binder. The acrylic binder provides a much stronger bond than water or isopropanol based carbon paints.
This carbon glue forms a thin, conductive and flexible layer with excellent adhesion on a wide variety of substrates.
Ideally suited for conductive bonding or conductive painting where a strong bond and good conductivity is required.
Let air dry or speed up heating up to max. 65 C (149 F).
Supplied in a bottle with a brush, 30g.
Acetone (#16023) can be used as thinner/extender or as a cleaner to remove the carbon glue.
- Service Temperature: -40 to +120 °C (-40 to +248 °F)
- Solid Contents (graphite and carbon black): 39%
- Flake size: 5-10 µm
- Binder: Acrylic
- Carrier: Acetone based
- Sheet resistance: 47 ohm/sq
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16050 | PELCO Conductive Carbon Glue * |
30g | € 28,50 |

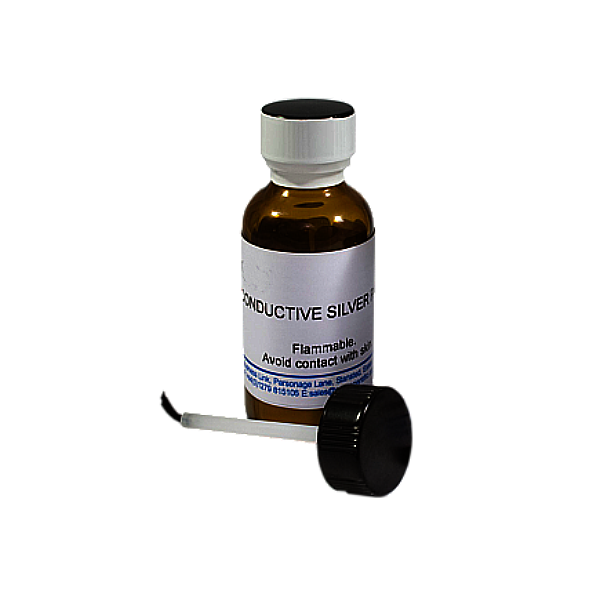

PELCO Conductive Liquid Silver Paint
a reliable conductive ground path for SEM specimens
Air drying silver paint to make effective ground. Curable at room temperature and has high adhesion to any material.
Surfaces do not have to be prepared prior to application and will adhere to such materials as polymer (phenolic) boards, ceramic, glass, metal, plastic and fiberglass.
It should be mixed well with a spatula before using.
RoHS compliant.
The container is offered in two sizes (15g and 30g) and is provided with an applicator brush.
Silver flake grain size is an average of 80%, <1.0 m.
Sheet resistance is 0.02 ohms per square @ 1 mil (0.001 = 0.025mm) thickness and is a function of the coating.
Service temperature range is -40 °C to 200 °C.
Use #16021 gold/silver thinner/extender to dilute when needed.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16031 | PELCO Colloidal Silver * |
30g | € 131,60 | ||
| 16021 | PELCO SEM-Gold/Silver Extender |
25ml | € 14,00 | ||
| 16034 | PELCO Colloidal Silver * |
15gr | € 72,60 |

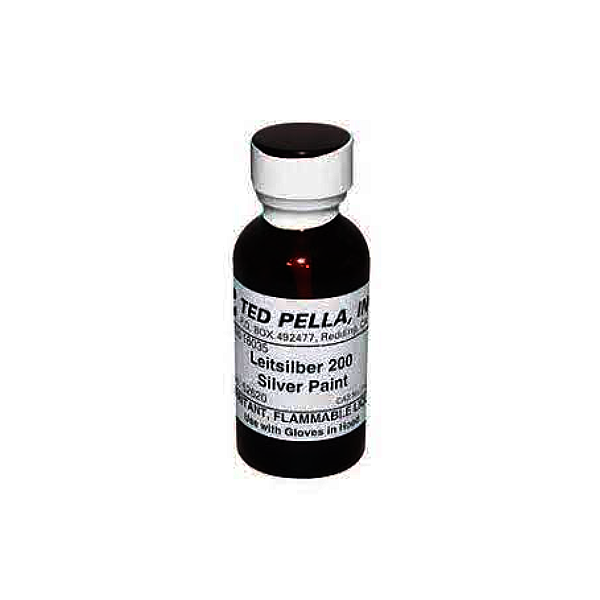

“Leitsilber” Conductive Silver Cement
a reliable conductive ground path for SEM specimens
Leitsilber is fast drying and has a flat surface texture.
Silver content 45%, Resistance: 0.02 – 0.04 ohms/square.
Drying time ~10 minutes at 20 °C.
Application can be by brush, dipping or spraying.
Acetone (#16023) can be used an extender/thinner or as a cleaner to remove the silver paint.
Maximum grain size: 16 m
Maximum service temperature: 120 °C
Consumption rate: 0.6 – 2g per 100cm2
Refrigerate for best life. Bring to room temperature gradually
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16035 | Leitsilber 200 Silver Paint * |
30g | € 144,50 |

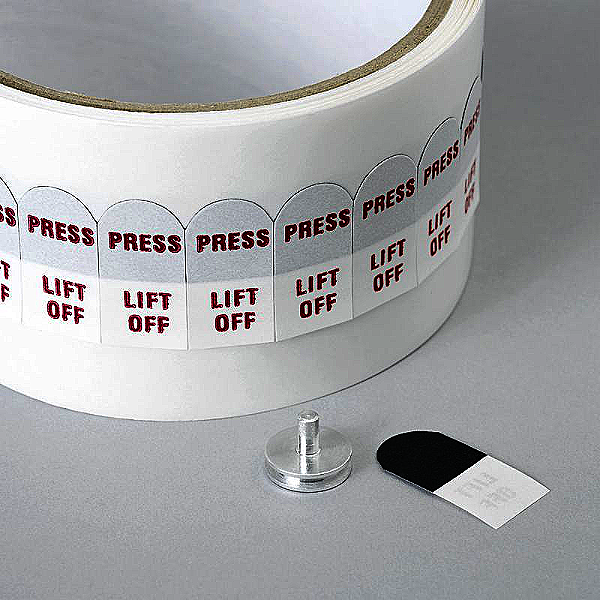

Composed of a thin film of strong conductive adhesive approx. 1/2″ (12.7mm) dia. on one side and square on the other side.
With 0.6% nickel and <0.3% copper content.
To apply, place “Press” portion of tab on SEM mount surface, lift “Lift Off” tab and peel, slightly rotating tab when lifting.
Can be cut to size as desired.
SEM mounts not included.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16083 | Conductive Lift-N-Press, roll |
250 | € 126,80 |

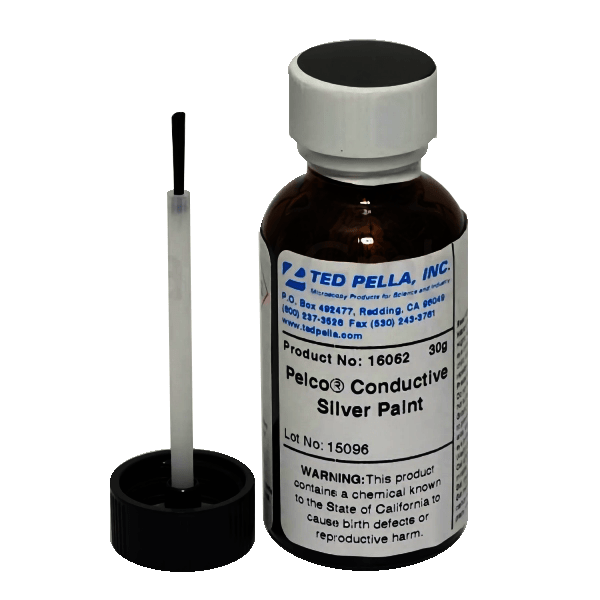

PELCO Conductive Silver Paint
A highly conductive silver paint with an acrylic binder. High purity silver flakes, fast drying with a low VOC content.
The fast drying silver paint forms a thin, highly conductive and flexible layer.
Ideally suited to form conductive paths or conductive bonding for SEM sample preparation.
Durable acrylic resin minimizes metallic loss, flakes ensure maximum conductivity.
Other applications are conductive paths for electronic components and EMI/RFI shielding.
Excellent adhesion to most nonconductive materials such as plastics, ceramics, wood, glass, epoxies and most metals.
Supplied in a 30g bottle with brush or 15g bottle without brush. Acetone (#16023) can be used as thinner/extender or as a cleaner.
- Service Temperature -40 to +120 °C (-40 to +248 °F)
- Solid contents (silver): 73%
- Binder: Acrylic
- Carrier: Acetone based
- Sheet resistance: 0.066 ohm/sq
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16062-15 | PELCO Conductive Silver Paint * |
15gr | € 72,60 | ||
| 16062 | PELCO Conductive Silver Paint * |
30g | € 124,70 |
PELCO Colloidal Silver Paste, Conductive
Ideal where a nonflowing paste is needed for special applications.
Particle size: 0.4-1.0 m, 80% are below 1.0 m.
Cures in 16-20 hours, or 30 minutes @125-150 °C.
Clear lacquer base.
Approximate Specific Gravity 2.25g/cc3. Service temperature = 200 °C.
Use #16021 gold/silver thinner/extender to dilute if needed.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16032 | PELCO Colloidal Silver Paste * |
25g | € 117,80 | ||
| 16032-20 | PELCO Colloidal Silver Paste, Squeeze Bottle * |
20g | € 80,70 |

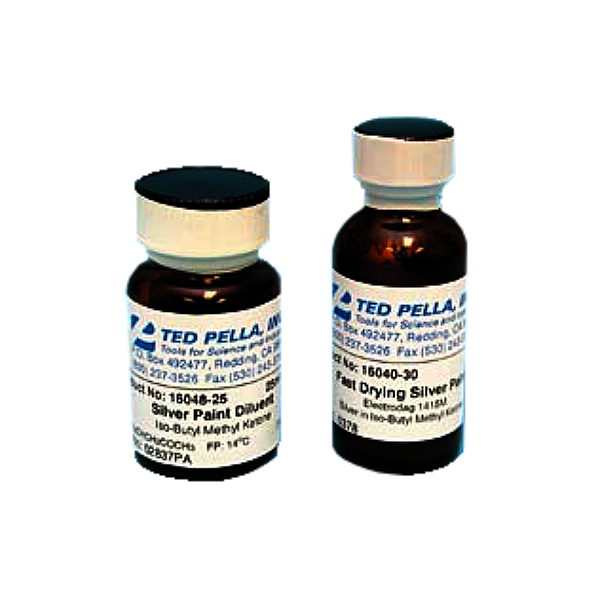

Fast Drying Silver Paint
This very fine flake silver is suspended in iso-butyl methyl ketone (4-methylpentan-2-one) and forms a thin, smooth, highly conductive silver film which is both adherent and flexible.
Fast drying silver suspension has been specifically designed to give increased coverage while maintaining a very high conductivity.
- Service Temperature: 105 °C (225 °F)
- Solids content (silver): 57.5 to 59%
- Binder: Thermoplastic resin
- Carrier: methyl iso-butylketone
- Sheet resistance (on Lexan panels, dried 30 min/70 °C): <0.015 ohms/sq/mil (25 m)
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16040-30 | Fast Drying Silver Paint,* |
30g | € 133,50 | ||
| 16048-25 | Silver Paint Diluent * |
25ml | € 12,30 |

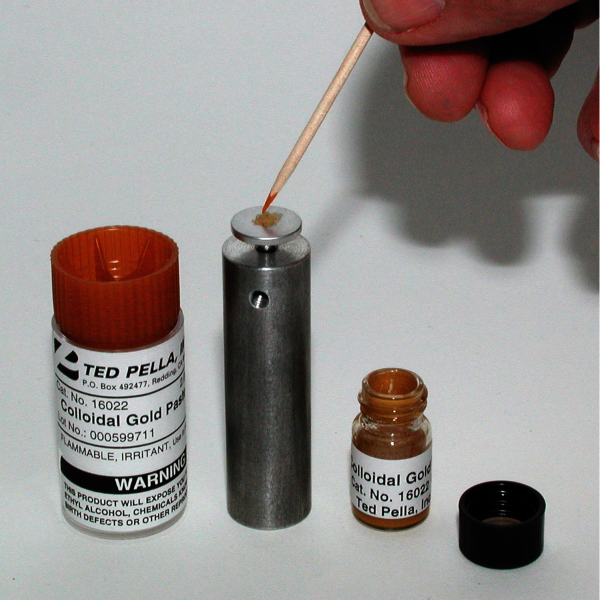

PELCO Conductive Gold Paste
resistant to oxidation and retains measurement integrity over time
Gold paste is fast drying and useful for analytical analysis over time where a high signal is desired.
The gold is in microfine form and contains organic binders and a solvent.
Dries at room temperature.
Not intended for permanent use, but for testing and temporary work.
Sheet resistance is .02 to .05 ohm/sq @ 1 mil thickness.
Contacts hold down to very low temperatures (<-200 °C), but are not permanent since this type of product has low mechanical strength.
75% gold content; sphere size <2 m, flake size <10 m.
Maximum service temperature is 65 °C.
Refrigerate for best life.
Bring to room temperature gradually.
Approximate calculated specific gravity 3.18g/cm3.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16022 | PELCO Conductive Gold Paste |
2g | € 391,20 |

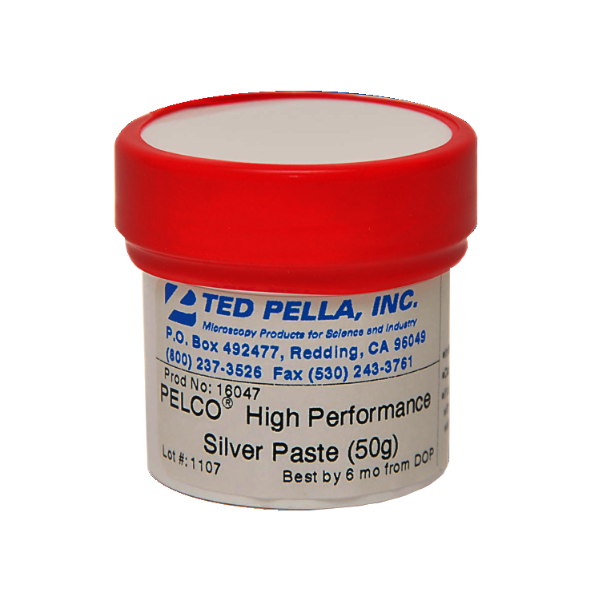

PELCO High Performance Silver Paste
Silver flakes in an inorganic silicate aqueous solution, specially formulated adhesive for demanding bonding applications such as:
- High temperature up to 927 C (1700 F)
- Ultra high vacuum – no hydrocarbon, no VOC’s
- Cryogenic temperatures (suitability depends on matching properties)
The excellent thermal and electrical conductivity, coupled with the absence of hydrocarbons, makes this product ideal for demanding specimen preparation in FESEM, XPS, ESCA, SIMS, Auger and other applications. PELCO.
High Performance Silver Paste provides both high electrical and thermal conductivity with a silver particle size of 20 m.
Silver content >60% by weight.
Cures at room temperature, but requires a 2 hour cure at 93 °C (200 °F) to achieve high conductivity and strong bond.
Must be fully cured before using this product at cryogenic temperatures.
Soluble in water to 260 °C (500 °F). Above this temperature it becomes almost insoluble.
Technical Note
 |
Download Technical Note |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16047 | PELCO High Performance Silver Paste |
50g | € 470,60 |

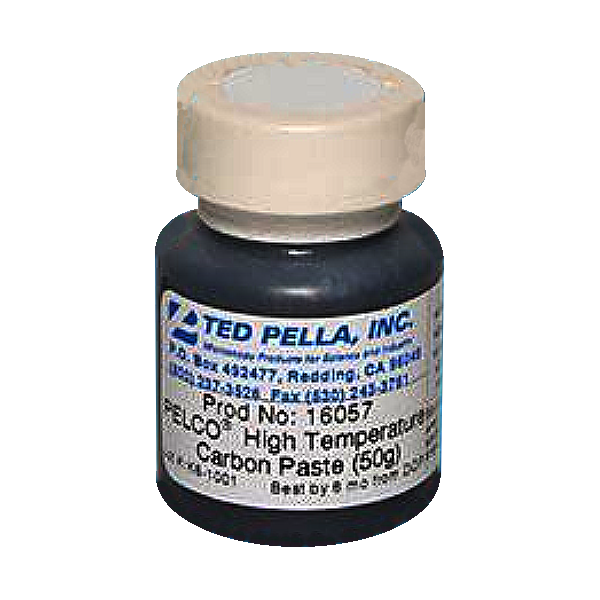

PELCO High Temperature Carbon Paste
Carbon flakes in an inorganic silicate solution for bonding resisting up to 2000 C.
The PELCO High Temperature Carbon Paste is aimed for applications where a conductive cement is needed which withstand temperatures up to 2000 °C (3632 °F).
This paste is ideally suited for mounting specimens on hot stages for SEM , FESEM, XPS, ESCA, SIMS and AUGER systems.
Also for applications where silver migration or a reaction with silver or nickel flakes could be a problem, this product would be an excellent alternative.
Carbon content is 50-60% by weight in an inorganic silicate aqueous solution.
Conductivity in cured state is 4.6 ohm/square/mil. Must be fully cured to achieve good conductivity and strong bond.
Soluble in water to 260 °C (500 °F).
Cure schedule is: air dry at room temperature for 2-4 hours, step cure at 93 °C (200 F) and final cure at 260 °C (500 °F).
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16057 | PELCO High Temperature Carbon Paste |
50g | € 88,00 |

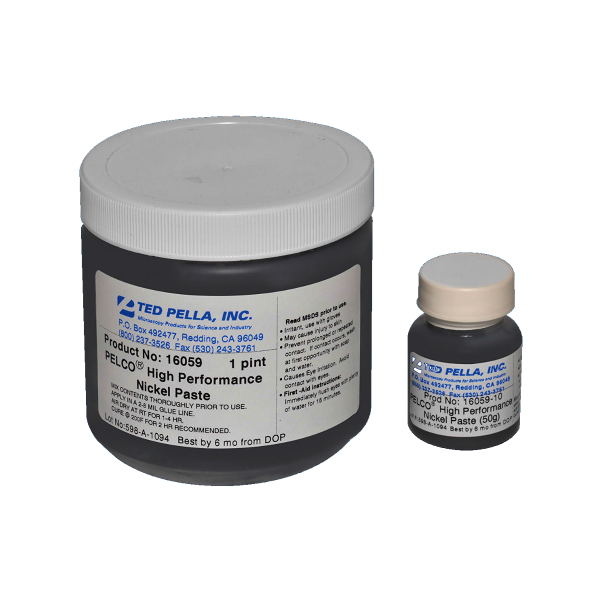

PELCO High Performance Nickel Paste
Nickel flakes in an inorganic silicate aqueous solution providing a conductive adhesive for bonding applications such as:
- High temperature up to 538 °C (1000 °F)
- Ultra high vacuum – no hydrocarbon, no VOC’s
- Cryogenic temperatures (suitability depends on matching properties)
The good thermal and electrical conductivity of this adhesive, coupled with the absence of hydrocarbons, makes this product suitable for demanding specimen preparation in surface science and SEM applications.
Nickel particle size is 20 m, nickel content is >60%.
The PELCO High Performance Nickel Paste needs to be cured for 2 hours at 93 °C (200 F) to achieve final electrical and mechanical properties.
It is soluble in water to 260 °C (500 °F), above this temperature it becomes almost insoluble.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16059-10 | PELCO High Performance Nickel Paste * |
50g | € 68,80 | ||
| 16059 | PELCO High Performance Nickel Paste, 1 pint (approx. 1kg) * |
Each | € 442,50 |

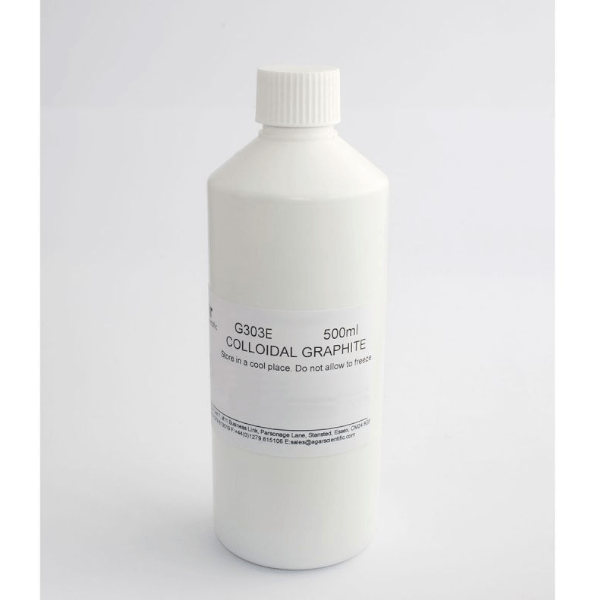

Product Description
Aquadag is a dispersion of the purest and finest colloidal graphite in water. It may be painted on to surfaces to provide continuous, adherent, dry films of graphite or used to form conductive paths.
It is a concentrate and is generally diluted with distilled, soft or de-mineralised water before use.
The fineness, purity and excellent suspension properties of the graphite particles enable the diluted product to be employed in an extensive range of applications for which lower grade dispersions and graphite powder are unsuitable.
This new formula has reduced levels of ammonia, along with an improved manufacturing process which delivers a more environmentally safe product.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G303E | Aquadag Colloidal Graphite – ECO |
500g | € 41,90 |

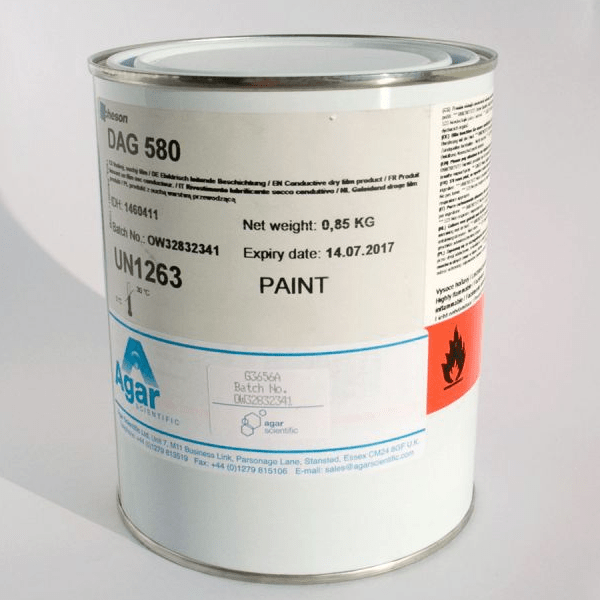

DAG 580 is a graphite lubricant which forms a thin, dry film.
It has very low friction properties and is ideal for use as a substitute for oil or grease on lightly loaded bearing surfaces, as it does not attract dust particles.
It is electrically conductive, and is effective up to temperatures of 500 °C. 0.85kg
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G3656A | DAG 580 dry film lubricant |
850g | € 105,60 |

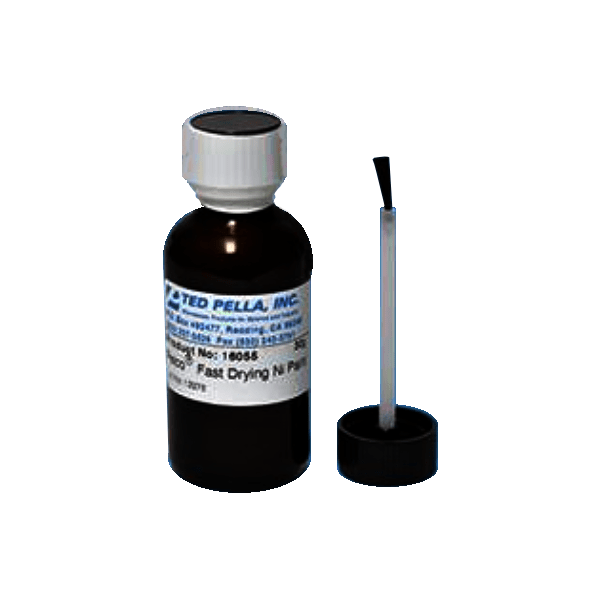

PELCO Conductive Nickel Paint
Conductive nickel paint with an acrylic binder. High purity nickel flakes (8-13 m), fast drying with a VOC content of 27.5%.
The fast drying nickel paint forms a thin, conductive and flexible layer with good adhesion on most substrates.
Can be used to form conductive paths, conductive bonding or conductive painting where silver can’t be tolerated, but where high conductivity is required.
The conductivity of this nickel cement paint is approximately 20x better than graphite paint and approximately 10% of silver paint.
The high oxidation resistance of pure Nickel ensures a long-term conductivity.
Nickel is a magnetic material, not suitable for high resolution SEM imaging close to the pole piece in most SEMs.
Supplied in a bottle with a brush, 30g. Acetone (#16023) can be used as thinner/extender or as a cleaner to remove the nickel paint.
- Service Temperature: -40 to +120 °C (-40 to +248 °F)
- Solid contents (nickel): 47-52%
- Binder: Acrylic
- Carrier: Acetone based
- Sheet resistance: 0.7 ohm/sq
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16055 | PELCO Conductive Nickel Paint * |
30g | € 30,10 |

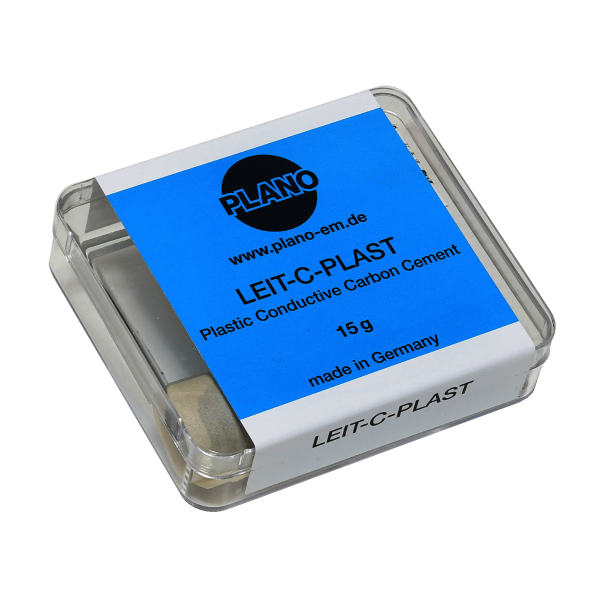

Leit-C-Plast
carbon base, good conductivity, large specimens
Leit-C-Plast is a conductive adhesive paste that can be molded to provide conductive paths to larger non-conductive samples when mounted on a specimen holder for SEM studies.
The plasticity is permanent. It is not affected by high vacuum conditions and shows no peaks in energy dispersive X-ray microanalysis.
Heavy specimens may also be prepared for viewing in a SEM using Tempfix (or the Glue Gun – see details in our non-conductive section) and Leit-C-Plast.

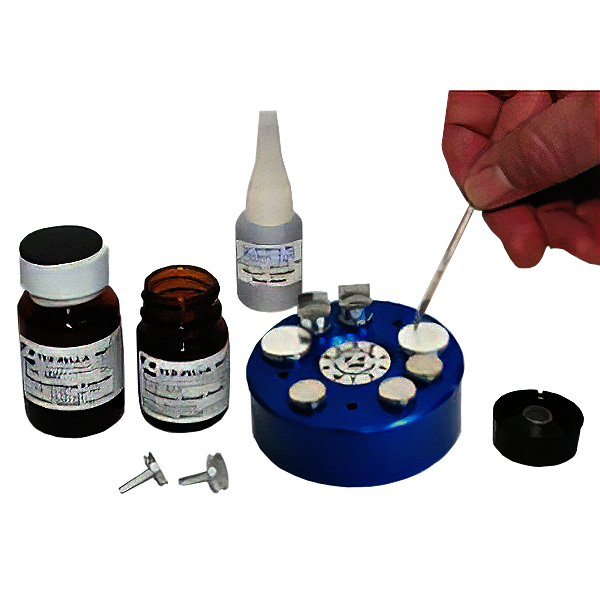

First the specimen is fixed into place with Tempfix or the Glue Gun.
Afterward, an electrically conductive bridge is made between specimen mount and specimen using Leit-C-Plast.
It is not required to wait for drying because neither adhesive outgasses.
Leit-C-Plast was originally developed for holding specimens on angled specimen holders.
The adhesive is offered in a roll form and is black.
Flat plates are provided for working the material.
May be applied with a spatula.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| G3302 | Leit-C-Plast™ * |
15gr | € 84,60 |

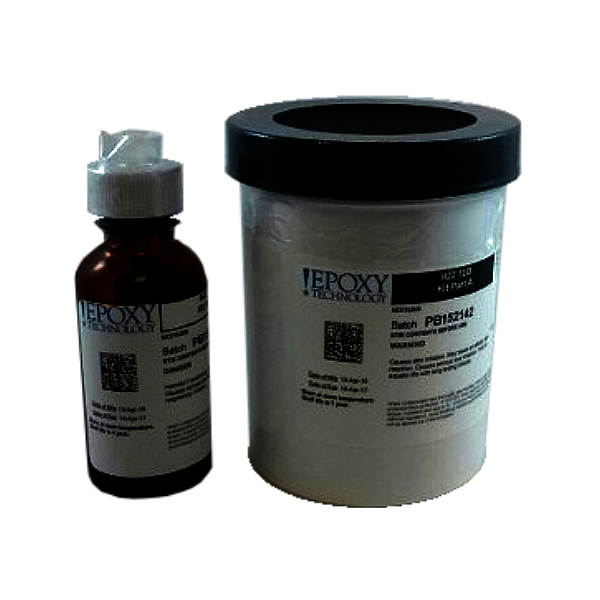

Silver Conductive Epoxy, H-22 EPO-TEK
Two component, silver-filled epoxy system, consisting of a silver resin paste and a liquid hardener (100:4.5).
It is a free flowing paste, 100% solids system characterized by outstanding high temperature properties as well as excellent solvent, chemical and moisture resistance.
It has a long pot life and is fast curing at relatively low temperatures.
Containing no solvents or thinners; it will not outgas.
It can be applied by brush, spatula or hypodermic needle. H-22 can be useful for small angle cleavage in material science and semi-conductor applications.
EPO-TEK silver content is 60% by weight of composition.
NASA approved passes NASA low outgassing standard ASTM E595 with proper cure.
Note: Mixing ratio for this product is 100 parts silver resin paste to 4.5 parts liquid hardener.
| Properties | Cure Schedule (minimum bond temperature/time) | |||
|---|---|---|---|---|
| Color | silver | 150 °C | 5 minutes | |
| Consistency | smooth, flowing paste | 120 °C | 10 minutes | |
| Sheet resistance | 2 ohms/sq/mil | 100 °C | 20 minutes | |
| Refrigeration | not required | 80 °C | 45 minutes | |
| Viscosity | High (20,000cps) | |||
Technical Note
|
Download Technical Note |
|
Download Guide to working with Epoxies |
|
Download Reworking Cured Epoxy |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16016 | Silver Conductive Epoxy, H22 EPO-TEK |
28,35g | € 421,00 |

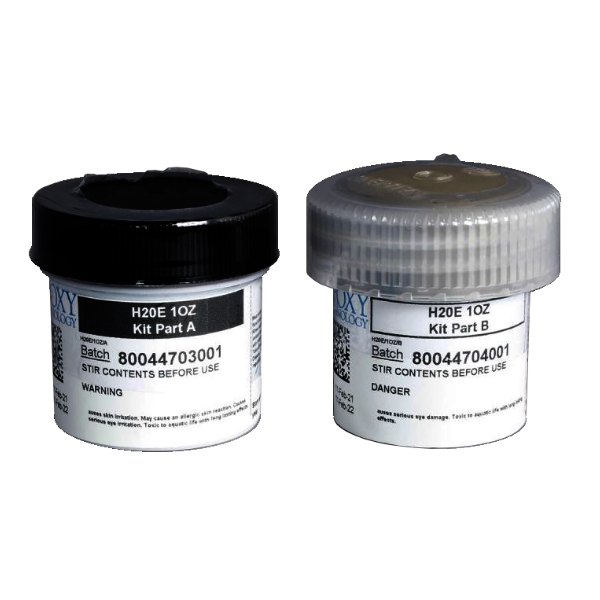

Silver Conductive Epoxy, H2OE EPO-TEK
Two component, silver filled, epoxy system consisting of a silver resin paste and a silver resin hardener (1:1).
It is a smooth, thixotropic paste, 100% solids system characterized by outstanding high temperature properties and excellent solvent, chemical and moisture resistance.
It has a long pot life and is fast curing at relatively low temperatures.
Will withstand 200 °C for 1,000 hours.
Containing no solvents or thinners, it will not outgas. H20E is ideal for electronic applications.
Cures rapidly. Easy to use; the pure silver powder is dispersed in both the resin and the hardener so that it can be used in a convenient 1:1 mixing ratio.
Non-toxic complies with USP Class VI Biocompatibility standards.
NASA approved passes NASA low outgassing standard ASTM E595 with proper cure. Ref: http://outgassing.nasa.gov.
Refrigerationnot required
| Properties | Cure Schedule (minimum bond temperature/time) | |||
|---|---|---|---|---|
| Color | bright silver | 175 °C | 45 seconds | |
| Consistency | smooth, thixotropic paste | 150 °C | 5 minutes | |
| Sheet resistance | 0,16 ohms/sq/mil | 120 °C | 20 minutes | |
| Continuous Operating temperature | 200 °C | 100 °C | 2 hours | |
| Degradation Temperature | 410 °C | 80 °C | 3 hours | |
| Viscosity | Low (2000cps) | |||
Technical Note
 |
Download Material Technical Note |
 |
Download Guide to working with Epoxies |
|
Download Reworking Cured Epoxy |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16014 | Silver Conductive Epoxy, H20E EPO-TEK |
28,35g | € 514,00 |

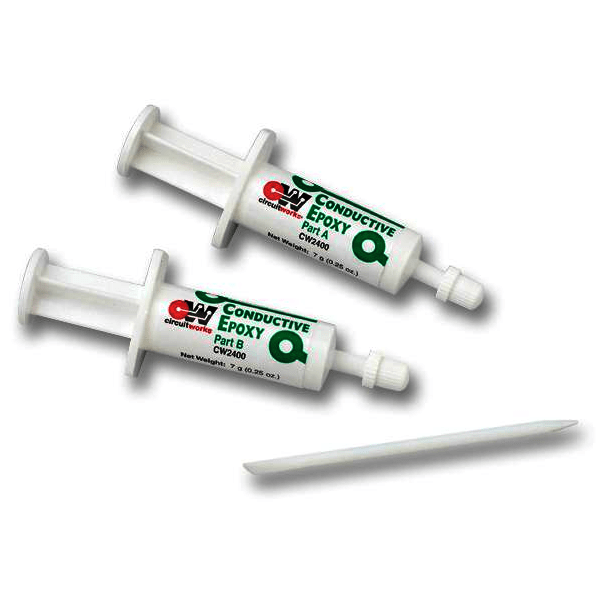

Silver Conductive Epoxy
Strong, highly conductive epoxy for solderless connections and repairs of circuit boards, static discharge shielding, grounding and conductive paths.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16043 | Silver Conductive Epoxy |
14g | € 175,20 |

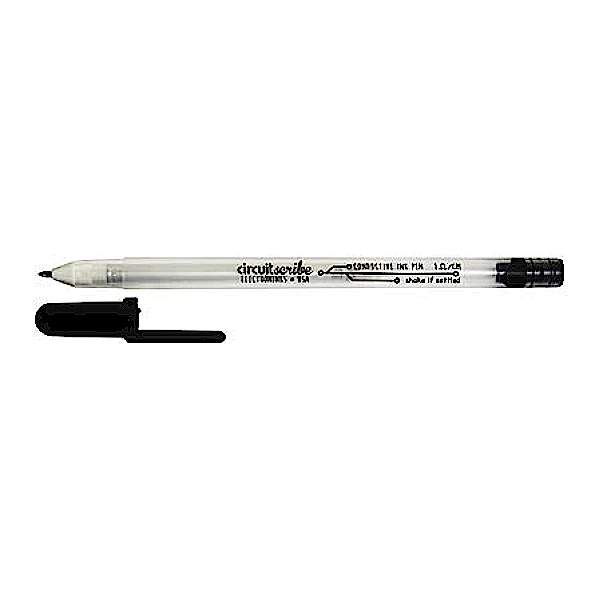

Circuit Repair
with handy Silver Conductive Pens
Draws highly conductive silver traces, jumpers and shielding with high precision.
- Instantly creates conductive silver traces
- Dries in minutes at room temperature
- Valved pen tip for easy application
- Can be soldered at low temperature
- Speeds prototype and design
- Choice of tip sizes
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16041 | Silver Conductive Pen, Standard, Standard Tip (1mm) |
Each | € 107,80 | ||
| 16042 | Silver Conductive Pen, Standard, Micro Tip (0.7mm) |
Each | € 85,80 |

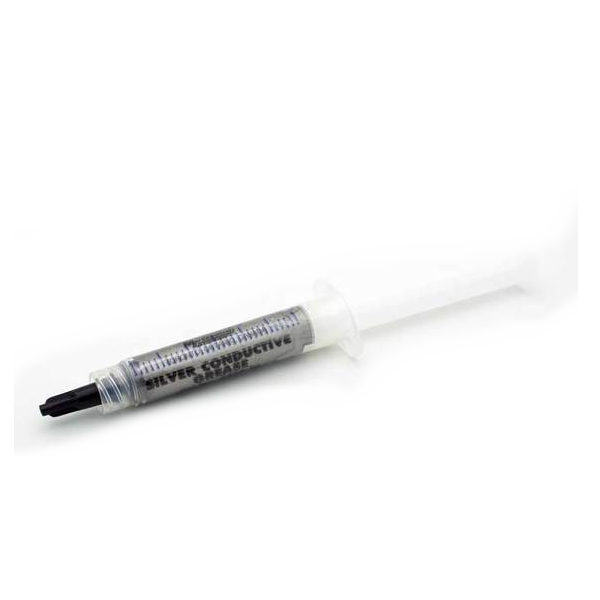

Conductive Silver Grease
This conductive silver grease provides antistatic conductivity paired with excellent thermal conductivity between sliding surfaces.
At the same time it provides protection from corrosion and moisture and reduces mechanical wear.
Exhibits excellent lubrication properties and superb chemical resistance.
Typical applications include lubrication of vacuum transfer rods (airlock on SEM), static grounding on seals or O-rings, heat dissipation and lubrication of switches and circuit breakers. Paste like consistency.
Service temperature range is -50 °C to 200 °C (-58 °F to 392 °F).
Packaging size is 7 grams in a syringe for easy application.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16052 | Conductive Silver Grease * |
7g | € 65,30 |

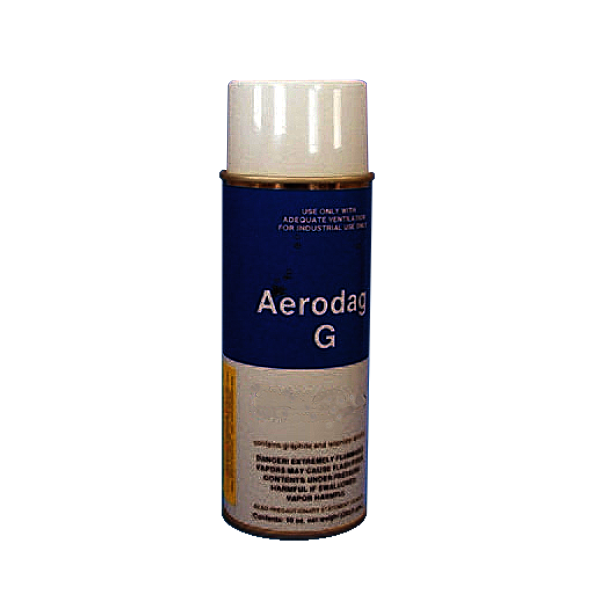

Graphite Aerosol Lubricant
Bonderite L-GP formerly known as Aerodag G; same product now with new label
Excellent lubrication properties when sprayed on surfaces or in mechanisms such as locks, sliders and hinges.
Works well on most plastics. Can be used in vacuum systems when dry.
Other applications are conductive spray for non-conductive SEM specimen to enable imaging at low magnification and making plastics conductive for plating.
Sold in 10 oz. (284g) spray can.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 16058 | Graphite Aerosol * |
284g | € 71,50 |
