Membrane Boxes
Store/Ship/Transfer delicate, sensitive articles between soft elastic membranes
Polystyrene plastic boxes with micro thin, flexible polyurethane membranes top and bottom.
The plastic membranes form around the enclosed object and hold it securely.
Small products or large may be held firmly within various box sizes. Semiconductor, machine parts, electron microscopy parts or materials, samples, and many other applications.
Note: Membrane area listed is actual area.
The item(s) held in the membrane area must be smaller than the membrane area, depending on the thickness of the item(s) held.

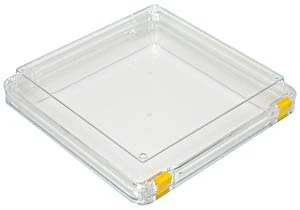

139-66 and 139-67 are double hinged with two yellow clips
139-51 and 139-52 have two separable parts held together with two clear clips, 180° apart
139-58 is double hinged with one yellow clip, shown holding a silicon wafer – a similar construction to 139-56 and 139-63.
139-62 and 139-64 are single hinged with one yellow clip.

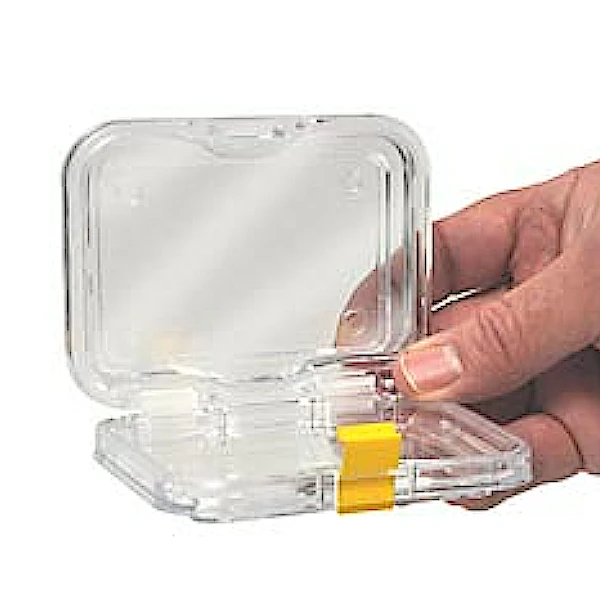

139-63Demonstrating double hinged with one yellow clip, in open position.
139-61 is opened by pressing in on both sides of lid
139-61 membrane box with lid in place
139-61 has a separable membrane lid that forms a snug fit when pushed/snaped onto the membrane base, no hinges, latches or clips are used. Press both sides to un-snap and remove lid.
Two Part – press together
Outside Dimensions: 55 x 55 x 25mm H
Membrane Area: 45 x 45 mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-55 | Membrane Box, 55mm Square x 25mm H |
12 | € 46,20 |
Plastic Membrane Boxes
Two Part – press together
Outside Dimensions: 38 x 38 x 16mm H
Membrane Area: 31.8 x 31.8mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-50 | Membrane Box, 38mm Square x 16mm H |
12 | € 74,40 |
Plastic Membrane Boxes
Two Part – two clear clips
Outside Dimensions: 82mm dia. x 40mm H
Membrane Area: 69.9mm dia.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-51 | Membrane Box, Round, 82mm dia. x 40mm H |
Each | € 33,40 |
Plastic Membrane Boxes
Two Part – two clear clips
Outside Dimensions: 82mm dia. x 17.5mm H (3.22″ dia. x .69″ H)
Membrane Area: 69.9mm dia
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-52 | Membrane Box, Round, 82mm dia. x 17.5mm H |
Each | € 31,20 |
Plastic Membrane Box
Two Part – press together
Outside Dimensions: 71 x 71 x 12mm H
Membrane Area: 60 x 60mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-59 | Membrane Box, 71mm Square x 12mm H |
Each | € 14,40 |
Plastic Membrane Box
Two Part – press together
Outside Dimensions: 39.6 x 79.4 x 19mm H
Membrane Area: 25.4 x 66.7mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-60 | Membrane Box, Rectangular, 39.6 x 79.4 x 19mm H |
Each | € 17,00 |
Plastic Membrane Box
Two Part – snap together/press to remove
Outside Dimensions: 50 x 160 x 30mm H
Membrane Area: 30 x 140mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-61 | Membrane Box, Snap Together, Rectangular, 50 x 160 x 30mm H |
Each | € 25,00 |
Plastic Membrane Box
Double Hinged – one yellow clip
Outside Dimensions: 75 x 124 x 26.7mm H
Membrane Area: 60.5 x 114.3mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-56 | Membrane Box, Hinged, Rectangular, 75 x 124 x 26.7mm H |
Each | € 38,10 |
Membrane Box
Single Hinged – one yellow clip
Outside Dimensions, Assembled: 100 x 50 x 25mm H
Membrane Area: 30 x 90mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-62 | Membrane Box, Hinged, Rectangular, 100 x 50 x 25mm H |
Each | € 27,80 |
Membrane Box
Double Hinged – one yellow clip
Outside Dimensions, Assembled: 100 x 75 x 25mm
Membrane Area: 60 x 90mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-63 | Membrane Box, Hinged, Rectangular, 100 x 75 x 25mm H |
Each | € 40,30 |
Membrane Box
Single Hinged – one yellow clip
Outside Dimensions, Assembled: 100 x 50 x 50mm H (4″ x 2″ x 2″ H)
Membrane Area: 30 x 90mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-64 | Membrane Box, Hinged, Rectangular, 100 x 50 x 50mm H |
Each | € 40,30 |
Membrane Box
Double Hinged – two yellow clips
Outside Dimensions, Assembled: 197 x 197 x 49mm H (7.75″ x 7.75″ x 1.94″ H)
Membrane Area: 180 x 187mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-66 | Membrane Box, Hinged, Square, 197 x 197 x 49mm H |
Each | € 59,20 |
Membrane Box
Double Hinged – one yellow clip
Outside Dimensions: 149 x 149 x 51.8mm
Membrane Area: 133.4 x 138.2mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-58 | Membrane Box, Hinged, 149mm Square x 51.8mm H |
Each | € 55,40 |
Membrane Box
Double Hinged – two yellow clips
Outside Dimensions, Assembled: 175 x 125 x 50mm H
Membrane Area: 150 x 100mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-67 | Membrane Box, Hinged, 149mm Square x 51.8mm H |
Each | € 51,30 |
Membrane Box
Clear Replacement Clips
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-51-10 | Clear Replacement Clips for Membrane Box 139-51 and 139-52 |
10 | € 5,90 |
Membrane Box
Replacement Yellow Clips and Hinges for Hinged Boxes
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 139-57 | Yellow Clips for Hinged Boxes (139-56, 139-58, 139-62, 139-63, 139-64, 139-66) |
10 | € 8,00 | ||
| 139-54 | Clear Hinges for Hinged Boxes (139-56, 139-58, 139-62, 139-63, 139-64, 139-66) |
10 | € 8,80 |
