Products
Microscope Slide Coverslips
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260298 | Cover Glass, #1, 5mm dia. |
100 | € 38,10 | ||
| 260367 | Cover Glass, #1, 10mm dia. |
1 oz | € 373,20 | ||
| 26020 | Cover Glass, #1, 12mm dia. |
1 oz | € 283,30 | ||
| 26023 | Cover Glass, #1, 12mm dia. |
1/4 oz | € 80,50 | ||
| 26021 | Cover Glass, #1, 15mm dia. |
1 oz | € 132,90 | ||
| 26024 | Cover Glass, #1, 15mm dia. |
1/4 oz | € 38,70 | ||
| 26022 | Cover Glass, #1, 18mm dia. |
1 oz | € 97,60 | ||
| 260369 | Cover Glass, #1, 22mm dia. |
1 oz | € 157,80 | ||
| 260372 | Cover Glass, #1, 25mm dia. |
1 oz | € 98,00 | ||
| 260372-40 | Cover Glass, #1, 40mm dia. |
1 oz | € 205,90 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260368 | Cover Glass, #1.5, 10mm dia. |
100 | € 130,10 | ||
| 260368-12 | Cover Glass, #1.5, 12mm dia. |
1 oz | € 246,00 | ||
| 26023-13 | Cover Glass, #1.5, 13mm dia. |
100 | € 38,90 | ||
| 260368-15 | Cover Glass, #1.5, 15mm dia. |
1/4 oz | € 189,40 | ||
| 260368-18 | Cover Glass, #1.5, 18mm dia. |
1/4 oz | € 156,50 | ||
| 260368-22 | Cover Glass, #1.5, 22mm dia. |
1 oz | € 168,20 | ||
| 260368-25 | Cover Glass, #1.5, 25mm dia. |
1/4 oz | € 116,20 | ||
| 260368-30 | Cover Glass, #1.5, 30mm dia. |
1 oz | € 113,60 | ||
| 260369-50 | Cover Glass, #1.5, 50mm dia. |
1 oz | € 87,90 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260379-12 | Cover Glass, #2, 12mm dia. |
1 oz | € 273,70 | ||
| 260379-15 | Cover Glass, #2, 15mm dia. |
1 oz | € 147,50 | ||
| 260379-18 | Cover Glass, #2, 18mm dia. |
1 oz | € 163,00 | ||
| 260379-22 | Cover Glass, #2, 22mm dia. |
1 oz | € 180,70 | ||
| 260379-25 | Cover Glass, #2, 25mm dia. |
1 oz | € 163,10 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260299 | Cover Glass, #0, 18 x 18mm |
100 | € 11,60 | ||
| 260300 | Cover Glass, #0, 22 x 22mm |
1 oz | € 124,50 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260339 | Cover Glass, #1, 20 x 20mm |
100 | € 13,90 | ||
| 260140 | Cover Glass, #1, 22 x 22mm |
1 oz | € 21,50 | ||
| 260140-24 | Cover Glass, #1, 24 x 24mm |
1 oz | € 15,10 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260405 | Cover Glass, #1.5, 18 x 18mm |
1 oz | € 18,20 | ||
| 260148-20 | Cover Glass, #1.5, 20 x 20mm |
100 | € 16,10 | ||
| 260148-24 | Cover Glass, #1.5, 24 x 24mm |
100 | € 19,20 |
Correlative Microscopy Coverslips
Correlative Microscopy Coverslips are polyester based reticle films designed to bring together multiple disciplines of microscopic analysis using singular tissue culture sources.
In this way, laboratories and research facilities can save time and money in their research endeavors.

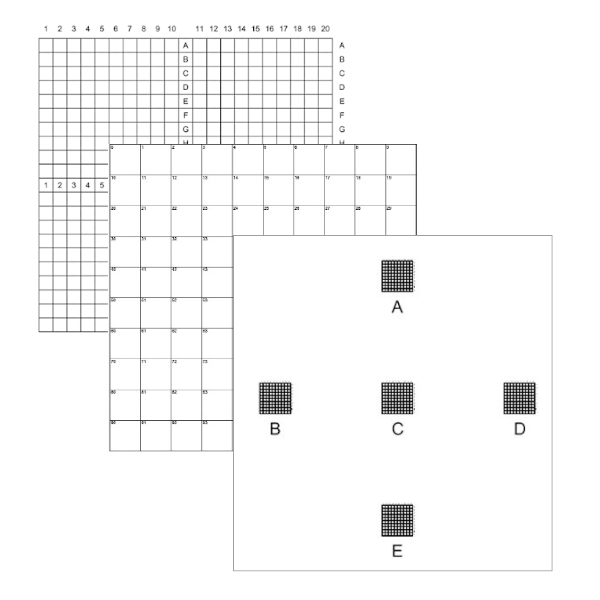

The Correlative Microscopy Coverslips are available in three patterns for different application requirements.
All are 22 x 22mm coverslips with a 0.18mm thickness.
The 10 x 10 grid of 1mm squares and the 20 x 20 grid of 0.5mm squares are now available on 18mm diameter round coverslips with 0.18mm thickness.
These coverslips allow the application of multiple microscopies (light, fluorescence, scanning electron microscopy – SEM, and transmission electron microscopy – TEM) originating from a specific position on a single coverslip.
- Good cell adhesion without poly-L-lysine
- Good cell culture growth
- Easily sterilized – UV or Alcohol
- Stable through a wide temperature range
- Resistant to standard electron microscopy processing chemicals
- Good optical quality and transparency for light microscopy
- Rigid structure – no floating in culture media
Technical Note
 |
Download Technical Note |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260500 | Coverslip w/ 10 x 10 grid of 0.1mm squares at 5 positions. Indexed 1-10 on top and A-J down side. |
25 | € 232,60 | ||
| 260501 | Coverslip w/ 10 x 10 grid of 1mm squares. Each square indexed 0-99. |
25 | € 167,70 | ||
| 260502 | Coverslip w/ 20 x 20 grid of 0.5mm squares. Indexed 1-20 along top, A-T down side and on center cross. |
25 | € 162,50 | ||
| 260510 | Coverslip w/ 10 x 10 grid of 1mm squares. Each square indexed 0-99, 18mm round. |
25 | € 224,10 | ||
| 260511 | Coverslip w/ 20 x 20 grid of 0.5mm squares. Indexed 1-20 along top, A-T down side and on center cross, 18mm round. |
25 | € 224,30 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260156-15 | Cover Glass, #2, 15 x 15mm |
100 | € 14,80 | ||
| 260156-18 | Cover Glass, #2, 18 x 18mm |
100 | € 33,00 | ||
| 260156 | Cover Glass, #2, 22 x 22mm |
1 oz | € 21,30 | ||
| 260156-25 | Cover Glass, #2, 25 x 25mm |
1 oz | € 16,70 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260157-24 | Cover Glass, #0, 24 x 50mm |
100 | € 39,20 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260141 | Cover Glass, #1, 22 x 26mm |
100 | € 83,40 | ||
| 260142 | Cover Glass, #1, 22 x 30mm |
1 oz | € 21,30 | ||
| 260144 | Cover Glass, #1, 22 x 40mm |
1 oz | € 21,30 | ||
| 260146 | Cover Glass, #1, 22 x 50mm |
1 oz | € 21,30 | ||
| 260355 | Cover Glass, #1, 22 x 60mm |
1 oz | € 42,00 | ||
| 260358 | Cover Glass, #1, 24 x 40mm |
1 oz | € 66,00 | ||
| 260359 | Cover Glass, #1, 24 x 50mm |
1 oz | € 56,00 | ||
| 260146-24 | Cover Glass, #1, 24 x 55mm |
1 oz | € 16,40 | ||
| 260360 | Cover Glass, #1, 24 x 60mm |
1 oz | € 42,00 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260150 | Cover Glass, #1.5, 22 x 30mm |
1 oz | € 21,30 | ||
| 260152 | Cover Glass, #1.5, 22 x 40mm |
1 oz | € 21,30 | ||
| 260154 | Cover Glass, #1.5, 22 x 50mm |
1 oz | € 21,30 | ||
| 260154-60 | Cover Glass, #1.5, 22 x 60mm |
1 oz | € 9,30 | ||
| 260154-64 | Cover Glass, #1.5, 22 x 64mm |
100 | € 33,30 | ||
| 260419 | Cover Glass, #1.5, 24 x 30mm |
1 oz | € 62,20 | ||
| 260421 | Cover Glass, #1.5, 24 x 40mm |
1 oz | € 38,90 | ||
| 260422 | Cover Glass, #1.5, 24 x 50mm |
1 oz | € 59,80 | ||
| 260423 | Cover Glass, #1.5, 24 x 60mm |
1 oz | € 65,90 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260160 | Cover Glass, #2, 22 x 40mm |
1 oz | € 18,70 | ||
| 260160-50 | Cover Glass, #2, 24 x 50mm |
100 | € 91,10 | ||
| 260160-64 | Cover Glass, #2, 22 x 60mm |
100 | € 88,00 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260165-40 | Cover Glass, #3, 24 x 40mm |
100 | € 100,50 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260166-40 | Cover Glass, #5, 24 x 40mm |
100 | € 111,70 |
Superslip Micro Cover Glasses
Individually Selected – Superior quality
Cleaned, cut, sorted and made of especially processed borosilicate glass (Type D263M).
Not sterile.
for use in automatic coverslippers
Not sterile.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260164 | Superslip Cover Glasses, 24 x 40mm x 0.13 – 0.16mm thick |
108 | € 29,20 | ||
| 260166 | Superslip Cover Glasses, 24 x 50mm x 0.13 – 0.16mm thick |
90 | € 24,10 | ||
| 260168 | Superslip Cover Glasses, 24 x 60mm x 0.13 – 0.16mm thick |
72 | € 29,20 |
Thermanox Coverslips
Thermanox or TMX coverslips are made of a polymer, in the polyolefin family, that is highly resistant to most chemicals.
They are resistant to alcohols, aldehydes, hydrocarbons, dilute acids (<10%) and dilute alkalis (<2%). Thermanox has limited resistance to chlorinated hydrocarbons and it is not resistant to concentrated acids or bases.
It is a flexible transparent polymer that can be easily sectioned by using a microtome and is able to withstand low and high temperatures (-70 C to + 150 C).
Thermanox Coverslips are culture treated on one side for enhanced cell attachment and growth. See tech notes.
Thermanox coverslips are packed sterile, the treated side is packaged face up toward the label. Cells grown on these coverslips can be embedded while remaining on the coverslip in a plastic resin without removal for sectioning.
The Thermanox coverslips autofluoresce in the range 380 – 545nm. They autofluoresce at the Rhodamine and FITC range: Fluorescein isothiocynate, excitation 494nm; emission 517nm.
Thermanox coverslips can be autoclaved at 20 minutes steam, 20 minutes dry, at 120 C.
They are 0.2mm thick.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 26025 | Thermanox™ 10.5 x 22 x 0.2mm |
100 | € 198,00 | ||
| 26026 | Thermanox™ 22 x 60 x 0.2mm |
100 | € 251,80 | ||
| 26027 | Thermanox™ 24 x 30 x 0.2mm |
100 | € 179,30 | ||
| 26028 | Thermanox™ 13mm dia. x 0.2mm |
100 | € 251,70 | ||
| 26029 | Thermanox™ 15mm dia. x 0.2mm |
100 | € 193,00 | ||
| 26030 | Thermanox™ 22mm dia. x 0.2mm |
100 | € 302,70 | ||
| 26031 | Thermanox™ 25mm dia. x 0.2mm |
100 | € 207,00 |
Quartz Microscope Slides and Coverslips
Quartz microscope slides and cover slips are a necessity for microscopy applications where UV transparency is needed.
They can also be used for high end microscopy applications to reduce signal loss due to absorption.
Other applications can involve UV radiation transparency.
The quartz slides can also be used for high temperature applications up to 1250 C (2282 F).
Above this temperature the material will start to soften.
The quartz material used to manufacture our high quality quartz microscope slides and coverslips is the GE 124 type high purity fused quartz, a well documented quartz used over decades in microscopy applications.
Technical information about GE 124 Quartz.
Transparency is provided for 0.19 to 4.2um with very low absorbance in the 0.26 to 2.6um range.
Surface flatness is 1 degree with 60/40 scratch/dig specifications.
Quartz microscope slides are available in the standard 1mm thickness and sizes of 3″x2″, 3″x1″, 2″x1″ and 1″x1″.
Quartz coverslips are available in several sizes and thicknesses, although for most microscopy applications the 0.25mm thickness is adequate.
Tolerance is +/- 0.005″ (127um).
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 26016 | Square Quartz Coverslip, 19 x 19 x 0.5mm thick |
Each | € 22,70 | ||
| 26017 | Square Quartz Coverslip, 19 x 19 x 0.25mm thick |
Each | € 45,30 | ||
| 26014 | Square Quartz Coverslip, 22 x 22 x 0.25mm thick |
Each | € 49,00 |
Quartz Microscope Slides and Coverslips
Quartz microscope slides and cover slips are a necessity for microscopy applications where UV transparency is needed.
They can also be used for high end microscopy applications to reduce signal loss due to absorption.
Other applications can involve UV radiation transparency.
The quartz slides can also be used for high temperature applications up to 1250 C (2282 F).
Above this temperature the material will start to soften.
The quartz material used to manufacture our high quality quartz microscope slides and coverslips is the GE 124 type high purity fused quartz, a well documented quartz used over decades in microscopy applications.
Technical information about GE 124 Quartz.
Transparency is provided for 0.19 to 4.2um with very low absorbance in the 0.26 to 2.6um range.
Surface flatness is 1 degree with 60/40 scratch/dig specifications.
Quartz microscope slides are available in the standard 1mm thickness and sizes of 3″x2″, 3″x1″, 2″x1″ and 1″x1″.
Quartz coverslips are available in several sizes and thicknesses, although for most microscopy applications the 0.25mm thickness is adequate.
Tolerance is +/- 0.005″ (127um).
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 26010 | Round Quartz Coverslip, 10mm x 0.25mm thick |
Each | € 37,30 | ||
| 26042 | Round Quartz Coverslip, 15mm x 0.25mm thick |
Each | € 34,00 | ||
| 26019 | Round Quartz Coverslip, 18mm x 0.25mm thick |
Each | € 42,00 | ||
| 26018 | Round Quartz Coverslip, 25.4mm x 0.25mm thick |
Each | € 61,50 | ||
| 26043 | Round Quartz Coverslip, 33mm x 0.25mm thick |
Each | € 61,50 |
Large Cover Glass, Thickness #2
Thickness #2 (0.19-0.25mm)
Large cover glass specially made for the large microscope slides.
Thickness #2. (0.19-0.25mm).
Made from optical grade borosilicate glass.
Sizes available 3 x 3-1/4″ up to 4-1/2 x 6-1/4″.
Packed as 36 cover glasses per shrink-wrapped package.
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260499 | Large Cover Glass, #2, 1 1/8″ x 2″ (48 x 50mm) |
250 | € 223,00 | ||
| 260450 | Large Cover Glass, #2, 3 x 3-1/4″ (76 x 83mm) |
36 | € 236,30 | ||
| 260451 | Large Cover Glass, #2, 3 x 3-1/2″ (76 x 89mm) |
50 | € 236,30 | ||
| 260452 | Large Cover Glass, #2, 3-3/4 x 4-1/2″ (95 x 114mm) |
50 | € 277,10 | ||
| 260453 | Large Cover Glass, #2, 4-1/8″ x 5-1/2″ (104.77 x 139.7mm) |
50 | € 358,60 | ||
| 260454 | Large Cover Glass, #2, 4-1/2 x 6-1/4″ (114 x 159mm) |
25 | € 382,00 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260459 | Large Cover Glass, #1, 35 x 64mm |
100 | € 131,20 | ||
| 260460-100 | Large Cover Glass, #1, 36 x 60mm (1.42 x 2.36″) |
100 | € 122,30 | ||
| 260462-100 | Large Cover Glass, #1, 50 x 75mm (1.96 x 2.95″) |
100 | € 262,70 | ||
| 260379 | Large Cover Glass, #1, 48 x 60mm |
1 oz | € 50,00 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260461-100 | Large Cover Glass, #1.5, 35 x 60mm (1.42 x 2.36″) |
100 | € 114,30 | ||
| 260464 | Large Cover Glass, #1.5, 35 x 64mm (1.42 x 2.36″) |
100 | € 133,50 | ||
| 260464-48 | Large Cover Glass, #1.5, 48 x 64mm (1.42 x 2.36″) |
100 | € 165,80 |
HISTOBOND + Super Mega Slides
These slides have thin white frosted end for labeling.
The unfrosted area is sized to accommodate the standard large section cut from a paraffin embedded tissue block from the large Super Mega and Super Mega Slim Base Molds (60 x 45mm).
Dimensions: 75.2 x 50.4 x 1mm (3″ x 2″ x 1mm)
Cover Glass for HISTOBOND + Super Mega Slides
This coverglass is sized to match the working area of the HISTOBOND + Super Mega Slide.
Thickness: #1.5
Dimensions: 64 x 50mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260240 | HISTOBOND + Super Mega Slides, 75.2 x 50.4 x 1mm (3″ x 2″ x 1mm) |
50 | € 186,80 | ||
| 260378 | Coverglass for Super Mega Slides, Style 1.5 Thickness, 64 x 50mm |
100 | € 62,20 |
PELCO Gold Coated Glass Coverslips
High quality, borosilicate glass coverslips coated with 50nm of gold with a 5nm chromium adhesion layer between the coverslip surface and the gold coating.
Can be used for a wide range of nanotechnology, biotechnology and AFM application.
Both Cr and Au are evaporated on the glass coverslips using a vacuum evaporation system.
The gold surface is not atomically flat, but has bumps in the nm range.
The coverslips are sold in packs of 2 and are packed in an X0 Gel-Pak box.
The gold coated coverslips are autoclavable.
Specifications:
- Glass coverslips size: 16mm with thickness #1 (0.13-0.16mm) or 22x22mm with thickness #2 (0.19-0.25mm)
- Glass type: Schott D263M borosilicate
- Chromium adhesion layer thickness: 5nm
- Gold substrate layer thickness: 50nm ( 5nm)
- Gold purity: 99.999%
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 260156-G | Gold Coated 22 x 22mm Glass Coverslips, 50nm Au |
2 | € 147,90 | ||
| 260374-G | Gold Coated 16mm Glass Coverslips, 50nm Au |
2 | € 106,70 |
