Application Fine Vacuum

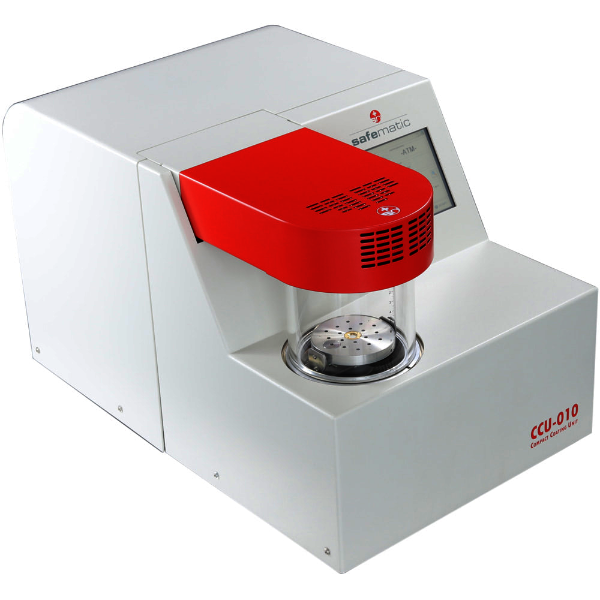

As base unit for our vacuum coating system the CCU-010 LV is designed for routine high quality sputter and/or carbon coatings for SEM and EDX. The modular concept allows for the subsequent conversion to a high vacuum coating system.

A Smart Device
A Sputter coater and/or carbon coater with options for plasma treatment within one device? Yes, this is possible with our table top vacuum coating system. By simply changing the process head, you can easily configure the unit for all these applications. Adjust the unit to your requirements or extend the functionality afterwards. A coating thickness monitor close to the sample is standard fitting which will precisely monitor and control film thickness of carbon and metal films.

Do Not Waste Time
The use of high-quality materials and components in combination with innovative ideas produces extraordinarily short process times. Create recipes via the modern user interface and use the automatic mode for reliable and reproducible production of thin coatings.

Low Consumption
The efficient gas control optimized for high vacuum reduces the consumption of your process gas. With a target diameter of 54 mm and high target utilization, you save money on consumables.

Compact and Practical
Save valuable laboratory space thanks to small dimensions. Weight has been minimized to reduce transport costs. Standardised small-flange quick connections ( ISO-KF ) act as interfaces with your connections.

Easy Start-up and Servicing
Unpack, connect, start! Do away with high start-up costs. The plug-and-play concept allows you to start up the device yourself. You only need to connect the power supply and the process gas. The service technician can run a quick error analysis thanks to the integrated USB service interface. The modular set-up allows for the targeted replacement of defective components.

Specifications

Features

• • Reliable, solid basic unit
  • Lightweight Aluminum base, small footprint
  • Integrated vacuum measuring (Pirani, cold cathode vacuum gauge)
  • Plasma treatment option (etching)
  • Implosion guard with safety monitoring
  • Wide range power supply (90-260 VAC)
  • Process head standard interface (gas and electric)
  • Automatic process head detection
  • 5.7″ TFT touch display
  • Recipes programmable which guarantee reproducible results
  • History function with storage / view of the last processes
  • Feature for automatic venting of system in the event of power loss. This prevents the system from becoming
  • contaminated with backing pump oil.
  • Intuitive user software with many practical features
  • Graphical representation of process data with Windows-based coating LAB software (option)
  • External alarm output
  • USB service interface for easy analysis and software upgrades
  • Various accessories, tools, cables and assembly material included in delivery
  • Flange connection (DN 25 ISO-KF) for connecting an external backing pump (LV version)
  • Power socket and cable to control the external roughing pump
  • Automatic valve control for two process gases and venting
  • 6 mm plug connections for two process gases and vent gas
  • Can be used as a pure pumping unit
  • Operating manual
