Product

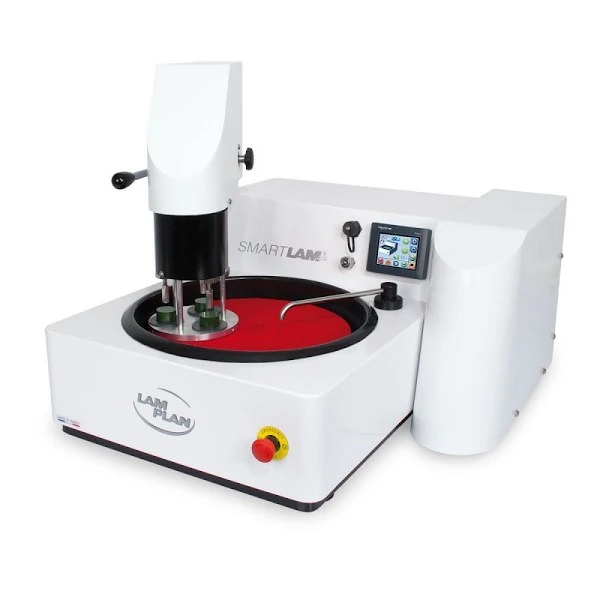

Smartlam 3.0
The SMARTLAM3.0 is equipped with a new specific motorised head, composed with a 3 cells sample-holder and an individual pneumatic pressure system.
no. B6299

Specifications

Specifications

Bowl Removable resin basin for easy cleaning
Controls 3,5“ touch screen to control the machine: start/stop, timer, speed and direction of plate, water solenoid valve
Plate rotation speed Variable from 20 to 650 rpm
Rotation Clockwise / counter-clockwise
Programming Loads 9 programs
Connection Slave connector for dosing unit
Water inlet Removable pipe with flow-rate adjustment and safety solenoid valve
Power max 0,75 kW
Voltage 230 V – 50 Hz single-phase
Pneumatic feed 6 bars, filtered 50 µm
Dim. W x H x D 580 x 570 x 670 mm
Weight 65 kg
Technical Note

Technical Note

Download Technical Note



Order

Art.Description Unit PriceQuantity
B6299

Auto Polisher SMARTLAM 3.0 Individual Pressure

Each p.o.r.
Brand: LamPlan
