Product
Molybdenum Spray Apertures Ø12,68mm

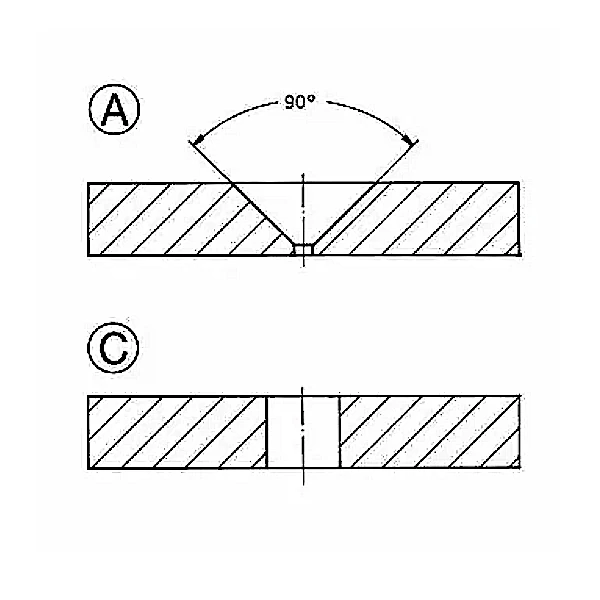

12.68mm dia, 0.25mm thick. Profile A. Used in Cambridge/LEO/Zeiss and Camscan scanning electron microscopes.
no. A1005M to A1500M

Description
Tolerances
Disc diameter: +0/-0.02mm
Thickness: +0/-0.02mm
Hole size: 5 – 10 m: 1 m
11 – 70 m: 2 m
71 – 300 m: 5 m
301 – 1000 m: 10 m
Capillary length: 1/2 hole diameter for 10 – 200 m
<100 m for larger holes
Roundness of hole: 0.1 m for holes 5 – 10 m
1 m for holes 11 – 200 m
2 m for holes over 200 m
Centring of hole: 0.02mm for diameter up to 7mm
0.03mm for diameter 7 – 30mm
Order

Art.Description Unit Profile PriceQuantity
A1005M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 50 µm

 Each A € 175,20
✓
A1075M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 75 µm

 Each A € 173,40
✓
A1010M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 100 µm

 Each A € 150,10
✓
A1125M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 125 µm

 Each A € 132,20
✓
A1015M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 150 µm

 Each A p.o.r.
A1020M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 200 µm

 Each A € 148,40
✓
A1030M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 300 µm

 Each A € 152,90
✓
A1050M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 500 µm

 Each C € 132,70
✓
A1080M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 800 µm

 Each C € 132,20
✓
A1100M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 1000 µm

 Each C € 113,50
✓
A1120M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 1200 µm

 Each A € 113,50
✓
A1500M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 1500 µm

 Each C p.o.r.
A1200M

Molybdenum Spray Aperture 12.68 x 0.25mm Hole 2000 µm

 Each C € 113,50
✓
