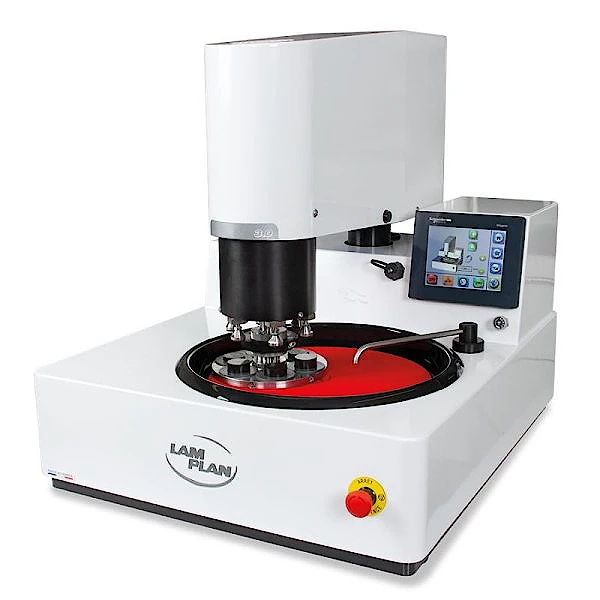

Masterlam 3.0

Automatic, single plate 250 to 300 mm polishing machine, bidirectional rotation and variable speed.

Art. no. B6317

Specifications

Plate capacity	Ø 250 to 300 mm
Body	Steel coated with epoxy paint
Bowl	Removable resin bowl for easy cleaning
Controls	Touch screen (5,7“)
Plate rotation speed	Variable from 20 to 650 rpm Bidirectional rotation
Head’s speed	Variable from 10 to 150 rpm Bidirectional rotation
Applicable load	5 to 400 N central pressure 5 to 100 N individual pressure
Capacity	Sample size 6 X Ø 40 mm Sample size 1 – 6 X Ø 50 mm
Workspace lightening	LED
Water inlet	Removable pipe, with flow rate adjustment and safety solenoid valve
Programming	60 storable programs, USB connector to backup programs and Ethernet port for networking
Cumulative machine power	1.1 kW
Voltage	230 V – 50 Hz single phase
Pneumatic feed	6 bars
Dim. W x H x D	550 x 670 x 580 mm
Weight	85 kg

Technical Note

[pdf-embedder url=”https://localhost/loeneninstruments/wp-content/uploads/2021/08/masterlam3_0-EN.pdf”]

Order

Art.	Description	Unit	Price
B6317	Auto Polisher MASTERLAM 3.0 Combo Pressure	Each	p.o.r.
B6390-M3	Recirculation/Sedimentation Tank with Pump	Each	p.o.r.
B6392-M3	Cover for SMARTLAM 2.0 or MASTERLAM 1.0, 2.0 & 3.0	Each	p.o.r.
B6422-M3	Transparent Safety Canopy for MASTERLAM 1.0, 2.0, 3.0	Each	p.o.r.
B6389-3	Automatic Dispenser DISTRILAM – 4 Pumps + Plate Cleaning	Each	p.o.r.

Brand: LamPlan
