XP 20 Grinder/Polisher
This compact 8″/20.3cm Grinder, Lapper, Polisher is well suited for manual finishing of specimens using grinding, lapping and polishing (cloths) discs as well as diamond and aluminum oxide films.
The housing is made from sturdy, non-corroding plastic. The durable 1/4 hp motor has a variable speed control for 700-2800 rpm to select the optimum speed for grinding or polishing.
The XP 20 includes a flexible and adjustable water spout for grinding, lapping and polishing applications. The XP 20 also comes with a standalone fluid supply system for use where running water or drainage is not available or not advised.
When using the standalone fluid supply system, slurries and suspensions as well as water may be dispensed.
The XP 20 Grinder/Polisher is also compatible with the PELCO® Abrasive Dispenser for timed, hands-free dispensing of fresh abrasive during grinding and polishing.This grinder/polisher is ideally suited for smaller labs and priced so that you can afford multiple dedicated XP 20 Grinder/Polishers.
The XP 20 is supplied with both standard and standalone plumbing components, one 8″ Aluminum Platen, one Splash Guard, and one Plain Paper Retainer Ring.

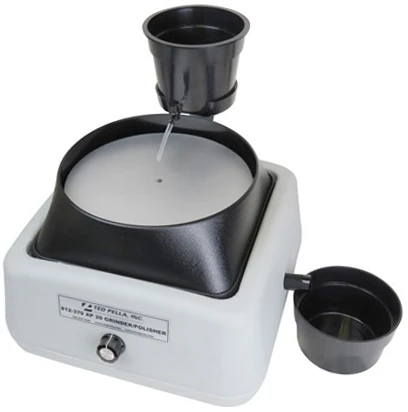

XP 20 Grinder/Polisher also comes with a standalone fluid supply

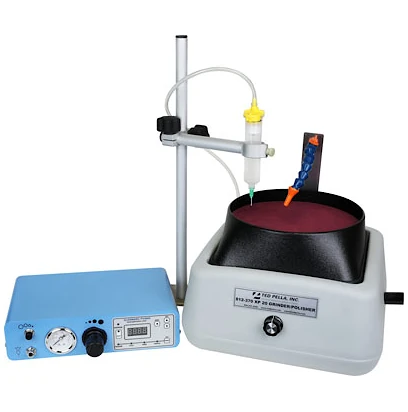

XP 20 Grinder/Polisher is compatible with the PELCO® Abrasive Dispenser (#83075)
| Power | 1/4 hp, 110V, 3.6A (or 230V 1.8A) |
| Disc Size | 8″ (203mm) |
| Disc Type | Screw back type (1/4″-20 thread) |
| Speed Control | 700-2800 RPM |
| Water Supply | Flexible water spout with variable control |
| Water Connection | 3/16″ tubing connection – 3ft 3/16″ tubing included |
| Drain | 1/2″ tubing connection – 3ft 1/2″ drain hose included |
| Overall Dimensions | 12″ W x 12″ D x 8-1/2″ H (300 x 300 x 216mm) |
| Weight | 9.5 lbs. (4.3kg) |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 812-371 | XP 20 Grinder/Polisher, 8″/20.3cm, 220V |
Each | € 1.772,20 |
Accessories
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 812-372 | Replacement 8″ Platen for XP 20 Grinder/Polisher |
Each | € 117,80 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

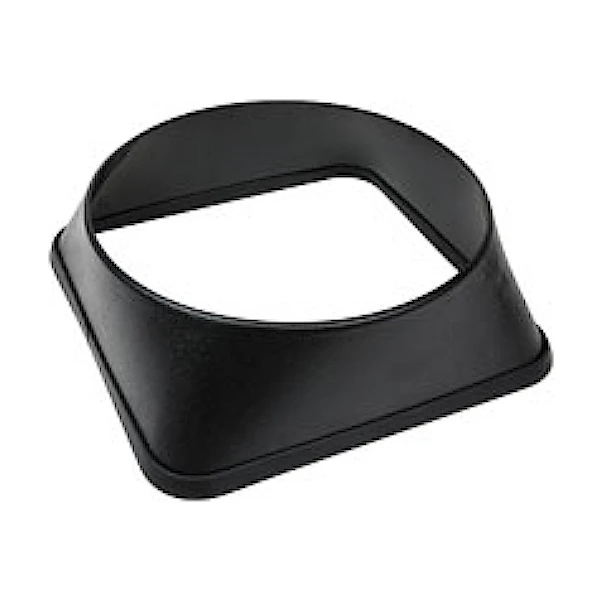

| 812-373 | Replacement Splash Guard for XP 20 Grinder/Polisher |
Each | € 69,50 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

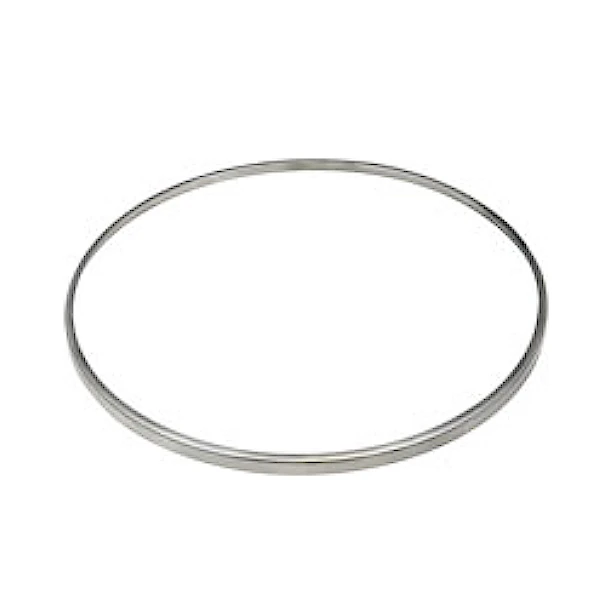

| 812-374 | Replacement Plain Paper Retainer Ring for XP 20 Grinder/Polisher |
Each | € 48,40 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 816-129 | PELCO® Magnetic Backing, 8″ PSA |
Each | € 73,40 |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|

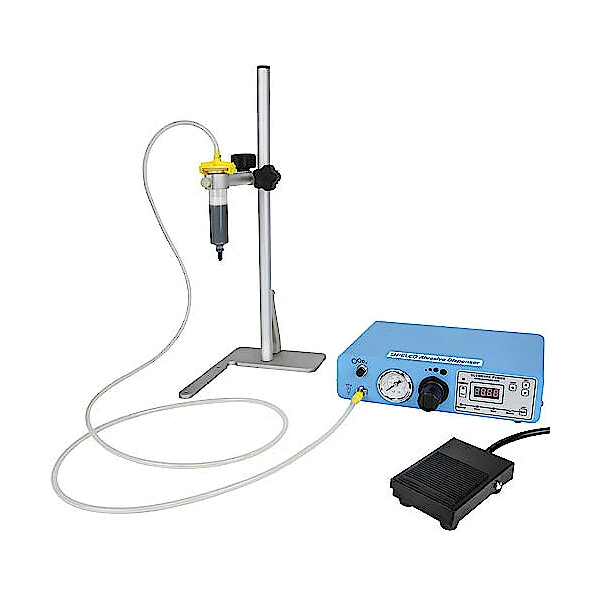

| 83075 | PELCO® Abrasive Dispenser |
Each | € 2.008,50 |
