The PELCO^® Tripod Polisher™ 590 can be used to prepare a sample for both SEM and TEM cross-sectional analysis.

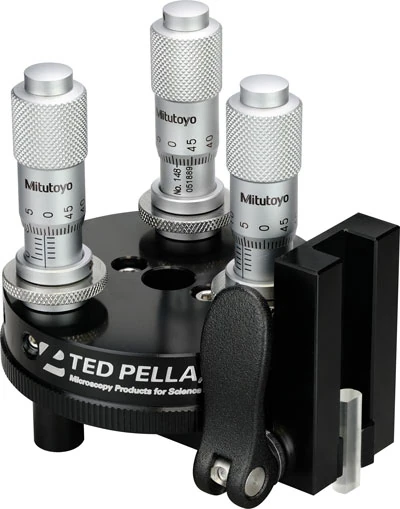

To accomplish this, the sample is mounted on the face of a special SEM stub which is clamped into the slotted L-bracket of the PELCO^® Tripod Polisher™ 590. Initial grinding is done on a 15μm metal bonded diamond disc.

Further lapping and polishing continues with a succession of diamond films ranging in size from 30μm to 0.5μm.
The final polish is done with a colloidal silica suspension. As lapping progresses, the two rear micrometers are used to adjust the plane of polish.

With periodic examinations in an inverted microscope, the plane of polish is adjusted until it is parallel to the plane of interest.
At this point the SEM stub may be moved to an ion mill for a quick milling to remove fine scratches, polishing debris and to give the surface topography prior to SEM analysis.

The SEM stub can be mounted directly in the SEM for analysis. When analysis is complete, a TEM sample of the same area is made.

The sample is removed from the SEM stub and attached to a single aperture TEM grid. The slotted L-bracket is removed and the TEM grid is attached to the round sample mount which is affixed to the center of the polisher.
The sample is now mechanically thinned using Diamond Lapping Film.

During this process the sample is periodically examined in an inverted microscope and the micrometers are adjusted to maintain the correct plane of polish. The sample is FINAL polished to 1μm or less and then ion milled for up to 15 minutes.

The preferential thinning and surface topography that occurs in briefly ion milled samples makes the study of interfaces between dissimilar materials difficult.

These problems can be reduced by completely eliminating the ion milling step and mechanically polishing the sample to electron transparency by employing the wedge technique.

With this technique the SEM stub is replaced, in the slotted L-bracket, with a Pyrex^® insert. The sample is mounted on the face of this insert.

After the plane of interest is obtained, the sample is removed and mounted on the bottom of the Pyrex^® insert.
The two rear micrometers are adjusted and the micrometer nearest the sample is retracted to produce a wedge shape as material is removed from the sample.

The sample, with the features of interest at the apex of the wedge, is thinned from the back side until the edge of interest is ~1μm thick. The sample is then polished on a final polishing cloth such as our MultiTex Cloth (product number 816-12) with a colloidal silica suspension until thickness fringes are visible (below a few thousand angstroms).

The sample is then removed from the Pyrex^® insert and attached to a single aperture TEM grid for analysis.
