Smartlam 3.0
The Smartlam 3.0 Single Wheel Convertible Polisher/Grinder is a professional, competitively priced, versatile system that can be configured, as required, with 200mm, 230mm, 250mm or 300mm platens.

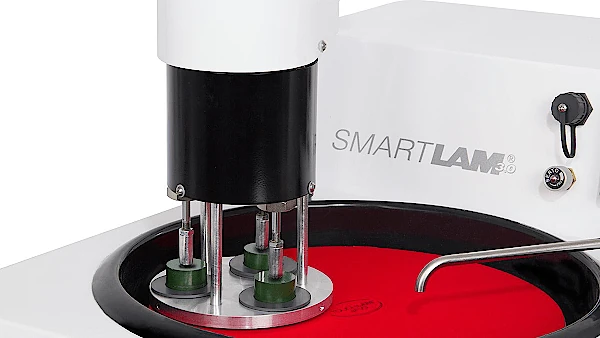

The unit includes a Semi-Automatic Head featuring central and variable pressure (0-250N). Sample holders and programmable dosing unit options further extend its usefulness.
When operating with a 300mm platen, up to 6 samples can be ground/polished simultaneously. When operating with a 200mm, 230mm or 250mm platen up to 3 samples can be ground/polished simultaneously.
- 3.5″ touch screen keypad
- 200mm, 230mm, 250mm or 300mm platens
- Semi-automatic head with central and variable (0-250N) pressure
- USB port to save and load data
- Adjustable water flow with safety solenoid valve
- Removable bowl for easy cleaning
- Retractable rinsing taps for easy cleaning
The platen is driven by a 0.37kW, 0.5hp motor which is complemented by highly efficient torque capabilities. The platen can be operated 20-650rpm in both directions, clockwise and counterclockwise.
To change the configuration, simply remove the insert and lift the platen from the retaining pegs located on the platen base and replace it with the new platen size and insert.

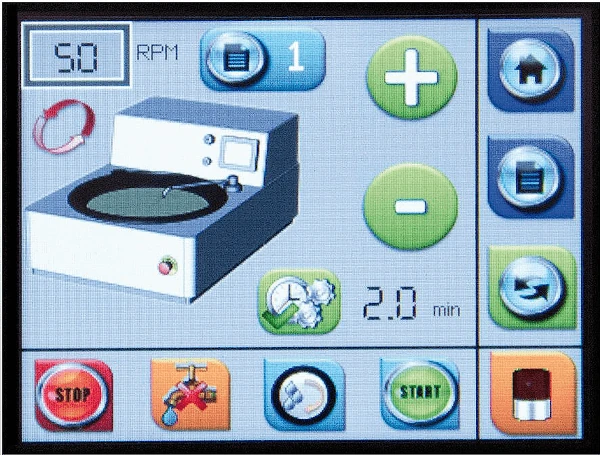

Speed, direction and duration are programmable via an easy to use 3.5″ touch screen and the unit is equipped with a USB port for simple saving and loading of programs.
A water inlet and outlet are located on the rear panel. The retractable tap has an adjustable water flow and allows for easy cleaning. A safety solenoid valve protects the unit and operators.
The optional dispensing unit is a 3 unit doser powered by 3 peristaltic pumps connected to 1 external pump. It is programmed via a touch screen and connected to the grinder/polisher with 1 simple connection. A special nozzle for high viscosity suspensions and a stirrer are also available.
Further options available include:
- Recirculation/Sedimentation with a peristaltic pump (220Vac)
- Dosing Unit MM909M
A comprehensive range of accessories and supplies are available to extend the versatility of the Smartlam 3.0 Polisher/Grinder.
Specifications
| Bowl | Removable resin basin for easy cleaning |
| Controls | 3,5“ touch screen to control the machine: start/stop, timer, speed and direction of plate, water solenoid valve |
| Plate rotation speed | Variable from 20 to 650 rpm |
| Rotation | Clockwise / counter-clockwise |
| Programming | Loads 9 programs |
| Connection | Slave connector for dosing unit |
| Water inlet | Removable pipe with flow-rate adjustment and safety solenoid valve |
| Power max | 0,75 kW |
| Voltage | 230 V – 50 Hz single-phase |
| Pneumatic feed | 6 bars, filtered 50 µm |
| Dim. W x H x D | 580 x 570 x 670 mm |
| Weight | 65 kg |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| B6299 | Auto Polisher SMARTLAM 3.0 Individual Pressure |
Each | p.o.r. |
Accessories
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 08 8270100 | Aluminium Working Plate Ø200mm |
Each | p.o.r. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 08 8270200 | Aluminium Working Plate Ø230 mm |
Each | p.o.r. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 08 8270300 | Aluminium plate Ø250 mm |
Each | p.o.r. |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 08 827040 | Aluminium plate Ø300 mm |
Each | p.o.r. |
The secured housing is a totally transparent protection compatible with the full range of MASTERLAM. Its opening stops all movements of the machine*, it offers
an integral protection complying with the 2006/42/ CE and 2004/108/CE standards.
The housing s design preserves the accessibility of the plate and does not clutter the workspace.
The touch screen is located outside of the secured zone; therefore, the commands are permanently accessible.
*However, the transparent secured housing authorises the plate rotation in the manual mode.
For machines MASTERLAM1.0 & 3.0
For the MASTERLAM1.0 and 3.0 the touch screen control panel is located on the right, a 195 mm space needs to be foreseen in addition to the machine width.
Space: width 770 mm, height 910 mm
For machine MASTERLAM1.1
Space: width 880 mm, height 910 mm
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| AGB6392 | Transparent protective housing |
Each | p.o.r. |
