Smartlam 2.0

Products

Smartlam 2.0

The SMARTLAM®2.0 is a compact, single plate polishing machine that gives you a wide range of possibilities both in manual and semi-automatic polishing. Ergonomic and easy-to-use, the SMARTLAM®2.0 is entirely controlled by a colour touch screen equipped with an intuitive interface. The internal memory can store 9 programs that can be exported via the USB port.

The power of the bidirectional rotation, variable-speed, constant -torque motor and the possibility to use plates with a diameter from 200 to 300 mm are exclusive assets that will allow you to face up to all situations encountered in metallographic research polishing.

Thanks to the mechanical pressure head option SPRINGLAM® and the central-pressure holders but also use of the M.M. 909 M programmable dosing unit slaved to the machine, you will have a very efficient, semi-automatic polishing system.

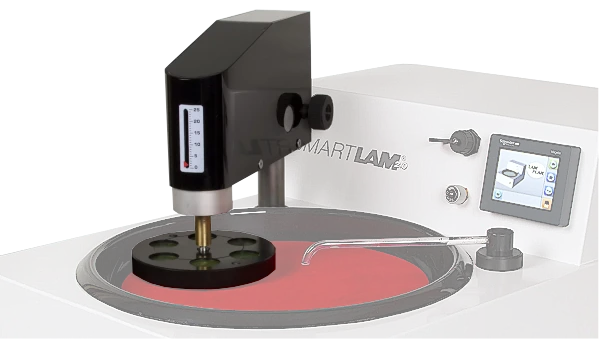

Option: SPRINGLAM® pressure head

Use the SMARTLAM® as a semi-automatic polisher.
  • Variable pressure thanks to the 0- 250 N spring
  • Attachment system for central pressure sample-holder
  • Sample-holder Ø 119 mm 6 alveolus water drops for Ø 20 to 32 mm

Specifications
Plate CapacityØ 200 to 300 mm
BodySteel, coated with epoxy paint
BowlRemovable resin basin for easy cleaning
Controls3,5“ touch screen to control the machine: start/stop, timer, speed and direction of plate, water solenoid valve
Plate rotation speedVariable from 20 to 650 rpm
RotationClockwise / counter-clockwise
ProgrammingLoads 9 programs
ConnectionSlave connector for dosing unit
Water inletRemovable pipe with flow-rate adjustment and safety solenoid valve
Power max0,75 kW
Voltage230 V – 50 Hz single-phase
Dim. W x H x D450 x 300 x 650 mm
Weight30 kg
Loading...
Product
Smartlam 2.0
Compact, single plate polishing machine
no. B6300

Specifications

Specifications

Plate Capacity Ø 200 to 300 mm
Body Steel, coated with epoxy paint
Bowl Removable resin basin for easy cleaning
Controls 3,5“ touch screen to control the machine: start/stop, timer, speed and direction of plate, water solenoid valve
Plate rotation speed Variable from 20 to 650 rpm
Rotation Clockwise / counter-clockwise
Programming Loads 9 programs
Connection Slave connector for dosing unit
Water inlet Removable pipe with flow-rate adjustment and safety solenoid valve
Power max 0,75 kW
Voltage 230 V – 50 Hz single-phase
Dim. W x H x D 450 x 300 x 650 mm
Weight 30 kg
Technical Note

Technical Note

Download Technical Note

[pdf-embedder url=”https://localhost/loeneninstruments/wp-content/uploads/2021/08/smartlam2_0-EN.pdf”]

Order

Art.Description Unit PriceQuantity
B6300

Manual Polisher SMARTLAM 2.0 220V

 Each p.o.r.
Brand:

Accessories

Loading...
Product
Ø 119 mm with 6 x Ø 20 to 32 mm water drop cells
Only for SMARTLAM 2.0 equipped with the SPRINGLAM
no. 06MLP0200

Order

Art.Description Unit PriceQuantity
06MLP0200

Ø 119 mm with 6 x Ø 20 to 32 mm water drop cells

 Each p.o.r.
Brand:

Product
Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells
no. 06MLC1000

Order

Art.Description Unit PriceQuantity
06MLC1000

PC Ø 160 mm with 6 x Ø 20 to 40 mm water drop cells

 Each p.o.r.
06MLC4000

PC Ø 160 mm with 6 x Ø 40 mm water drop cells

 Each p.o.r.
06MLC3000

PC Ø 160 mmwith 9 x Ø 30 mm water drop cells

 Each p.o.r.
06MLC5000

PC Ø 160 mm with 5 x Ø 50 mm water drop cells

 Each p.o.r.
Brand:

Product
Ø 160 mm with 6 x Ø 40 mm water drop cells
Only for SMARTLAM 2.0 equipped with the SPRINGLAM
no. 06MLC4000

Order

Art.Description Unit PriceQuantity
06MLC4000

Ø 160 mm with 6 x Ø 40 mm water drop cells

 Each p.o.r.
Brand:

Product
Ø 160 mm with 5 x Ø 50 mm water drop cells
Only for SMARTLAM 2.0 equipped with the SPRINGLAM
no. 06MLC5000

Order

Art.Description Unit PriceQuantity
06MLC5000

Ø 160 mm with 5 x Ø 50 mm water drop cells

 Each p.o.r.
Brand:

Product
Ø 160 mm with 3 x rectangular 40 x 70 mm water drop cells
Only for SMARTLAM 2.0 equipped with the SPRINGLAM
no. 06MLC1200

Order

Art.Description Unit PriceQuantity
06MLC1200

Ø 160 mm with 3 x rectangular 40 x 70 mm water drop cells

 Each p.o.r.
Brand:

Product
Ø 160 mm with 6 x rectangular 25 x 34 mm water drop cells
Only for SMARTLAM 2.0 equipped with the SPRINGLAM
no. 06MLC1400

Order

Art.Description Unit PriceQuantity
06MLC1400

Ø 160 mm with 6 x rectangular 25 x 34 mm water drop cells

 Each p.o.r.
Brand:

Product
Aluminium Plate Ø200mm
no. 08 8270100

Order

Art.Description Unit PriceQuantity
08 8270100

Aluminium Working Plate Ø200mm

 Each p.o.r.
Brand:

Product
Aluminium Plate Ø230 mm
no. 08 8270200

Order

Art.Description Unit PriceQuantity
08 8270200

Aluminium Working Plate Ø230 mm

 Each p.o.r.
Brand:

Product
Aluminium plate Ø250 mm
no. 08 8270300

Order

Art.Description Unit PriceQuantity
08 8270300

Aluminium plate Ø250 mm

 Each p.o.r.
Brand:

Product
Aluminium plate Ø300 mm
no. 08 827040

Order

Art.Description Unit PriceQuantity
08 827040

Aluminium plate Ø300 mm

 Each p.o.r.
Brand:

Product
Transparent protective housing
The secured housing is a totally transparent protection
no. AGB6392

Description

The secured housing is a totally transparent protection compatible with the full range of MASTERLAM. Its opening stops all movements of the machine*, it offers
an integral protection complying with the 2006/42/ CE and 2004/108/CE standards.

The housing s design preserves the accessibility of the plate and does not clutter the workspace.

The touch screen is located outside of the secured zone; therefore, the commands are permanently accessible.

*However, the transparent secured housing authorises the plate rotation in the manual mode.

For machines MASTERLAM1.0 & 3.0
For the MASTERLAM1.0 and 3.0 the touch screen control panel is located on the right, a 195 mm space needs to be foreseen in addition to the machine width.

Space: width 770 mm, height 910 mm
For machine MASTERLAM1.1
Space: width 880 mm, height 910 mm

Order

Art.Description Unit PriceQuantity
AGB6392

Transparent protective housing

 Each p.o.r.
